Большая популярная Шаговая плитка бэмбо металлическая глазурованная стальная листовая рулонная форма машина для изготовления
- Категория: Building Material Machinery >>>
- Поставщик: Xiamen,Bms,Group
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1300349.88 $* | 1365366.22 $* |
| Aug-18-2025 | 1289421.11 $* | 1353892.12 $* |
| Jul-18-2025 | 1081803.35 $* | 1135893.92 $* |
| Jun-18-2025 | 1267567.37 $* | 1330945.72 $* |
| May-18-2025 | 1103657.37 $* | 1158840.21 $* |
| Apr-18-2025 | 1245712.60 $* | 1307998.21 $* |
| Mar-18-2025 | 1234785.42 $* | 1296524.57 $* |
| Feb-18-2025 | 1223858.85 $* | 1285051.40 $* |
| Jan-18-2025 | 1212930.64 $* | 1273577.82 $* |
Характеристики
Product Description

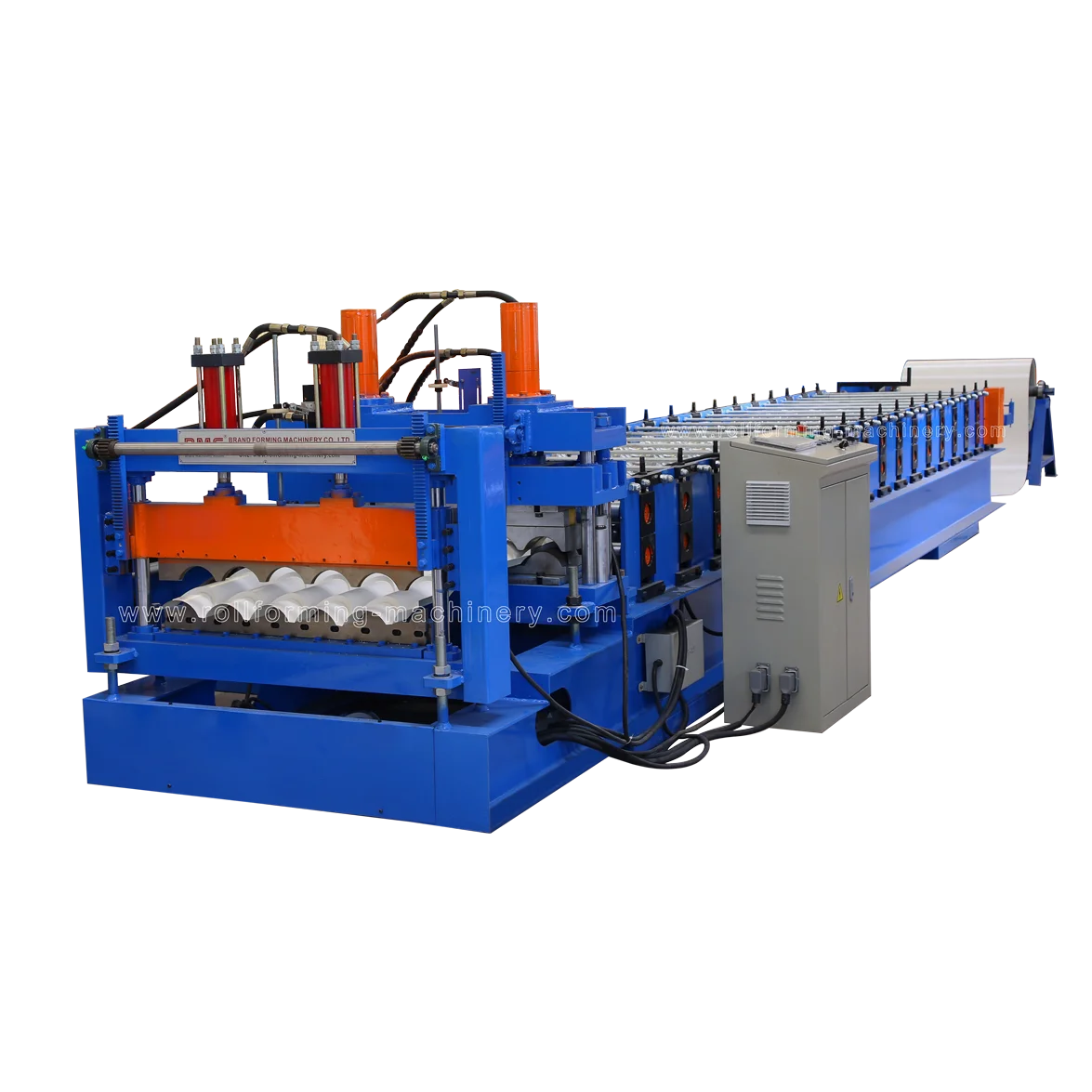

| Product Name | Big Bamboo Tile Roll Forming Machine | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI |
| Material thickness | 0.12-0.5mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Base frame | H400/450 type steel |
| Roller material | 45# steel | |
| Hardness | Heat treatment to HRC58-62 degree | |
| Roller station | 18 o r22steps to form | |
| Shaft diameter | 80mm/75mm | |
| Machine size | 10000*2000*2000mm | |
| Machine weight | 10000 | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard | |
| Working speed | 15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degree |
| Cutting tolerance | ≤±1mm | |
| Material | Cr12MoV(= Z200C12 with at least one million times of cutting life) | |
| Operate | By PLC | |
| Power | Driving way | Gear/Sprocket transmission, |
| Main motor | 7.5KW | |
| Pump motor for cutter | 3.0kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph --should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/DELTA (Taiwan brand) |
| Touch screen | WEINVIEW(Taiwan brand) | |
| Encoder | KOYO (Japan brand) or OMRON (Japan brand | |
| Cut-to-length tolerance | ≤±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |
