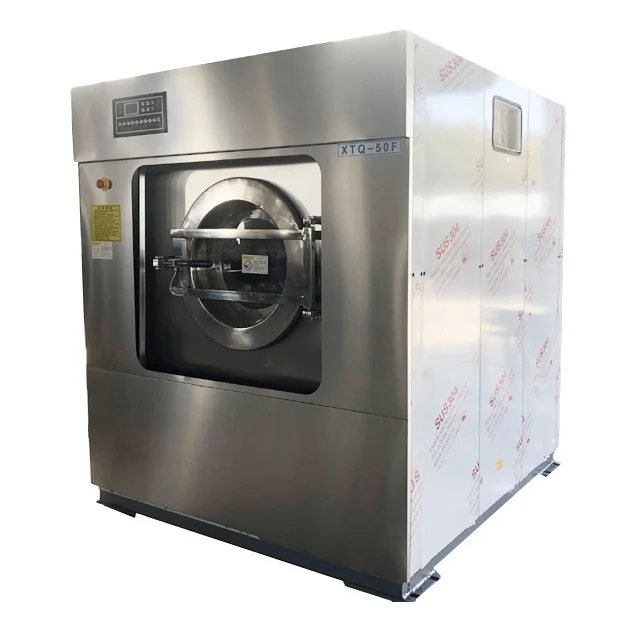

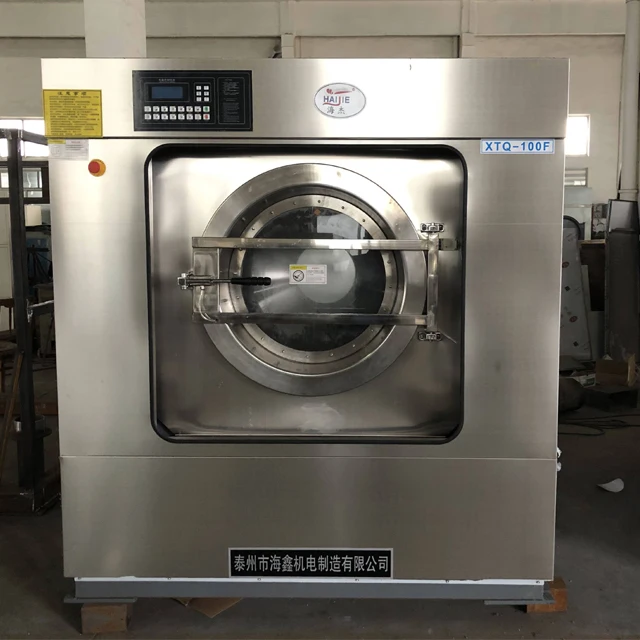

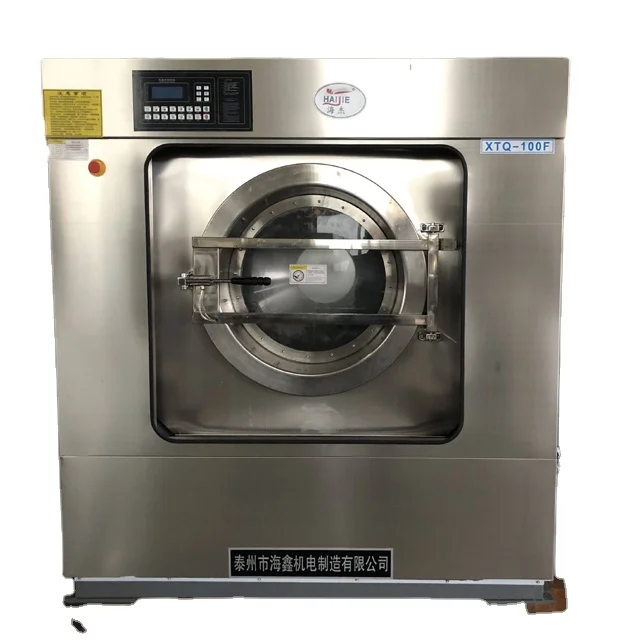

Hospital industrial automatic textile tilt washing dewatering machine
Product introduction | Specially designed to improve the efficiency of laundry work, it can be tilted forward by 15 degrees, achieving smooth automatic discharge and reducing labor intensity. At the same time, combined with the patented shock absorption structure, it solves the vibration problem of washing machine dehydration. |

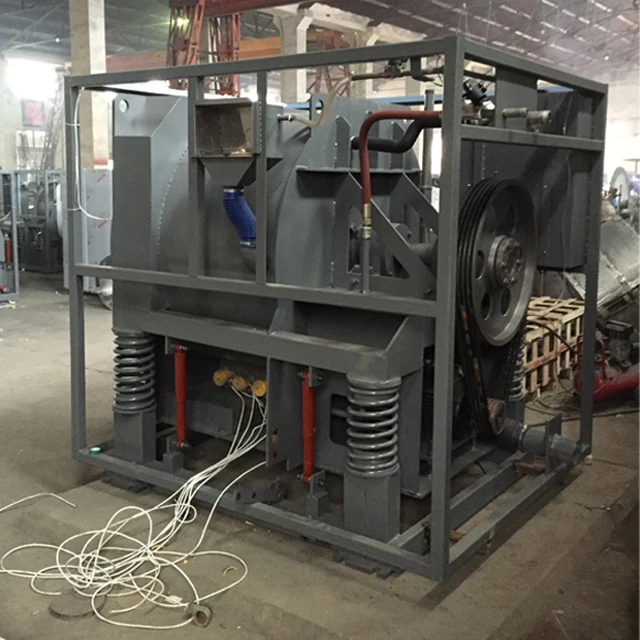

Performance characteristics | 1) The forward tilt angle is 15 degrees, which can be automatically and automatically discharged; the modular design, the main structure is the same as the UW series, and can be upgraded on site; using a touch screen controller; 2) Powerful inclined ground plate, cylinder lifting control, simple and stable structure; front end hinge fixed, rear tapered guiding positioning, washing, reliable work; 3) Cylinder intake, return air throttle control valve. This makes the device move more smoothly during unloading and resetting. 4) Lower hanging composite patented damping system, low center of gravity and heavy load stable design, shock absorption rate of up to 98%, high speed operation is more stable. 5) The key components such as panel, inner tank, outer cylinder, water tank and door body are made of high quality stainless steel, which has higher anti-corrosion performance. 6) Independently cooled closed electrical box design greatly reduces the adverse effects of fluff, dust, moisture and temperature rise on the operational reliability of electrical components. 7) 30 sets of programmable programs, and data copy and online upgrade, automatic control features powerful, flexible and professional. |
Type | XTQ-100H | XTQ-120H |
Rated Capacity | 100kg | 120kg |
Minimum | 70kg | 100kg |
maximum | 100kg | 120kg |
Liner size | ||
diameter | 1200mm | 1300mm |
Diameter | 830mm | 850mm |
volume | 940Lit | 1128Lit |
Dimensions | ||
long | 1860mm | 1960mm |
width | 2100mm | 2300mm |
high | 2200mm | 2300mm |
Cage speed | ||
Washing speed | 31r/min | 31r/min |
Uniform rotation speed | 65r/min | 65r/min |
Neutral | 310r/min | 310r/min |
High off | 680r/min | 680r/min |
Drain valve | 140mm | 140mm |
Hot water pipe | 3/2” | 3/2” |
Cold water pipe | 3/2” | 3/2” |
Steam pipe | 1” | 1” |
Steam consumption per cylinder | 50kg | 60kg |
Washing water consumption | 1800kg | 2000kg |
power supply | Standard:380+N-3PH-50Hz | |
Motor Power | 7.5kw | 11kw |
Electric heating power | 45kw | 45kw |
Machine weight about | 3500kg | 4000kg |
Hospital industrial automatic textile tilt washing dewatering machine
