Контроллер двигателя PMSM 30 кВт для электромобиля с зарядным устройством
- Категория: Motor Controllers >>>
- Поставщик: Foshan,Green,Electric,Vehicle,Techology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1190.64 $* | 1250.35 $* |
| Aug-18-2025 | 1180.8 $* | 1239.22 $* |
| Jul-18-2025 | 990.62 $* | 1040.67 $* |
| Jun-18-2025 | 1160.72 $* | 1218.62 $* |
| May-18-2025 | 1010.31 $* | 1061.32 $* |
| Apr-18-2025 | 1140.8 $* | 1197.9 $* |
| Mar-18-2025 | 1130.33 $* | 1187.29 $* |
| Feb-18-2025 | 1120.74 $* | 1176.61 $* |
| Jan-18-2025 | 1110.98 $* | 1166.11 $* |
Характеристики
.

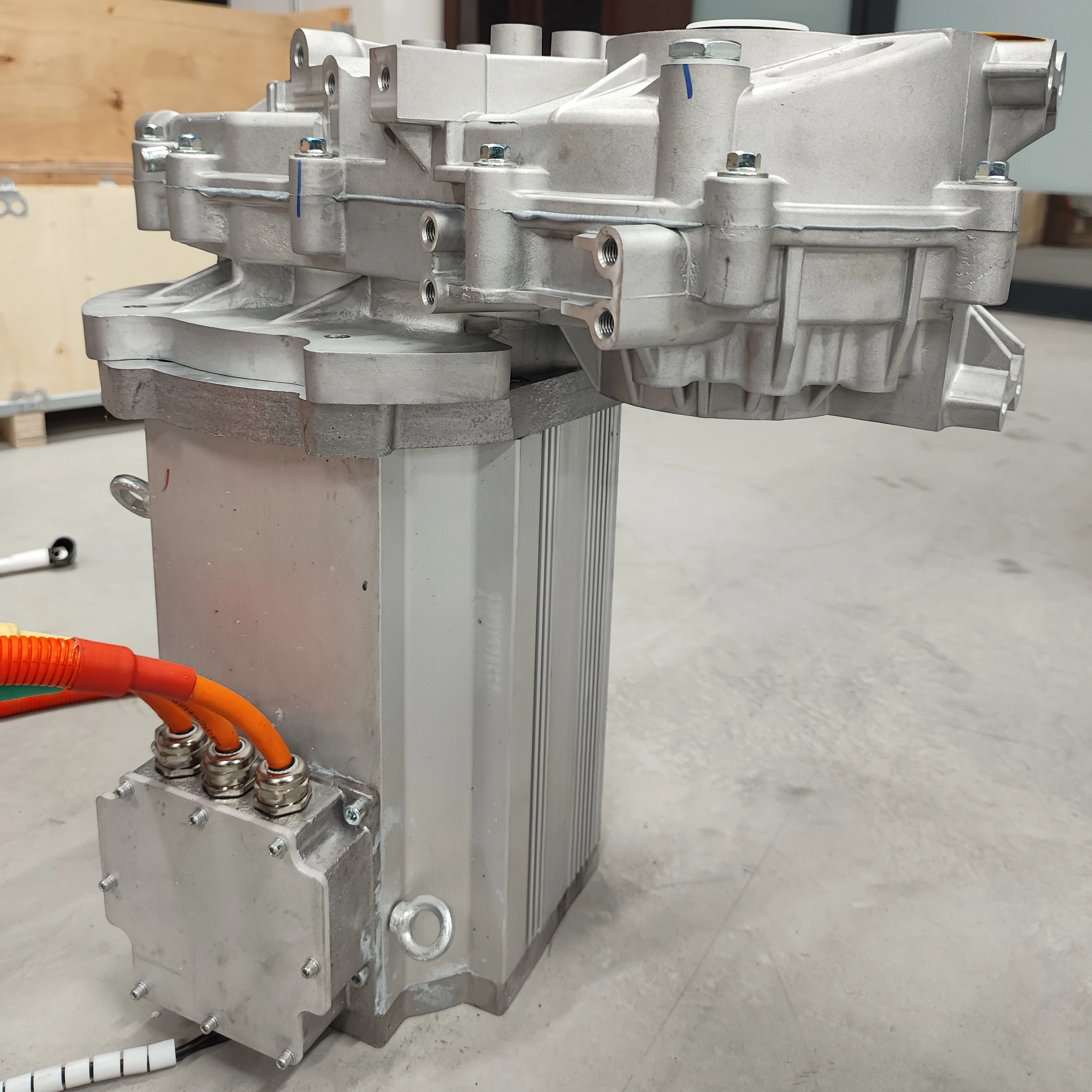

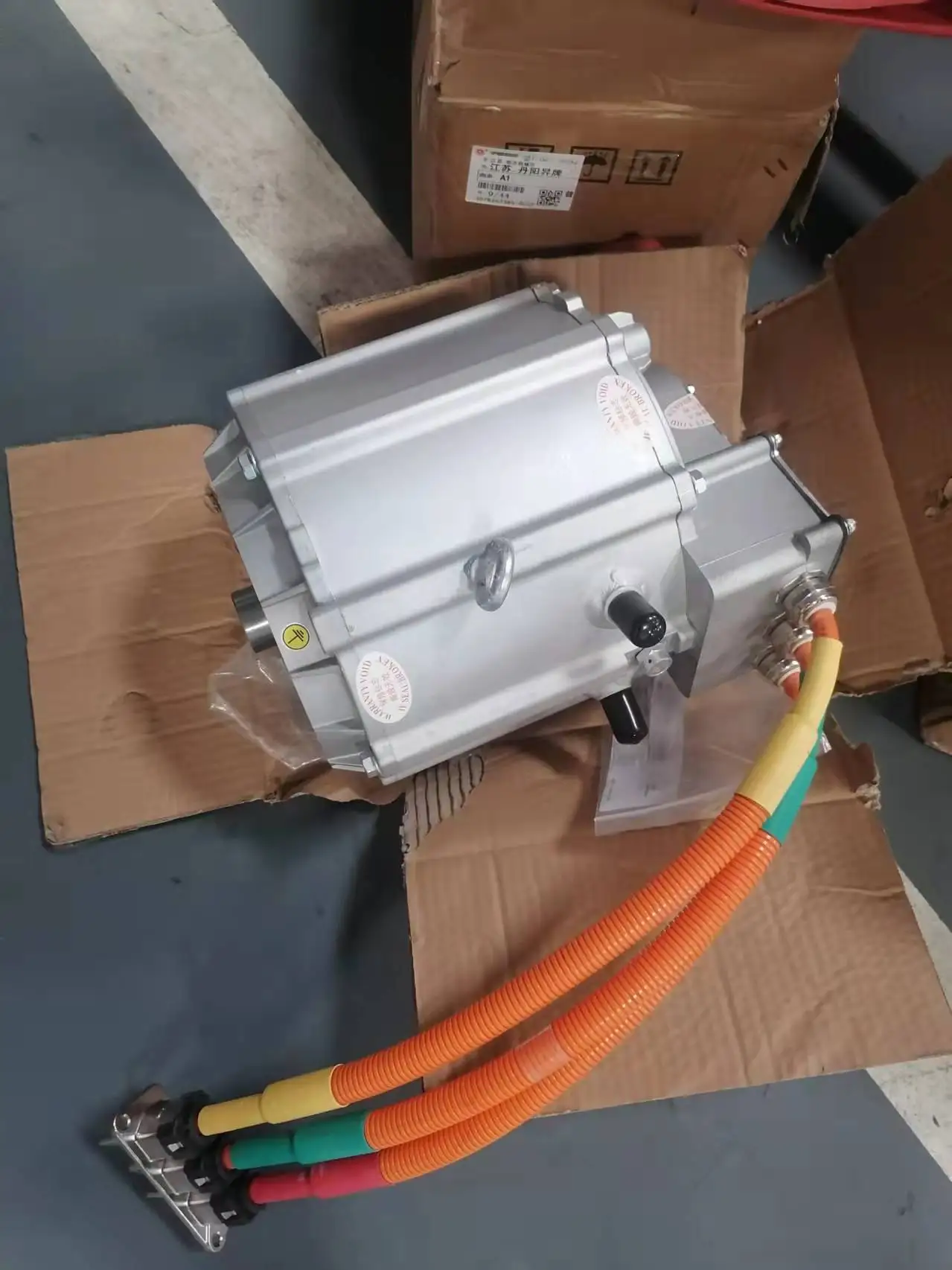

Rated power 30KW, Max 60KW PMSM , Liquid cool .
Protection Grade: IP67
Peak speed : 9000 RPM
Peak torque: 200 N.m
Weight: 40Kg

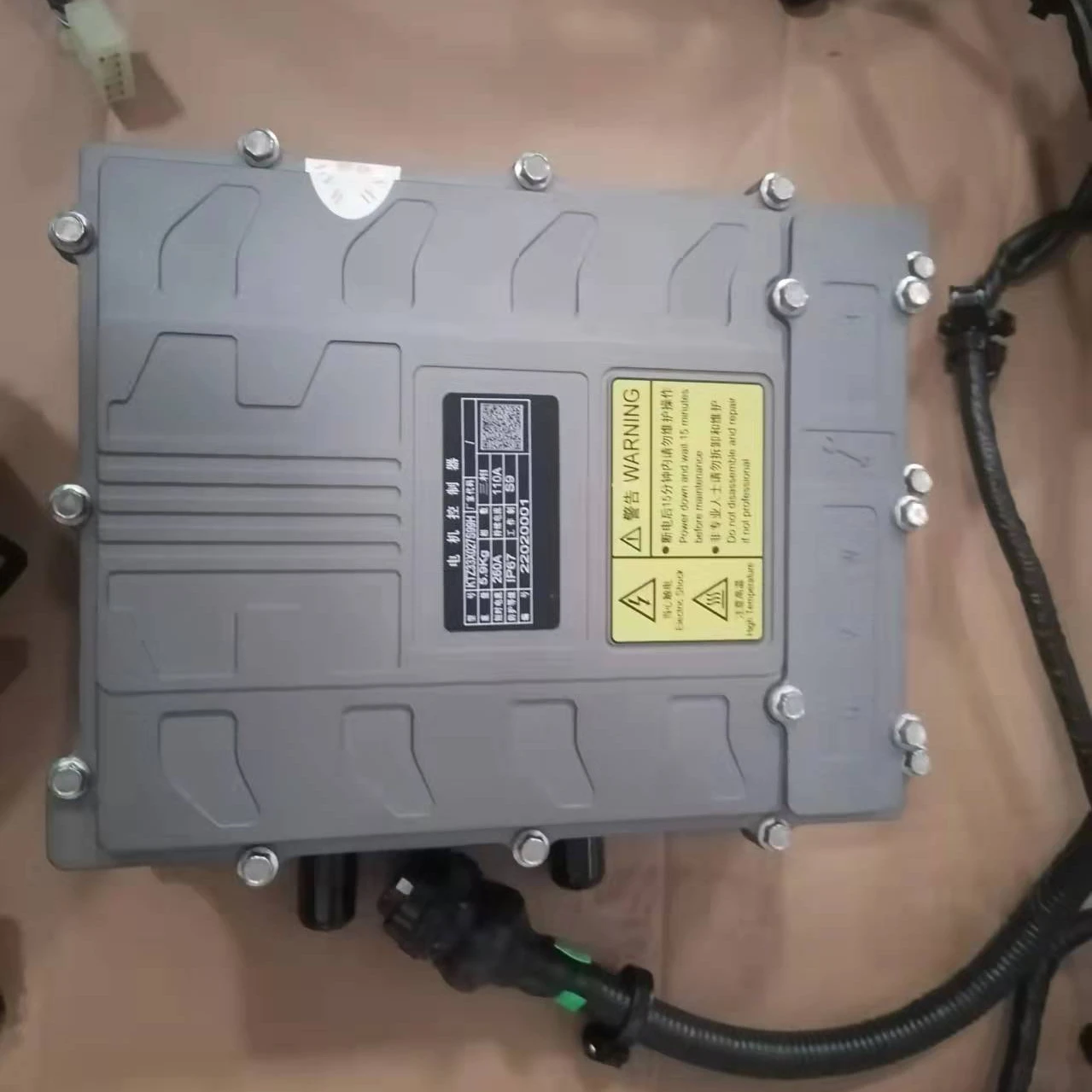

Controller Liquid cool
Voltage: 250V ~450V
Rated current: 100A/ 230A
Protection grade: IP67
Weight : 15Kg
Max current: 260A ~450A
Protection grade: IP67
Capacity: 125Ah 43 kwh
Battery type: Lithium iron phosphate battery
Service life: 200000 km
Size: The sample not support for customize
Auxiliary battery: 12V
MSD: Manual Service Disconnect

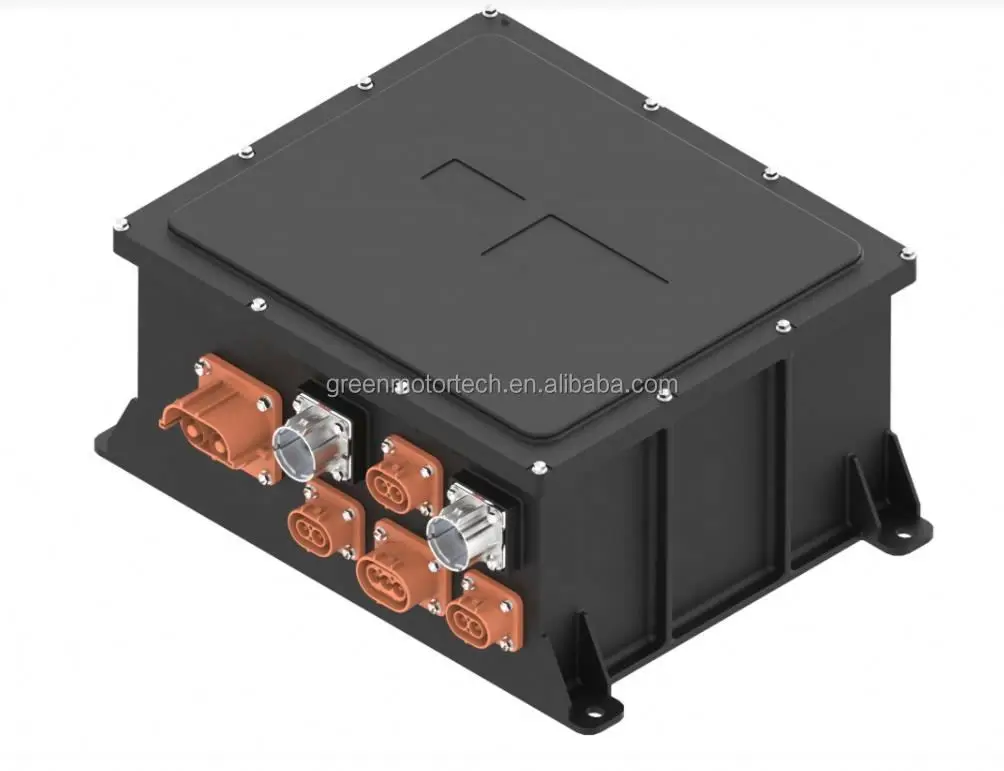

Power Distribution Unit (PDU)
It contains DC-DC Converter , relay, contactor, fuse, and Current hall sensor....
Protection grade : IP67
It has the function of real-time current monitoring , protect the systerm.
Vehicle Controller Unit
It's the brain of whole vehicle, it output the wire of accelerator, gear stall, key switch wire..
Collecting the signal of brake pedal, Accelerator, gear stall and other sensors.
Application
Mini EV, Small vans, trucks and other vehicles. The maxle speed can reach 100Km/h.
