Адрес писать и тестирование DMX SPI цифровой светодиодной лампой Светодиодная лента DVI онлайн подстветка мастер-контроллер XB-809 поддержка:


Поделиться:


Цена:240,00 $ - 260,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 286.70 $* 300.6 $*
Aug-17-2025 283.97 $* 297.28 $*
Jul-17-2025 238.47 $* 250.55 $*
Jun-17-2025 278.21 $* 292.42 $*
May-17-2025 242.23 $* 254.27 $*
Apr-17-2025 274.35 $* 288.25 $*
Mar-17-2025 271.68 $* 285.40 $*
Feb-17-2025 269.12 $* 282.20 $*
Jan-17-2025 266.91 $* 279.96 $*

Характеристики





Title goes here.
1. Features of master controller

Salient features:

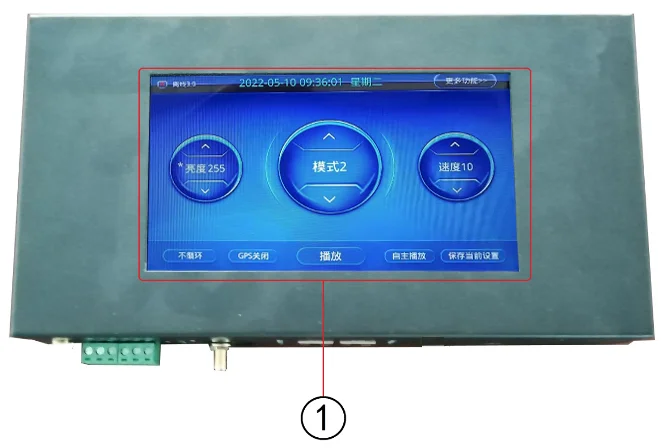

1. Ultra-large touch screen, intuitive display, quick and simple operation, controller status monitoring at any time.
2. Powerful performance, able to load up to 160,000 pixels or 80 slave controllers
3. Adopting GPS/Beidou dual satellite synchronization module to realize the synchronization of each frame between multiple devices.
4. Equipped with RS-485 ports (Modbus) and UDP ports for connecting to third-party devices.
5. Supporting Bluetooth control, mobile phone control, real-time PC/mobile phone APP control, LAN file replacement, and the Internet remote file replacement.
6. Supporting timing play and multi-level encryption function.

General features:
1. The play content is stored in the SD card, which can store up to 32 effect files. The SD card capacity supports 4G-32GB, supporting single effect play, effect cyclic play, and effect acceleration and deceleration.
2. The master controller can automatically/manually the slave IDs. Multiple controllers can be set together or individually.
3. The master controller has multiple built-in effects and dimming function to test the loaded multi-channel lamps.
4. The controller has DMX512 address writing and testing functions. It can write address for DMX512 IC loaded on single port or all ports, and test the address.
5. The controller adopts standard TCP/IP network protocol, and the signal transmission is more stable. 100-BASE/1000-BASE transmission rate can be selected.
6. It can be used offline with our T-730/T-790 and can carry up to 160,000 pixel points or 80 controllers.

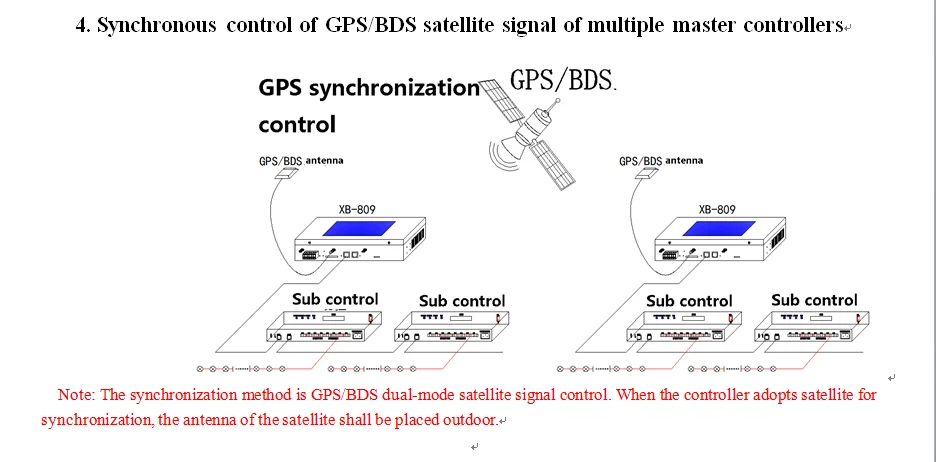

7. Support GPS/BDS dual-mode-satellite synchronization, wireless RF synchronization, and GPS/BDS dual-mode cyclic
synchronization.
8. IC controller for DMX lamps comes with address writing function.
9. Support controller:

T-790/T-790D/T-750/T-730




Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
