2022 заводская цена печь для обжига гипса/полная линия по производству гипсового порошка/оборудование измельчения
- Категория: Building Material Machinery >>>
- Поставщик: Henan,Turui,Machinery,Co.,Ltd.Henan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 15232.54 $* | 15994.16 $* |
| Aug-16-2025 | 15104.10 $* | 15859.95 $* |
| Jul-16-2025 | 12672.25 $* | 13306.5 $* |
| Jun-16-2025 | 14848.83 $* | 15590.17 $* |
| May-16-2025 | 12928.26 $* | 13574.51 $* |
| Apr-16-2025 | 14592.61 $* | 15322.60 $* |
| Mar-16-2025 | 14464.43 $* | 15187.66 $* |
| Feb-16-2025 | 14336.22 $* | 15053.90 $* |
| Jan-16-2025 | 14208.88 $* | 14918.92 $* |
Характеристики
Product Description

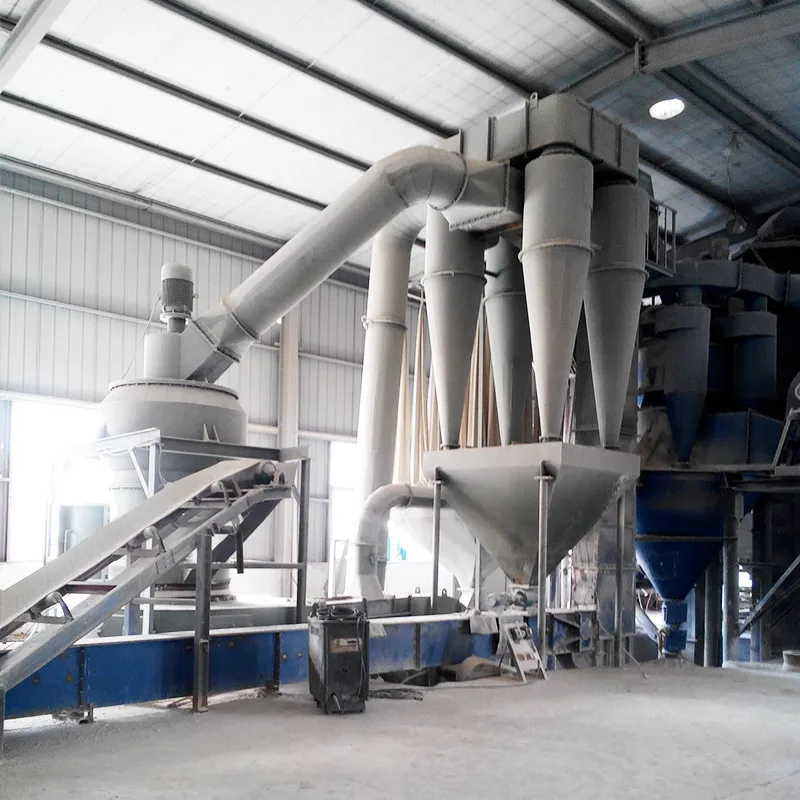

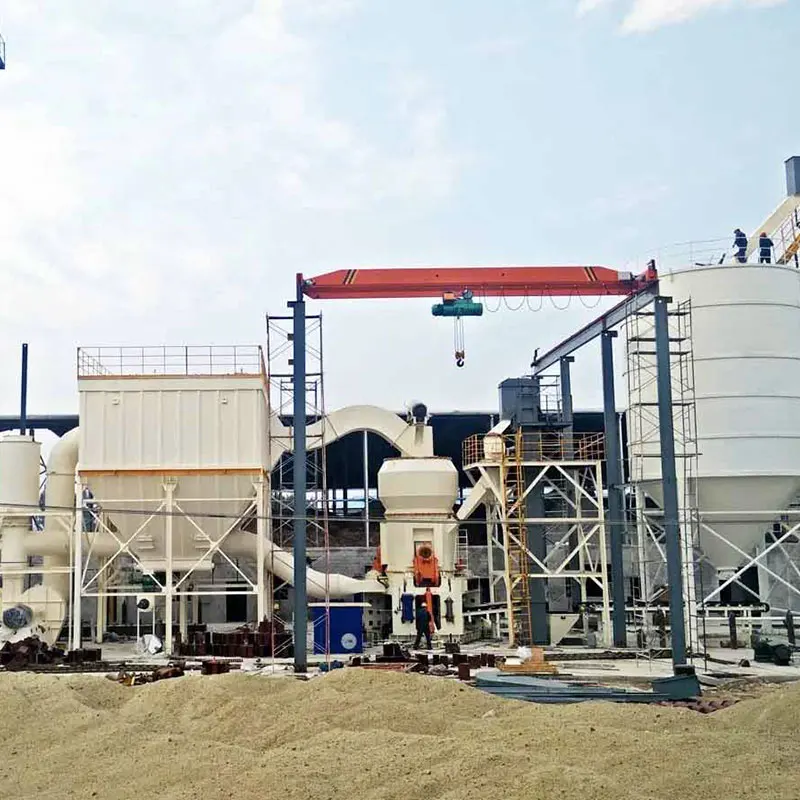

Powder grinding plant is also called powder making plant, which is widely used for the powder making in mining, power, chemical industry, building materials, metallurgy, refractory materials, desulfurization of power plant, asphalt mixing station and highway industry, and the product size is adjustable in the range of 20 – 3250 meshes.
TURUI Machinery can not only provide powder grinding plant with wide selection ranges, reasonable matching, reliable quality and high performance price ratio for customers, but also offer the overall design and construction scheme of grinding operation as well as the turnkey project of the grinding field.
Application
Application Ranges of factory price gypsum calcination kiln complete gypsum powder production line gypsum grinding equipment：
It is often used for the grinding and processing of materials in metallurgical, building materials, chemical industry and mining industry, which is suitable for feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramic, bauxite, manganese ore, phosphate rock, red iron oxide, quartz sand, cement clinker, activated carbon, coal gangue, clay, gypsum, silicon carbide, refractory materials and other non-flammable and explosive mineral powder materials with below level 8 Mohs hardness and less than 6% humidity.
The Configuration of factory price gypsum calcination kiln complete gypsum powder production line gypsum grinding equipment：
Powder grinding plant is usually composed of jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding machine motor, analysis machine (powder separator), auxiliary equipment, blower, centralized electronic device. It also can be configured with micro powder mill, high pressure grinding mill, ultrafine mill, Raymond mill, tricyclic medium-speed micro powder mill or vertical mill according to the different needs of customers.
Powder grinding plant is usually composed of jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding machine motor, analysis machine (powder separator), auxiliary equipment, blower, centralized electronic device. It also can be configured with micro powder mill, high pressure grinding mill, ultrafine mill, Raymond mill, tricyclic medium-speed micro powder mill or vertical mill according to the different needs of customers.

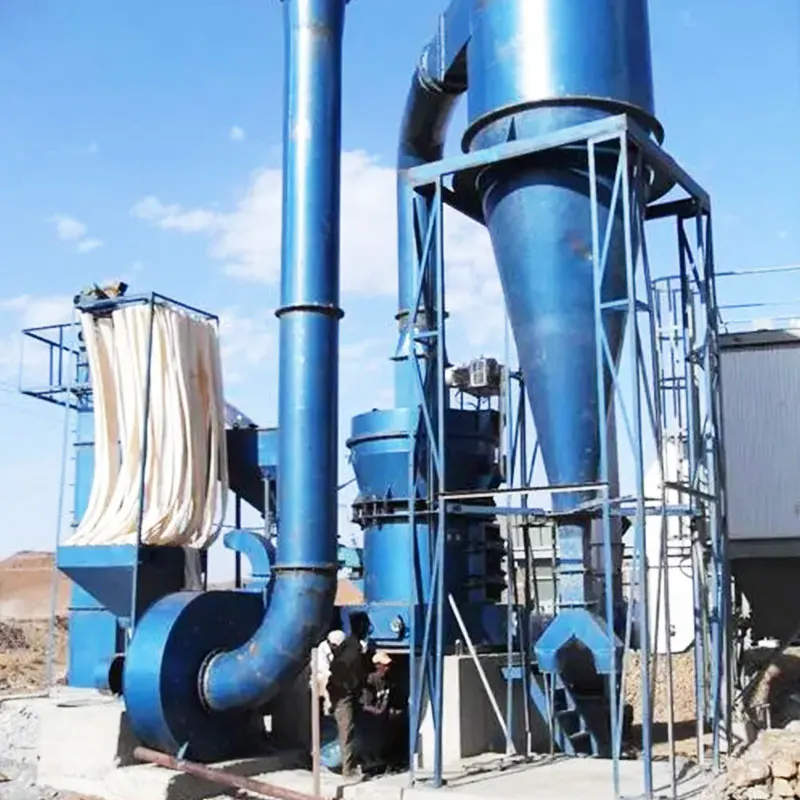

Description of Raymond Grinding Mill
Henan Turui Raymond grinder is the new generation of high-fine powder grinding equipment with high-efficiency and closed cycle, which can replace the ball mill. And it can meet different requests under the combined effect of analyzer and fan.
Raymond Grinding Mill Advantages
1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From the crushing of raw material to the grinding and packing, it is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made of cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

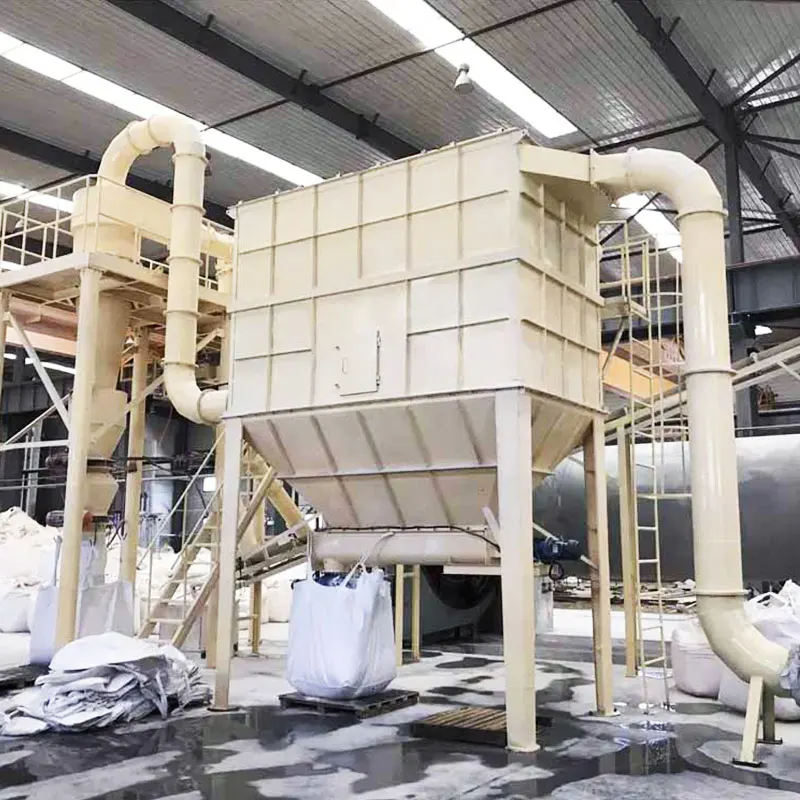

6. Equip with efficient dust collector, no dust leaking, clean working environment.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made of cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
6. Equip with efficient dust collector, no dust leaking, clean working environment.
Working Principle
Working Principleof Raymond Grinding Mill
1. The whole structure of Raymond Mill machine is mainly including the host, analysis machine, plumbing fixtures and the blower, according to user needs, it can be equipped with crusher, elevator, electromagnetic vibrating feeder, electric control cabinet etc.2. After materials crushed to the desired particle size, enter into the storage hopper by the elevator, and then through vibrating feeder enter into grinding chamber of Raymond mill uniform continuously.
3. Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller roller rolling to achieve crushing purpose.
4. After grinding material, the powder along with the circulating air which made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into finished product cyclone powder collector, then discharge powder tube, that is finished product.
5. In the grinding chamber of Raymond mill, because there are certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill wok under negative pressure. The increased air flow enter into the dust through the duct, at last enter into the atmosphere after purification.
Technical Parameter
Grinding mill | YGM75 | YGM95 | YGM130 | YGM160 | YGM190 | ||||||
Main Equipment | Capacity | 0.8-1.5t/h | 2.5-4t/h | 4.5-7t/h | 7-11t/h | 11-15t/h | |||||
Grinding mill Power | Main Grinder | 18.5 | 45 | 90 | 132 | 185 | |||||
Blower | 15 | 37 | 90 | 132 | 185 | ||||||
Classifier | 2.2 | 5.5 | 7.5 | 15 | 22 | ||||||
Jaw Crusher | Model | PE150X250 | PE200X350 | PE250X400 | PE250X750 | PE250X750 | |||||
Power(Kw) | 5.5 | 7.5 | 15 | 22 | 22 | ||||||
Input size (mm) | ≤130 | ≤150 | ≤210 | ≤210 | ≤210 | ||||||
Output size (mm) | 15-45 | 15-55 | 25-60 | 25-60 | 25-60 | ||||||
Elevator | Model | T210 | T210 | T250 | T315 | T400 | |||||
Power(Kw) | 3 | 3 | 3 | 4 | 4 | ||||||
Feeder | Model | GZ-2 | GZ-4 | GZ-4 | GZ-5 | GZ-5 | |||||
Power(Kw) | 0.15 | 0.45 | 0.45 | 0.65 | 0.65 | ||||||
Silo | According to the actual situation, we choose the suitable size for you. | ||||||||||
Main Features and Function of Powder Grinding Plant
1. It has rational structure design, which has strong adaptability to materials; wide application ranges; the configuration has great flexibility and high yield; the material has short staying time in the mill, so as to reduce the duplication of milling; low energy consumption, stable product quality.
2. The equipment adopts high quality material, which has abrasion resistance, long service life, strong ability to adapt to the environment; it has open layout, which has high degree of automation, convenient operation, low noise, and the system works under negative pressure without pollution to the environment.
1. It has rational structure design, which has strong adaptability to materials; wide application ranges; the configuration has great flexibility and high yield; the material has short staying time in the mill, so as to reduce the duplication of milling; low energy consumption, stable product quality.
2. The equipment adopts high quality material, which has abrasion resistance, long service life, strong ability to adapt to the environment; it has open layout, which has high degree of automation, convenient operation, low noise, and the system works under negative pressure without pollution to the environment.
Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts, Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
Packaging & Shipping
Packaging Details:We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
