Mezeen dc предохранитель PV фотоэлектрическая система 1-15A 20A 30 Amp 1000V Din Rail
- Категория: >>>
- Поставщик: Yueqing,Beibaixiang,Xingpeng,Electrical,Switch,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.14 $* | 0.78 $* |
| Aug-16-2025 | 0.31 $* | 0.82 $* |
| Jul-16-2025 | 0.34 $* | 0.95 $* |
| Jun-16-2025 | 0.49 $* | 0.53 $* |
| May-16-2025 | 0.53 $* | 0.55 $* |
| Apr-16-2025 | 0.78 $* | 0.69 $* |
| Mar-16-2025 | 0.32 $* | 0.83 $* |
| Feb-16-2025 | 0.33 $* | 0.7 $* |
| Jan-16-2025 | 0.16 $* | 0.49 $* |
Характеристики
Product Category
Product features
Fuse link is made of pure silver (or made of silver strings), welding low tin and encapsulated in the melt tube made of high-strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected with contacting terminals by spot welding Fuse base made by special plastic fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and convenient device, use security, beautiful appearance, etc.
The around temperature max value can be up to 90 ℃, min limit value up to -40 ℃.

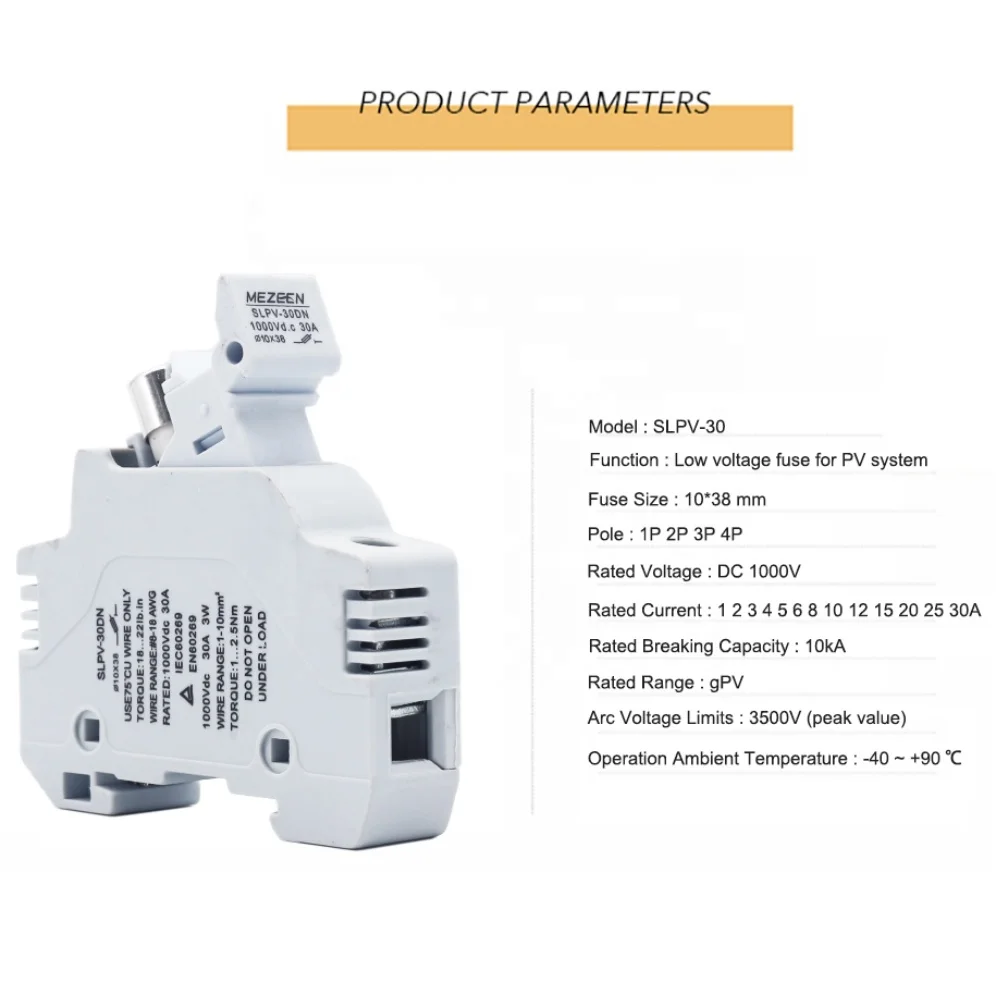

| Fuse base model | Dimensions of the fuse | Rated voltage | Rated current |
| SLPV-30 | 10*38 | DC 1000V | 1 /2/3/4/5/6/8/10 /12 /15/20/25/30A |

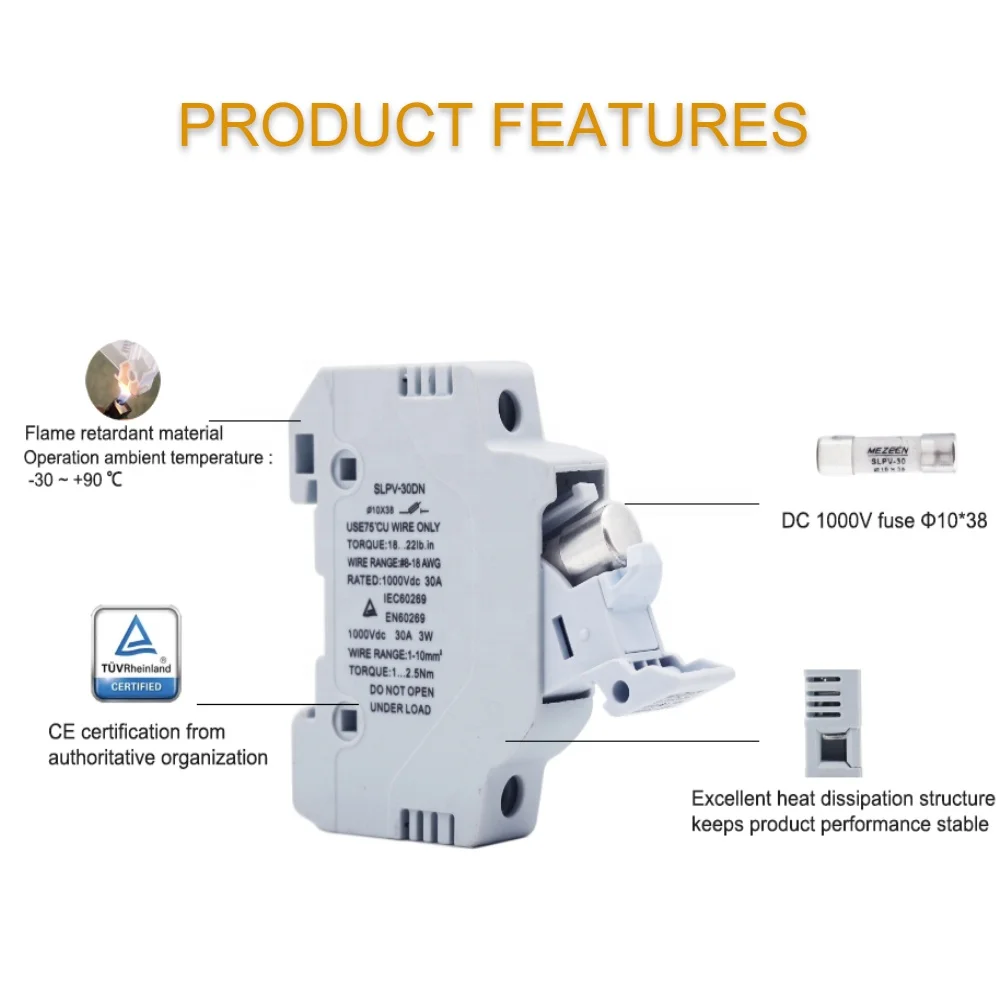

PV FUSE FEATURES
PV FUSE DIMENSIONS
MATCHING DC FUSE

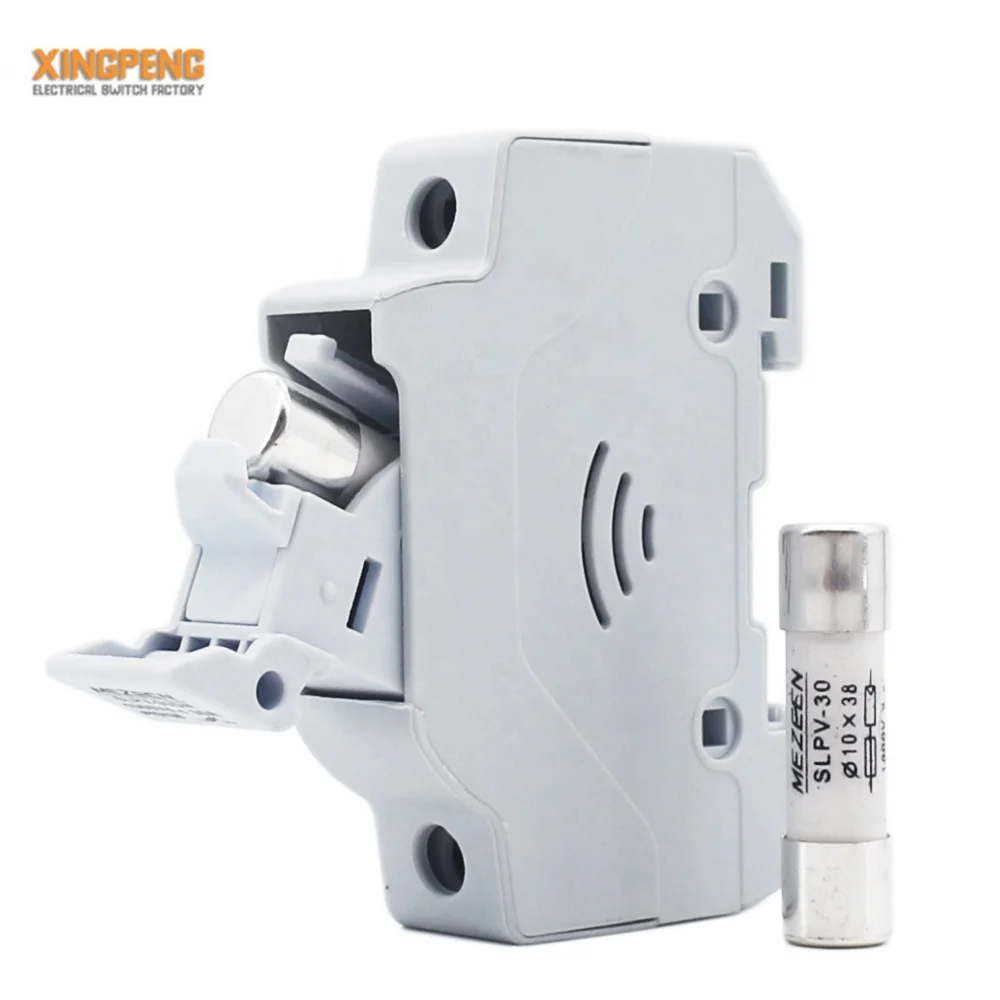

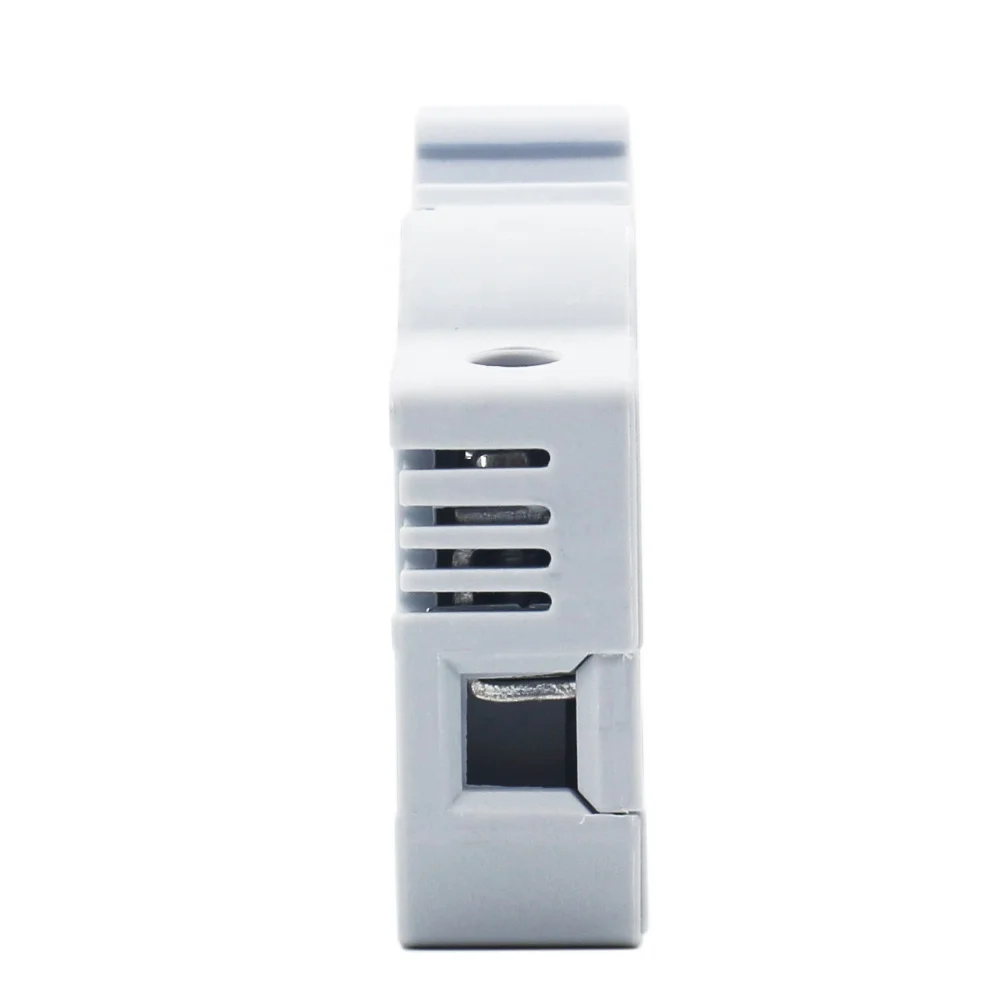

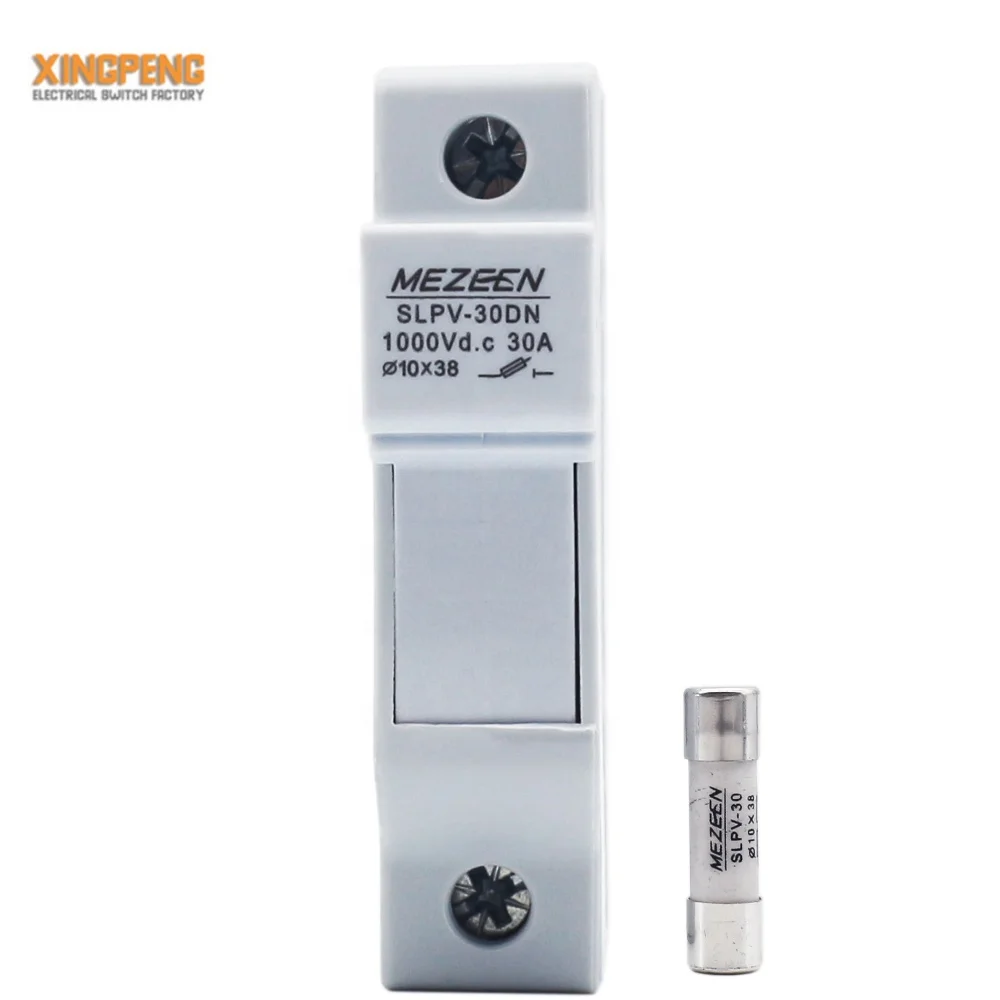

PV FUSE PHOTOES
Packaging
DC 1000V Fuse Package:
Standard export carton packing:
DC 1000V fuse holder : 240 pcs/ctn
Carton Size : 38.5 * 32.6 * 23 cm
G.W./N.W. : 22/ 21kgs
DC 1000V PV FUSE Time:
3-20 days after confirming order,detail delivery date should be decided according to order quantity.
DC 1000V PV FUSE Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. DHL UPS.... ect express.
Company Information
FAQ
1
If I'm interested in your Fuse,when can I receive your quotation and detail information after send the enquiry?
All your enquiry will be replied within 8 hours.
2
Can I get samples before place an order ? because I really don't know how is your duplex receptacle quality.
Of course! We also believe that sample order is the best way to prove the quality.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
3
Can you print our own logo?
Yes,Our company are available for OEM.
4
How long is the quality guarantee?
2 years warranty for fuse holder,our products are 100% inspection.
5
How long is the delivery time?
It usually takes about 3-5 working days for sample order,and 10-20 days for official order.
