ZEEMO производитель строительных лесов швартовая башня для
- Категория: Scaffoldings >>>
- Поставщик: SHANDONG,ZEEMO,CONSTRUCTION,TECHNOLOGY,CO,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.93 $* | 13.64 $* |
| Aug-16-2025 | 12.16 $* | 13.61 $* |
| Jul-16-2025 | 10.70 $* | 11.84 $* |
| Jun-16-2025 | 12.46 $* | 13.77 $* |
| May-16-2025 | 10.98 $* | 11.28 $* |
| Apr-16-2025 | 11.86 $* | 12.4 $* |
| Mar-16-2025 | 11.81 $* | 12.52 $* |
| Feb-16-2025 | 11.48 $* | 12.20 $* |
| Jan-16-2025 | 11.51 $* | 12.99 $* |
Характеристики
Specification
Product Name | Scaffolding Tower Shoring | ||||||
Type | ZM-TJA | ||||||
Standard Components | Bottom frame、 Knee brace、 Foot jack、 Standard frame、 Head jack、 Hair-pin | ||||||

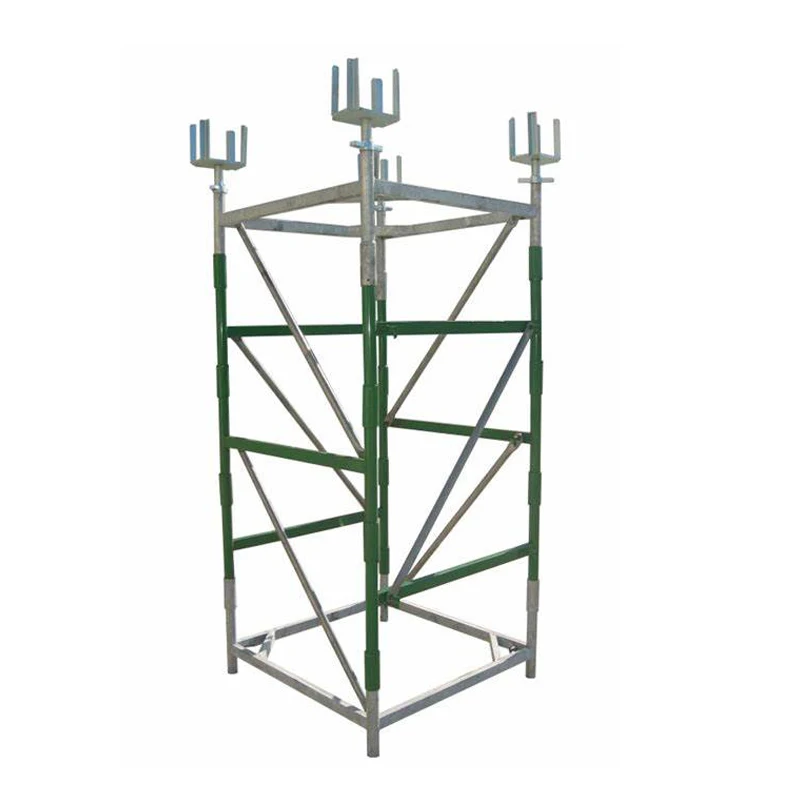

The Scaffolding Tower Shoring is an effective and new-style supporting system of formwork.
A single bracket is made up of poling, web-member, level-pole, they are made by tubes. They can construct backstop into any height, together with knee brace and horizontal brace. It is tower structure, so the bearing capacity and stability is good. If tower is higher than the common height, we can use the common scaffolding tube, fastener and shear brace to become a steady support system.
The product components have high degree of standardization therefore the assembly and disassembly are rapidly and have more turnover times.
It can be widely used for the construction of industry, residential buildings, bridges, tunnels, dams etc.
The cross-section of
Tower ZM-TJA is
1000X1000mm，
and the dimension of
main upright pole isΦ48x3.5mm.
The whole Tower has only six standard components.
All of them are treated by hot galvanize.
Standard Components of ZM-TJA
Scaffolding Tower Shoring can be widely used in normal structure, heavy load structure and special structure.
The sketches are shown below:
The sketches are shown below:

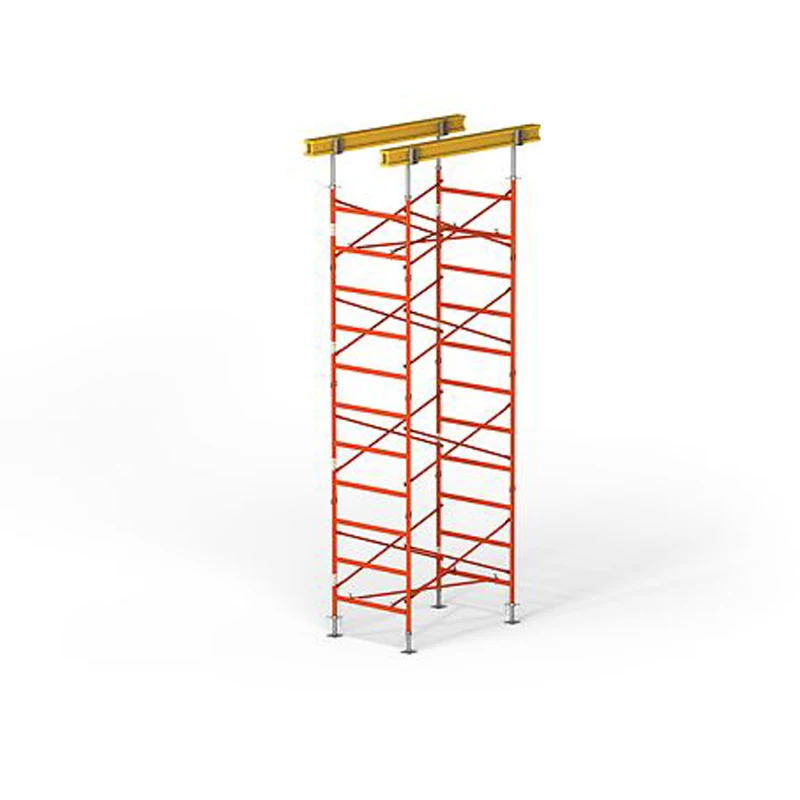

1.Normal Structure

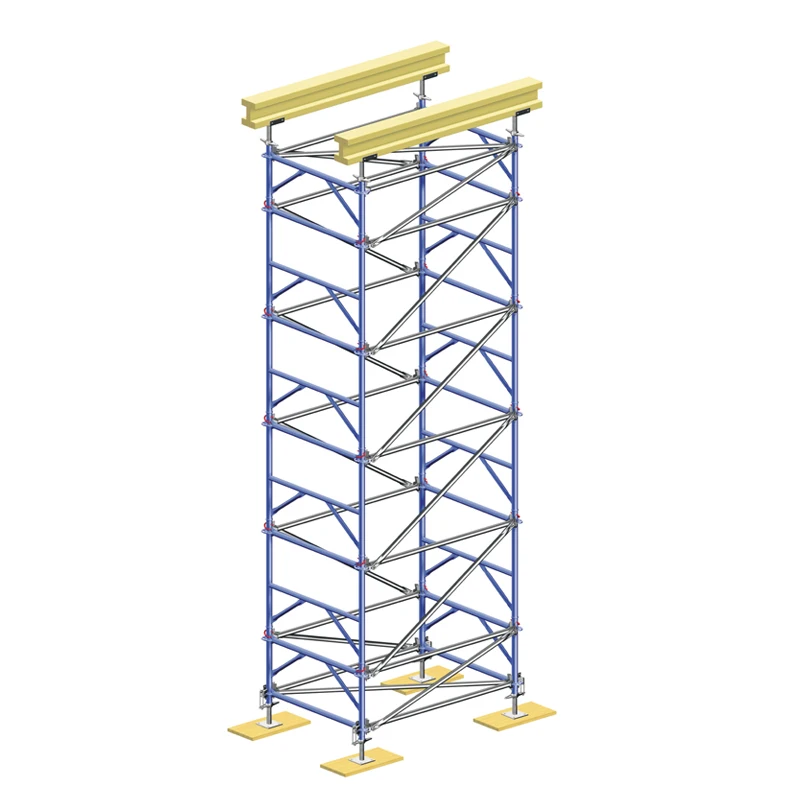

2.Heavy Load Structure
3. \tSpecial Structure

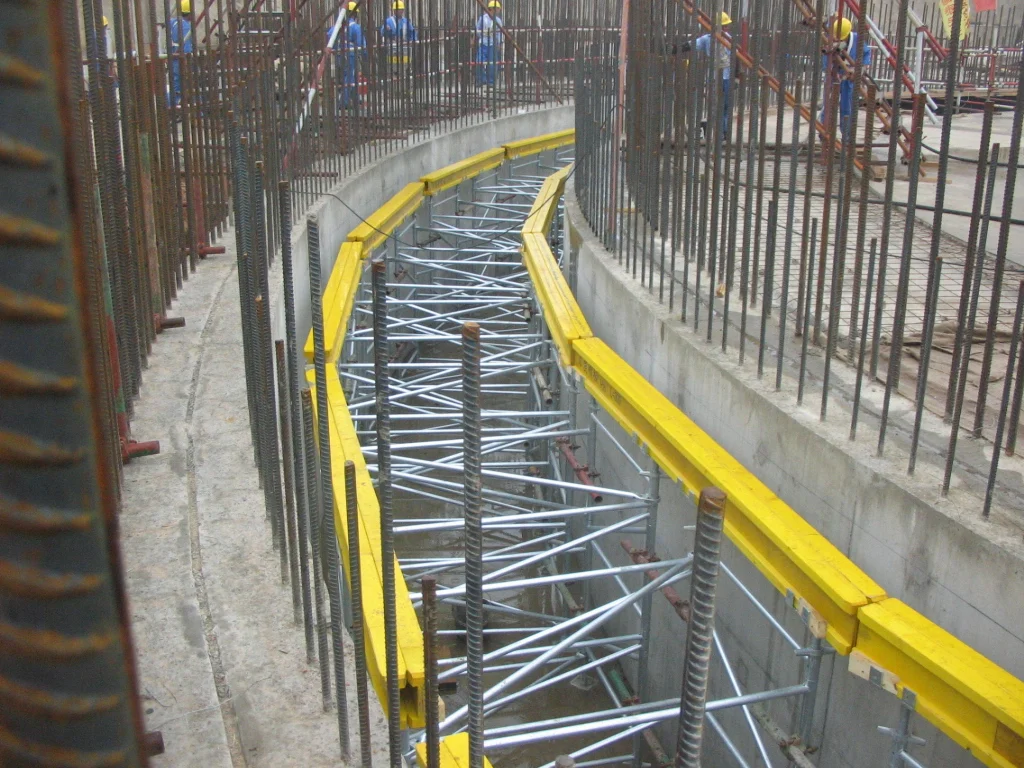

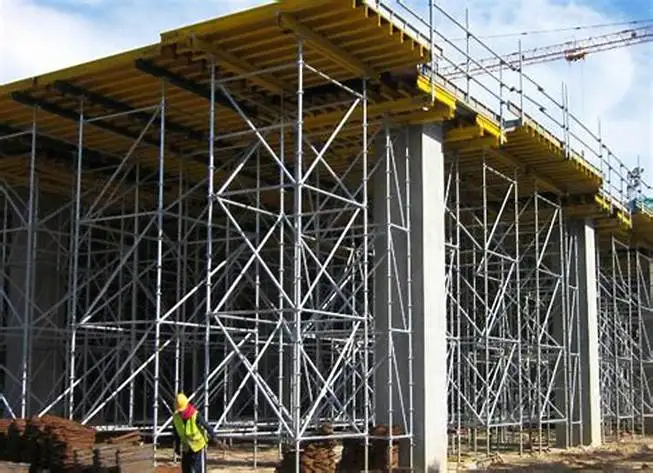

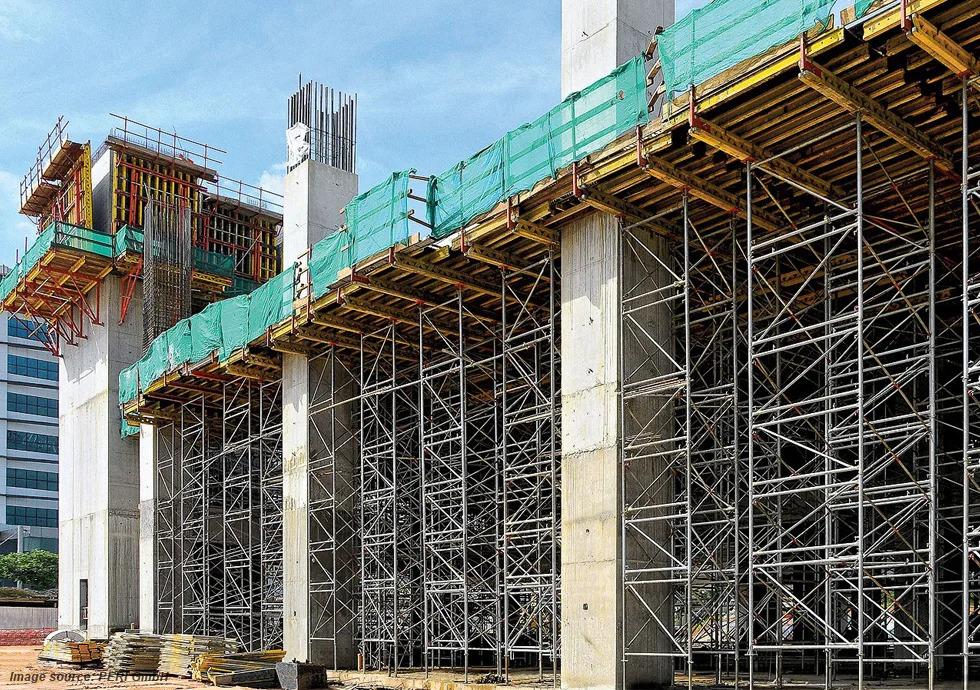

Product Application
Project :Ertan Hydro-power Station
Builder :Ertan Hydro-power Development Co., Ltd.
Product:Tower ZM-TJA
Date:May 1995.
Builder :Ertan Hydro-power Development Co., Ltd.
Product:Tower ZM-TJA
Date:May 1995.
Project: Tianshengqiao Power Station
Builder: The Eight Project Bureau of the Sino-hydro
Product: Tower ZM-TJA
Date: Nov. 2001.
Company Profile
Shandong Zeemo Construction Technology Co., Ltd is subordinate to Dongstar Group.
The group was established in the 1990s and has a 30-year development history. lt is acomprehensive industrial group.
The products include coated plywood, formwork system, scaffold and accessories.
Dongstar group is the founding president of china template association. Our intelligent logisticsnetwork will deliver in time and effectively reduce costs.
Intimate service will cover the whole process.Please rest assured to cooperate with us!
CULTURE: We are one family, members care each other, cooperate intimately, we sharingdream, idea and love in family. We holding same duty-- to serve clients .
ENTERRISE RESPONSIBILITY: We cherish clients' trust , oriented to solve the solution forproject Our vision is making the projectZero Emission, Efficient, Money-saving ,Outstanding.
Packing & Delivery
Packing Details | Packing strip, package box, steel pallet, or according to client's request |
Delivery Details | Generally it is 5-30 days, it is according to quantity |
Port | QINGDAO |
