2 5G 850nm VCSEL лазерный диод LD до может vcsel длинной волны пакет полупроводниковый фотодиод оптических
- Категория: Diodes >>>
- Поставщик: Xiamen,San-U,Optronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.40 $* | 1.68 $* |
| Jul-15-2025 | 1.73 $* | 1.69 $* |
| Jun-15-2025 | 1.50 $* | 1.68 $* |
| May-15-2025 | 1.16 $* | 1.33 $* |
| Apr-15-2025 | 1.67 $* | 1.29 $* |
| Mar-15-2025 | 1.71 $* | 1.61 $* |
| Feb-15-2025 | 1.5 $* | 1.55 $* |
| Jan-15-2025 | 1.46 $* | 1.92 $* |
Характеристики
Specification parameters

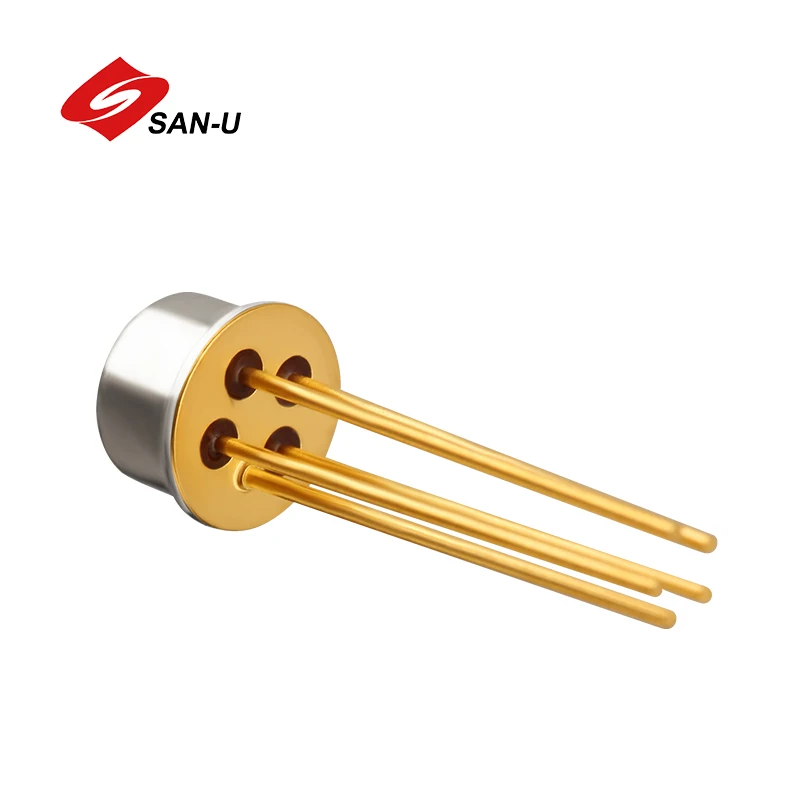

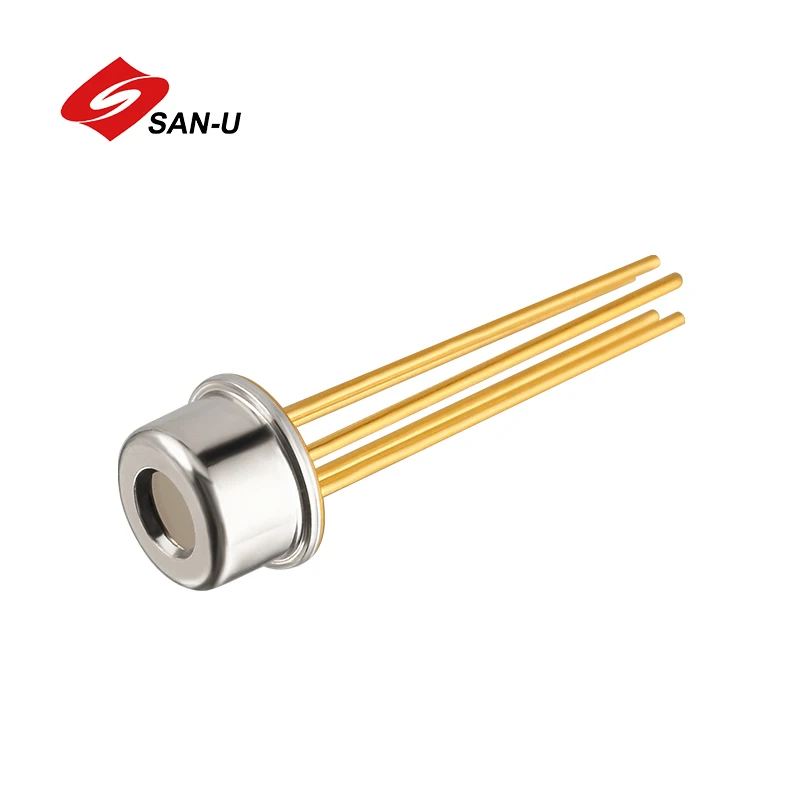

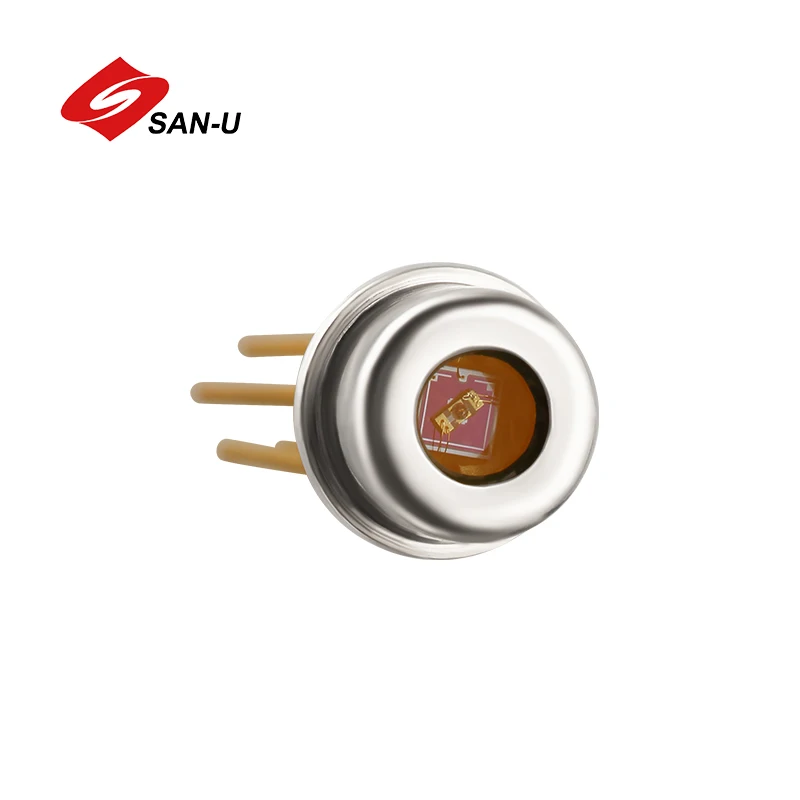

2.5G 850nm VCSEL LD TO-CAN Series
Features：
● Data rates up to 2.5 Gb/s
● 850nm multimode emission
● Low threshold and operation current
Specifications：
Absolute Maximum Ratings:
Features：
● Data rates up to 2.5 Gb/s
● 850nm multimode emission
● Low threshold and operation current
Applications：
● Digital Optical Communication
● Digital Optical Communication
Specifications：
Absolute Maximum Ratings:
Parameter | Symbol | Min. | Max. | Unit |
Reverse Voltage | VR | — | 5 | V |
Forward Current | IF | — | 12 | mA |
Optical Output Power | Pout | — | 2.2 | mW |
MPD reverse voltaget | Vr | 20 | — | V |
MPD forward curren | Vf | — | 10 | mA |
Operating Temperature | Top | -5 | +70 | ℃ |
Storage Temperature | Tstg | -40 | +85 | ℃ |
Lead Solder Temperature | — | — | 260 | ℃ |
Lead Solder Time | — | — | 10 | s |
Characteristics： （Ta=25℃ unless otherwise noted） | ||||||||||||
Parameter | Symbol | Test Conditions | Min. | Typ. | Max. | Unit | ||||||
Threshold Current | Ith | T=25℃ | 0.5 | 1.0 | 1.4 | mA | ||||||
Optical Output Power | Pout | Iop = 6.0mA | 0.8 | 1.2 | — | mW | ||||||
Emission Wavelength | | Iop = 6.0mA | 830 | 850 | 860 | nm | ||||||
Spectral Bandwidth, RMS | | Iop = 6.0mA | — | — | 0.65 | nm | ||||||
Slope Efficiency | | Iop = 6.0mA | 0.17 | 0.23 | — | W/A | ||||||
Differential resistance | Rd | Iop = 6.0mA | — | 50 | — | Ω | ||||||
3dBmodulation bandwidth | V3dB | Iop = 6.0mA | 3 | — | — | GHz | ||||||
Rise Time | tr | Iop = 6.0mA, 20-80% | — | 70 | 80 | ps | ||||||
Fall Time | tf | — | 70 | 80 | ps | |||||||
Product Description
Company Profile
Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise specializing in R&D and mass production in highspeed semi-conductor Laser / detector , optical components and module.San-U products are widely used in cloudcomputing, HTTP,sensor detector territory ,optical telecommunication,and so on.
San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and “Xiamen Optical communication components test key lab” Successively based on Industry-University Cooperation， San-U R&D team burden more t han 20 projects of National,Province and city class innovation fund and technology aid, which possesses 4 items innovation patents and more than 20 realistic new type patents. The results and findings of R&D by San-U are all turned into mass production and become the market hot points products. San-U is awarded as ‘Xiamen Leading enterprise as technology small giants’ , ‘Fujian Innovation enterprise’.Nationa l Innovation Fund Project - - 10G Semi-conductor Laser and components has also been verified. San-U company has priority to enter Chinese domestic market by replace import products. San-U has already established Automatic Chip Auto assembly line, components auto coupling production line and has already access mass production. San-U production line has already realize the information and intelligence, which is atleading position within domestic. Optical components automatic mass production technology development project has already gained the National Innovation Fund’s major projects support.In optical communication industry transformation and upgrading to automation scale mass production aspect has demonstrative effect.
Our Advantages
FAQ
1 Are you a manufacture or a trading company?
We are a manufacture located in Xiamen with a professional R&D team and sales team. Our company was established in 2001.
We have 600 employees, including more than 100 technicians,monthly output 10kk.
2 What is your main business?
We are specialized in laser diode ,laser photodiode,laser receiver, SFP optical module and sensor.
3 Do you provide OEM/ODM service?
Yes, we accept OEM/ODM and OBM 20 years, our professional R&D team will provide you the best solutions for you.
4 Do you provide samples?
Yes, warmly welcome to us for sample testing.
5 Do you provide overseas technical support?
Yes, we provide overseas technical support in several countries such as Spain, Italy, USA and Brazil. We also provide 24 hours
online support for our customers. If you need help, Please always feel free to contact us.
6 What is your lead time?
The lead time is depended on your order quantity and your order request. Our long-term cooperation suppliers will work with us
together to make sure good delivery for you.
7 What payment method do you accept?
We accept various kinds of payment method such as Trade Assurance, PayPal, Credit Card , T/T,Wire Transfers and LC.
8 What shipping method do you provide?
San-u cooperates with the best carriers in the business for long term to make sure your order gets to you on time such as: DHL,
FedEx, EMS, UPS and sea shipping etc to save freight on different solutions.
