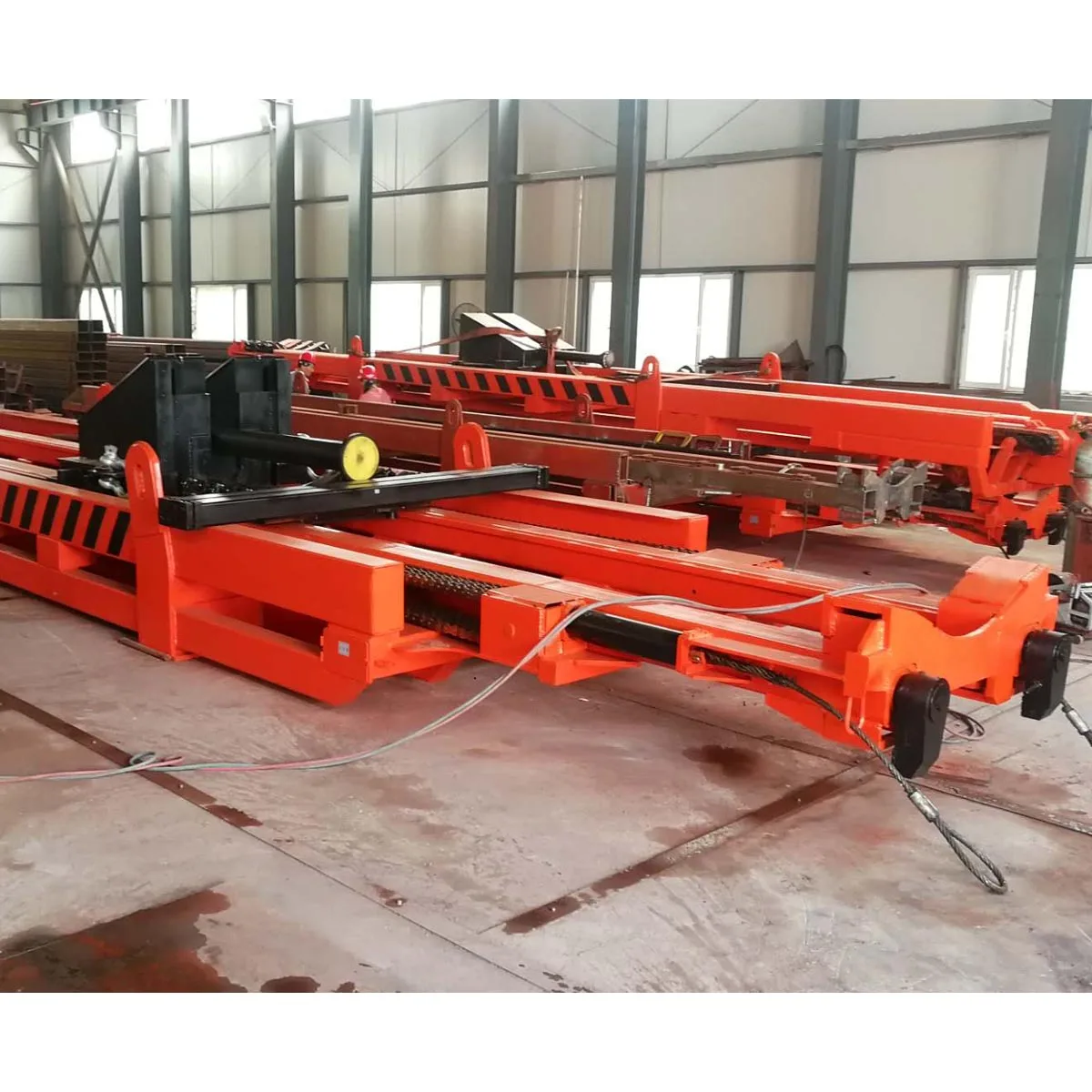

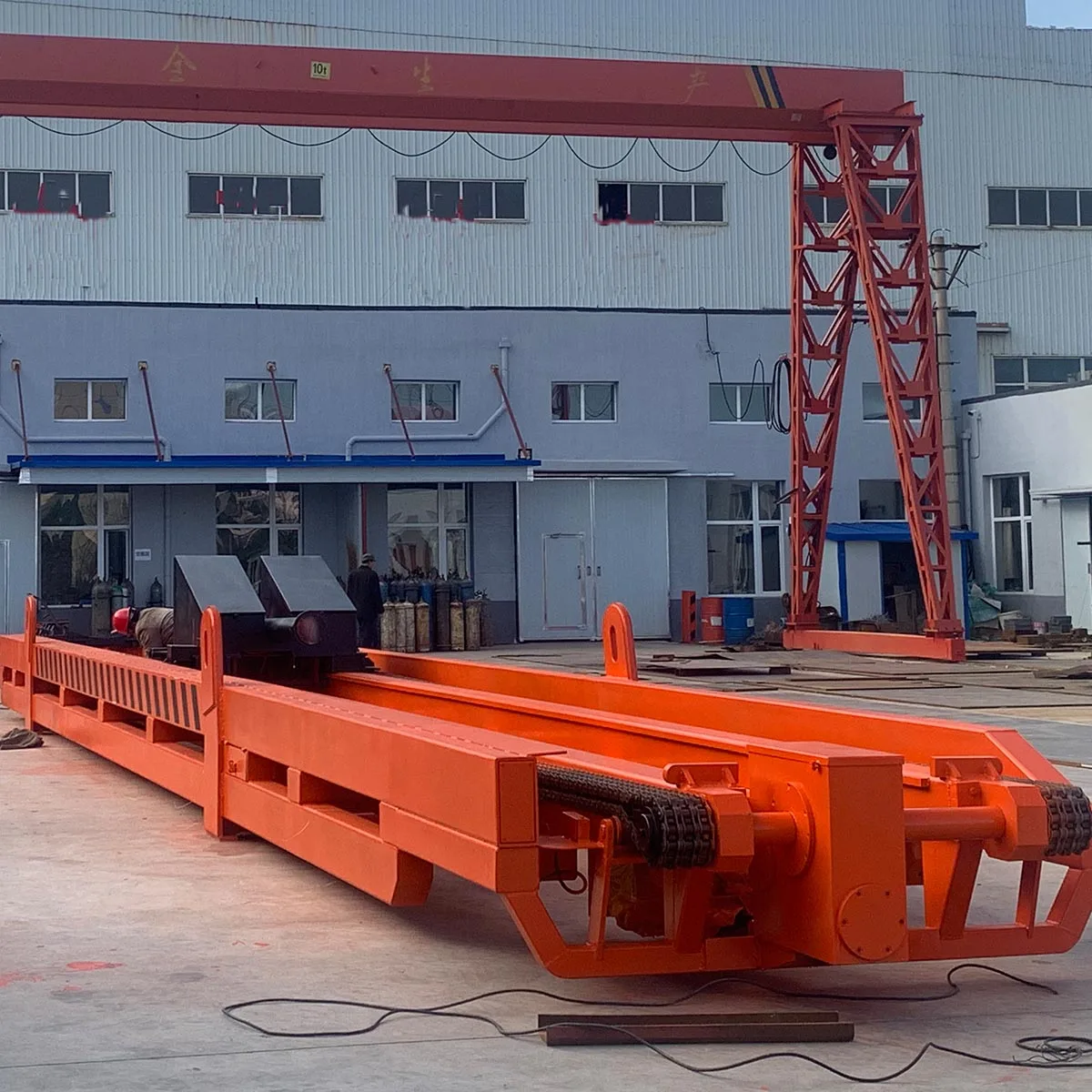

Heat exchanger tube bundle extractor(max. force 15T-110T; pipe bundle length 6m-15m)



Features:
1) chain driven with strong power, smooth and fast
2) hanging board device drawing and assembling tube bundle
3) servo trolley assist drawing and assembling
4) hydraulic balance adjustment
5) unique hydraulic fixed mode
6) catcher adjustment device



Characteristics:
1) Good safety and high structural strength.
The machine has been checked for structural strength by the Department of Concrete Structures,Dalian University of Technology, and has been optimized for structural design. It not only meets the requirement of structural strength, but also makes the weight as light as possible
2) Simple and practical operation can greatly reduce the labor intensity of field workers and improve labor efficiency.
3) High applicability, one type of machine can meet the drawing
and assembling requirements of various types of heat exchanger tube bundle.
4) Hydraulic connection and adjustment, the connection and adjustment process is reliable and easy to operate.
5) Use chain to draw the tube bundle, with strong power. The drawing and assembling is smooth and fast.
6) Manual, remote and wire control systems ensure the safety of operators and are flexible and convenient to use.
7) Low failure rate, good maintainability. In the design, the harsh site environment
and the inevitable strong collision are fully considered, the vulnerable parts are reliably protected
and anti-pollution isolation is trolleyried out. So the failure rate is very low.
All parts of the machine are standard and can be easily purchased even if damaged.



Power supply:
The power supply of the machine is three-phase power, voltage: 380V(440V)±10 frequency:50Hz(60hz)
(the power supply is determined according to the power supply voltage of the local country)



Specification:

No.	Model	Max. force	Max. load T	Pipe bundle diameter	pipe bundle length	Dimension (L x W x H)
1	SD100-6HD	15T	20T	<1000mm	6000mm	9600 x 1200 x 1150mm
2	SD120-6HD	20T	20T	<1200mm	6000mm	9600 x 1400 x 1150mm
3	SD140-6HD	30T	30T	400-1400mm	6000mm	9600 x 1600 x 1200mm
4	SD140-9HD	35T	35T	400-1400mm	9000mm	12600 x 1600 x 1200mm
5	SD180-6D	40T	40T	800-1800mm	6000mm	9600 x 2000 x 1200mm
6	SD180-9D	45T	45T	800-1800mm	9000mm	12600 x 2000 x 1200mm
7	SD180-12D	45T	45T	800-1800mm	12000mm	15600 x 2000 x 1200mm
8	SD200-9D	50T	50T	1000-2000mm	9000mm	12600 x 2200 x 1300mm
9	SD200-12D	55T	55T	1000-2000mm	12000mm	15600 x 2200 x 1300mm

10	SD220-9D	60T	60T	1000-2200mm	9000mm	12600 x 2400 x 1300mm
11	SD220-12D	65T	65T	1000-2200mm	12000mm	15600 x 2400 x 1300mm
12	SD240-9D	70T	70T	1000-2400mm	9000mm	12600 x 2600 x 1350mm
13	SD240-12D	75T	75T	1000-2400mm	12000mm	15600 x 2600 x 1350mm
14	SD260-9D	80T	80T	1200-2600mm	9000mm	12600 x 2800 x 1350mm
15	SD260-12D	85T	85T	1200-2600mm	12000mm	15600 x 2800 x 1350mm
16	SD260-15D	90T	90T	1200-2600mm	15000mm	18600 x 2800 x 1350mm
17	SD280-12D	95T	95T	1400-2800mm	12000mm	15600 x 3000 x 1400mm
18	SD280-15D	100T	100T	1400-2800mm	15000mm	18600 x 3000 x 1400mm
19	SD300-12D	105T	105T	1600-3000mm	12000mm	15600 x 3200 x 1450mm

20

SD300-15D

110T

110T

1600-3000mm

15000mm

18600 x 3200 x 1450mm

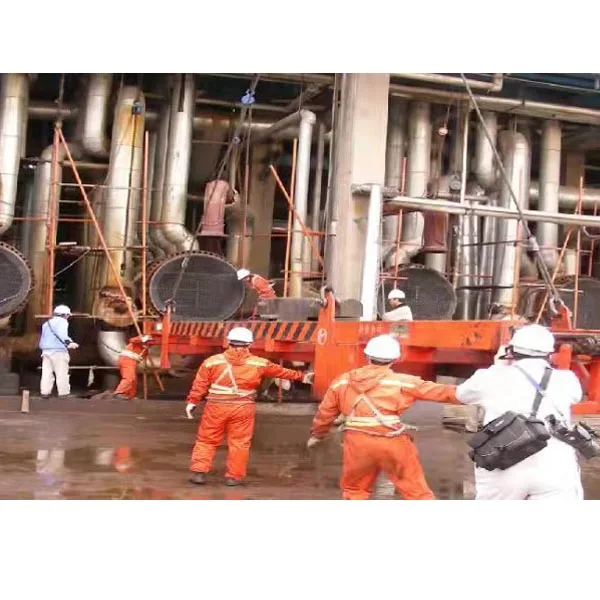

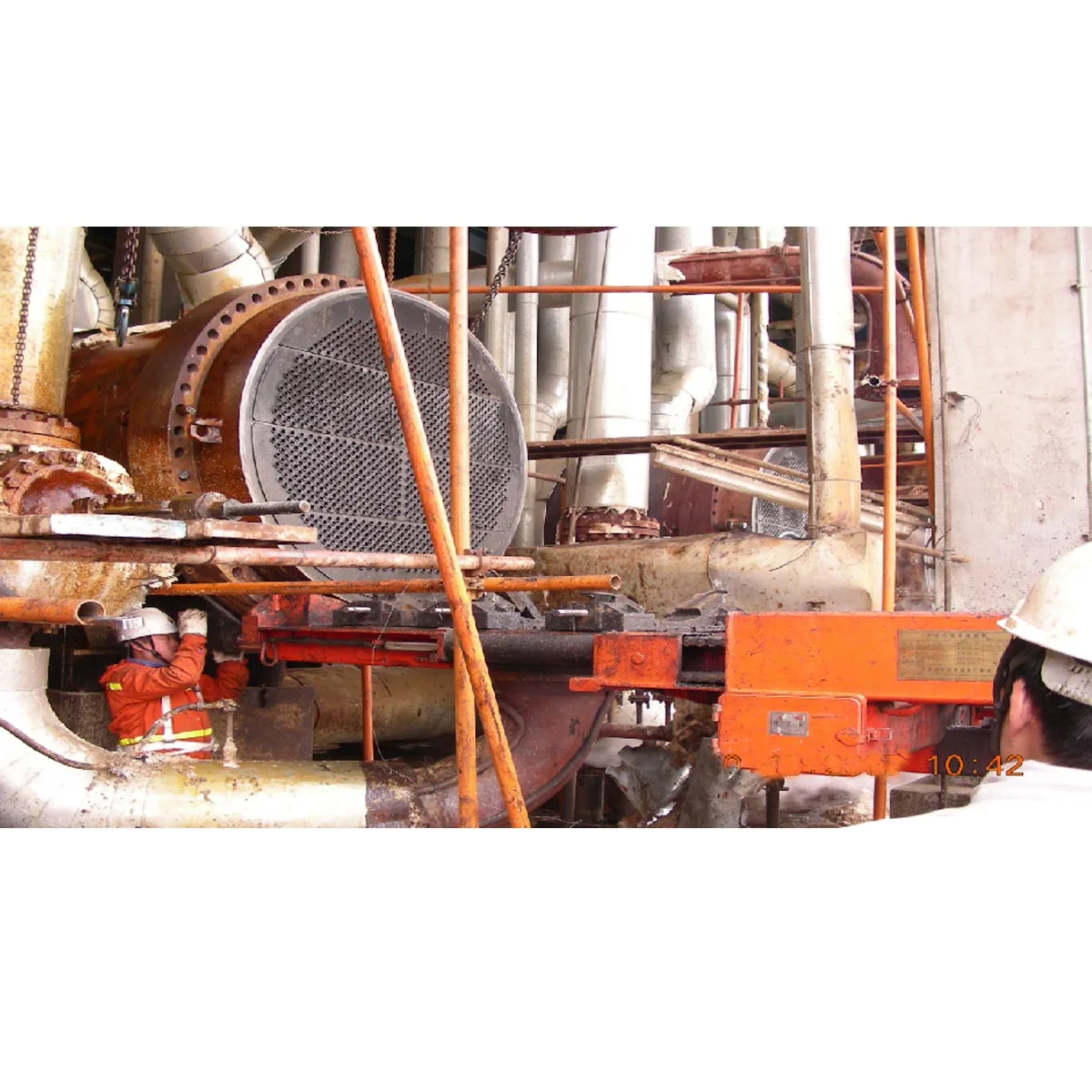

working process of disassembling and installing of tube bundle:
