Сенсорный экран 19/22/24/28/32/43/46/50/55/65/75/86 дюймов 20 точек ИК сенсорная рамка комплект верхний слой USB-карта без драйверов
- Категория: Touch Screen Monitors >>>
- Поставщик: Guangdong,Zhiping,Touch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 45.44 $* | 47.89 $* |
| Aug-16-2025 | 45.21 $* | 47.24 $* |
| Jul-16-2025 | 38.55 $* | 40.95 $* |
| Jun-16-2025 | 44.12 $* | 46.87 $* |
| May-16-2025 | 38.65 $* | 40.62 $* |
| Apr-16-2025 | 43.10 $* | 45.20 $* |
| Mar-16-2025 | 43.91 $* | 45.91 $* |
| Feb-16-2025 | 43.36 $* | 45.99 $* |
| Jan-16-2025 | 42.37 $* | 44.40 $* |
Характеристики
Product Description
Product performance description
Infrared IR touch screens are one of the most reliable touch technologies on the market today.

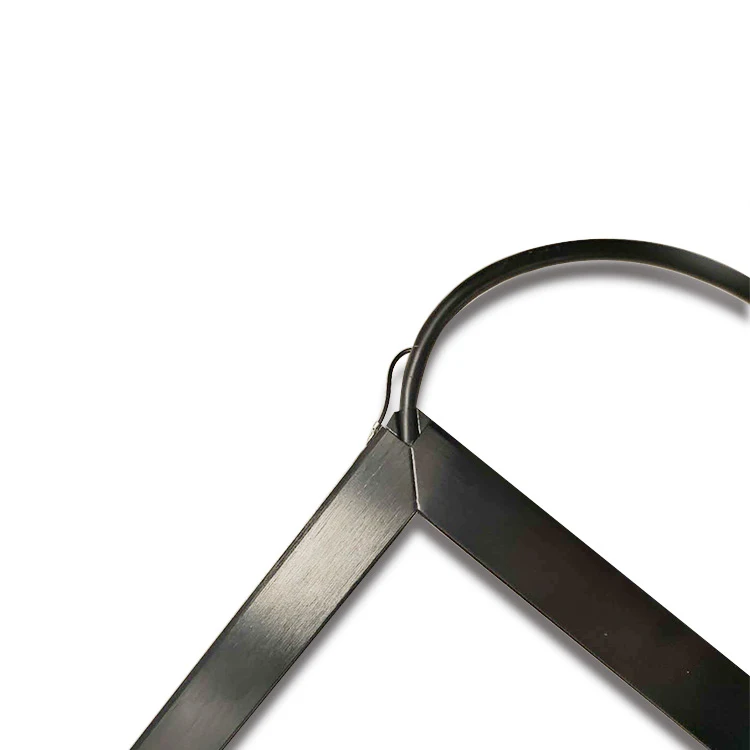

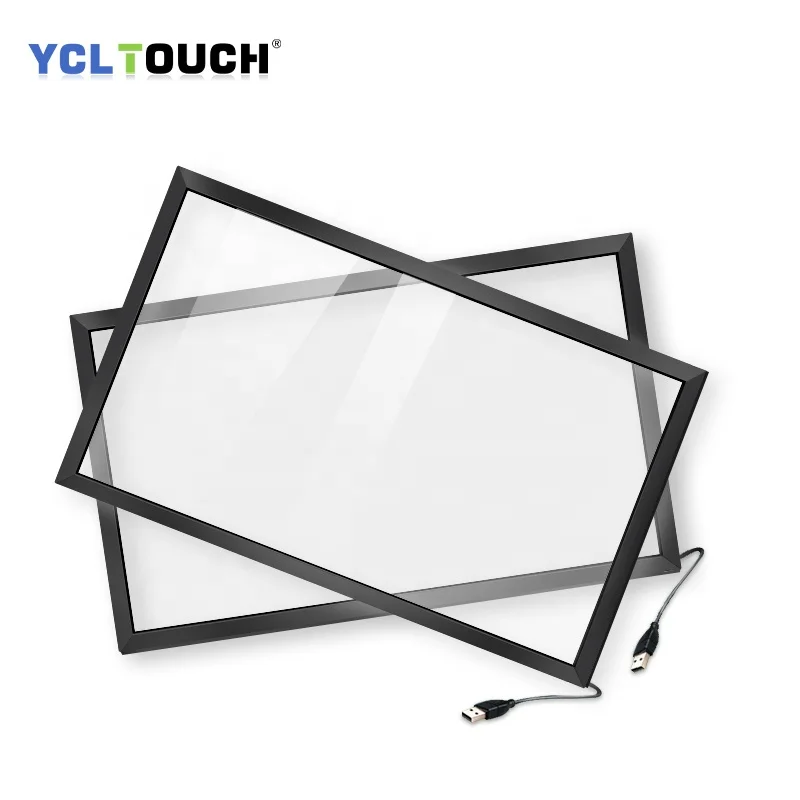

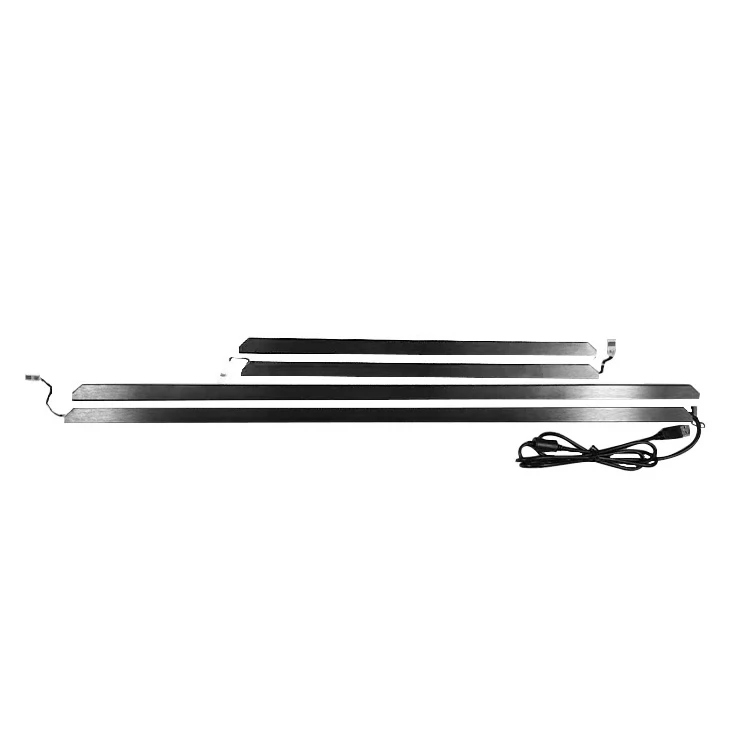

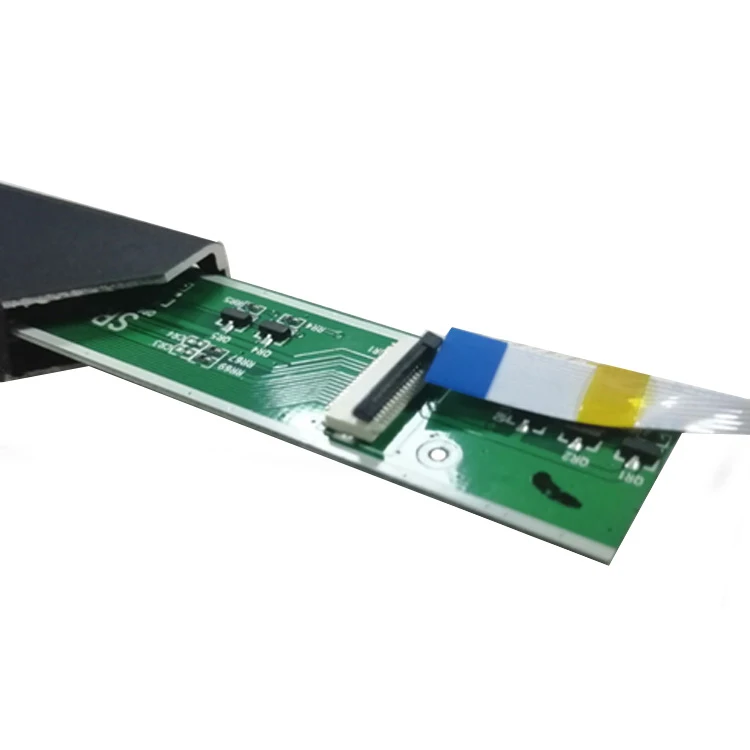

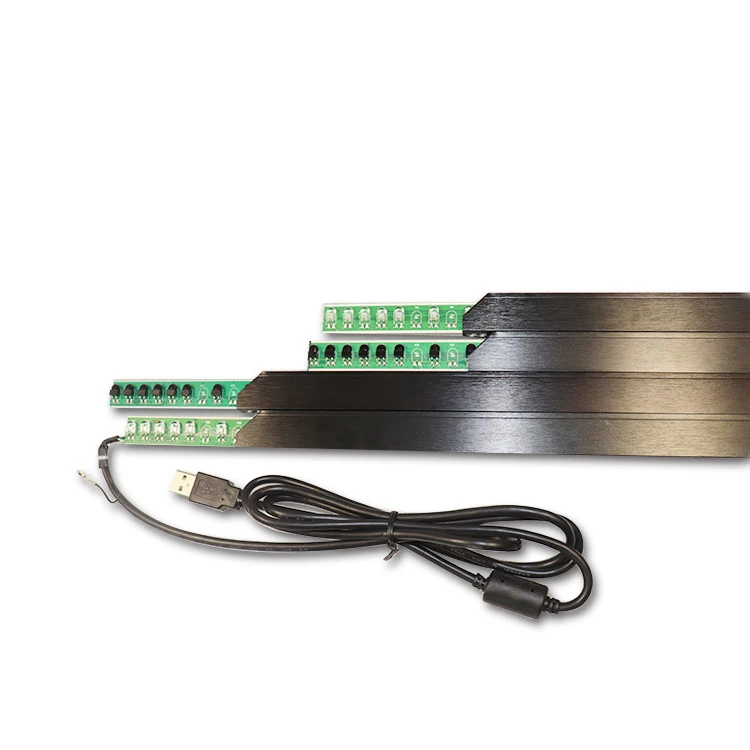

Our infrared touch screens consists of a touch frame which is installed in front of the display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through, so you are left with a grid of invisible beams in front of the display.
1.Specification | ||
Product Name | IR/Infrared touch frame | |
Material | Aluminum alloy+PCBA | |
Touch point | 1-64 point | |
Touch Activation Force | No pressure required | |
Luminous Transmission | >92%（100% with no glass） | |
Touch Response Time（Multi touch） | 10-15ms | |
Touch Response Time（One touch） | 7ms | |
Minimum Recognition Point Size | 4mm*4mm | |
2.Electrical Specification | ||
Touch Refresh Rate | ≥110Hz | |
Communication | USB 2.0 Full Speed | |
PowerSupply Mode | USB*1 | |
Working Voltage | DC 5.0V±5% | |
Average Current | ≤200mA | |
Power Cunsumption | ≤ 1.0W | |
LED Lifetime | 60000hours | |
Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged | |
3.Environmental Specification | ||
Humidity | Up to 90% RH from 0°C to +40°C, non-condensing | |
Up to 90% RH from 0°C to +40°C, non-condensing | Working temperature:-10℃～50℃ Storage temperature:-20℃～60℃ | |
ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge | |
Anti-light Interference | Excellent | |
4.Software Specification | ||
Firmware Upgrade | Windows10,Windows 8,Windows 7 USB Upgrade: Windows 8,Windows 7 | |
Support OS（Multi touch） | Windows10,Windows8,Windows7,Andriod | |
Support OS （One touch） | WindowsXP,MacOS.Linux | |
Video Description
Details Images
IR Touch
When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC / host.
When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC / host.
Packing&Shipping
Cowhide carton + built-in pearl cotton + waterproof wrap
Company Introduction
Guangdong Zhiping Touch Technology Co., Ltd. was established on October 15th, 2020.The predecessor was Shenzhen yongchuangli Electronic Technology Co., Ltd.（established on August 2nd, 2013）.
Zhiping Touch is a high-tech enterprise engaged in infrared PCBA module/touch frame/touch screen/splicing screen, interactive smart board（project）, and G+G, G+F, G+F+F capacitive touch screen R&D and production.
Our Services & Strength
We has won more than 30 practical software copyrights and new patents，the supplier really reached 16/20/32/40/64 points touch solution.The series of products produced by the company conform to UL, SCC, ROHS and Reach standards, and the company has passed ISO9001:2015 international quality management system certification.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013, 9 years factory history.
Guangdong Zhiping Touch Technology Co., Ltd., located in Foshan City, Guangdong Province
2. How can we guarantee quality?
1 years quality guarantee ,Lifelong maintenance
3.delivery time?
conventional products in 5 days, Customized products in 7-15days
We are based in Guangdong, China, start from 2013, 9 years factory history.
Guangdong Zhiping Touch Technology Co., Ltd., located in Foshan City, Guangdong Province
2. How can we guarantee quality?
1 years quality guarantee ,Lifelong maintenance
3.delivery time?
conventional products in 5 days, Customized products in 7-15days
