Новых запасов 700w 670w 660w солнечной пластины 600 Вт Trina Vertex s панели солнечных
- Категория: Solar Energy Products >>>
- Поставщик: Hochey,Enertech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.87 $* | 13.96 $* |
| Aug-18-2025 | 12.38 $* | 13.72 $* |
| Jul-18-2025 | 10.12 $* | 11.9 $* |
| Jun-18-2025 | 12.14 $* | 13.10 $* |
| May-18-2025 | 10.84 $* | 11.63 $* |
| Apr-18-2025 | 11.39 $* | 12.81 $* |
| Mar-18-2025 | 11.75 $* | 12.38 $* |
| Feb-18-2025 | 11.75 $* | 12.33 $* |
| Jan-18-2025 | 11.91 $* | 12.4 $* |
Характеристики

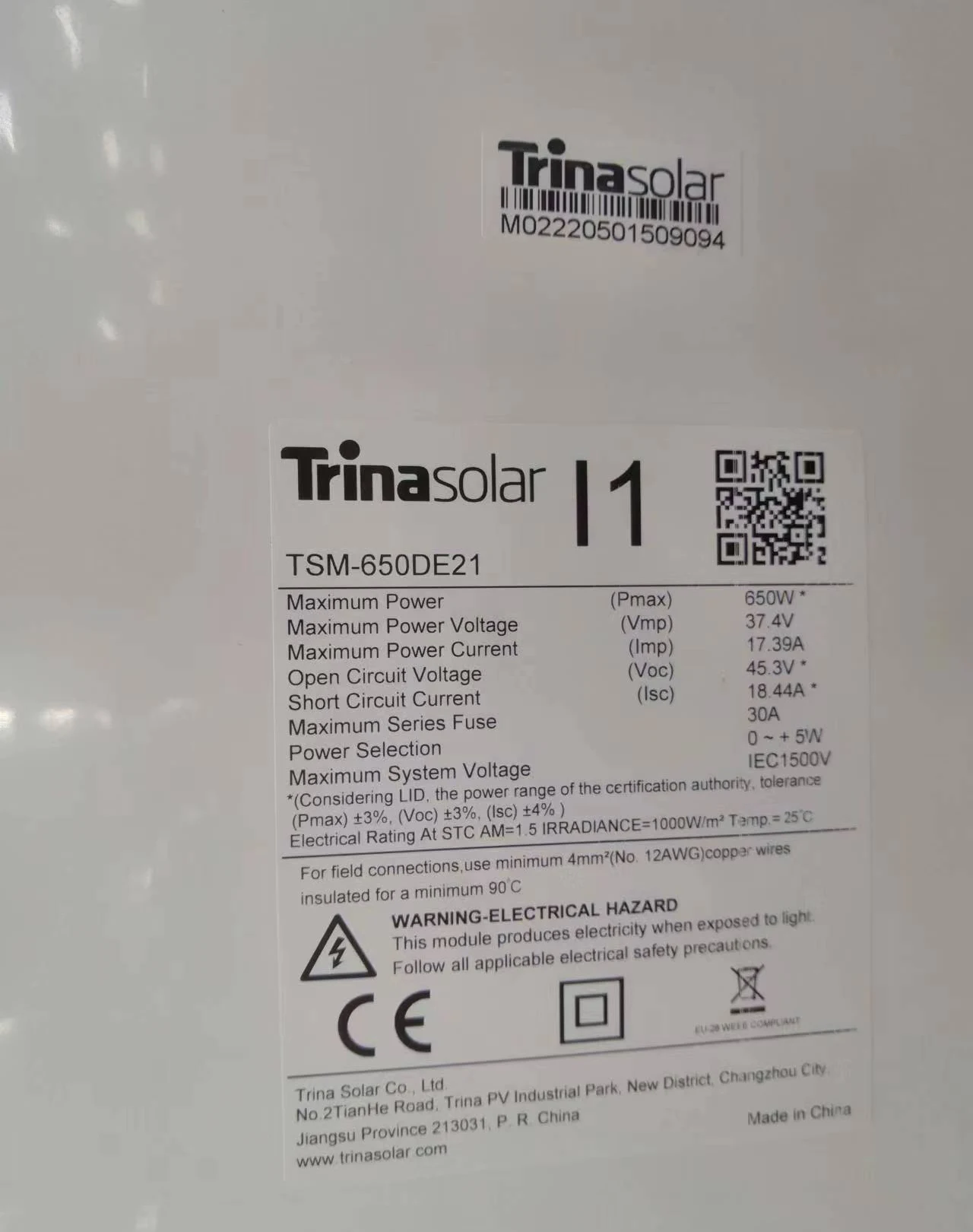

ELECTRICAL DATA (STC)
480Peak Power Watts-PMAX (Wp)* | 650 | 655 | 660 | 665 | 670 | ||||
Power Tolerance-PMAX(W) | 0 ~ +5 | ||||||||
Maximum Power Voltage-VMPP(V) | 37.4 | 37.6 | 37.8 | 38.0 | 38.2 | ||||
Maximum Power Current-IMPP(A) | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 | ||||
Open Circuit Voltage-VOC (V) | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 | ||||
Short Circuit Current-ISC (A) | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 | ||||
Module Efficiency | 20.9% | 21.1% | 21.2% | 21.4% | 21.6% | ||||
Size | 2384×1303×33 mm | ||||||||
Weight | 33.3kg | ||||||||
Multi-busbar Technology
In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% - 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
PERC Technology
PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Bifacial PERC
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent
which enable the cell to absorb light and generate electricity from both sides.
Half-cut Technology
Half-cut cell technology is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also enhanced.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.
Details
What Influence Your Savings By Solar

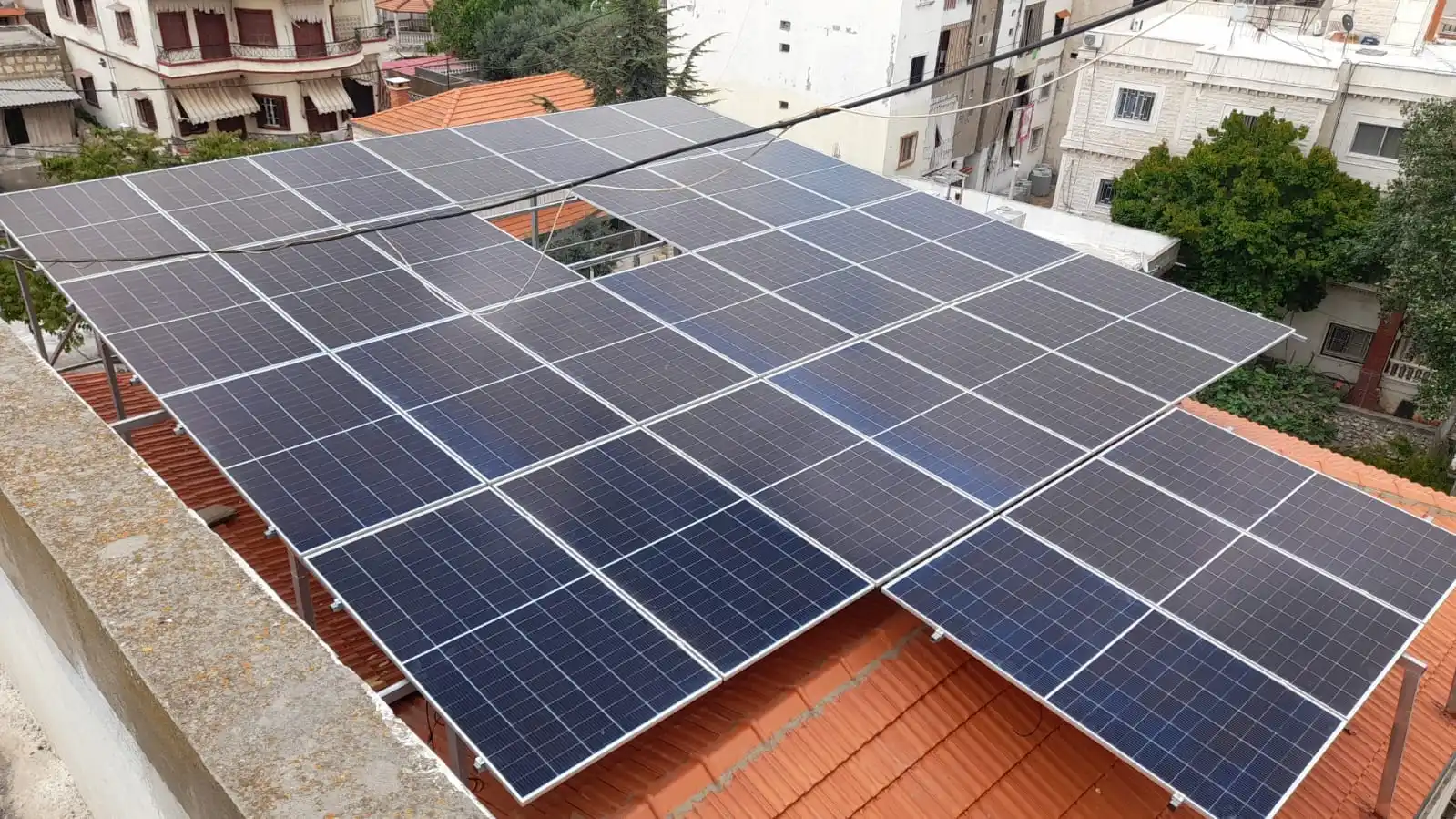

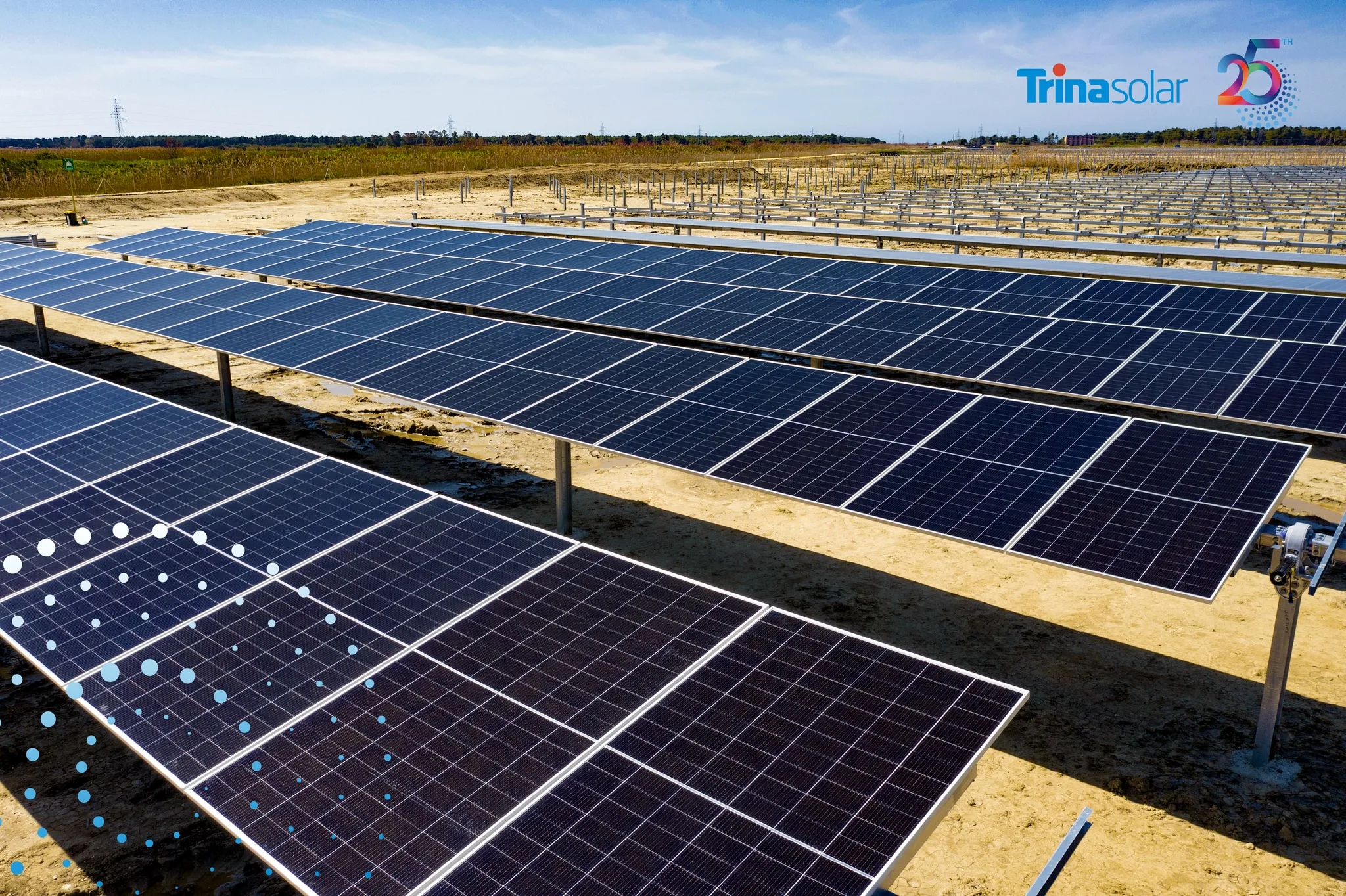

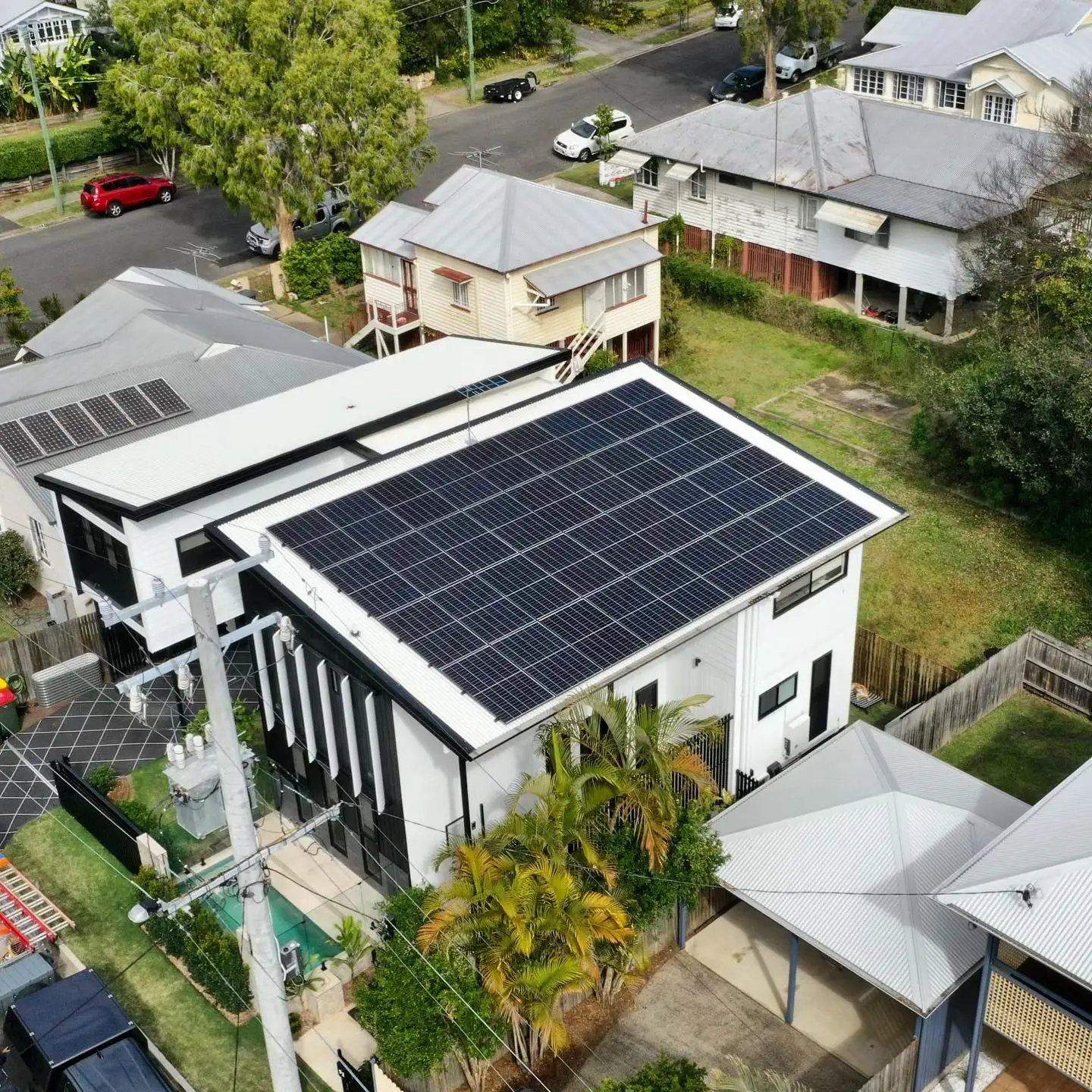

Project Cases
Certificate
Certiticate of Conformity
Declaration of Conformity
SGS
TUV
TUV
ISO
Company Profile
Trina Super Factory
Trina Solar has recently built three Vertex Super Factories in Yiwu, Zhejiang, as well as Suqian and Yancheng in Jiangsu, China.By
the end of 2020, Trina Solar will see its 210mm Vertex module production capacity exceeding 22GW, and will further shoot over 50GW in 2021 across the global.
the end of 2020, Trina Solar will see its 210mm Vertex module production capacity exceeding 22GW, and will further shoot over 50GW in 2021 across the global.
Super Factory
Super Technologies Low voltage, high-string-power design Multi-busbar technology with precisions in millimeters
Super Factory, Super IntelligenceHigh Level of Automation and Highly Efficient Productivity
Sharing Data with Customers for Smart Manufacture in the 600W+ era
Sharing Data with Customers for Smart Manufacture in the 600W+ era
About HOCHEY-Trina's Distributor
We catch products for customers directly from LONGi original factories. No fakes, no fraud. We make sure everything provided with customers is 100% guaranteed genuine, original, authentic and traceable.
Packing&Shipping
FAQ
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO?
A: Yes,our products are approved by CE,ROHS,ISO
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO?
A: Yes,our products are approved by CE,ROHS,ISO
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
Q:Why choose us?
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing and service available in 24hours
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing and service available in 24hours
Our Payment Term | ||||||||
Payment term | TT | EXW | ||||||
FOB/FCA | ||||||||
CNF CFR | ||||||||
CIF | ||||||||
DDU/DAP | ||||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||||
West union | Amount lower than 5000usd | |||||||
Delivery Time | 3~5days after receiving the payment | |||||||
Other payment | To be negotiable | |||||||
