DS-120 на открытом воздухе мелкие частицы PM2.5 пыля контроля опрыскиватель системы пушка тумана для аэрозольного

Описание и отзывы

Трекер стоимости

Характеристики



  !!! SAFETY FIRST !!! BEWARE OF COPY !!!

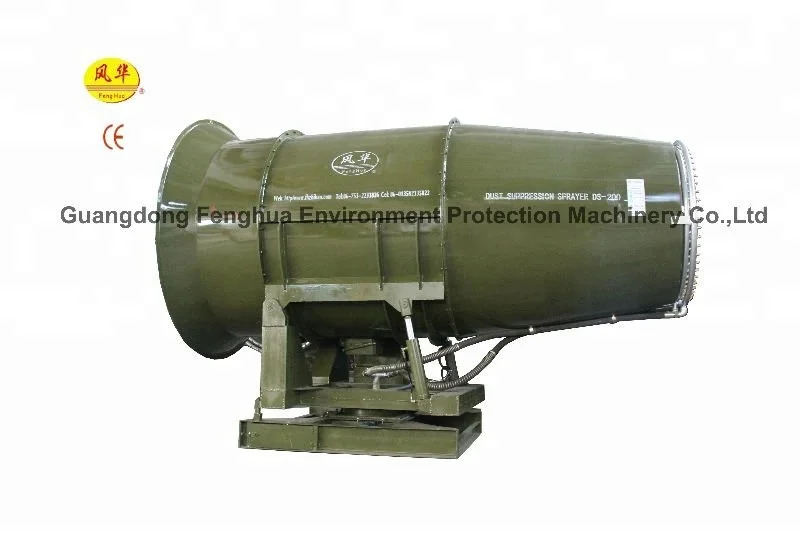

DS-120  Open Area Dust Control Sprayer System Fog cannon



The Fenghua® is an innovative product patented by Fenghua Environment Protection Machinery Co., Ltd a company that is well established in the environment field. It has been designed to tackle the problem of airborne particles and dust generated by open mining activities, materials handling, waste disposal odors, demolition, stock piles, port facilities, construction and many other applications.



The Fenghua® suppresses up to 90% of airborne dust particles.



The Fenghua®, which is available as a manual and fully automated version, covers the needs of all possible working activities:

• Suppresses dust in open air (quarries, job-sites, squares, etc.);

• Suppresses dust concentrations (loading/unloading trucks, transfer by conveyor belt, unloading hoppers, etc.).



Features:

1 Flexible installation:fixed on the concrete platform or diesel generator-powered vehicles available

2 Flexible power: three-phase 380V and diesel generator power supply available

3  Remote control & manual control operation available

4  Compare to tank car, water consumption save 70% ~ 80%, wide coverage area.



Applicance

• Quarries and mines

• Cement factories and steel mills

• Demolition

• Crushing machines

• Storage and handling of bulk materials

• Parks carbon storage;

• Discharge hoppers;

• Points of loading and unloading ships;

• Points fall in conveyor belts or transfer of material



Main Technical Parameters

TYPE	DS-120
Certificate	CE/CCC/ISO9001:2008
Throw	≥120m
Volume Flow	150L-200L/min
Fog Droplet Size(adjustable )	50-300μm
Water Pressure(Mpa)	2.5-3.5Mpa
Motor/rpm	2900
Horizontal Rotation Angle(adjustable )	320°
Pitching Angle(adjustable )	-10°~40°
Coverage Area	32153.6m2
Total Power	97KW(75+22)
Product Size(L*W*H)	2950*1540*2750mm
Net Weight	1200kg
Fan Volume	4000m3/min
Fan Pressure	1200Pa
Warranty	1year
MOQ	1
Payment	Deposit received by T/T; L/C at sight, ect





Certification





Worksite Photos
