Лидер продаж экстрактор масла и растений объемом л Сверхкритическая машина для экстракции Co2 с закрытым
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Henan,Effison,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 214486.18 $* | 225210.56 $* |
| Aug-19-2025 | 212683.13 $* | 223317.59 $* |
| Jul-19-2025 | 178438.41 $* | 187360.69 $* |
| Jun-19-2025 | 209078.32 $* | 219532.8 $* |
| May-19-2025 | 182042.73 $* | 191144.84 $* |
| Apr-19-2025 | 205474.61 $* | 215748.11 $* |
| Mar-19-2025 | 203671.46 $* | 213855.95 $* |
| Feb-19-2025 | 201869.16 $* | 211962.49 $* |
| Jan-19-2025 | 200066.96 $* | 210069.39 $* |
Характеристики

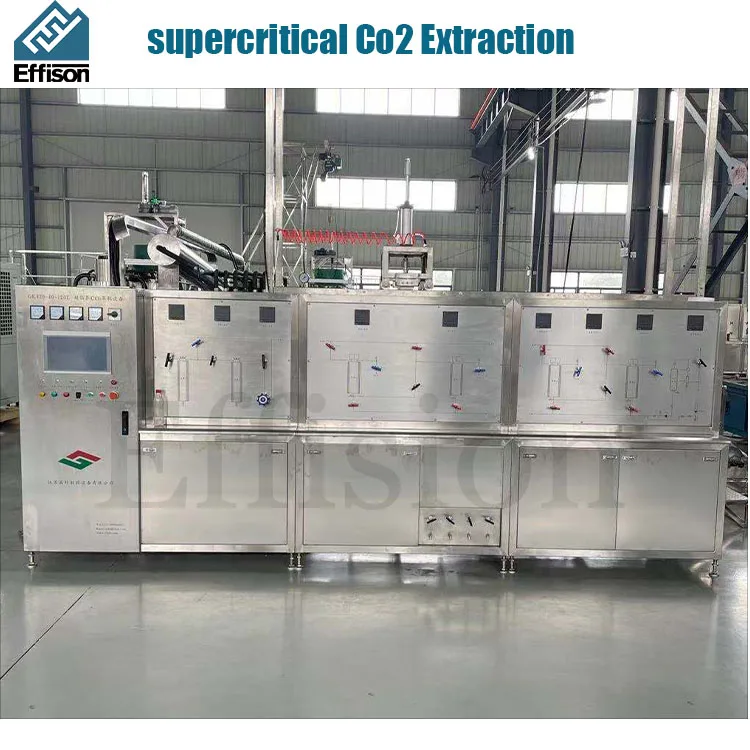

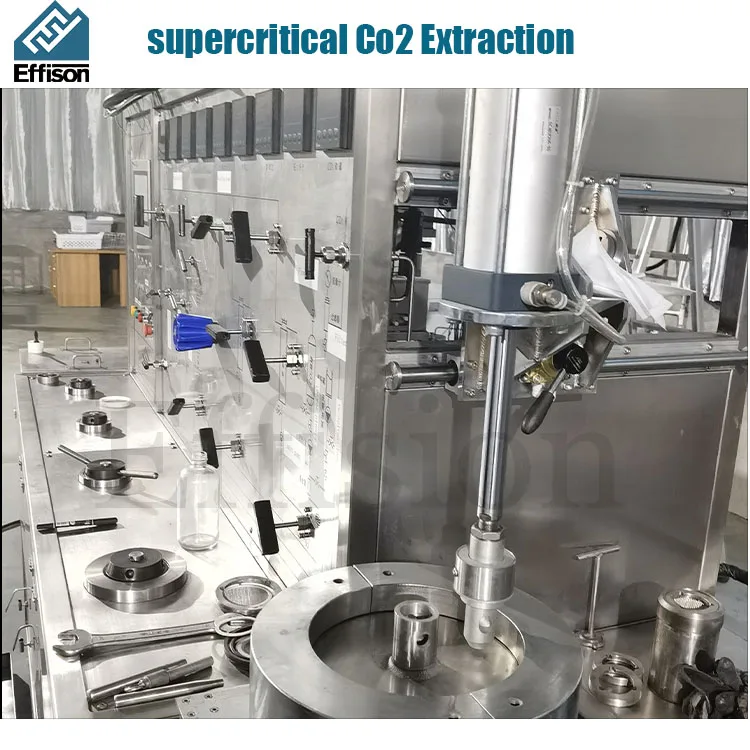

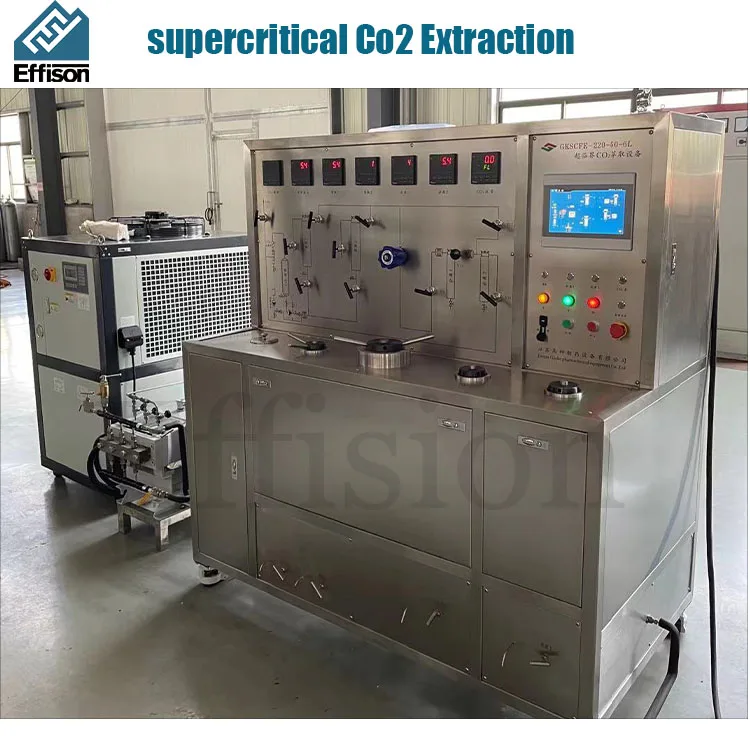

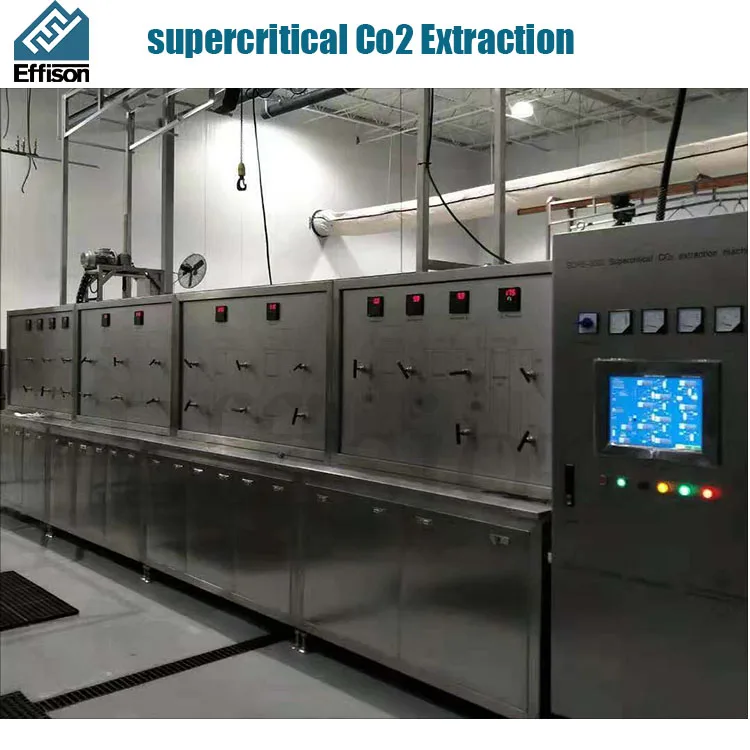

supercritical Co2 Extraction
Product Description
This equipment is a 4*extraction 2*separation supercritical CO2 extraction equipment, the extraction working medium is CO2 which can be recycled. The inner walls, pipelines and valves of the container in contact with the material are made of 304 stainless steel with acid and alkali resistance and suitable for food hygiene requirements. The inner walls, pipelines and valves of the container in contact with cold and hot water are also made of 304 stainless steel. The design pressure is 40MPa, and the maximum working pressure is 38MPa. The design service life of the pressure vessel is 15 years.
Advantage
Product Specfication
No | Part Description | Specification | QTY | NOTE |
| 1 | Extraction (1,2,3,4) | Designed Pressure :40MPa, Working Pressure :38MPa, Capacity :50L, Temperature Range: 85℃ | 4 | The material is 304 stainless steel. The part is equipped with jacket water circling heating system and the exit of the extraction is equipped with safety valve, and every entrance is equipped with pressure testing part and temperature testing part to control the pressure and temperature in the suitable range. |
| 2 | Separation (1,2,3) | Separation 1 Capacity:27L; Designed Pressure:20MPa; Working Pressure:18MPa; Separation 2,3 Capacity:17L; Designed Pressure:15Mpa Working Pressure:12Mpa; Working Temperature Range:30-70℃; | 3 | The material is 304 stainless steel. The part is equipped with jacket water circling heating system. The exit of the part is installed with safety valve, vent nozzle, pressure testing part, temperature testing part. In the upper of the machine is designed with 2/3 air intake place to ensure the separation effect. |
| 3 | CO2 Storage Tank | Capacity:103L; Designed pressure:9.8MPa; Working pressure: 9MPa; Designed temperature range 5~45℃ | 1 | The material is 304 stainless steel. The part is equipped with safety valve, drain outlet, vent nozzle, pressure sensor, the entrance and exit of CO2, jacket water circling cooling system to ensure the CO2 is liquid. |
| 4 | Condenser | Designed pressure:9.9MPa; Working pressure: 9MPa; | 1 | The material is 304, it is installed in front of the CO2 storage tank to ensure that the CO2 entering the intermediate storage tank is liquid. |
| 5 | Heating exchanger for extraction | Designed Pressure:40MPa; Working Pressure:38MPa; | 1 | The material is 304 stainless steel. The part is to guarantee the temperature of CO2 entering into the extraction. |
| 6 | Heating Exchanger for Separation
| Designed Pressure:20MPa; Working Pressure:18MPa; | 3 | The material is 304 stainless steel. The part is to guarantee the temperature of CO2 entering into the separation. |
| 7 | Buffer Tank | Designed Pressure:40MPa; Working Pressure:35MPa; Capacity:5L; | 1 | The material is 304 stainless steel. |
| 8 | Filter | Designed Pressure:16MPa; Working Pressure:14MPa; Capacity:5L; | 2 | The material is 304 stainless steel. The upper plug can be removed. And there is a tank inside which can load the filer material(such like silica gel, active carbon, macroporous resin). |
| 9 | CO2 High-pressure pump | Max Flow:1000L/h; Outlet Pressure:38MPa; | 1 | Three plunger, flow frequency control, ceramic plunger, sealing packing: imitation lun, pump head equipped with cooling system, overflow material 304 stainless steel. |
| 10 | Solvent Pump | Max flow:20L/h; Outlet Pressure: 15MPa | 1 | Single plunger, flow frequency control, ceramic plunger, overflow material 304 stainless steel. |
| 11 | CO2 Recycle Pump | Max Pressure:6.5MPa; | 1 | Loop chain for lift the extraction tank. |
| 12 | Chiller | Cooling capacity is 20000 kcal | 1 | Loop chain for lift the extraction tank. |
| 13 | Recycle Water Pump | 1 batch | Recycle hot and cold water | |
| 14 | Electric Hoist | 0.25T/3m | 1 | |
| 15 | High-pressure Valve(Pneumatic Valve) | Pressure 10000PSI | 2 | The material is 304 stainless steel. The pneumatic regulating valve is used to adjust the pressure of the extraction exit and separation.(American TESCOM) |
| 16 | High pressure stop valve, ball valve, safety valve, check valve | Pressure Range:5~42MPa(configure the number by process) | 1 batch | The material touching with CO2 or water is 304 stainless steel. |
| 17 | Pipe Line | Pressure Range:5~42MPa | The material touching with CO2 or water is 304 stainless steel | |
| 18 | Flow Meter(DM) | 1 | To monitor the instantaneous and cumulative flow of co2 during working. | |
| 19 | Low Voltage Electrical Appliance | Including circuit breaker, contactor, frequency converter, etc | 1 | Two sets of frequency converter(CO2 Pump, solvent pump). |
| 20 | Pressure Transmitter | Pressure Range:0—60MPa | 1 batch | Accuracy:0.4 level |
| 21 | Pressure Gauge | 0—20MPa | 1 batch | Accuracy:0.4 level |
| 22 | Temperature transmitter | PT100 | 1 batch | Accuracy:0.4 level |
| 23 | Operating Table/Bracket | 1 set | Platform pattern board surrounded with fence which is safety and reliable. | |
| 24 | Equipment Insulation | Insulation for all tanks and pipes. |
Product Features
Product Features
1. Unique highly integrated system, Smaller footprint but higher output.
2. Closed loop system recovers 95%+ of CO2
3. High efficiency CO2 high pressure pump, can increase the pressure in the shortest time.
4. Pressure and temperature can be easily adjusted and controlled precisely.
5. 99% of the system assembled before shipping, easily installation at customer site.
6. User-friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation.
7. Special design inside the pump piston system, to extend the pump's life time with few maintenance required.
8. High quality back-pressure regulator.
9. Low extraction temperature suitable for extraction and purification of heat sensitive compound.
10. Fast extraction speed, completely extracted, no toxicity, non-flammable, non-pollution upon environment.
11. Capable of providing inert environment to avoid oxidation of the products and affection of effective content of extracts.
12. No residue of solvent, no nitrate and ions of heavy metal.
2. Closed loop system recovers 95%+ of CO2
3. High efficiency CO2 high pressure pump, can increase the pressure in the shortest time.
4. Pressure and temperature can be easily adjusted and controlled precisely.
5. 99% of the system assembled before shipping, easily installation at customer site.
6. User-friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation.
7. Special design inside the pump piston system, to extend the pump's life time with few maintenance required.
8. High quality back-pressure regulator.
9. Low extraction temperature suitable for extraction and purification of heat sensitive compound.
10. Fast extraction speed, completely extracted, no toxicity, non-flammable, non-pollution upon environment.
11. Capable of providing inert environment to avoid oxidation of the products and affection of effective content of extracts.
12. No residue of solvent, no nitrate and ions of heavy metal.
Main Part![_20220610162056.png]()
![_20220610162102.png]()
