2024 Лидер продаж солнечная панель Longi 550 Вт 545 540 моно Перк для завода PV с
- Категория: Solar Energy Products >>>
- Поставщик: Nuuko,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.20 $* | 13.36 $* |
| Aug-18-2025 | 12.31 $* | 13.73 $* |
| Jul-18-2025 | 10.71 $* | 11.33 $* |
| Jun-18-2025 | 12.14 $* | 13.75 $* |
| May-18-2025 | 10.66 $* | 11.20 $* |
| Apr-18-2025 | 11.57 $* | 12.9 $* |
| Mar-18-2025 | 11.11 $* | 12.57 $* |
| Feb-18-2025 | 11.59 $* | 12.22 $* |
| Jan-18-2025 | 11.42 $* | 12.0 $* |
Характеристики

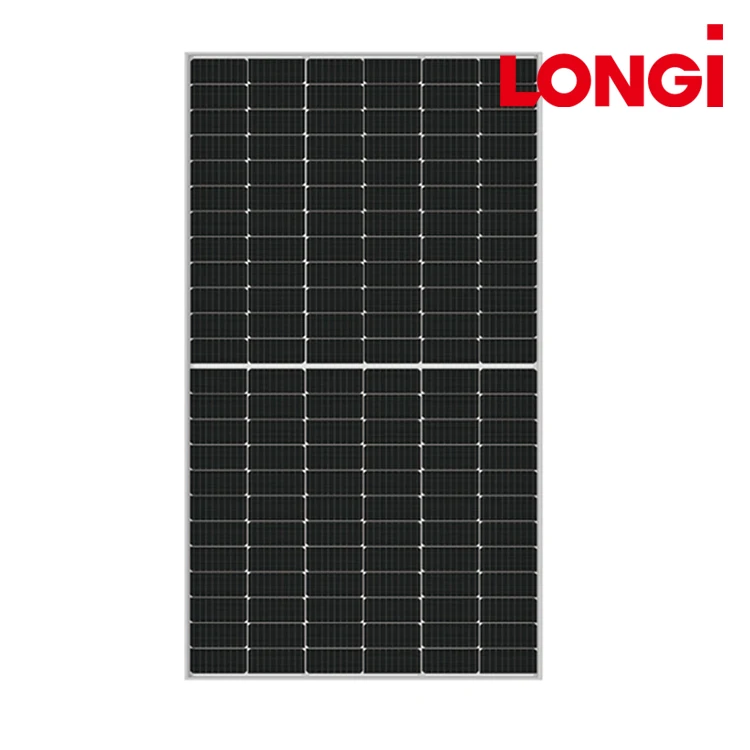

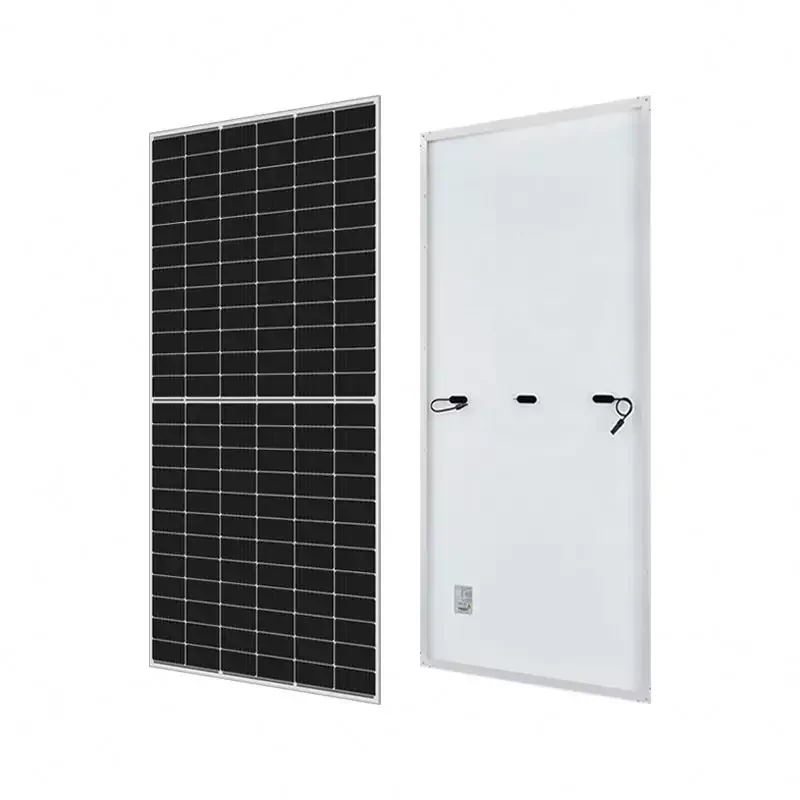

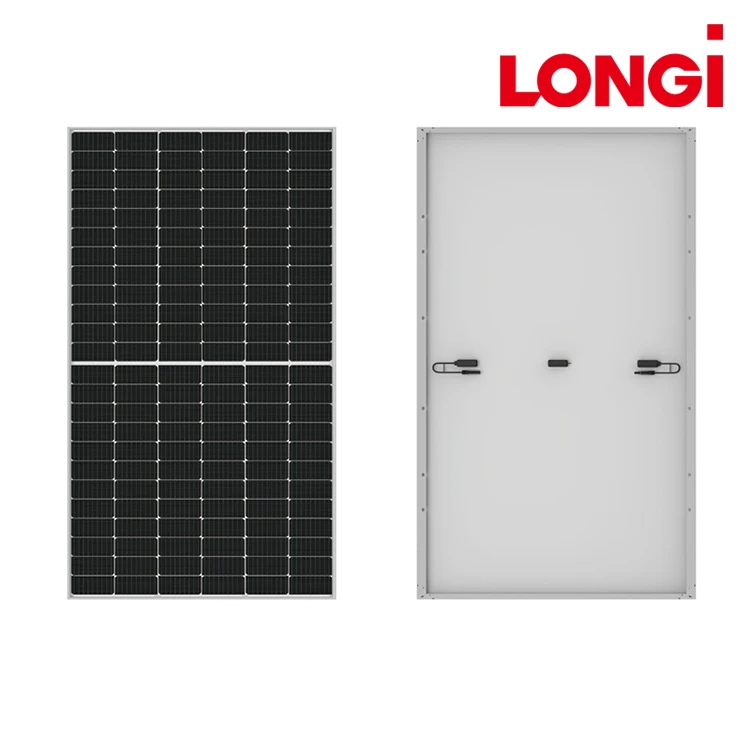

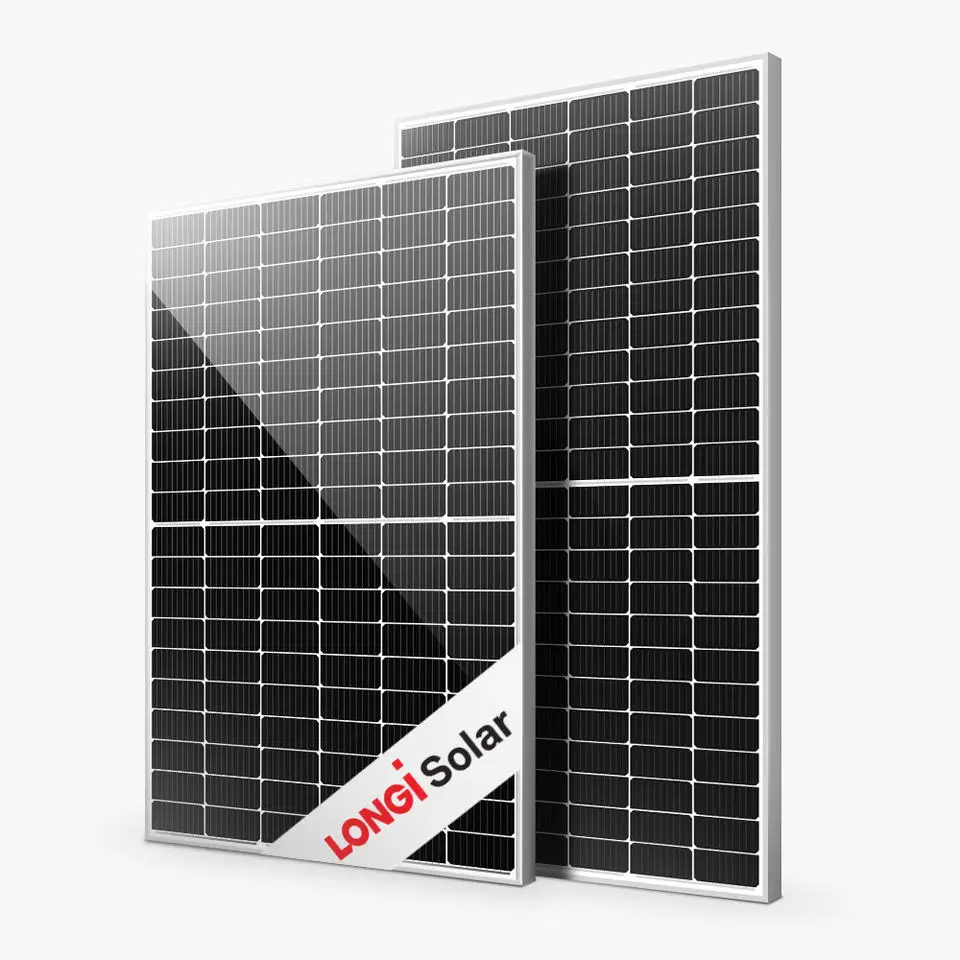

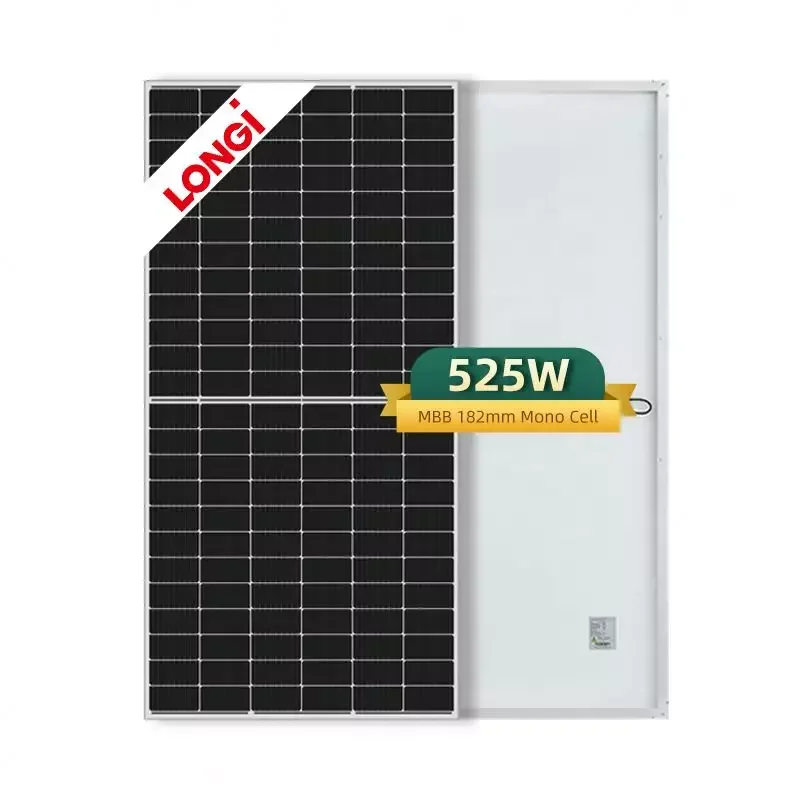

Mono PERC 530W to 550W solar panel
182mm solar cell solar module,high efficiency half cell solar panel popular in the market.
Material
SPECIFICATIONS | ||||||||||||
Cell | Mono | |||||||||||
Weight | 32.6kg | |||||||||||
Dimensions | 2384x 1096 x 35mm | |||||||||||
Cable Cross Section Size | TUV: 4mm2 (0.006inches2)/UL: 12AWG | |||||||||||
No. of Cells | 110 | |||||||||||
Junction Box | IP68, 3 diodes | |||||||||||
Cable Length | Portrait 300mm/Landscape 1200mm/Customized | |||||||||||
Packaging Configuration | 31pcs/Pallet, 620pcs/40ft Container | |||||||||||
ELECTRICAL PARAMETERS AT STC | ||||||||||||
Rated Maximum Power (Pmax) [W] | 530 | 530 | 535 | 540 | 545 | 550 | ||||||
Maximum Power Voltage(Vmpp/V) | 41.7 | 49.30 | 41.8 | 41.9 | 42.0 | 42.1 | ||||||
Maximum Power Current(Impp/A) | 12.71 | 41.31 | 12.80 | 12.89 | 12.98 | 13.07 | ||||||
Open Circuit Voltage(Voc/V) | 49.5 | 13.72 | 49.6 | 49.7 | 49.8 | 49.9 | ||||||
Short Circuit Current(Isc/A) | 13.44 | 12.83 | 13.53 | 13.62 | 13.71 | 13.80 | ||||||
Module Efficiency [%] | 20.3% | 20.5 | 20.7% | 20.9% | 21.1% | 21.3% | ||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc [α_Isc] | +0.043%/°C | |||||||||||
Temperature Coefficient of Voc [β_Voc] | -0.26%/°C | |||||||||||
Temperature Coefficient of Pmax [γ_Pmp] | -0.36%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5 | |||||||||||
Welding solar cell
NUUKO 5MW project
NUUKO bifacial solar panel 550W
3GW production capacity per year, fast delivery, support for sea, land and air transportation!
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli
etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
