FEELWORLD LUT7 PRO 7 дюймов 2200 нит 3D LUT сенсорный экран цифрового однообъективного зеркального фотоаппарата директоров переменного тока монитор 1920X1200 HDM
- Категория: Touch Screen Monitors >>>
- Поставщик: Fuzhou,Weishijie,Camera,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 319.66 $* | 325.66 $* |
| Jul-19-2025 | 259.11 $* | 264.19 $* |
| Jun-19-2025 | 314.55 $* | 320.5 $* |
| May-19-2025 | 311.15 $* | 317.57 $* |
| Apr-19-2025 | 248.86 $* | 253.11 $* |
| Mar-19-2025 | 306.10 $* | 312.58 $* |
| Feb-19-2025 | 304.36 $* | 310.94 $* |
| Jan-19-2025 | 301.88 $* | 307.85 $* |
Характеристики
Recommend Products
Overview
Ideal Filming Crew, Director, AC and DP Monitor
Easy monitoring and focus, flexible mobility on set
The LUT7 PRO equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome.FEELWORLD LUT7 PRO is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and SD card slot on the side. There are an F970 battery plate and an install/ like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. The outer frame features standard ¼" mount points on the bottom, left and right for attaching it to cameras and rigs. This design detail makes the LUT7 PRO easy to attach to a camera and easy to share with a team member or client on set.
Easy to See, Easy to Power
The ideal choice for the director
Many times when you want to use wireless video transmission, you always do not know where to put it on the monitor. The LUT7 PRO equips the F970 external install and power kit, it not only solves this problem, but also can be powered it by Sony F970 battery.The most important is that make to combining the monitor and wireless transmission to together, it convenient the director and photographer for monitoring, and improve the efficiency of the film crew shooting.
High Resolution, More Detail In Field Shooting
Viewing clearly and capture every detail
The FEELWORLD LUT7 PRO enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

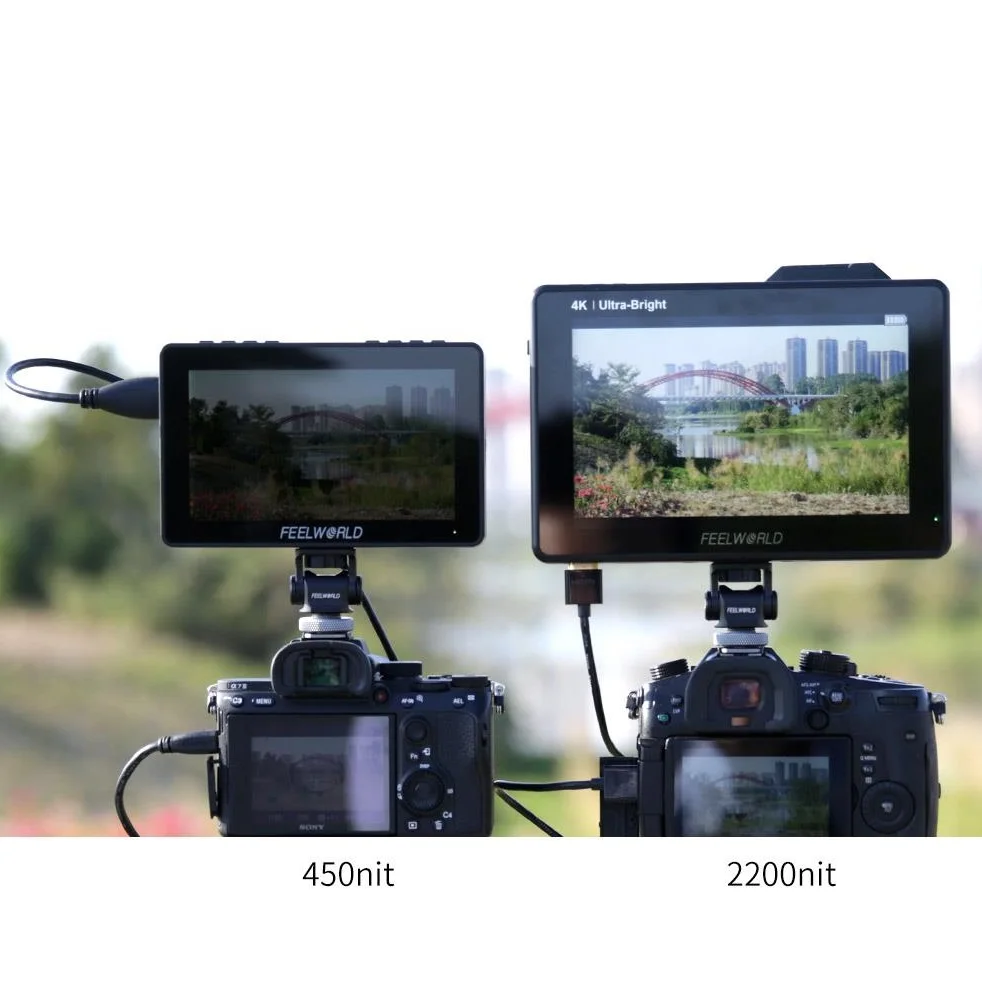

Ultra Bright 2200nit Daylight Viewable
No need sunshade
The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!
Light Sensor for Auto Dimming
LUT7 PRO has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.
Large Monitor with Easy Touch Controls
Simply and easily, make your filming more efficiency
The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!
Support Touch Screen and Button Control Menu
You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.
True Color · Professional Color Calibration
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily,do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery. This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.
Connect to Consumer or DSLR Camera
With 4K HDMI inputs, you can connect it to consumer camera or DSLR camera. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack . For power, there’s a 12V DC input (can be using 12/3A adapter) and one NP-F battery slot.
4K HDM Loop-out
The LUT7 PRO has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
The LUT7 PRO has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

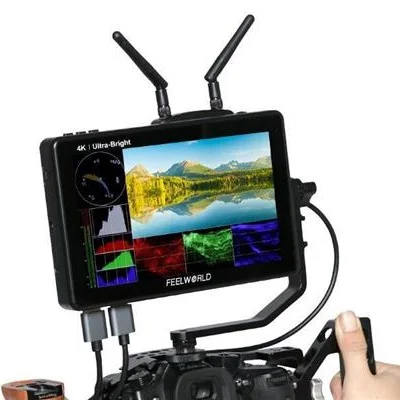

Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Connect to Director Monitor
Display live picture on multiple displays simultaneously.
Power Your DSLR or Mirrorless Camera
The FEELWORLD LUT7 PRO is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the LUT7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT7 PRO extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
Flexible Power Supply Mode
There is a battery slot on the rear side of the monitor, which can be installed with standard Sony L series batteries to provide long-lasting power for your bright screen!
● Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series. LUT7 PRO monitor have 2200nit bright, power consumption is greater than normal brightness monitors, we recommend you use the Sony F970 battery to power monitor. Used the F970 battery (7.4V 6600mah), the monitor can working about 3 hours.
Note: Different specifications of the battery have different capability. The working time for the monitor will be different. Higher capability (working time) will be longer. The battery not including, please purchase separately.
Professional Auxiliary Tools
Help you accurate exposure and focus
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra,false color, frame guides, safe area, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Load Your 3D LUTs，Preview Filming Look in Field Shooting
Support 50 custom LUTs
Some cameras can output logarithmic color space to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG or upload .cube files. LUT7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
HDR Monitoring
What you see is what you get
LUT7 PRO has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting.
Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use LUT7 PRO's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays,and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT7 PRO is perfect for live production monitoring and removes the need for separate expensive scopes!
When you need to analyze image quality more accurately than simply looking at the picture then use LUT7 PRO's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays,and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT7 PRO is perfect for live production monitoring and removes the need for separate expensive scopes!

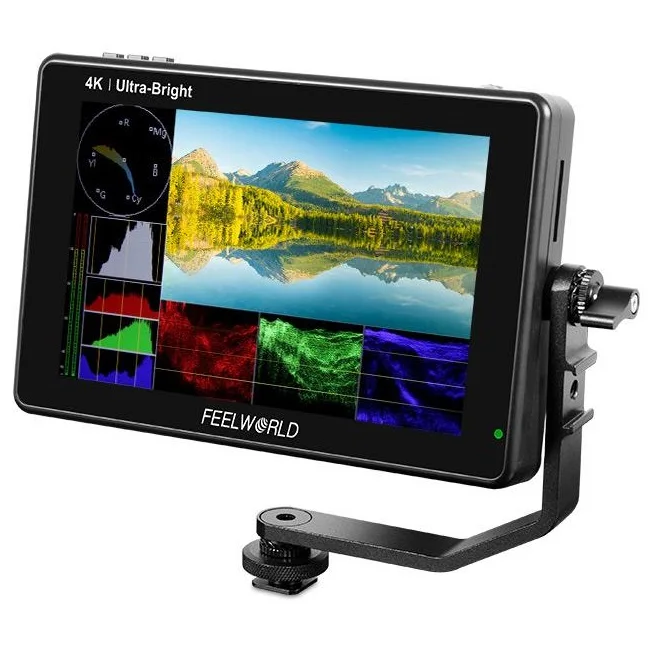

Convenient Mounting - Tilt Arm
Every LUT7 PRO monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

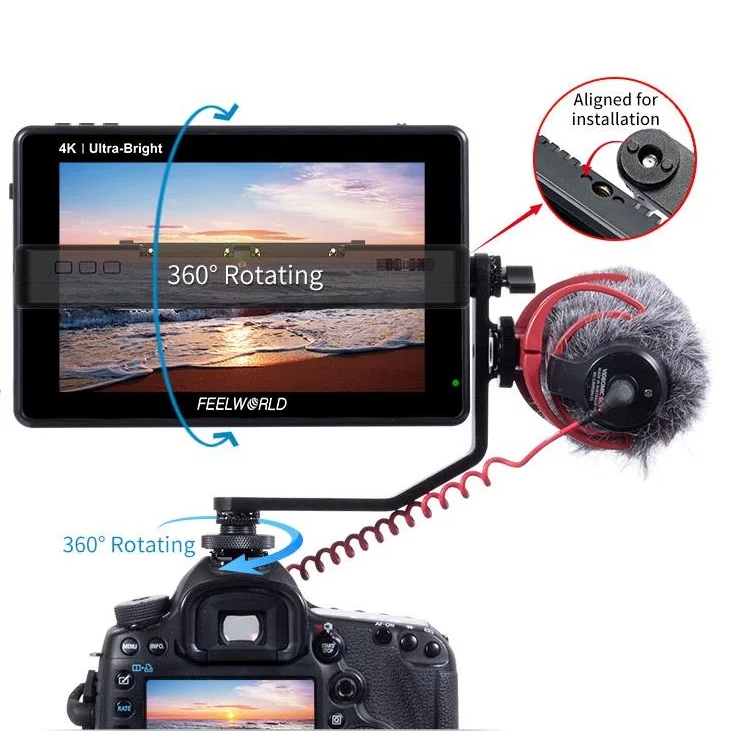

• The LUT7 PRO monitor can be rotated 360 degree with two different ways, for viewing convenience. (1.The monitor can be rotated 360 degree from up to down through the side mounting point of tilt arm; 2. The monitor can be rotated 360 degree from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread.
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
•There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable,just grab the monitor to rotate without loosening the screws.
• The LUT7 PRO monitor can be rotated 360 degree with two different ways, for viewing convenience. (1.The monitor can be rotated 360 degree from up to down through the side mounting point of tilt arm; 2. The monitor can be rotated 360 degree from left to right through the bottom mounting point of tilt arm).
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread.
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
•There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable,just grab the monitor to rotate without loosening the screws.
Flexible Mount on Cameras, Director Movie Carts or Hang It Anywhere
The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. There are 3 mounting points located on the bottom, left and right. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch holes on the left and right sides can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen.
Product Feature
* Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to
install and disassemble, simplify your photography equipment.
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu

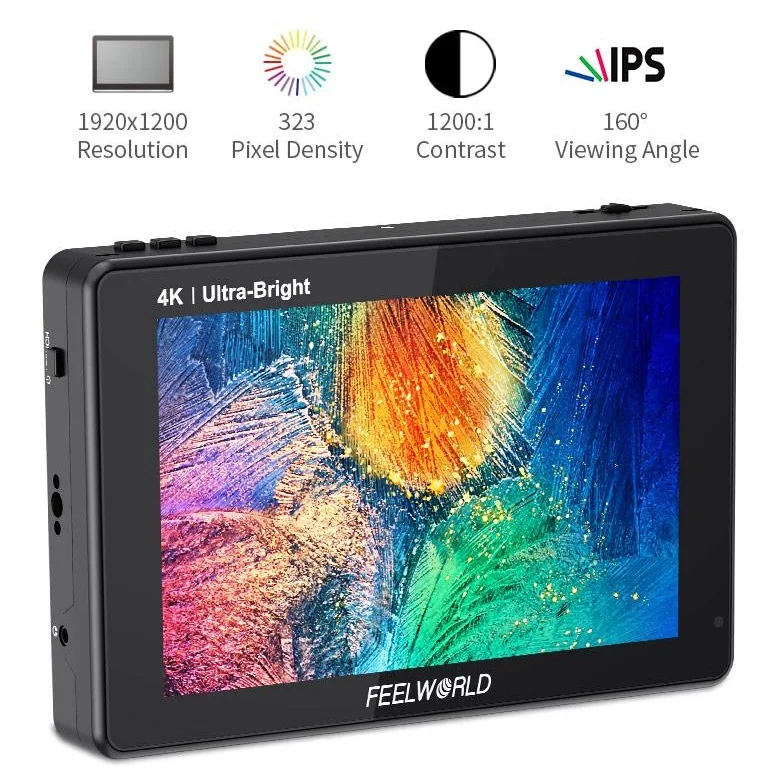

* High Resolution: Full HD 1920x1200, High Contrast: 1200:1
* 2200nit Daylight Viewable, Light Sensor for Auto Dimming
* 160° wide viewing angles IPS Panel
* Provides auxiliary power out; allowing shooters to power their cameras
* Support HDR monitoring
* With Waveform, Vectorscope, Histogram, Focus Assist, Monochrome，Embedded Audio etc. functions, can help you
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* High Resolution: Full HD 1920x1200, High Contrast: 1200:1
* 2200nit Daylight Viewable, Light Sensor for Auto Dimming
* 160° wide viewing angles IPS Panel
* Provides auxiliary power out; allowing shooters to power their cameras
* Support HDR monitoring
* With Waveform, Vectorscope, Histogram, Focus Assist, Monochrome，Embedded Audio etc. functions, can help you
accurately exposure and focus every shot.
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera
* Stereo Earphone output
* DC 8V power out to power your DSLR camera or mirrorless camera
Product Paramenters
Display Spec. | Model | LUT7 PRO | |
Screen Size | 7" IPS | ||
Resolution | 1920x1200 pixels | ||
Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) | ||
Aspect Ratio | 16:10 | ||
Brightness | 2200cd/m² (Light Sensor) | ||
Contrast Ratio | 1200:1 | ||
Backlight | LED | ||
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) | ||
Input | 1 X HDM | HDM | |
Output | 1 X HDM | HDM | |
1 X DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. | ||
Audio | Audio | 3.5mm Stereo Headphone | |
HDM Input/ Output Support Format | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) | ||
General | Input Voltage | DC7～24V | |
Power Consumption | ≤16W | ||
Working Temperature | -20°C~50°C | ||
Storage Temperature | -30°C~60°C | ||
Install Way | 1/4"-20 Thread Socket (Left, Right, Bottom) | ||

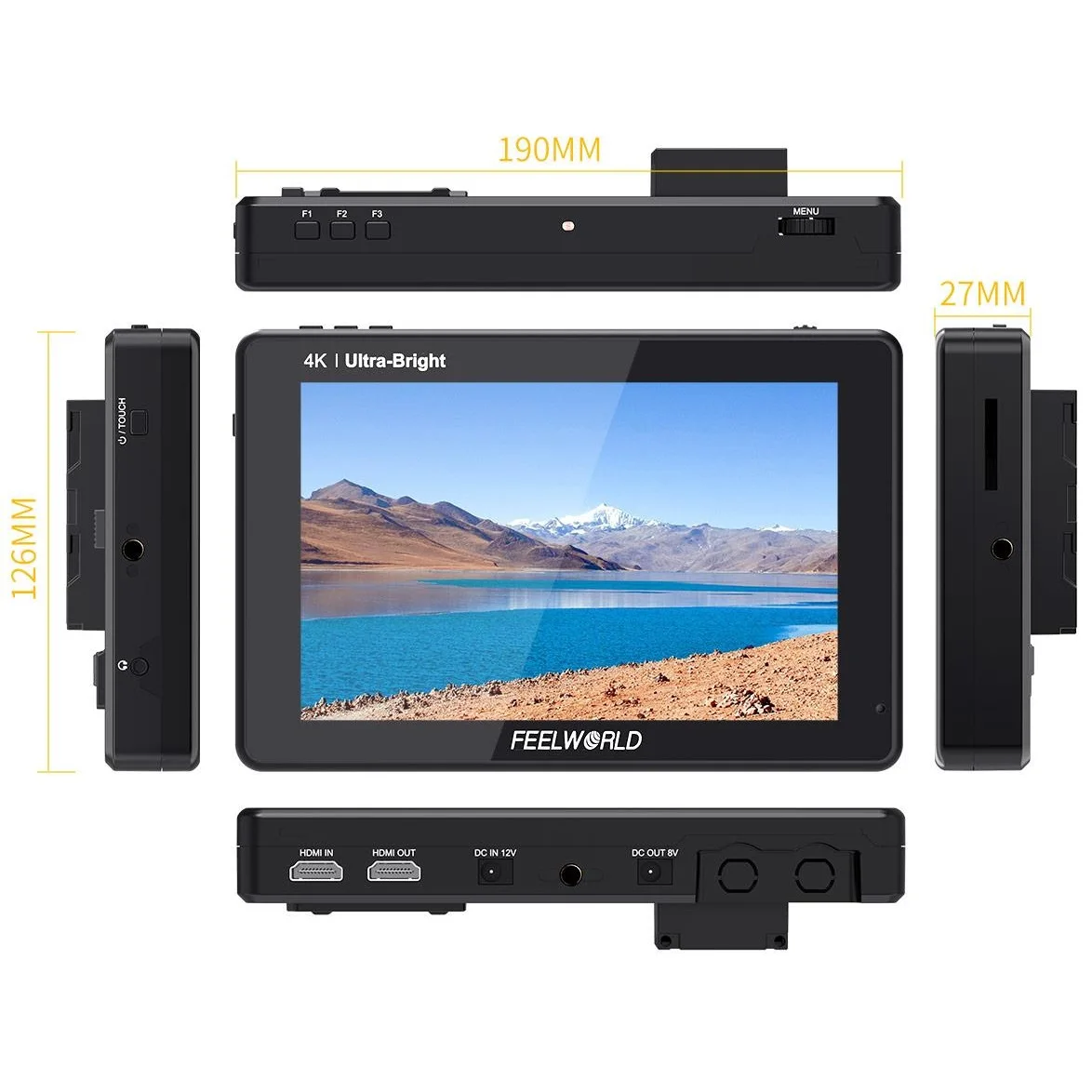

Unit Size | 190Lx126Hx27D (mm) | ||
Unit Weight | 450g | ||
Color Box Size | 222L*158W*76H(mm) | ||
Outer Carton Qty | 10 | ||
Outer Carton Size | 450*234*385 (mm) | ||
Gross Weight | 10.1kgs | ||
Product packaging
Packing List:
* 1x LUT7 PRO Monitor
1× Mini/ Micro HDM to HDM Cable
1× Tilt Arm
1× Disassemble Wrench
1× Manual
1× Mini/ Micro HDM to HDM Cable
1× Tilt Arm
1× Disassemble Wrench
1× Manual
