High Quality Pharmaceutical Industry Tablet Pill Coating Machine

CHS-BYC

Product Introduction:

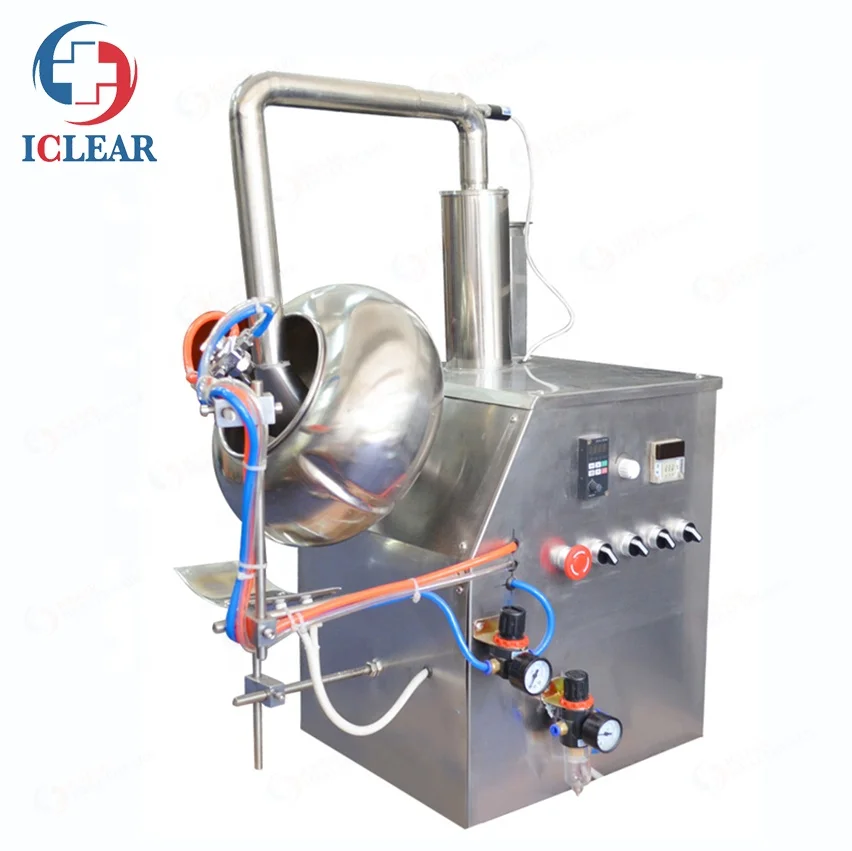

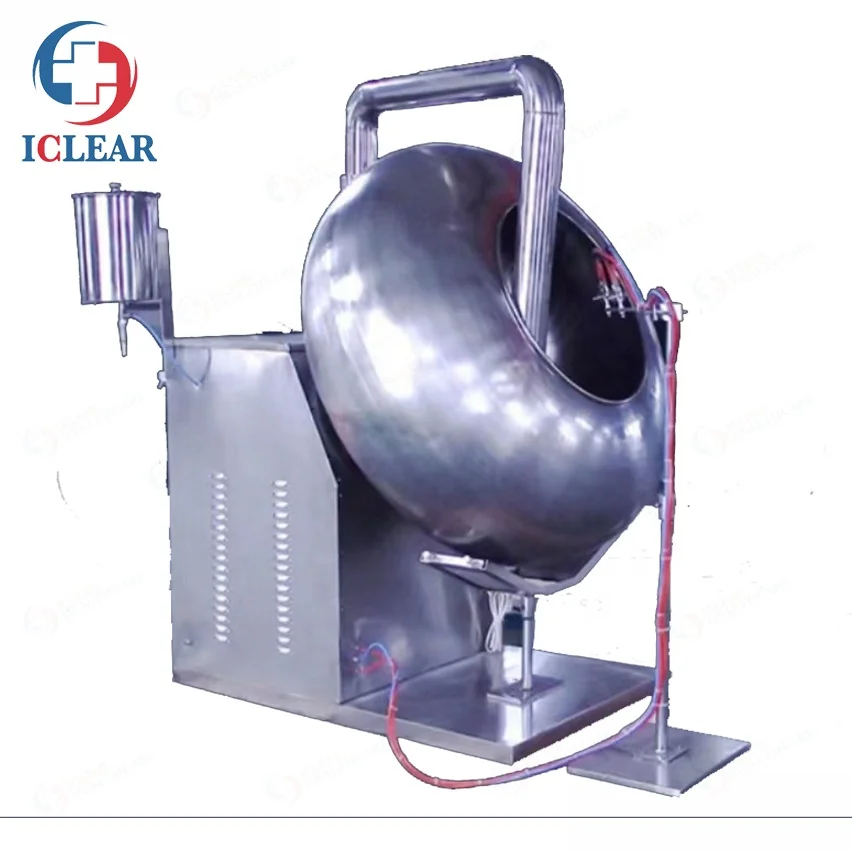

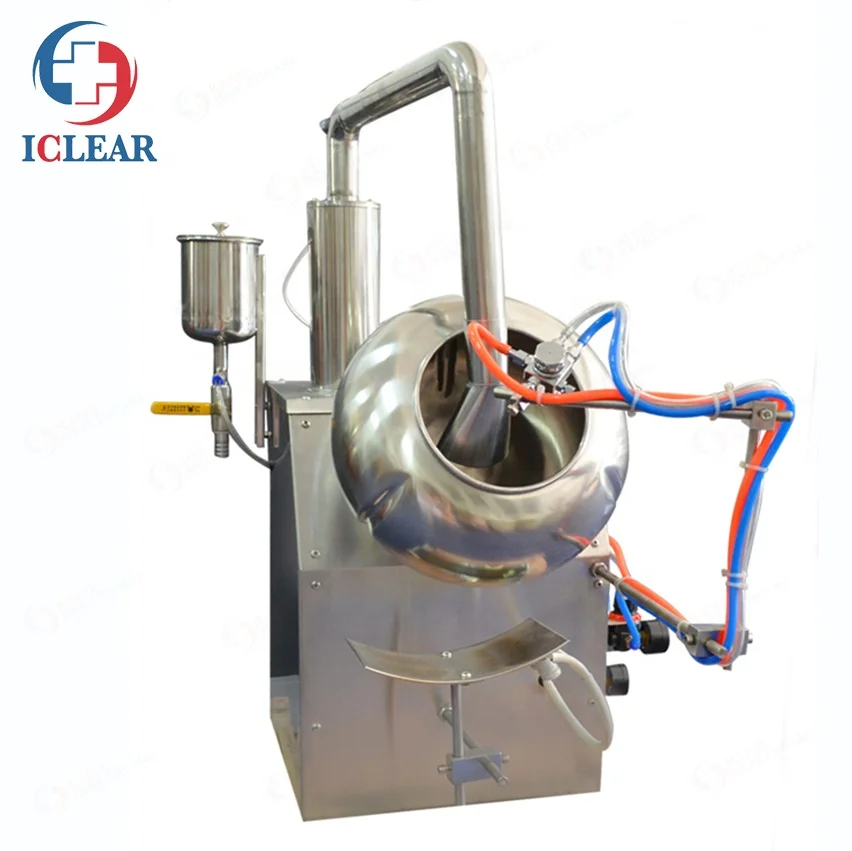

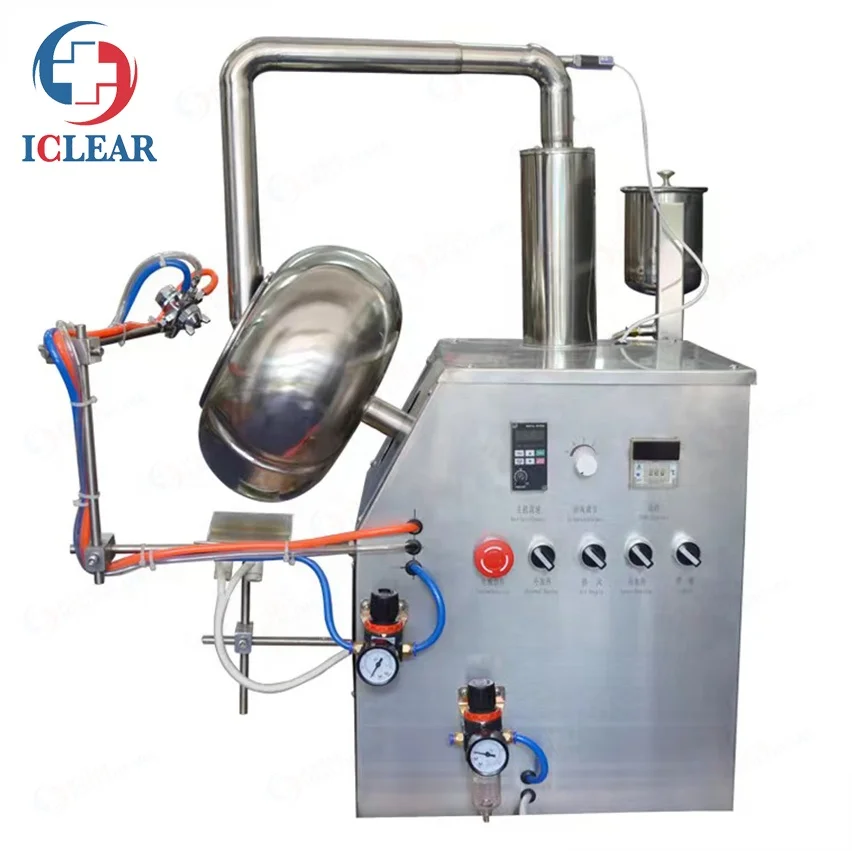

CHS-BYC series coating machine is used to coat sugar-coated tablets and pills in the pharmaceutical and food industries. It can also be used to stir-fry bean granules and ripe fruit. Its characteristic is that the inclination angle of the sugar-coated pan can be adjusted, and direct heating equipment such as electric stove and gas can be placed under the pan. A separate electric heating blower is attached with the machine, and the air outlet pipe can be used for heating or cooling when it goes deep into the pot, and the heat can also be adjusted.
Features:

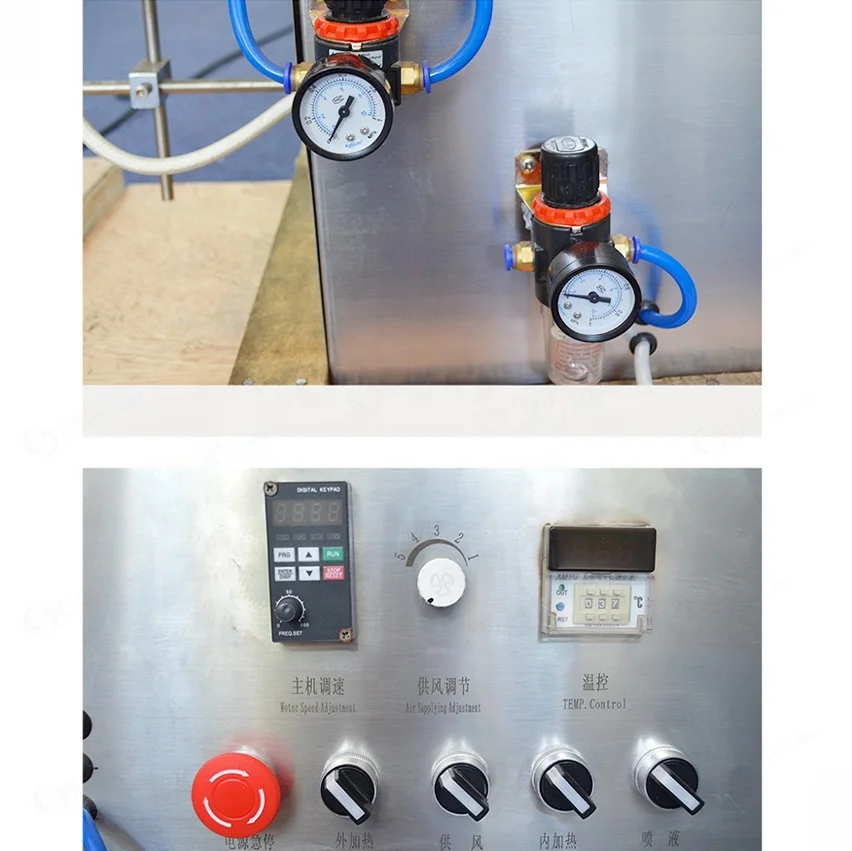

1. Equipped with frequency converter;

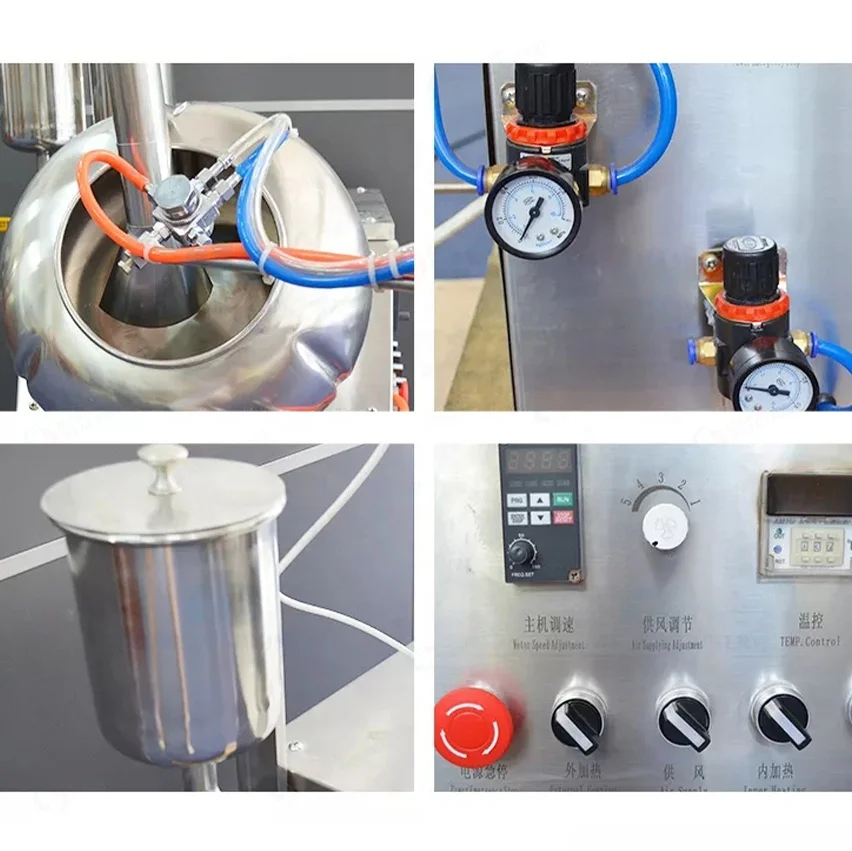

2. Equipped with spray gun system to meet GMP requirements.
Technical Parameter:

Model	CHS-BYC300	CHS-BYC400	CHS-BYC600	CHS-BYC800	CHS-BYC1000	CHS-BYC1250
Sugar coating pan diameter (mm)	300	400	600	800	1000	1250
Sugar coating pan speed (r/min)	0-46	0-46	40	32	32	30
Main motor power (Kw)	0.55	0.55	0.75	1.1	1.5	2.2
Blower power (W)	60	60	60	250	250	250
Production capacity (Kg/time)	2	5	15	30-50	50-70	90-150
Total heating power (w)	1400	1400	2000	2000	2000	2000
Machine weight (Kg)	90	100	150	280	300	500
Dimensions (mm)	485*585 *766	485*585 *810	700*540 *1300	925*900 *1500	1100*1100 *1600	1250*1300 *1600
