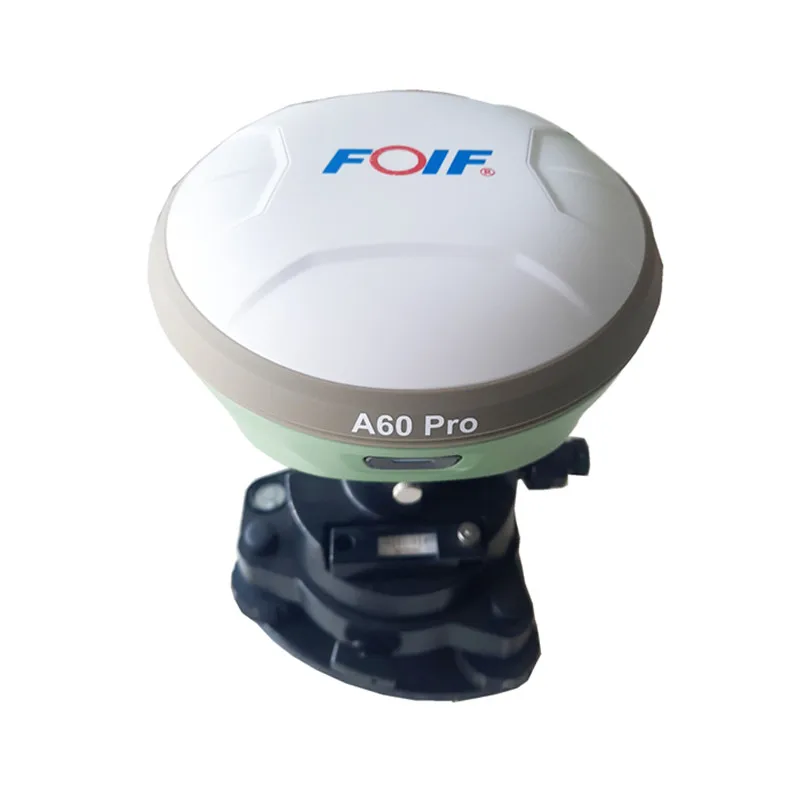

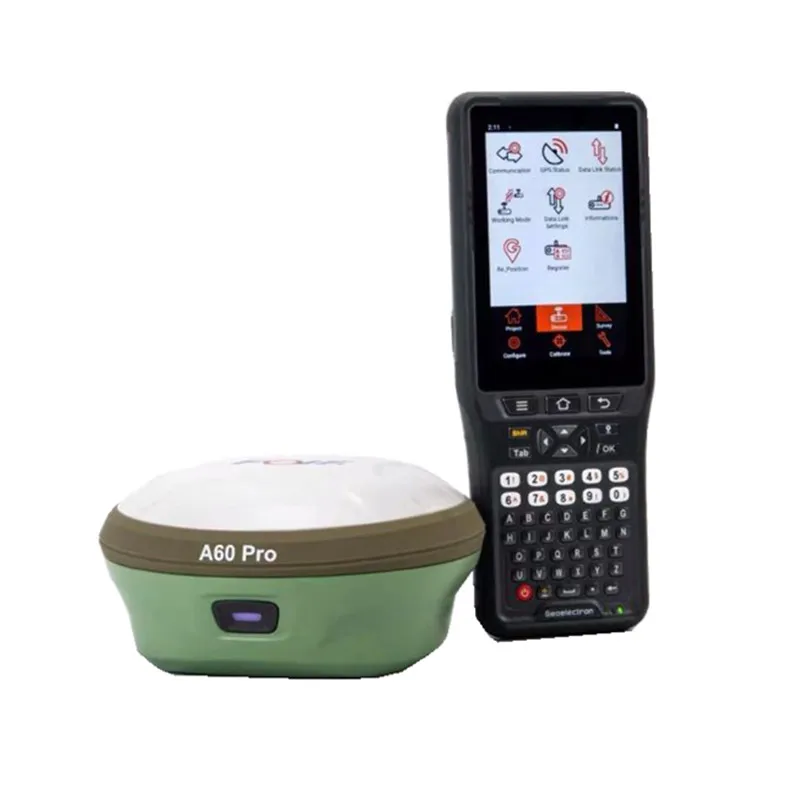

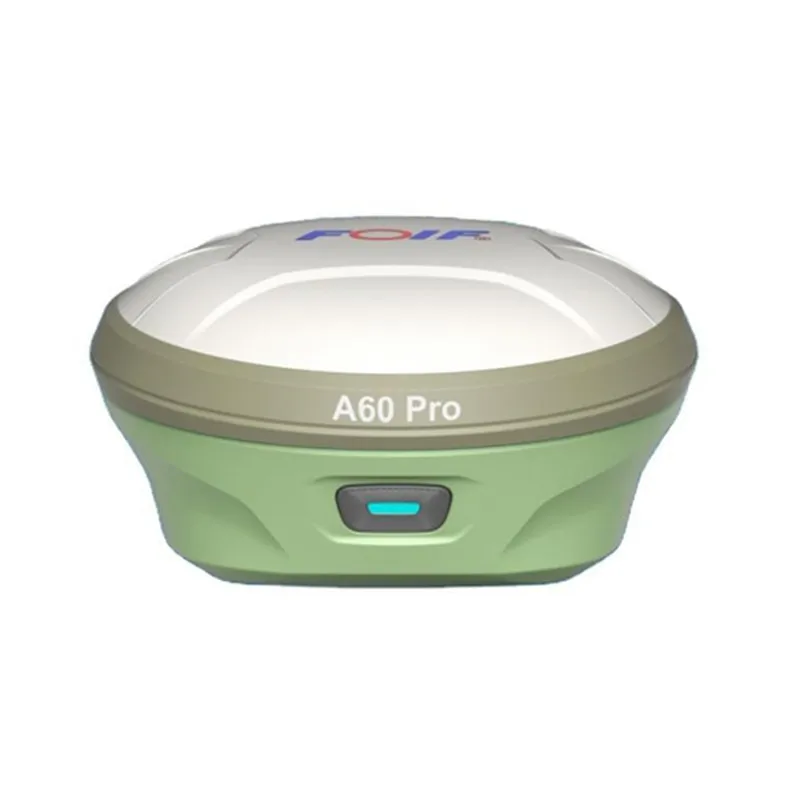

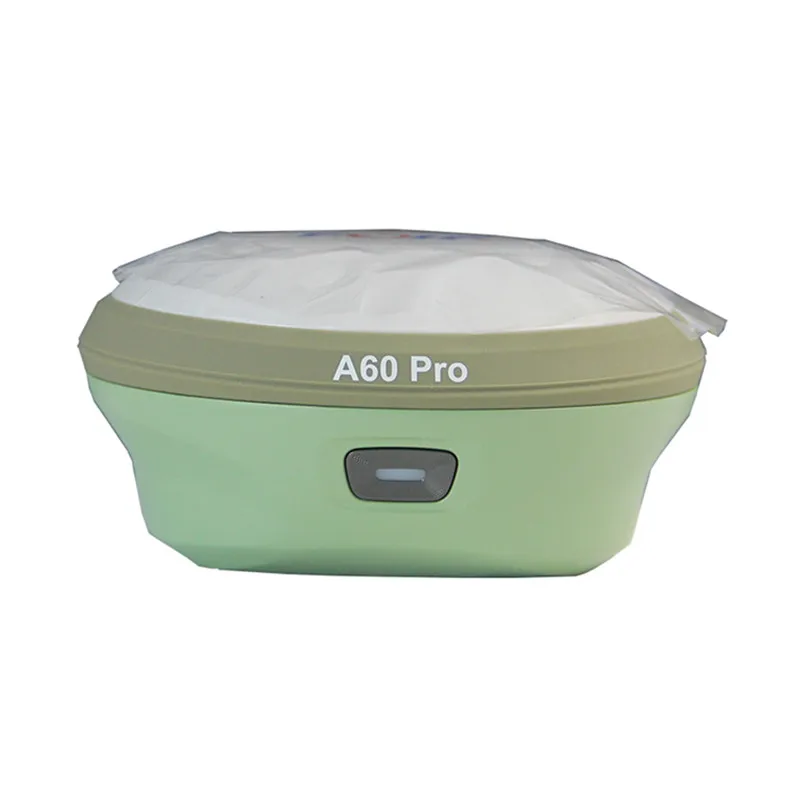

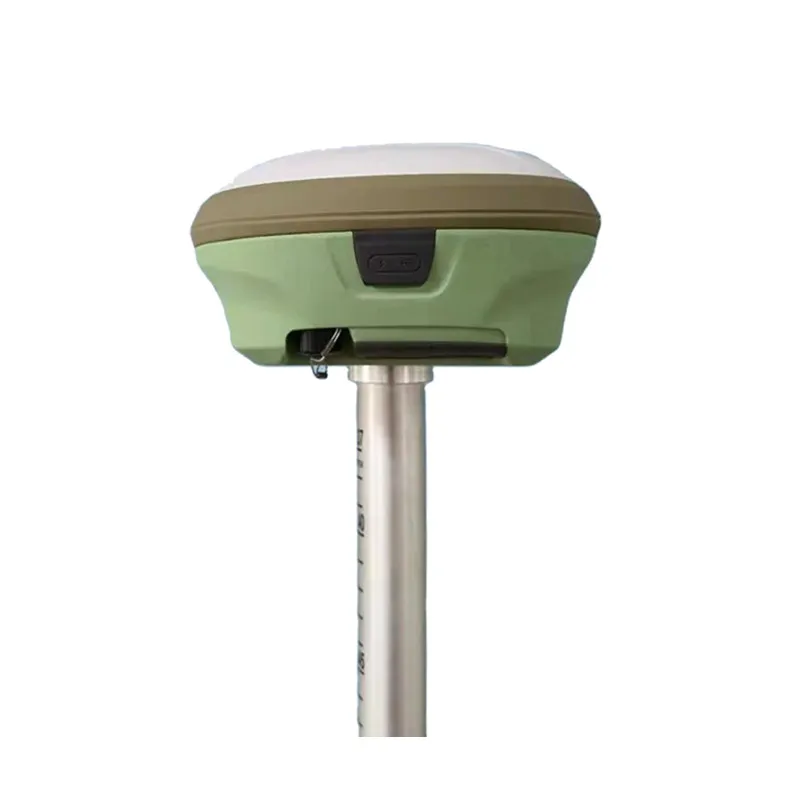

Полусферическая плата P40 Foif A60 Rtk Gps Gnss приемник

Main Features:

1) 800 channels(Hemisphere board P40),

2) Tracking All constellations: GPS: L1C/A,L1C,L1P,L2C,L2P,L5; GLONASS:G1, G2,G3 BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC; Galileo: E1, E5a, E5b, ALTBOC, E6 QZSS: L1C/A, L1C, L2C, L5, LEX; SBAS: L-Band

3) Static: H: 2.5mm±1ppm, V: 5mm±1ppm RTK: H: 8mm±1ppm, V:15mm±1ppm

4) Internal TX/RX UHF radio, the work range is 3-4KM.

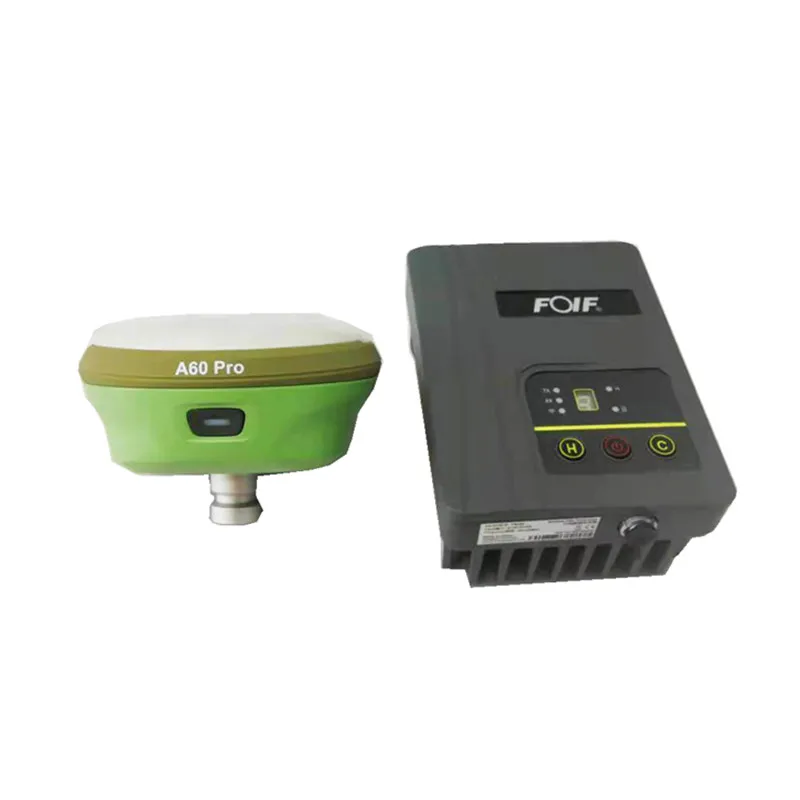

5) 35W External radio: the work range is 20-30KM.

6) With IMU Tilt survey function 60 degree, Electronic Bubble

7) 4G network, WebUI, Wi-FI, iVoice intelligent, Bluetooth,

8) Strong software "Surpad4.2", SurvCE, Field Genius, Fast Survey are supported too.

9) Large batteries capacitydesign, 4.2V, 13600mAH battery, charging and external charging configurations. long working time. Static Survey: 28 hours, Rover RTK survey: 22h

10) Protocol: Support GeoTalk, GEOMARK, PCC GMSK, SATEL, PCC-EOT, TrimTalk 450S, TrimMark III,TrimTalk(4800), South, Hi-Target,HZSZ and etc.

11) Data format: RTCM2.3, RTCM3.2, RTCM3.X, CMR,CMR+ and etc. Can work with all the famous brand (Trimble, Leica, Topcon) all over the world

Q1. Are you a factory or a trading company?
A: We are an industrial and trade integrated enterprise.

Q2.What kind of products do you offer?
A:We supply pll kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.

Q3.How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Q4. How to ensure product quality?
A: We have a professional test team and test platform. We will perform functional tests before delivery and provide a 90-180 day warranty.

Q5.How is the price?
A:As we believe the quality is the most important,we will provide the best quality products we can with reasonable price.

Q6.Could I get samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q7. Delivery time?
A: Usually, if you need more than one sample, it takes about 4~7 working days. For batch orders, the delivery time is usually about 20~35 days according to the quantity and requirements of your order.
