Недорогой наземный измерительный прибор 2021 высокоцелевые TS5
- Категория: Other Test Instrument >>>
- Поставщик: Tianjin,New,Starr,Technology,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4879.4 $* | 5123.48 $* |
| Aug-16-2025 | 4838.15 $* | 5080.56 $* |
| Jul-16-2025 | 4059.78 $* | 4262.68 $* |
| Jun-16-2025 | 4756.69 $* | 4994.84 $* |
| May-16-2025 | 4141.52 $* | 4348.61 $* |
| Apr-16-2025 | 4674.12 $* | 4908.22 $* |
| Mar-16-2025 | 4633.37 $* | 4865.85 $* |
| Feb-16-2025 | 4592.96 $* | 4822.78 $* |
| Jan-16-2025 | 4551.45 $* | 4779.88 $* |
Характеристики
Product Description
Number of channels: 660
BDS: B1, B21I, B3I, B1C. B2a
GPS:L1、L1C、L2C、L5 、L2P
GLONASS: L1. L2
GALILIEO: E1. E5a, E5b
QZSS: L1. L2. L5
SBAS: support
Physical Properties
Size：φ156mmx77mm
Power consumption：4.2W
Recommend Products

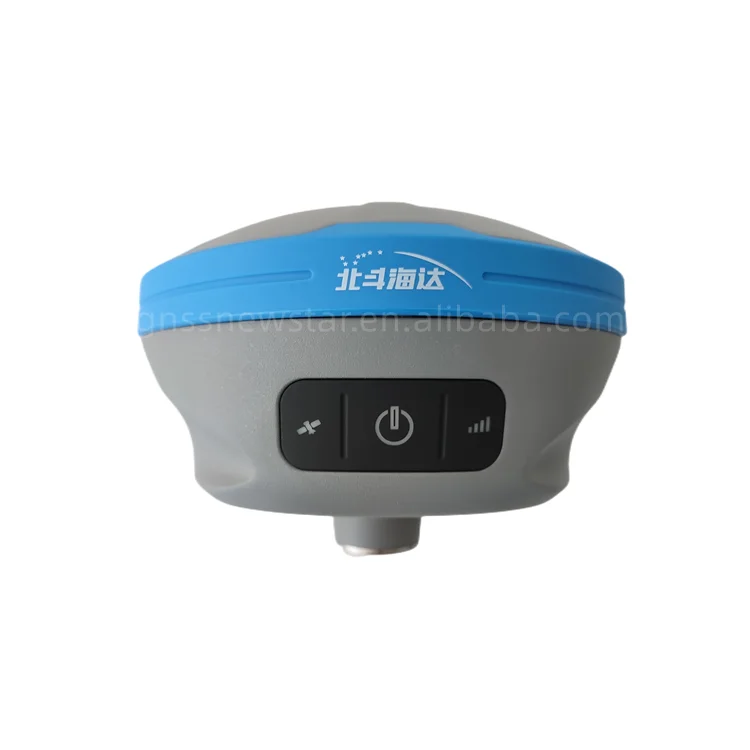

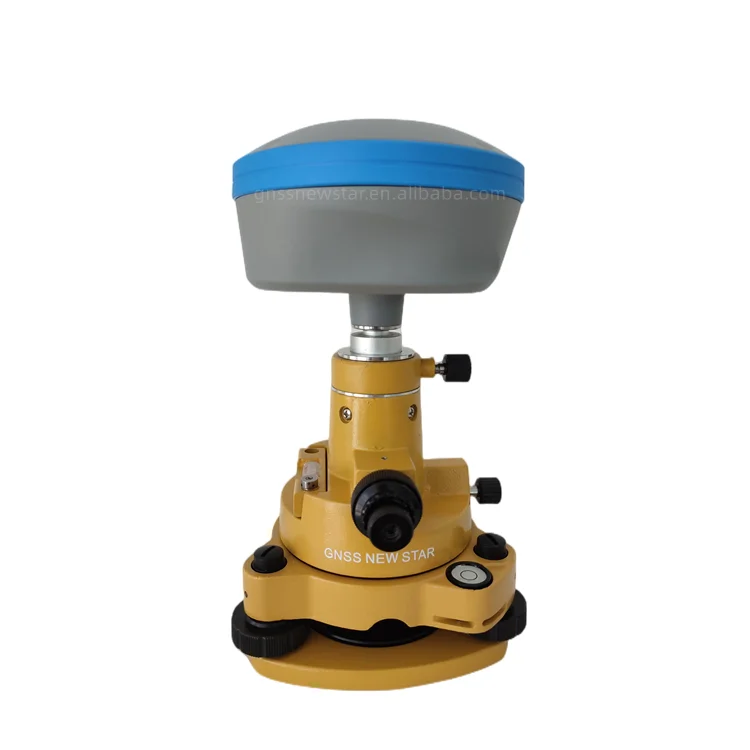

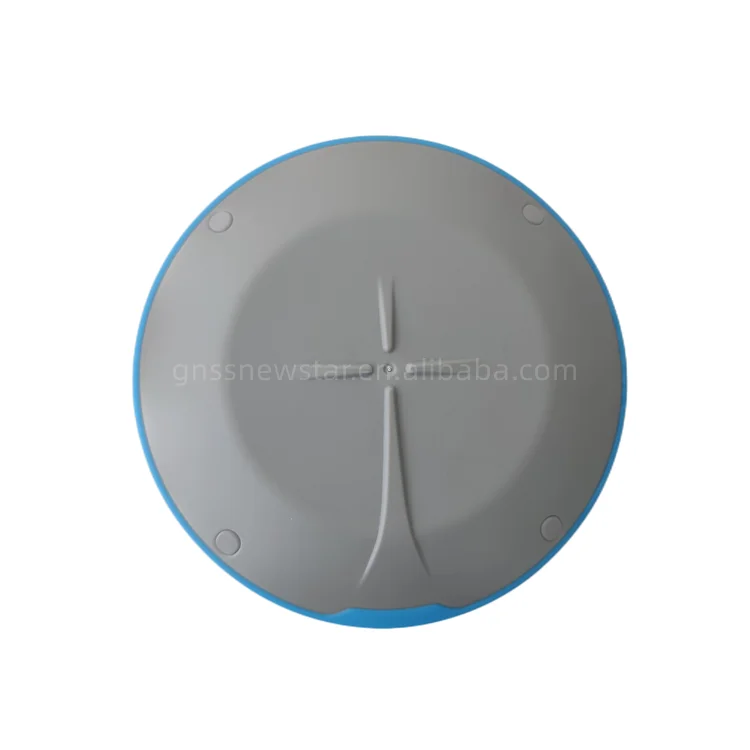

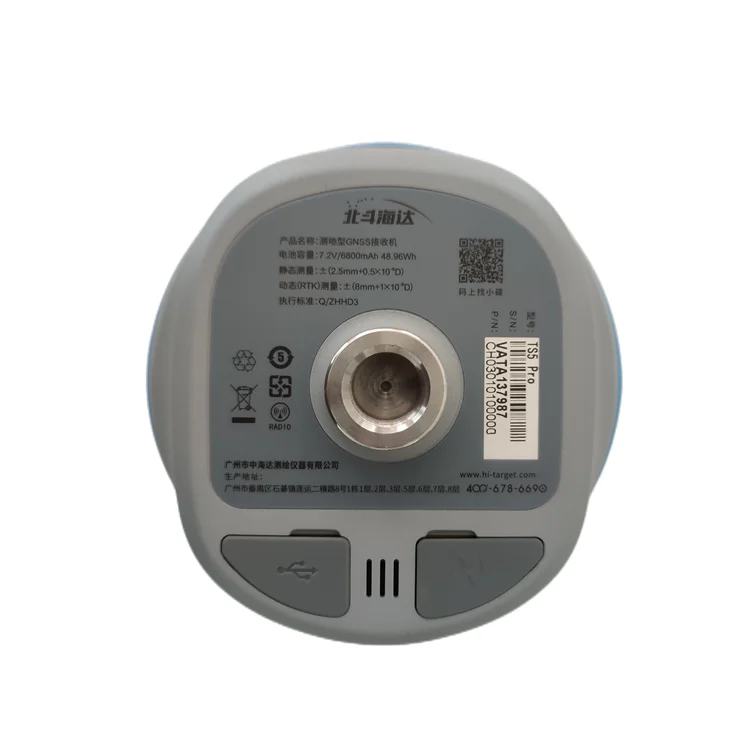

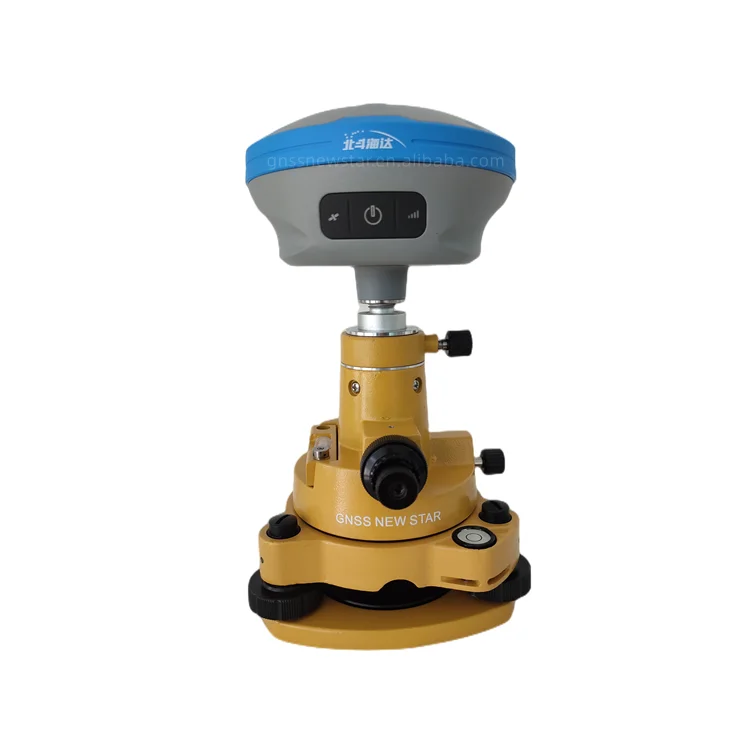

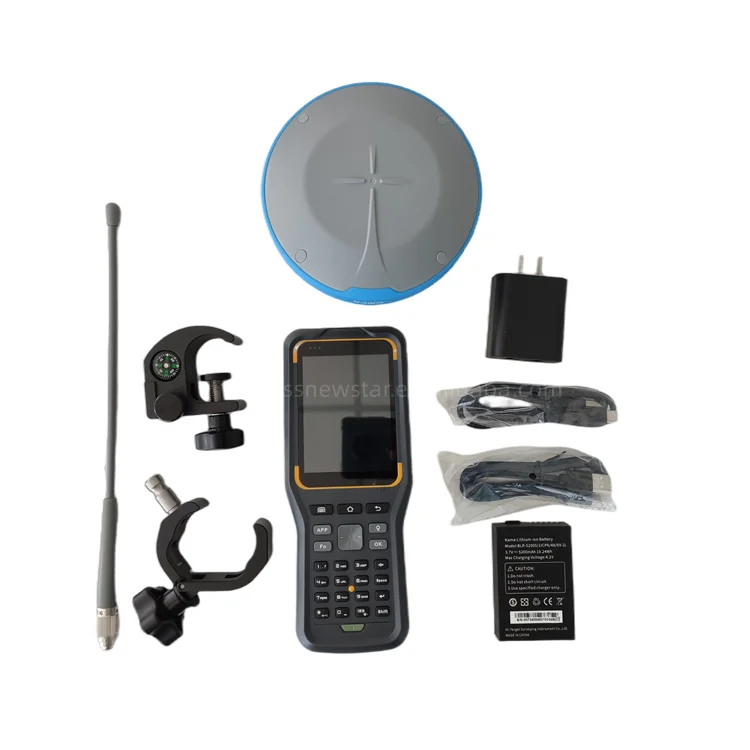

Details Images
Specification
GNSS configuration | Number of channels: 660 | ||
BDS: B1, B21I, B3I, B1C. B2a .GPS: L1, L2. L5 | |||
GLONASS: L1. L2 | |||
GALILIEO: E1. E5a, E5b | |||
QZSS: L1. L2. L5 | |||
SBAS: support | |||
output format | ASCII: NMEA-0183,binary code ASCII: NMEA-0183, binary code | ||
Positioning output frequency | 1Hz~20Hz | ||
static data format | GNS, Rinex dual format static data | ||
Differential format | CMR，RTCM2.X, RTCM3.0, RTCM3.2 | ||
network mode | VRS, FKP, MAC; support NTRIP protocol | ||
System Configuration | operating system | Linux operating system | |
Start Time | 3 seconds | ||
data storage | Built-in 8GB ROM, support automatic cycle storage of static data | ||
Accuracy and reliability[1] | RTK positioning accuracy | Plane: ±(8+1x10-6D) mm (D is the distance between the measured points) | |
Elevation: ±(15+1x10-6D) mm (D is the distance between the measured points) | |||
Static positioning accuracy | Plane: soil (2.5+0.5x10-6D) mm (D is the distance between the measured points) | ||
Elevation: soil (5+0.5x10-6D) mm (D is the distance between the measured points) | |||
DGPS positioning accuracy | Plane Accuracy: +0.25m+1ppm; Elevation Accuracy: +0.50m+ 1ppm | ||
SBAS positioning accuracy | 0.5m | ||
Initialization time | <10 seconds | ||
Initialization reliability | > 99.99% | ||
I/O ports | 5-pin interface, USB Type C interface, SMA interface, Nano SIM card slot | ||
Built-in eSIM | Including 3 years of Internet access fee, you can connect to the Internet without inserting a card | ||
Built-in 4G network communication | TDD-LTE. FDD-LTE. WCDMA. EDGE. GPRS. GSM | ||
WiFi communication | 802.11 a/b/g/n access point and client mode for WiFi hotspot service | ||
Bluetooth communication | Bluetooth4.2/2.1+EDR,2.4GHz | ||
communication unit | Built-in radio | Built-in transceiver integrated radio: | |
Power: 0.5W/1W/2W adjustable | |||
Frequency: 410MHz~470MHz | |||
Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKM, TRANSEOT, SoutH | |||
Number of channels: 116 (16 of which are configurable) | |||
Plug-in radio | Full protocol plug-in radio | ||
Power: 10W\\30W adjustable, frequency band: 403~473MHz. | |||
Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKI, TRANSEOT, SOUTH, CHC, SATEL Transmission rate: 19.2kbps/9.6kbps adjustable | |||
Channels: 116 (16 of which are configurable) | |||
sensor | electronic bubble | Achieve smart centering | |
Inclination measurement | Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, point-to-point measurement, accuracy of 3 cm. | ||
User Interface | button | two buttons | |
display | 0.94-inch 240*120 high-resolution OLED high-definition color display | ||
LED indicator light | satellite light, signal light | ||
Functional application | Advanced Features | OTG function, NFC IGRS, WebUI interaction, U disk firmware upgrade, network relay | |
Smart application | Intelligent base station, intelligent voice, function self-test, fast battery charging, AR measurement, AR stakeout | ||
Remote Service | Message push, online upgrade, remote control | ||
cloud service | Device management, location services, collaborative work, data analysis | ||
physical properties | Host battery | Built-in high-capacity lithium battery 6800mAh/7.4V, network mobile station working time 10 hours[2] | |
Support fast charge | Support USB PD3.0 super fast charging, charging time is s3.5 hours. Support power bank charging. | ||
External power supply | 6~28V wide voltage DC design, 5 core interface | ||
size | φ156mmx77mm | ||
weight | Less than or equal to 1.25kg (including battery) | ||
Power consumption | 4.2W | ||
Material | The shell is made of magnesium alloy material | ||
Environmental characteristics | Dustproof and waterproof | IP68 | |
Anti-drop | Anti-2 meters high measuring rod natural drop | ||
Relative humidity | 100% non-condensing | ||
Operating temperature | -30°C~+70°C | ||
storage temperature | -40°C~+80°C | ||
