Хорошее качество вентиляции и кондиционирования U форма квадратный линия производства воздуховода 5 труба делая машину для

Хорошее качество вентиляции и кондиционирования U форма квадратный линия производства воздуховода 5 труба делая машину для

Категория: Building Material Machinery >>>
Поставщик: Maanshan,BYFO,CNC,Machinery,Technology,Co.,Ltd.

Цена:42 700,00 $ - 45 700,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	50813.75 $*	53354.48 $*
Aug-19-2025	50386.7 $*	52905.92 $*
Jul-19-2025	42273.15 $*	44387.69 $*
Jun-19-2025	49532.17 $*	52009.26 $*
May-19-2025	43127.20 $*	45283.64 $*
Apr-19-2025	48678.93 $*	51112.39 $*
Mar-19-2025	48251.91 $*	50664.75 $*
Feb-19-2025	47824.7 $*	50215.85 $*
Jan-19-2025	47397.58 $*	49767.33 $*

Характеристики

Product Description

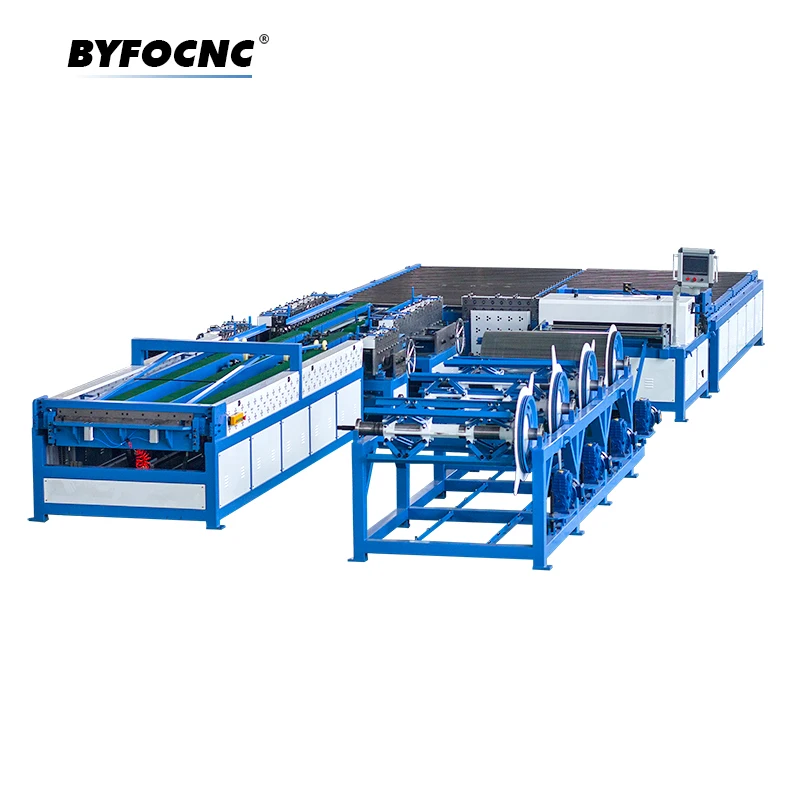

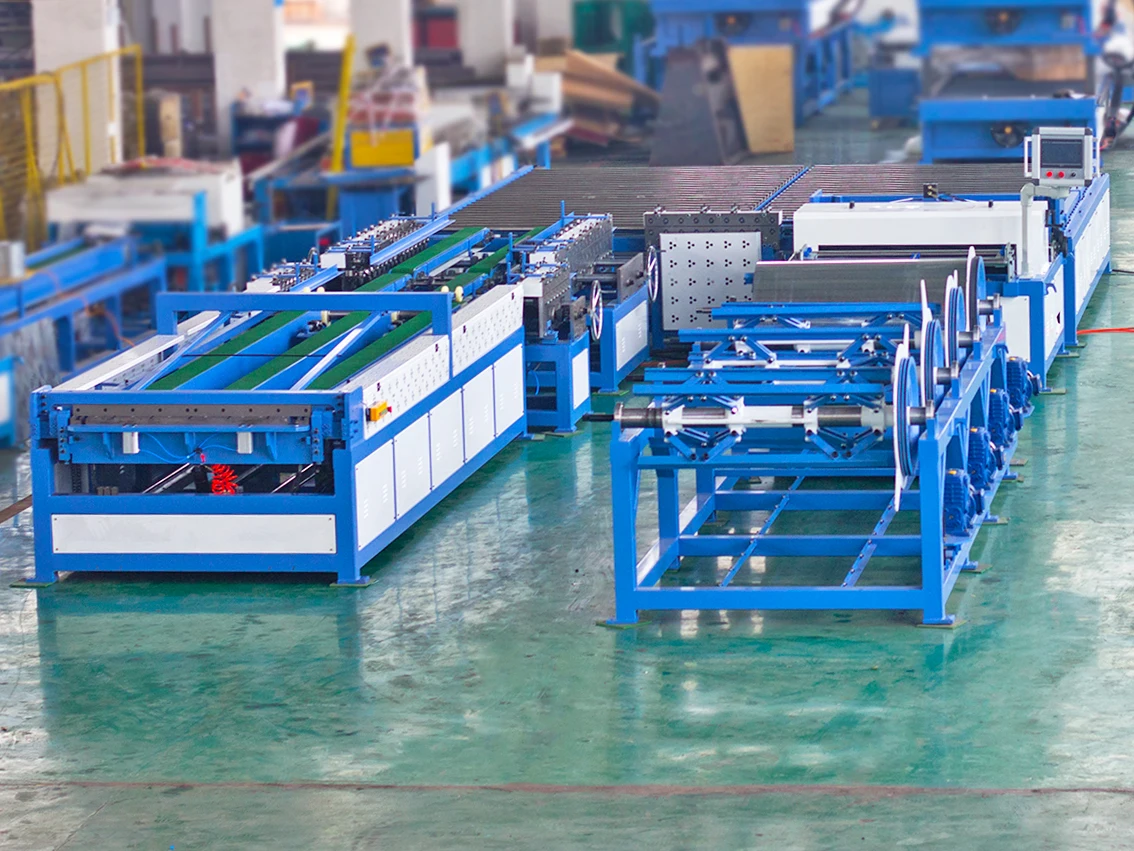

Good Quality HVAC U Shape Square Air Duct Production Line 5 duct making machine for sale

Product Application

I. Advantage of Products:
1. The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
2. The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.
· Mechanical arm clutching, locating and transferring platform
· Displacement lock machine
· Line 3 host+ Single rack
II. Function:
It's mainly for uncoiling, leveling, beading, punching, locking. Because of its small space requirement and easy to install and operate the machine can upgrade to "super line 4".
III. Performance Features:
· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
· Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.
· With production memory functions, the production orders can be tracked and checked.
IV. Main Import Configuration:
- MITSUBISHI HMI Display And PLC
· MITSUBISHI Frequency Converter
· Japan NEMICON Inverter
· Taiwan Hydromax Pump
· Taiwan High Temperature Resistant Tubing
V. Basic Configuration:
· One electric coil cradles, 2 material trays (5-7t each roll)
· One rack
· One host (line3 host)
· One mechanical arm clutching, locating and transferring platform
· One displacement type locking machine
· One set of computer controlling system

MODEL	Coil Width	Thickness	Speed	decoiler capacity	Dimensions	Power	Weight
BFL-III-1.2x1300	1250 mm	0.4-1.2 mm	15 m/min	7 tons	4000x1950x1700 mm	7 KW	3.8 ton
BFL-III-1.2x1600	1524 mm	0.4-1.2 mm	15 m/min	7 tons	4000x2200x1700 mm	8.5 KW	4.2 ton

L-shaped ducts with TDF

when you need to make big size of rectangular ducts, you can make two L-shapes to achieve.

Rectangular ducts with TDF

Only close this completed duct with our duct seam closer.

Certifications

BYFO WORKSHOP

Our company located in Nanjing city, Jiangsu province of China. totally 112 workers includes workers, sales and service staffs. Our main products contains Auto duct line, TDF / TDC flange machine, pittsburgh / S / snak lockformer, plasma cutter, bending machine and shearing machine.

Detailed Images

Main motor

Brand:Simens ( optional)

Original: Germany

Our standard motor for main power is not Simens, we usually use Chinese Good brand, it is good enough for long time use.
But if you need Simens, We can replace it with its factory cost from your side.

Electronic Parts

Brand:Schneider
Original: Germany
Usually, we will recommend you to use this brand of electrics, but with this machine, we think Chinese CHT Brand is definetely good enough to you.

PLC / Driver / Inverter

Brand: Mitsubishi
Original: Japan
Our standard of all duct line machines all use Japan-Mitsbishi, including PLC, Driver and Inverter.
In our Duct line III, we use double inverter to increase its working accuracy.

Control system

Brand: Mitsbishi
Original: Japan
We use Mitsbishi screen with total set of Mitsbishi PLC, driver and inverter etc.
We have our own programmer to upgrade our system.

Our Service

CUSTOMER VISITING

We welcome any of you to our factory before placing order!

Many of our customers visited and carefully asked & operated BYFAN machines,

We have a special reception team for receiving and answering questions on site to make everything which our customer care about before purchase clearer. Welcome you to visit!

Our company keep arranging at least 2 times per month to pay return visit to our customers.

We have a lot of experience for after-sales service, including installaion and train on site, and every year we will choose some areas and send our engineer back to customer's factory to get more feedback on BYFAN equipments condition.
