Электрический Смарт-контроллер Kt для электровелосипеда с
- Категория: Motor Controllers >>>
- Поставщик: Changzhou,Epower,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 29.37 $* | 30.62 $* |
| Aug-18-2025 | 28.30 $* | 29.44 $* |
| Jul-18-2025 | 24.21 $* | 25.76 $* |
| Jun-18-2025 | 28.96 $* | 29.34 $* |
| May-18-2025 | 24.69 $* | 25.75 $* |
| Apr-18-2025 | 27.51 $* | 28.4 $* |
| Mar-18-2025 | 27.59 $* | 28.77 $* |
| Feb-18-2025 | 27.83 $* | 28.36 $* |
| Jan-18-2025 | 27.99 $* | 28.24 $* |
Характеристики

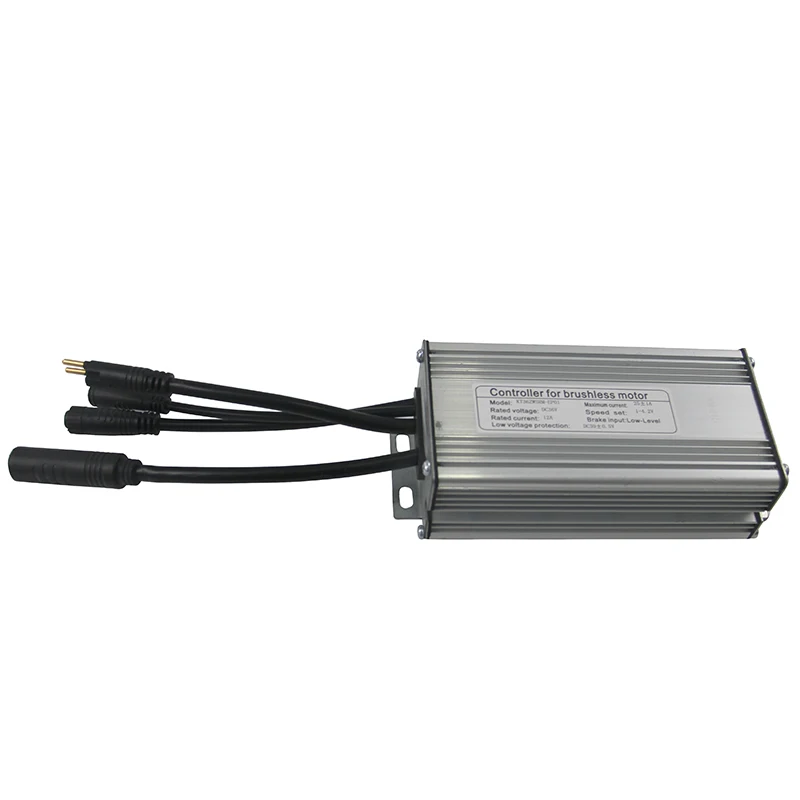

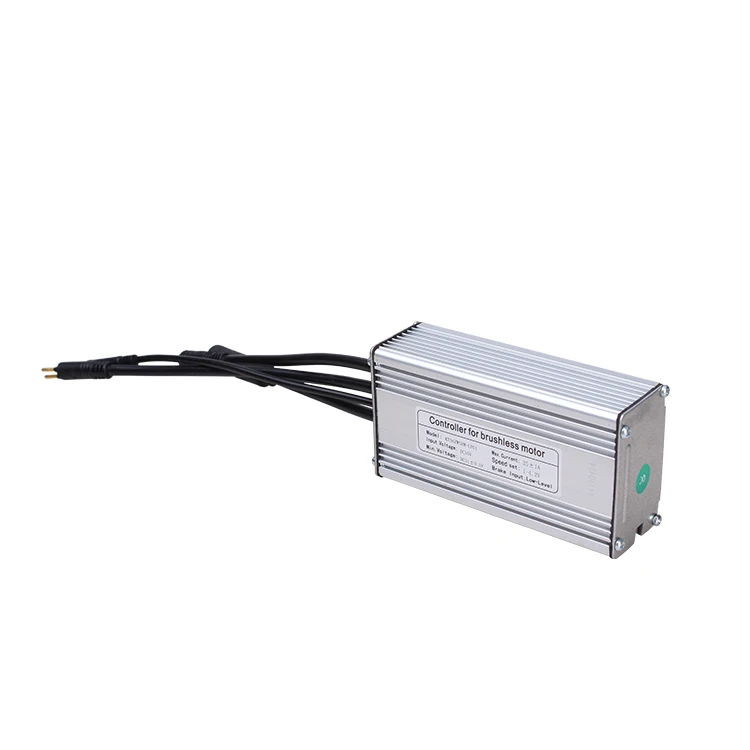

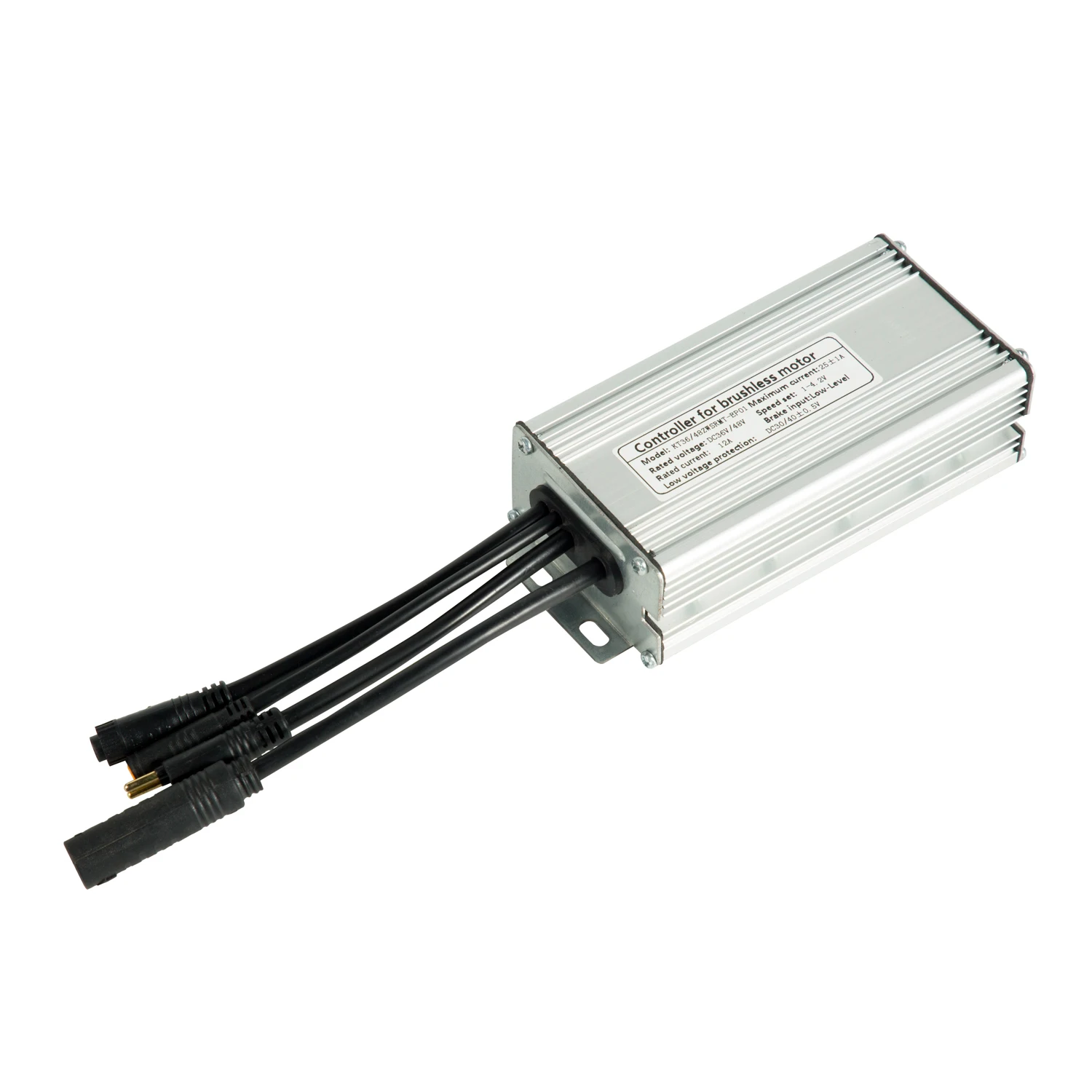

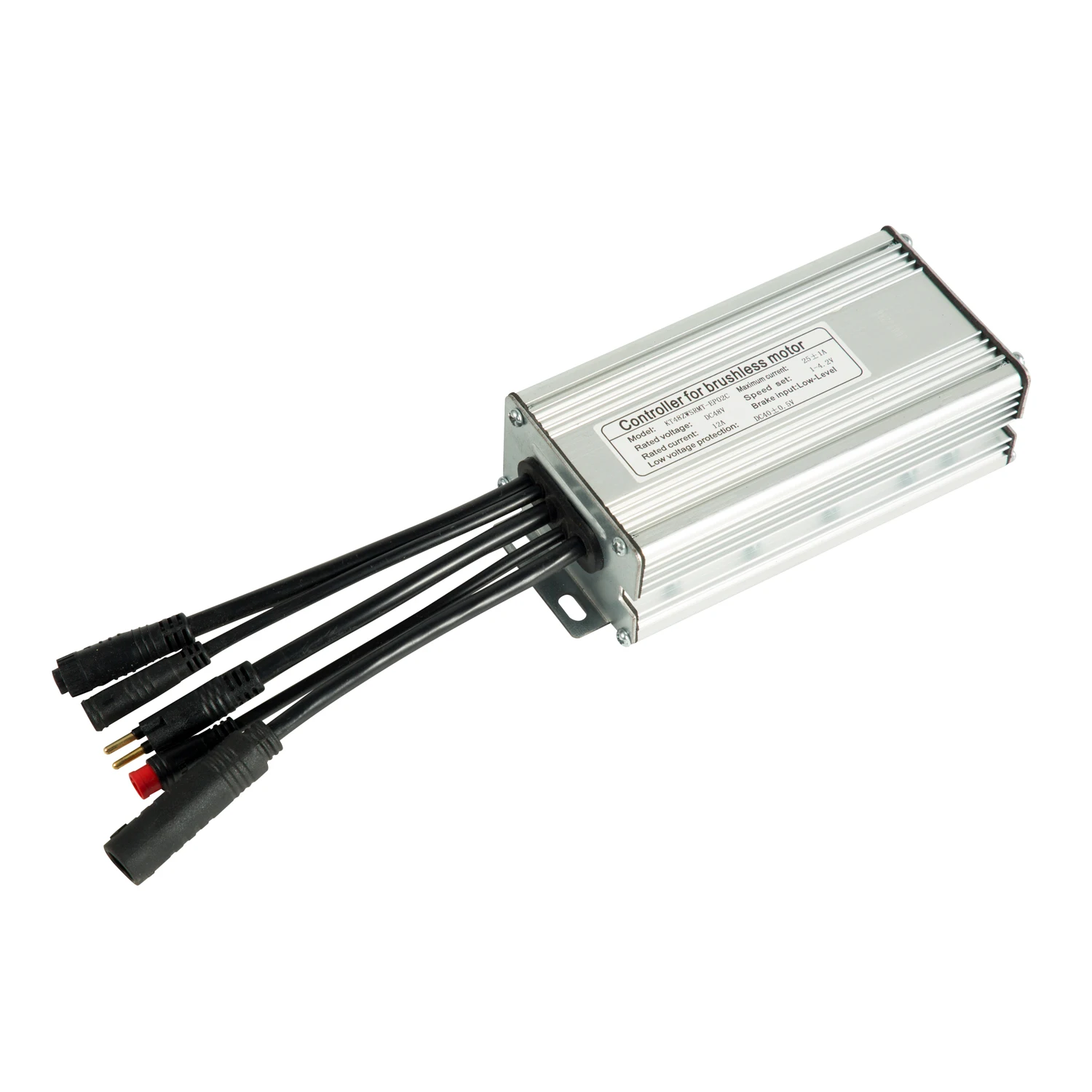

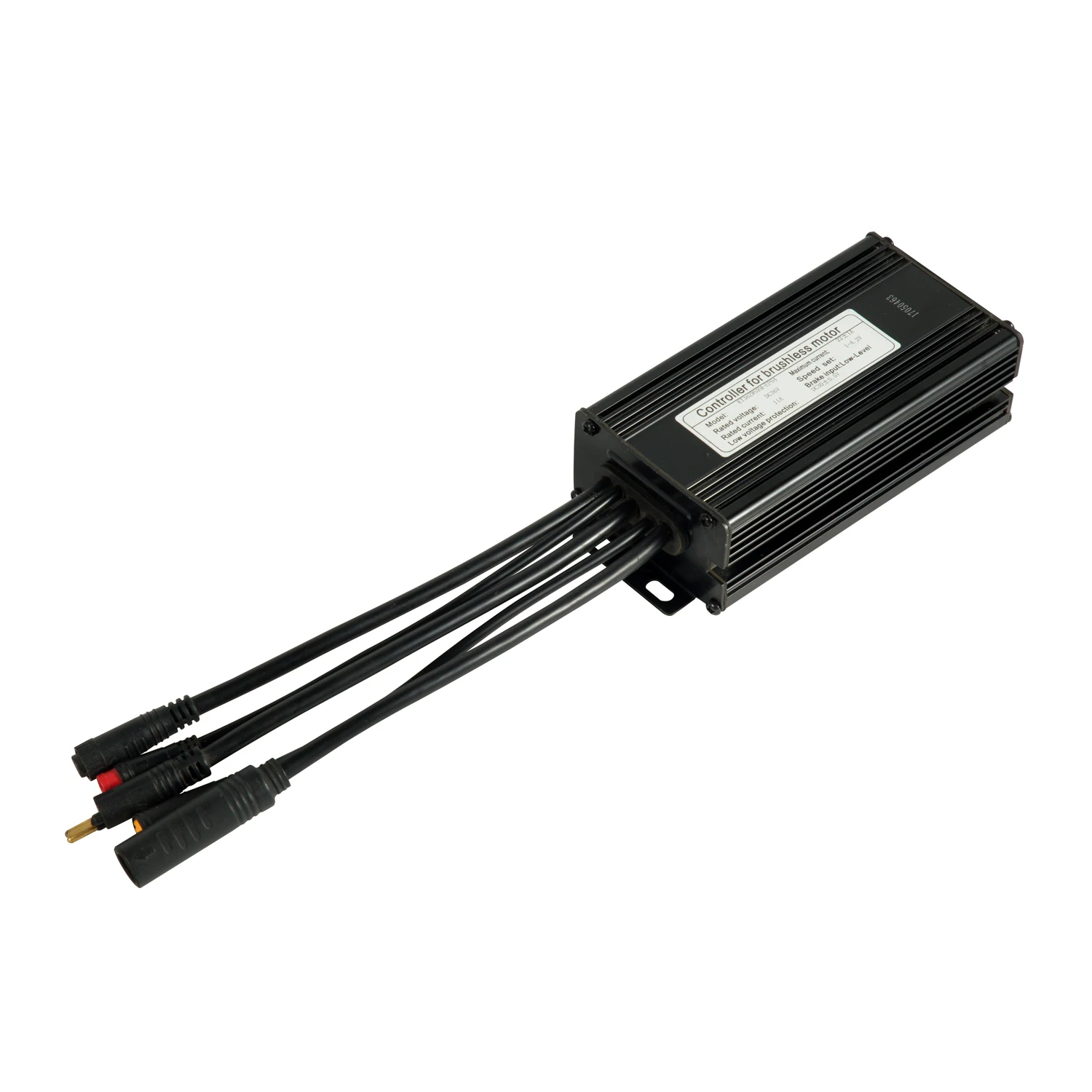

Electric Smart Kt Controller for E Bike with Waterproof Connector
Product Features And Advantages:
1.Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
2.Electric power assist is with fast response and always consistent with the rider's pedal action to achieve the effect of the torque boost.
3.With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
4.There are motors with or without Hall, which fit all kinds of high and low speed motors.
5.There are two options of simulated sine wave or square wave controller.
Detail information:
KT-15A Controller Suitble for 250W Motor
Brand :KT (KUNTENG)
Size:82 * 53 * 32 mm
Weight:200g
Cable length :all about 10-13cm
Mosfets:6 mosfets
Maximum current:15±1A
Rated voltage:DC36V/48V
Speed set:1-4.2V
Rated current:7A
Brake input :Low-Level
Low voltage protection:DC30/40±0.5V
| Basic Spefication | |
| Model | KT36ZWSRT-EP01 |
| Nomical Voltage | 36V |
| Maximum Current | 15A |
| Rated Current | 7A |
KT-17A Controller Suitable For 350W Motor
Brand :KT (KUNTENG)
Controller dimension
:About 94 * 62 * 35 mm
Weight:250g
Cable length :About 10-13cm
Mosfets :Bigger 6 mosfets
Maximum current:17±1A
Rated voltage:DC36V/48V
Speed set:1-4.2V
Rated current:8A
Brake input :Low-Level
Low voltage protection:DC30/40±0.5V
| Basic Spefication | |
| Model | KT36ZWSRTD-EP01 |
| Nomical Voltage | 36V/48V |
| Maximum Current | 25A |
| Rated Current | 12A |
KT-25A Controller Suitable For 500W Motor
Brand :KT(KUNTENG)
Color :Silver
Dimension :about 128 * 68 * 38 mm
Mosfet :9 Mosfets
Maximum current :25±1A
Rated current :11A
Rated voltage :DC36V/48V
Speed set :1-4.2V
Brake input :Low-Level
Low voltage protection :DC30/40±0.5V
Cable Length :all about 13-18cm
Weight:450g
| Basic Spefication | |
| Model | KT36ZWSRMT-EP01 |
| Nomical Voltage | 36V/48V |
| Maximum Current | 25A |
| Rated Current | 12A |
KT-30A Controller Suitable for 750W/1000W Motor
Brand :KT(KUNTENG)
Color :Silver
Dimension :about 170 * 88 * 43 mm
Mosfet :12 Mosfets
Maximum current :30±1A
Rated current :17A
Rated voltage :DC36V/48V
Speed set :1-4.2V
Brake input :Low-Level
Low voltage protection :DC30/40±0.5V
Cable Length :all about 13-18cm
Weight:about 650g
| Basic Spefication | |
| Model | KT48ZWSRLT-EP01 |
| Nomical Voltage | 48V |
| Maximum Current | 30A |
| Rated Current | 15A |

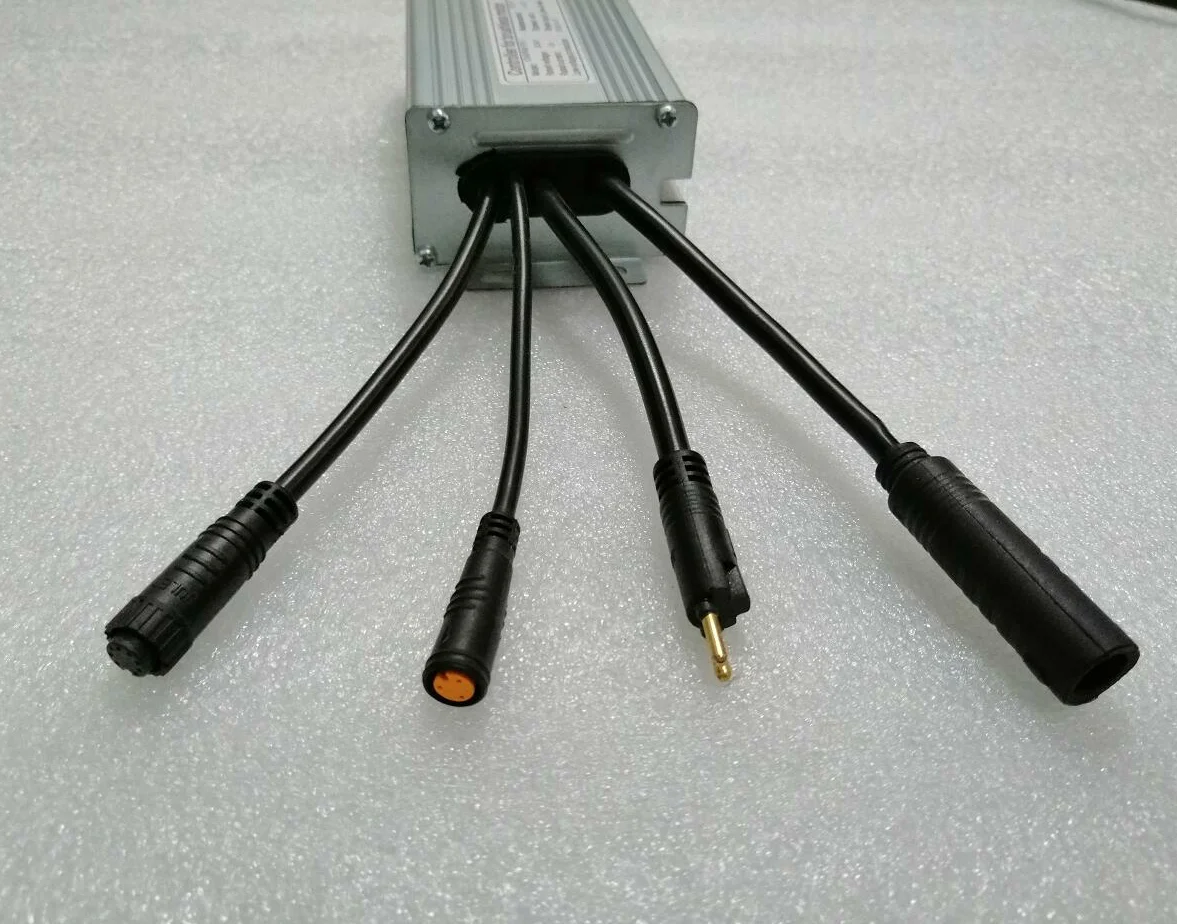

All Connectors can be OEM,SM Connector,Female or male different types connector.
Connection Drawings: Check connector type and function with us before ordering.
Note: KT Controller can match with KT Display only.
