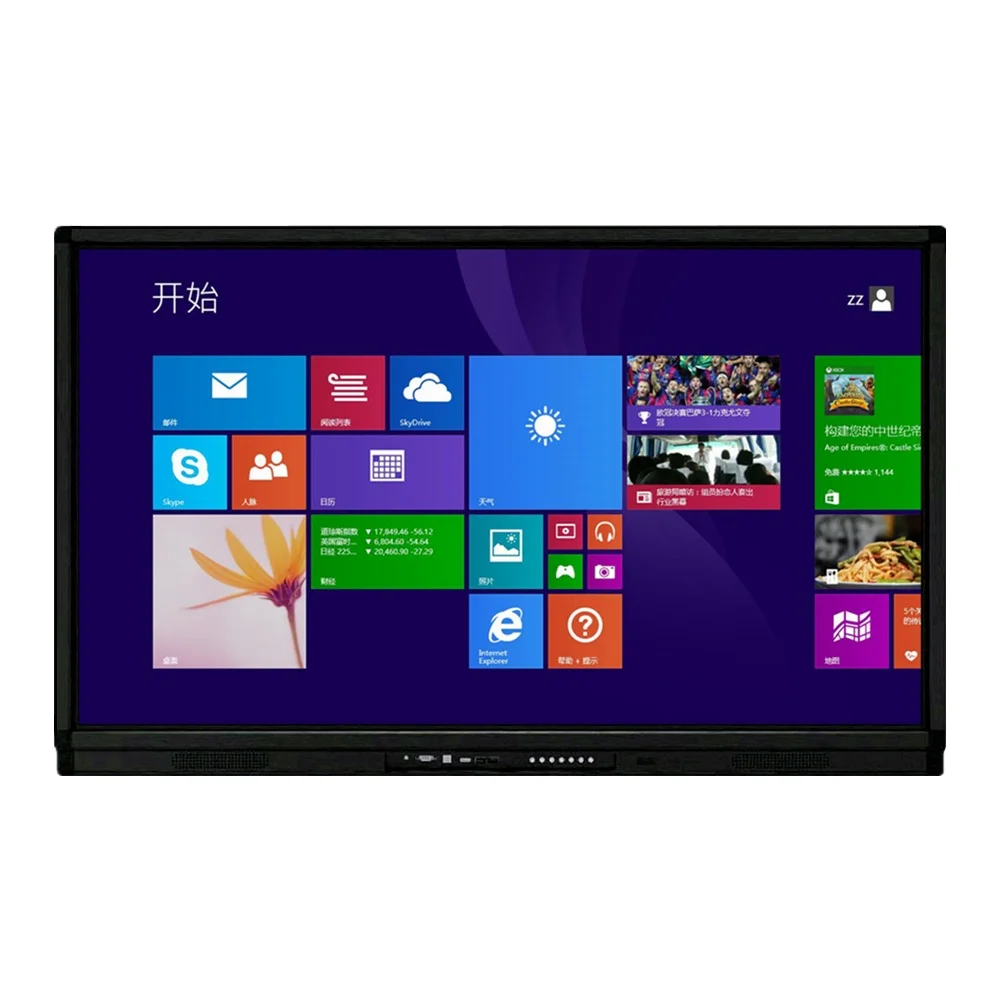

За первые 65 дюймов сенсорный экран панель переключателей интерактивный дисплей для
- Категория: Educational Equipment >>>
- Поставщик: Ekaa,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.36 $* |
| Aug-19-2025 | 0.2 $* | 0.9 $* |
| Jul-19-2025 | 0.84 $* | 0.56 $* |
| Jun-19-2025 | 0.20 $* | 0.0 $* |
| May-19-2025 | 0.12 $* | 0.41 $* |
| Apr-19-2025 | 0.94 $* | 0.30 $* |
| Mar-19-2025 | 0.23 $* | 0.74 $* |
| Feb-19-2025 | 0.85 $* | 0.75 $* |
| Jan-19-2025 | 0.36 $* | 0.6 $* |
Характеристики
Configuration
Features:
1- Infrared Touch Technology with Multi 10 Points
2-3840x2160, 4K UHD Display
3-High Brightness, High Contrast Ratio
4-Built-in Dual System: Android 5.1+ Windows 10
5-CPU I5, 4G Ram, 128G SSD
6-Support Network: WIFI, RJ45
7-I/O Ports: VGA, AV IN, USB Touch
8-Built-in Interactive Whiteboard Software
9-Specialized in Smart Class System & Video Conference System
DISPLAY INFORMATION | ||||
Screen Size | 55 inch | 65 inch | 75 inch | 86 inch |
Panel Type | a-Si TFT-LCD, D-lcd | a-Si TFT-LCD, D-lcd | a-Si TFT-LCD, D-lcd | a-Si TFT-LCD, D-lcd |
Aspect Ratio | 16:9,Wide SXGA | 16:9,Wide SXGA | 16:9,Wide SXGA | 16:9,Wide SXGA |
Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Brightness | 350cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
Active Area (mm) | 1210.66 x 681.4 | 1429 x 804 | 1649.66 x 927.93 | 1891 x 1062 |
Contrast Ratio | 3000:1 | 3500:1 | 4000:1 | 4000:1 |
Response Time | 8ms | 8ms | 9.5ms | 8ms |
Display Color | 8 bit 1.07B | 10 bit 1.07B | 10 bit 1.07B | 10 bit 1.07B |
Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
Service Lifetime | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours |
TOUCH PANEL | ||||
Sensing Type | Infrared System (Multi 10 point touch) | |||
Response Time | <6ms | |||
Connection | Full-speed USB (Driver free) | |||
Surface Protection | Tempered Glass with 4mm thickness Standard | |||
CONNECTION TERMINAL | ||||
Operating System | Android 5.1 (Basic: Mstar628) | |||
CPU | Quad Core | |||
RAM | DDR3 1G | |||
ROM | TSD FLASH 4G | |||
SD card slot | Support MAX 64G | |||
Port | USB 3.0*1, USB 2.0*3, VGA IN*2, VGA OUT*1, AUDIO IN*2, Touch USB*2, Rs232*1, MIC*1, SD CARD*1, COAXIAL*1, LAN*1, YPbPr IN*1, AV IN*2, AV OUT*1, EAR PHONE*1, RF IN*1 | |||
Screen Interface | Power, Signal, Menu, Home Page, ECO, V+, V-, PC | |||
Speaker | 10 W + 10 W (8Ω) | |||
Languages | English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc | |||
Built-in OPS Computer(optional) | ||||
CPU | I5 | |||
RAM | 4GB | |||
ROM | 128G SSD | |||
Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play | |||

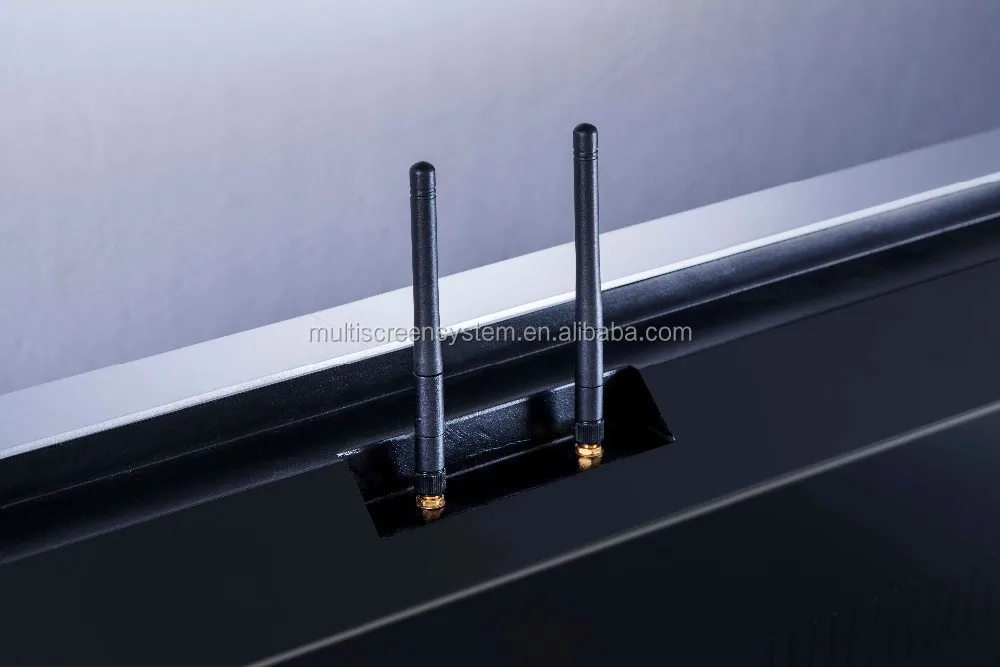

Network | WIFI/ RJ45 | |||
Port | USB2.0*2/ USB3.0*2/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1 | |||
ELECTRICAL | ||||
Power Supply | 96~264V AC, 50/60Hz | |||
Power Consumption | ≤300W | |||
ENVIROMENTAL | ||||
Operating Temperature | 0℃~50℃ | |||
Storage Temperature | -10℃~60℃ | |||
Humidity | 20% ~ 80% | |||
MECHANICAL | ||||
Dimension L*W*H (mm) | 1267.8 x 79 x 782.7 | 1515.4*102.6*935.5 | 1737x107.5x1060 | 1990x114x1202 |
Package L*W*H (mm) | 1400 x 165 x 870 | 1690*270*1120 | 1897*255*1235 | 2150*255*1400 |
Net weight (kg) | 42 | 60 | 70 | 80 |
Gross weight (kg) | 48 | 72 | 85 | 105 |
ACCESSORIES | ||||
Remote Control*1, Power Cord*1, Touch Pens*2, Wall Bracket*1, Digital Manual*1 | ||||
Product Overviews
EKAA Interactive Class System
Touch Screen All in One Smart Board
Packaging & Shipping
1) Package: Carton Box/ Ply-wood Box/ Flight Case
2) Shipment: By SEA/ AIR Shipment/ Express
Our Services
1) Warranty: 1 year
2) Within Warranty period, if under the usage of instruction sheet, any product broken or damage, our technician examine the faulty product and process, we will offer the repair service for free or replace for free.
3) The repair after warranty period, we also support offer repair, and charging only the costs of such components.
Company Information
EKAA Technology Co., Ltd (Brand: EKAA)
A Chinese manufacturer with leading technology, is mainly providing solutions for governments, educational institutions, public places and schools, with commercial LCD/ lcd digital signages and interactive touch screen kiosk.
EKAA Production Line:
- Interactive Touch Screen Board
- Restaurant Touch Table
- Indoor & Outdoor LCD Digital Signage
- Information Touch Kiosk
- Magic Mirror TV Display
- Transparent LCD Screen Showcase
With more than 20 R&D QC Staffs, not only the products are guaranteed but also its version and design keep upgrading. Our technology keeps improve all the time.
2000+ Square meters' production area and mature technicians guarantee the quantity and lead time.
High-efficiency After-sales Service: EKAA after-sales service, as one of our core advantages, we have a dedicated international after-sales engineer team to offer the quick response to any problems that our customers met, we are 24/7 online.
EKAA products have been widely used in a variety of areas such as security monitoring, traffic control centers, airports, media centers, shopping malls, banks, schools and etc. We focus on commercial display solution, providing cost-effective products and customer-oriented services.
Contact us for Price& Details!
Ms.lauran
Email: lauran@ ekaa.net.cn
WhatsApp: +86 185 6524 8707
Skype: HUARLAURAN
Wechat/QQ: 1075411579
EKAA Technology Co., Ltd
www.ekaa.net | www.ekaa.net.cn
