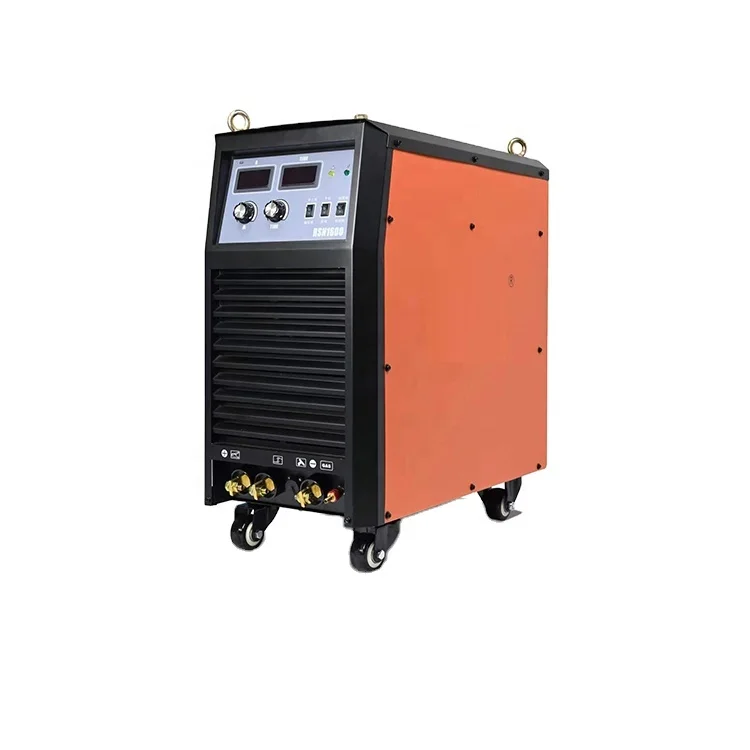

RSN 1600 2500 конденсатор разрядный сварочный станок Сварочный

Цена:1 750,00 $ - 1 800,00 $*

Количество:

Product Description

Parameters	Model Name
Parameters	RSN1600	RSN2500
Input Power Voltage(V)	3 Phase 380V-450V± 50/60Hz(other voltage available 220V 440V)
No-load Voltage(V)	DC 75V	DC 86V
Stud Output Current (A)	100-1600A	100-2500A
MMA Output Current (A)	100-1600A	100-2500A
Welding Timing Control(ms)	(Short)0-300ms; (Long)0-3000ms	0-3000ms
Duty Cycle(Stud Dia./Stud Qty./Per Minute)	6mm, 10mm/25pcs/min	6mm, 10mm, 13mm/25pcs/min
	13mm/25pcs/min	16mm/16pcs/min
	16mm/16pcs/min	19mm/12pcs/min
	19mm/12pcs/min	22mm/8pcs/min
	/	25mm/7pcs/min
Diameter of Stud(mm)	(Short)4-12mm (Long)8-19mm ∅ 4-∅ 19 4-19mm	∅ 8-∅ 25 8-25mm
Length of Stud(mm)	=400mm	=400mm
Stud Gun Voltage(V)	DC 110V	DC 110V
Rated Load Duration(%)	20%	20%
Load Voltage(V)	≤ 600A hr U2=44V	≤ 600A hr U2=44V
Parameter Display	Current & welding time control display	Current & welding time control display
Protection Class	IP21S	IP21S
Insulation Class	F	F
Max. Length of Extention Earth Cable(m)	50m	50m
Max. Length of Extention Gun Cable(m)	100m	100m

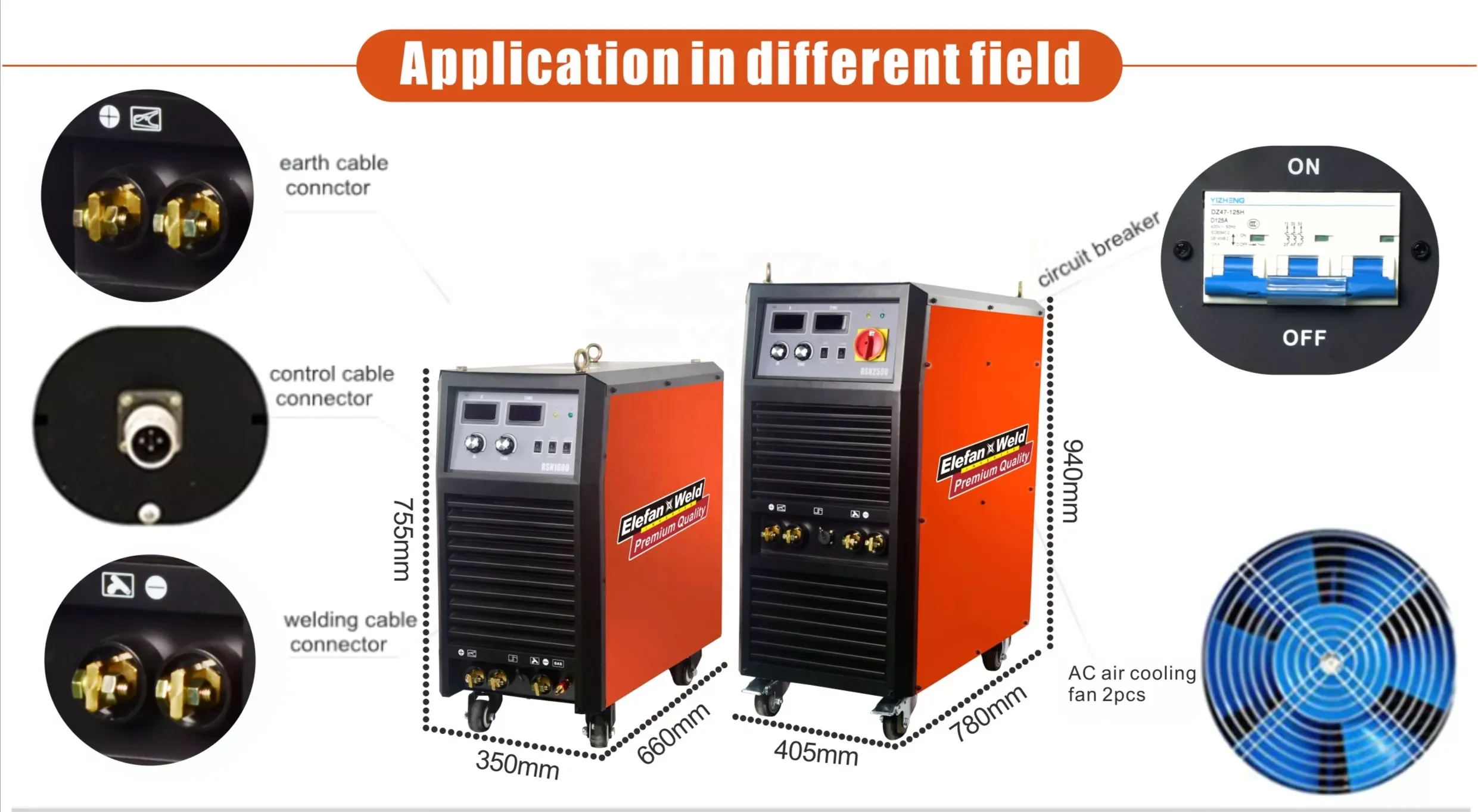

Machine Size(mm)	660350755mm	780405940mm
Carton Size(mm)	760430950mm	8804801090mm
Packaging	Wooden & Pallets
Machine Gross Weight(KG)	65KG	95KG

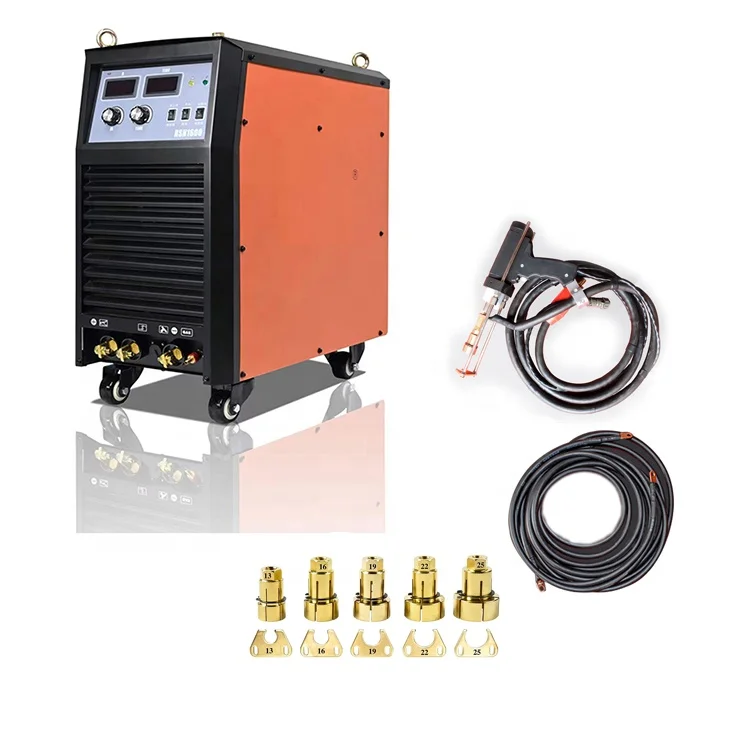

Standards	1. Machine 1 pc; 2. Stud gun with cable 10m 95mm² pure copper wire; 3. Earth clamp with cable 5m; 4. Chuck & ceramic ring claw 2 sets (16mm & 19mm)
Special Requests	Extention cable, input voltage 220V or 440V are all available but out of standard price
