Заводская поставка стандартное цинковое покрытие AASHTO M180 W балка дорожное ограждение Барьерная сталь Q235B Q345B для
- Категория: Traffic Barriers >>>
- Поставщик: Shandong,Safebuild,Traffic,Facilities,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2723.12 $* | 2859.54 $* |
| Aug-15-2025 | 2700.87 $* | 2835.92 $* |
| Jul-15-2025 | 2265.23 $* | 2378.15 $* |
| Jun-15-2025 | 2654.71 $* | 2787.87 $* |
| May-15-2025 | 2311.42 $* | 2427.69 $* |
| Apr-15-2025 | 2608.76 $* | 2738.89 $* |
| Mar-15-2025 | 2585.19 $* | 2714.90 $* |
| Feb-15-2025 | 2563.67 $* | 2691.74 $* |
| Jan-15-2025 | 2540.48 $* | 2667.94 $* |
Характеристики
Products Description
Thire Beam Highway Guardrail
Guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas,aisles, especially on curves and slopes for protection against run-off-road collisions.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.
All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards,AASHTO M180 Standard, SANA 1350 Standard and etc.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.
All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards,AASHTO M180 Standard, SANA 1350 Standard and etc.
Product Paramenters
Material | Q235B,Q345B,Q355B,S235,S355,S355JR |
Base metal nominal thickness | Class A: 2.67mm, Class B: 3.43mm or customized |
Zinc coating thickness | Type I: 550g/m2, Type II: 1100g/m2, or customized |
Standards | AASHTO M180 |
Application | Highway, High grade roads. |
Base Material | A572/Q345B/HA350/Q235B/A36/S355JR/S275JR |
W-Beam | 2320/3320/4130/4318/4320*308/310/311/312/315*2.5/2.6/2.67/2.7/2.75/2.76/2.8/3/4/5 |
Thrie-Beam | 2320/3320/4128/4218/4318/4320*506/508/510*2.76/2.8/3/4/4.5/5 |
Surface Treatment | Hot Dip Galvanized or Powder Coated |
Galvanizing Thickness | 300g/m2 (40µ), 550g/m2 (80µ) or 610g/m2 (85µ) or 1100 g/m2 (160µ) or 1220 g/m2 (170µ) or customized |
Certificate | AASHTO, AS/NZS, EN, ISO9001, ISO14000, SGS, CE, BV |
Feature | Great corrosion resistant, high intensity, long and durable, low cost, higher security, environmental protection, etc. |
Other | Other special specification as per client's requirement or drawings. |
Number of Road Accessories per Kilometer
Product | Size (L * W * WW * WH * T） | Post spacing: 4 m Quantity per KM | Post spacing: 2 m Quantity per KM | Coating Treatment | |||
W-beam | 4320*506*85*3/4 mm | 250 Pcs | 250 Pcs | Hot Dip Galvanized: 60-100μm; Powder spraying: Pre-Galvanized + Powder spraying 50-90μm; | |||
Round Post | 2150*140*4.5mm | 251 Pcs | 501 Pcs | ||||
Spacer Block | 178*196*400*4.5mm | 251 Pcs | 501 Pcs | ||||
Post Cap | Φ140mm | 251 Pcs | 501 Pcs | ||||
Washer | 76*44*4mm | 251 Pcs | 501 Pcs | ||||
Bolts & Nuts | M16*35mm | 2000 Sets | 3000 Sets | ||||
Bolts & Nuts | M16*45mm | 502 Sets | 1002 Sets | ||||
Bolts & Nuts | M16*150/170mm | 502 Sets | 1002 Sets | ||||
Terminal End | R160 | 2 Pcs | 2 Pcs | ||||
Notes | 1.Shape:Three waves, Thire-beam 2.Normal Specification: 4320*310*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007，AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers’ request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts,Terminal,Reflectors 8. Certificate: ISO9001:2015 | ||||||
Manufacturing Technique

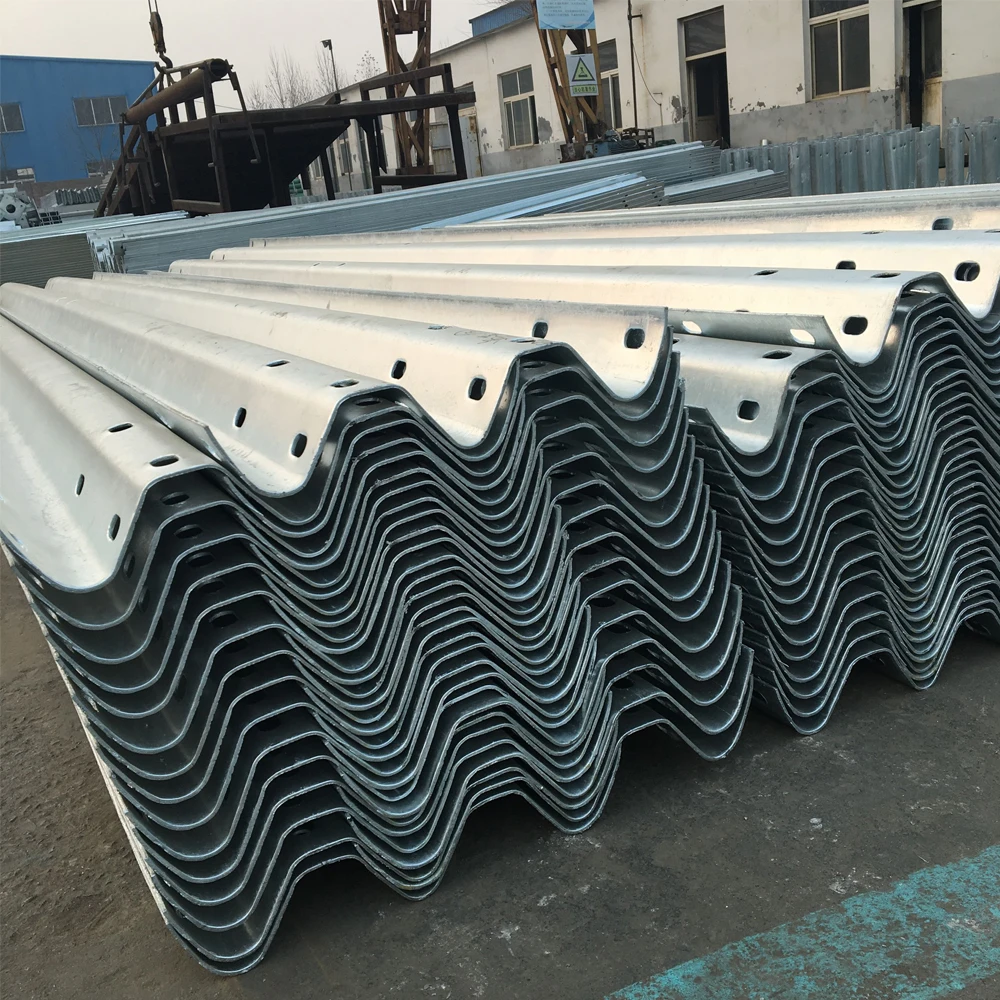

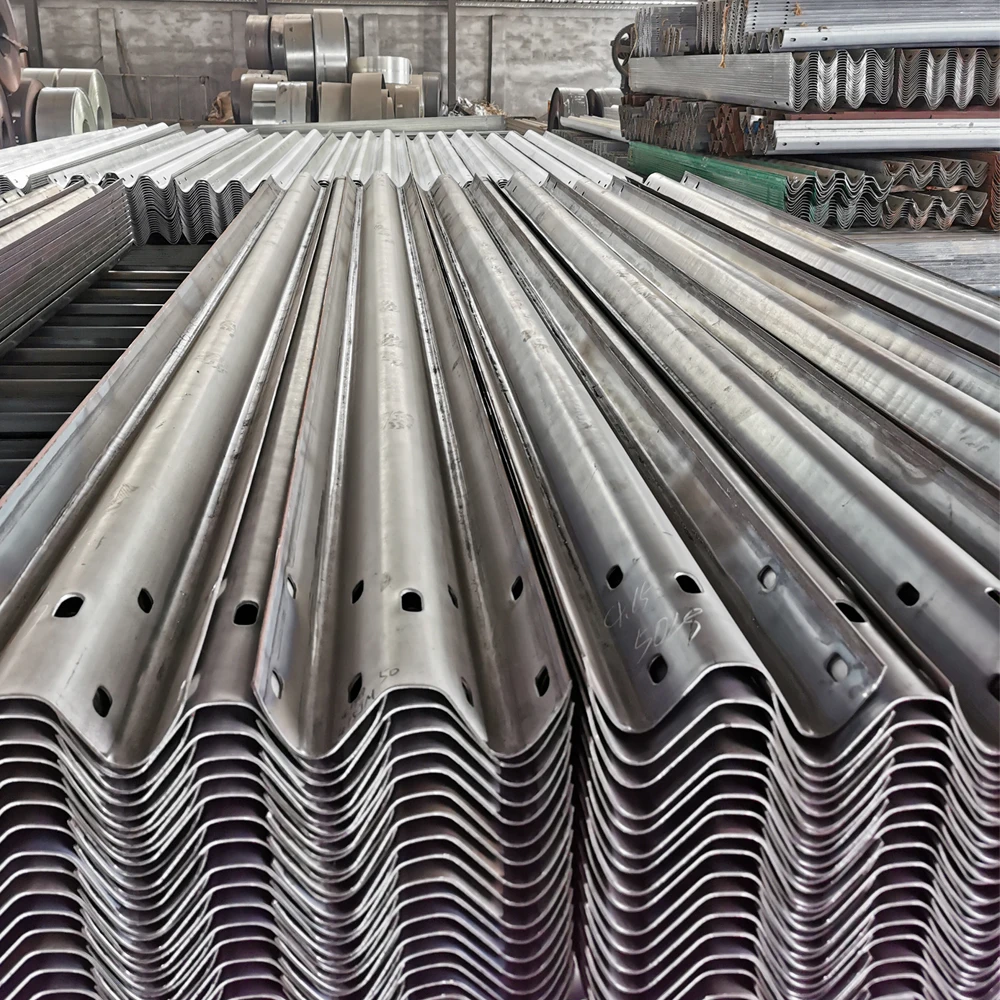

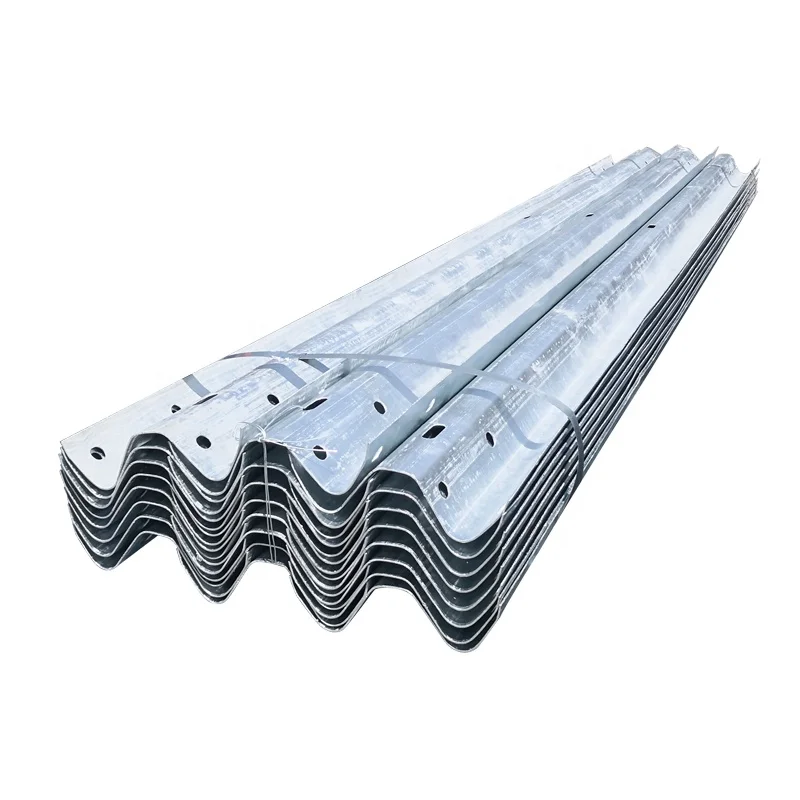

Details Images

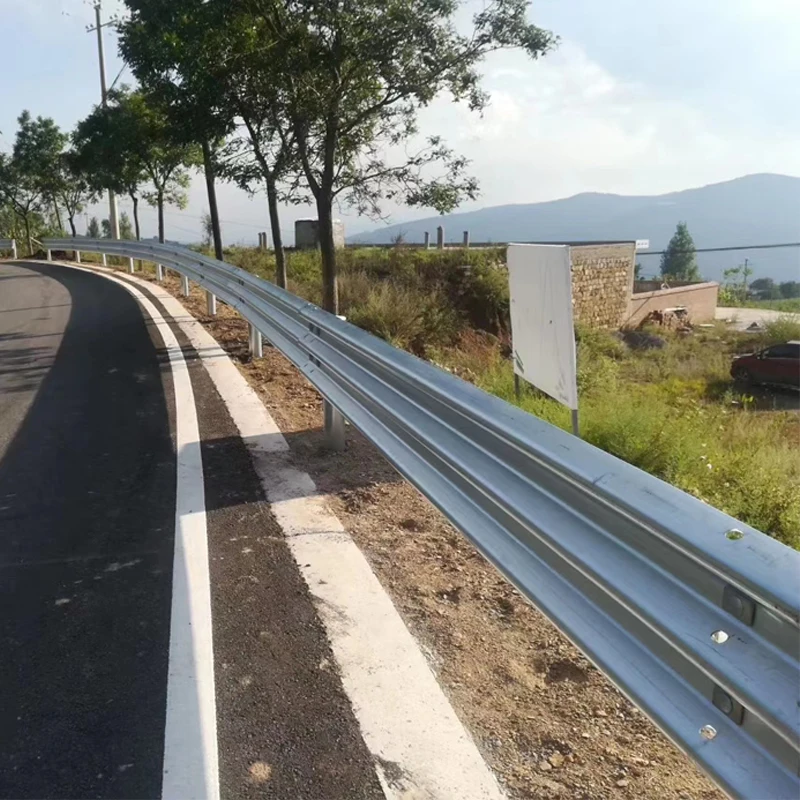

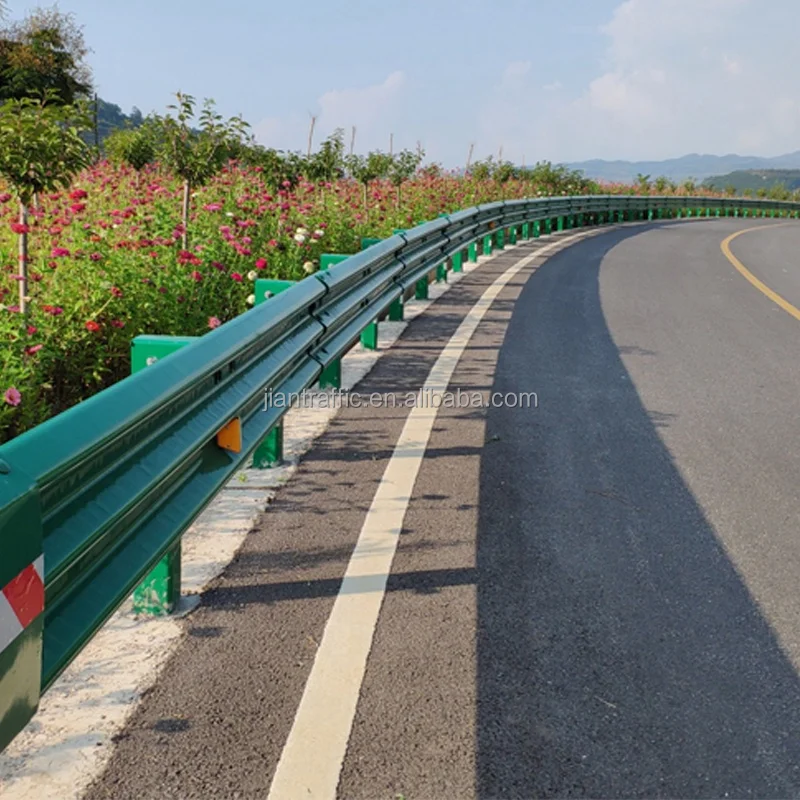

Roadside safety begins with installation of guardrail products from Safebuild, your expert highway guardrail supplier.
Contractors prefer Safebuild W-Beam and Thrie-Beam guardrail for its easier installation and long service life. Safebuild highway safety products
conform to AASHTO and ASTM specifications.
Contractors prefer Safebuild W-Beam and Thrie-Beam guardrail for its easier installation and long service life. Safebuild highway safety products
conform to AASHTO and ASTM specifications.
We use prime steel in each guardrail design. A multi-stage cleaning process prepares the metal for galvanizing. Continuously galvanized steel ensures a consistent finish without sharp points or zinc build-up. Looking for a different finish for your safety guardrail? We offer black, painted epoxy coatings, or weathered steel as alternative finishes for aesthetic applications.
We also provide guardrail end sections. These products help complete highway safety guardrail systems for every specification.With standard end sections and energy-absorbing guardrail end treatments for wood post or steel post designs, we can meet your full project requirements.
Company Profile
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan
County,Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line. Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing,
punching,cutting,forming, leveling and other working procedure, so that the guardrail has good consistency, high processing accuracy, low production cost, which is widely recognized by the market.
County,Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line. Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing,
punching,cutting,forming, leveling and other working procedure, so that the guardrail has good consistency, high processing accuracy, low production cost, which is widely recognized by the market.

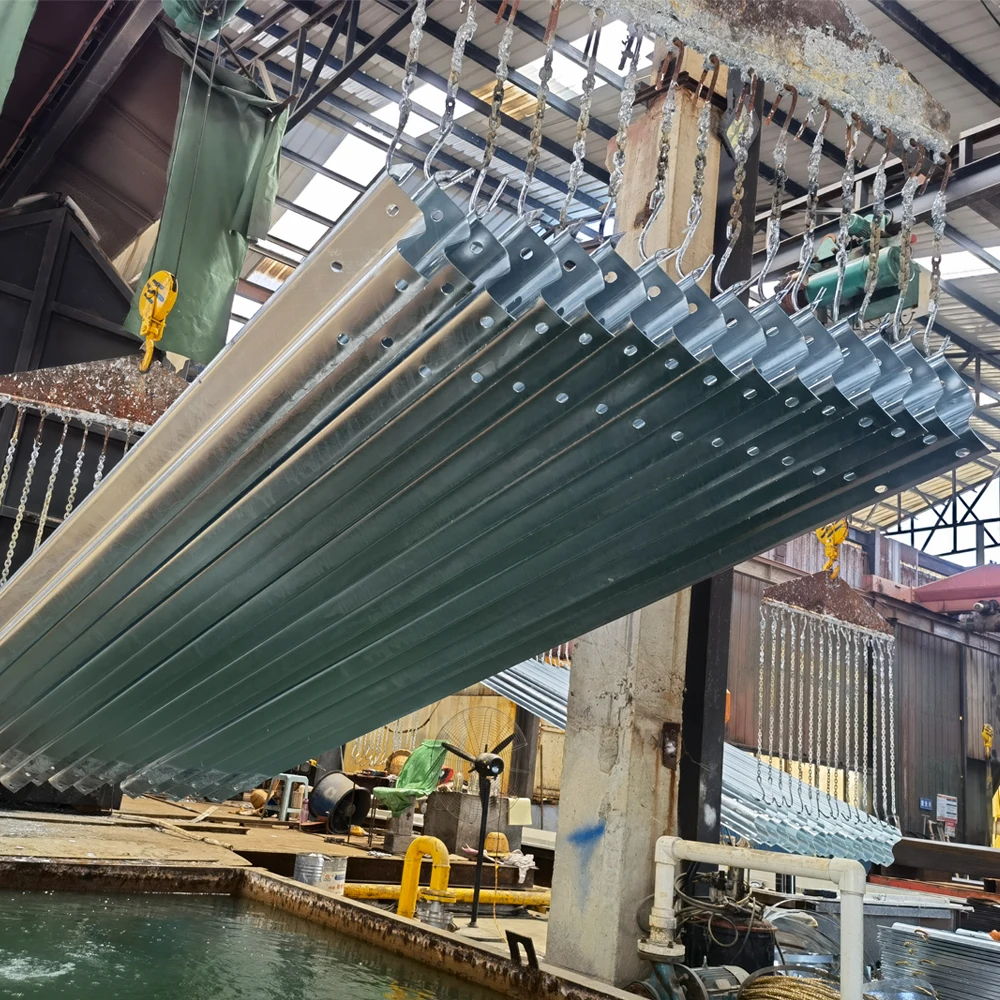

The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
different construction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
Recommend Products
Product Packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and
installation after arrival.
installation after arrival.
Installation Instructions
Our Advantages
1,Professional manufacturers and suppliers of safety protection products;
2,The company has many years of export experience, the export share is about 50%;
3,According to customer requirements, design, research and development, customized products;
4,Provide one-to-one online installation guidance and 24-hour service hotline.
2,The company has many years of export experience, the export share is about 50%;
3,According to customer requirements, design, research and development, customized products;
4,Provide one-to-one online installation guidance and 24-hour service hotline.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!
3.Will you deliver the goods on time? A:Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
4.How can I get your quotation as soon as possible?
A:The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order
information about quantity,Specification(steel type, material, size )and destination port, you will get the latest price.
5.How about the sample if i need?
A:The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
6.How about the MOQ?
A:Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
7.How about the delivery time?
A:Within 15-30 days after receiving the deposit or L/C at sight. Of course, the detail will be confirmed by the quantity and the different products.
8.How to order?
A:Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
9.What is shipment terms?
A:1. Container ship 2. bulk ship 3. Train
10.Do you have English Mill Test Certificates?
A:Yes,that is what we give certificates to our clients.
11.Do you accept the third party inspection?
A:Yes,absolutely we accept.
12.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
A:We are factory which has been in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!
3.Will you deliver the goods on time? A:Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
4.How can I get your quotation as soon as possible?
A:The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order
information about quantity,Specification(steel type, material, size )and destination port, you will get the latest price.
5.How about the sample if i need?
A:The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
6.How about the MOQ?
A:Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
7.How about the delivery time?
A:Within 15-30 days after receiving the deposit or L/C at sight. Of course, the detail will be confirmed by the quantity and the different products.
8.How to order?
A:Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
9.What is shipment terms?
A:1. Container ship 2. bulk ship 3. Train
10.Do you have English Mill Test Certificates?
A:Yes,that is what we give certificates to our clients.
11.Do you accept the third party inspection?
A:Yes,absolutely we accept.
12.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
