300 кг/ч гранулятор Polietilena Maquinaria Para Reciclar plastic Harga Mesin Pelet Plastik Hdpe Granules
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Zhejiang,Kehao,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 52360.73 $* | 54978.8 $* |
| Aug-15-2025 | 51920.58 $* | 54516.12 $* |
| Jul-15-2025 | 43560.47 $* | 45738.45 $* |
| Jun-15-2025 | 51040.19 $* | 53592.88 $* |
| May-15-2025 | 44440.97 $* | 46662.98 $* |
| Apr-15-2025 | 50160.45 $* | 52668.51 $* |
| Mar-15-2025 | 49720.88 $* | 52206.72 $* |
| Feb-15-2025 | 49280.37 $* | 51744.51 $* |
| Jan-15-2025 | 48840.11 $* | 51282.82 $* |
Характеристики
PRODUCT OVERVIEW
ABS PP PS ABS+PC plastic granulator
The ABS PP PS ABS+PC plastic granulator is a general-purpose model. One machine can be used for many purposes, mainly for dry raw materials. The PP PE PPR is also a general-purpose model. However, the structure of the granulator screw is different from that of the ABS PS granulator screw. Generally, the PP PE PPR raw materials contain 2-3% moisture, so double vent screw rods need to be customized. Special screws are used for different raw materials, so it is particularly important to select appropriate equipment. Of course, our equipment must go through the raw material trial before delivery to ensure the quality of the equipment.
PRODUCT CORE COMPONENTS
Main components
1. The single screw is made of 38CrMoAl alloy high-quality steel with a length diameter ratio of 28:1
2. Motor: Siemens Beide high-efficiency motor
3. Frequency converter: Lanhai Huateng/Huichuan
4. Mother machine gear box: Xiaoshan Shuguang brand, hard tooth surface gear box, low noise
3. Frequency converter: Lanhai Huateng/Huichuan
4. Mother machine gear box: Xiaoshan Shuguang brand, hard tooth surface gear box, low noise
5. Hydraulic or electric screen changer, double station screen changing without stopping
Alloy screw
Siemens Beide Motor
Xiaoshan Shuguang Gear Box
PRODUCT FEATURES
Why chooses our machine
1. The mother machine adopts a dual station screen changer to realize the operation of screen changing without stopping the machine. The single station screen changer is generally used when getting off the machine. Of course, the dual station screen changer can also be used to replace the screen without stopping the machine. In addition, the wire drawing is continuous to reduce the tedious work of the station to pull the screen again.
2.The machine should be equipped with an iron removal conveyor belt to remove the metal impurities in the plastic and reduce the damage of metal to the screw.
3.The host adopts quantitative feeding, and is equipped with frequency conversion speed regulation to control the feeding amount of the screw through the rotation speed of the feeding screw. In addition, the installation of the feeder can reduce the wear of the screw and improve the service life of the screw.
2.The machine should be equipped with an iron removal conveyor belt to remove the metal impurities in the plastic and reduce the damage of metal to the screw.
3.The host adopts quantitative feeding, and is equipped with frequency conversion speed regulation to control the feeding amount of the screw through the rotation speed of the feeding screw. In addition, the installation of the feeder can reduce the wear of the screw and improve the service life of the screw.
EXCELLENT CASE VIDEO
Advantages and characteristics of Kehao granulator
1. The screw of the main machine of the granulator is customized according to different plastics and whether the plastics contain water. The screw is made of 38CrMoAl alloy, and the surface is nitrided treatment. our feed inlet and exhaust port (which are easy to wear in use) are paved with tungsten steel to improve the wear resistance.
2. The power motor of granulator adopts Siemens Bei de motor, which is a high-end brand, with long service life, high output efficiency and energy efficiency .3.The motors of the machines of the granulator are driven by frequency converters to control the screw speed.The frequency converters are made of Blue Ocean Huateng or Huichuan brand, with stable quality.
4.The gear box of the granulator adopts the Xiaoshan Shuguang brand. The square hard tooth surface gear box has stable transmission and low noise.Compared with other manufacturers, the same model of the Shuguang brand gear box uses a larger model of transmission bearing, which has good sealing performance and is more durable.
5.The screen changer of the main machine adopts a dual station die head, which can realize the screen changing operation without stopping. The screen changing mode can adopt motor gear drive or hydraulic drive, and the auxiliary machine adopts single station operation.
6.The frame is made of I-steel 20-25 #, and the motor base plate is supported by steel plates with a thickness of 2cm, which increases the stability of the machine body . The heating of the whole machine adopts the three fire and one zero wiring mode. The heating distribution of the electric heating coil is more uniform, the energy consumption loss is small.
Model | Screw (mm) | Gear box model | Motor(kw) | Screen changer | Capacity(kg/h) |
KH-100-110 | 100*2800/110*1100 | 180/133 | 30/7.5 | 200*200 | 100-150 |
KH-110-120 | 110*3200/120*1100 | 200/146 | 37/11 | 250*250 | 150-200 |
KH-120-120 | 120*3200/120*1100 | 225/146 | 45/15 | 200-250 | |
KH-130-130 | 130*3600/130*1200 | 250/173 | 55/18.5 | 300-350 | |
KH-140-140 | 140*3800/140*1400 | 280/200 | 75/30 | 300*300 | 350--450 |
KH-150-140 | 150*4200/140*1400 | 315/200 | 90/30 | 400--500 | |
KH-160-150 | 160*4500/150*1500 | 330/225 | 110/37 | 500--600 | |
KH-180-180 | 180*5000/180*1800 | 395/250 | 185/55 | 350*350 | 700-900 |
1. The main machine adopts quantitative feeding, which is controlled by frequency converter
2. The feed inlet of the main machine is equipped with cooling water jacket and fan, and the lower machine is equipped with cooling water jacket
3. The screen changer adopts solenoid valve hydraulic station, and the oil cylinder is engineering cylinder
2. The feed inlet of the main machine is equipped with cooling water jacket and fan, and the lower machine is equipped with cooling water jacket
3. The screen changer adopts solenoid valve hydraulic station, and the oil cylinder is engineering cylinder

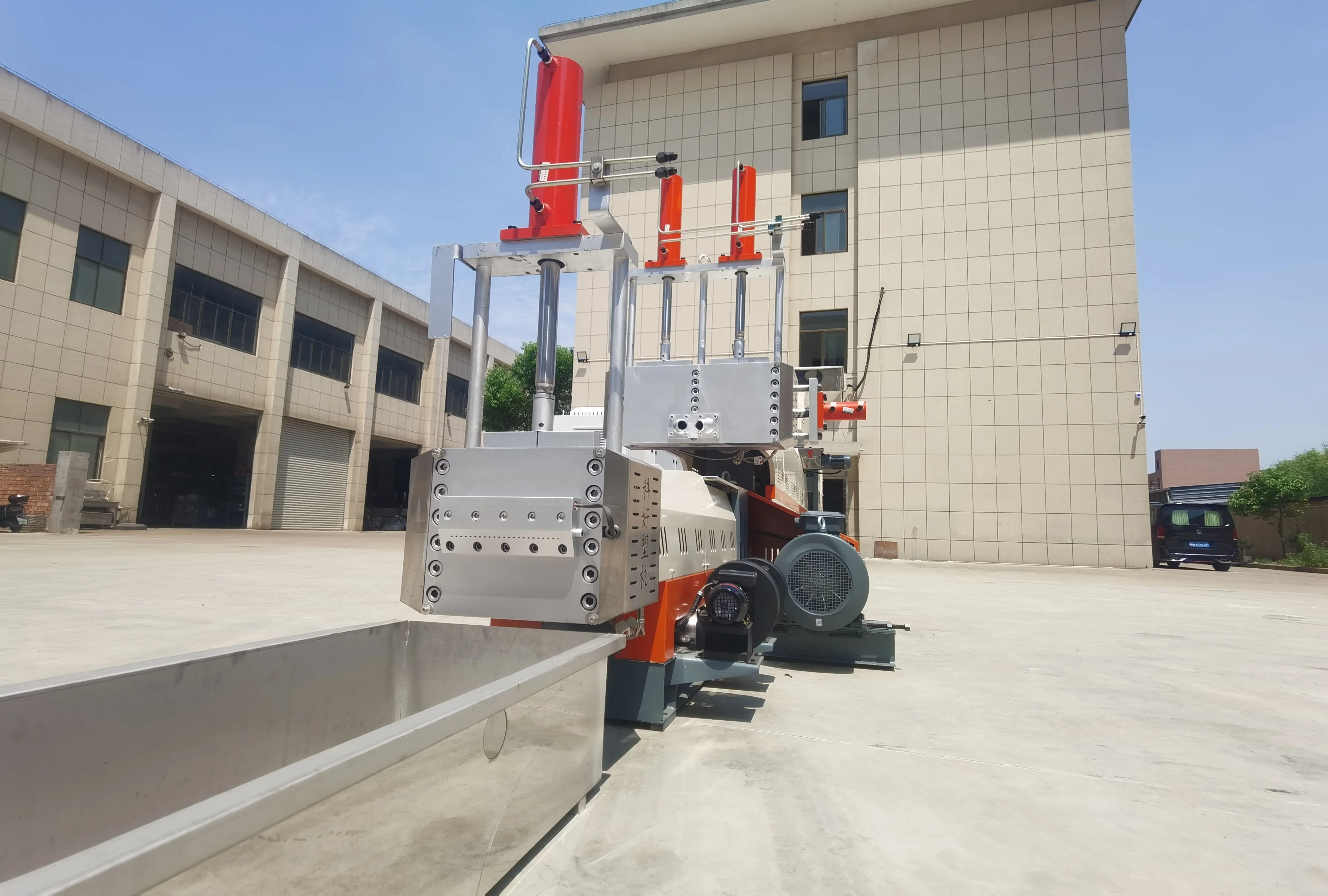

Equipment tail display
1. The rear seat of the machine is equipped with a shield and a heat dissipation device
2. The pulley adopts a conical sleeve structure, which is more convenient for disassembly and assembly
3. The motor base is made of 2cm thick steel plate with good shock absorption
4. The whole frame is I-beam, which is more stable
2. The pulley adopts a conical sleeve structure, which is more convenient for disassembly and assembly
3. The motor base is made of 2cm thick steel plate with good shock absorption
4. The whole frame is I-beam, which is more stable
Power Distribution Cabinet
1. The distribution cabinet contains frequency converter, temperature control meter, electrical appliances and other brands that can be selected
2. Large interior space, equipped with cooling fan, good heat dissipation
3. There is a light tube inside, and the light will be on when the door is opened
2. Large interior space, equipped with cooling fan, good heat dissipation
3. There is a light tube inside, and the light will be on when the door is opened
SALES AREA
MANUFACTURING PROCESS
Frame welding and assembly
Rack painting treatment
Post wiring assembly
Electric box wiring installation
Installation of screen changer
Finished product commissioning
COMPANY DISPLAY
FAQ
Q1:Do you support overseas after-sales service?
A:Some countries support overseas after-sales service, the specific situation is negotiated.
Q2:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts)
Q3:Do you provide technical support?
A:We provide lifelong technical support .Help each customer solve problems is our original intention.
Q4:The factors of plastic granulator line price?
1. Voltage and frequency in your country
2. The raw materials you are going to deal with, ABS PP PE PVC PET?
3. The output per day
4. The cleanliness of the raw materials, whether it needs to be cleaned (it is best to provide raw material pictures)
Q5:What is your payment term ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
A:Some countries support overseas after-sales service, the specific situation is negotiated.
Q2:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage
(because of the quality problem ,except wearing parts)
Q3:Do you provide technical support?
A:We provide lifelong technical support .Help each customer solve problems is our original intention.
Q4:The factors of plastic granulator line price?
1. Voltage and frequency in your country
2. The raw materials you are going to deal with, ABS PP PE PVC PET?
3. The output per day
4. The cleanliness of the raw materials, whether it needs to be cleaned (it is best to provide raw material pictures)
Q5:What is your payment term ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
