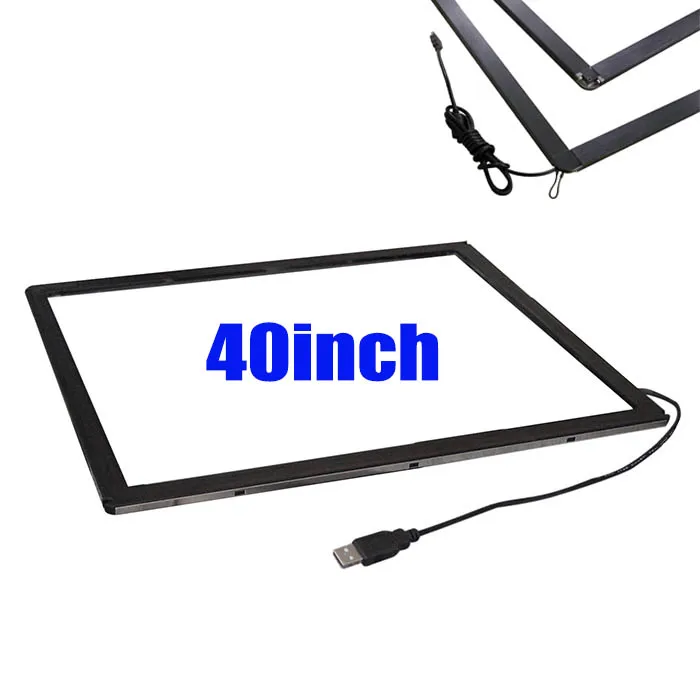

BENSHI40 дюймовый сенсорный экран USB-драйвер инфракрасная сенсорная рамка для ТВ android/windows ЖК-дисплей цифровой дисплей киоск
- Категория: Touch Screen Monitors >>>
- Поставщик: Guangzhou,Bems,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.58 $* | 0.71 $* |
| Aug-16-2025 | 0.47 $* | 0.90 $* |
| Jul-16-2025 | 0.13 $* | 0.56 $* |
| Jun-16-2025 | 0.4 $* | 0.69 $* |
| May-16-2025 | 0.85 $* | 0.73 $* |
| Apr-16-2025 | 0.84 $* | 0.62 $* |
| Mar-16-2025 | 0.66 $* | 0.42 $* |
| Feb-16-2025 | 0.55 $* | 0.58 $* |
| Jan-16-2025 | 0.39 $* | 0.93 $* |
Характеристики
Product Description
1. Product Overview:
* high-precision infrared touch frame, using interpolation algorithm;
* Mainstream system drive free, plug and play;
* Adapt to a variety of internal and external environments.
* Mainstream system drive free, plug and play;
* Adapt to a variety of internal and external environments.

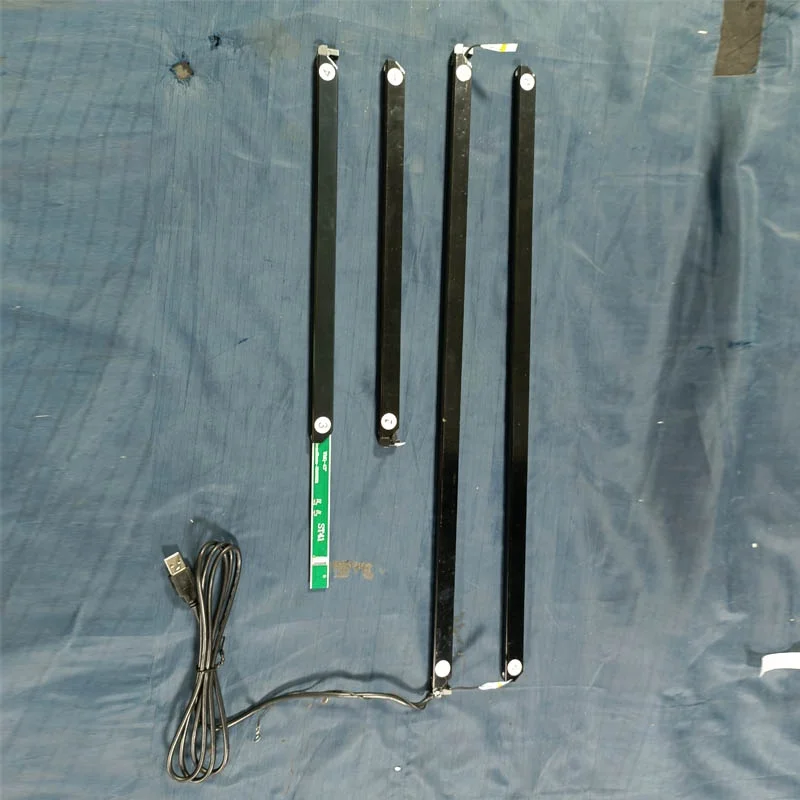

1. Separate each touch frame
into four touch bars
2. Four touch bars in a bundle
3. Wrap with pearl foam bag
and put into cylindrical
plastic cylinder
* The packing is strong, waterproof and shockproof

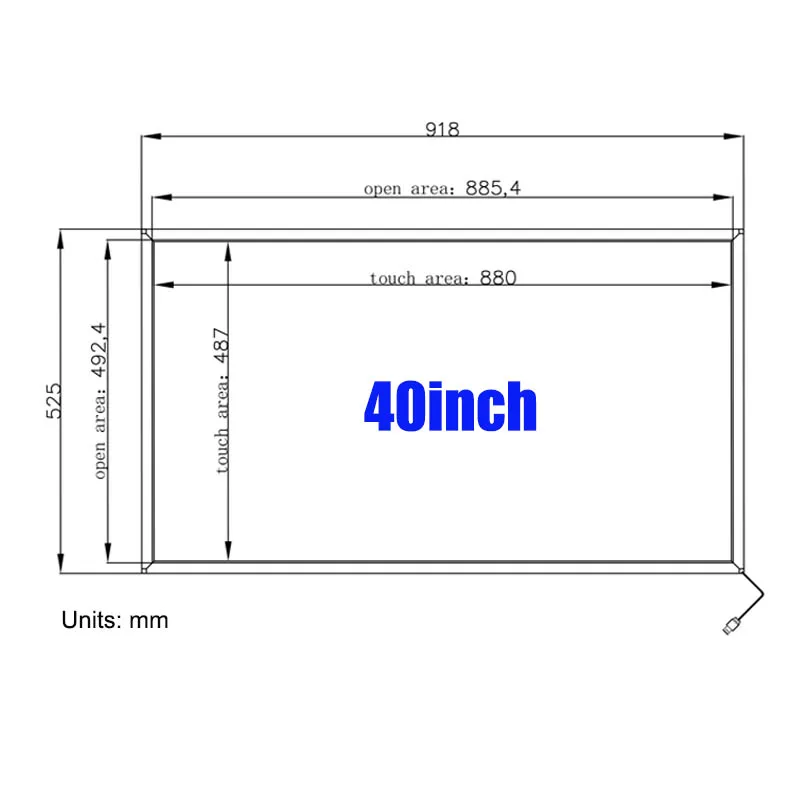

2.Main specification parameters | ||
The casing outside the material | PC | |
Appearance of the color | Dark brown | |
Top border width | The 16.7 mm | |
Bottom border width | The 17.7 mm | |
The thickness of the border | The 7.8 mm | |
Built-in glass | 3mm tempered glass | |
Interpolation resolution | 4096 x 4096 | |
Response speed | 5 ms or less | |
Touch the accuracy | Plus or minus 2 mm | |
Input mode | Opaque objects such as fingers and stylus | |
The output form | The coordinate output | |
Theoretical clicks | Unlimited time | |
Minimal touch object | 5mm | |
The interface type | USB | |
3.The electronic properties | ||
Sweep frequency | Single point 244Hz, 4 point 55Hz | |
The power supply mode | USB take electricity | |
The power supply voltage | DC + 5 v + / - 5% | |
Working current | < 120 ma, | |
4.Environmental features | ||
project | specifications | |
Temperature range | Operating temperature: -20℃~50℃ | |
Storage temperature: -20 ° C to 60 ° C | ||
Operating humidity: 10%~ 85% RH, no condensation | ||
Storage humidity: 10% to 90% RH, without condensation | ||
The light resistance | Resistance to light | |
waterproof | IPX5 | |
5. Software features | ||
project | specifications | |
Touch type | Touch at 20 | |
Multi-touch supported operating systems | Windows10/Windows8/Windows7/WindowsXP/Vista/Android /Linux | |
6.Test data | ||
project | The test conditions | |
High temperature, high humidity work | Temperature: 50℃, humidity: 85%RH (no condensation), continuous work for 24 hours | |
Work in low temperature | Temperature: -20℃, no continuous operation for 24 hours, room temperature for 2 hours | |
High temperature and high humidity storage | Temperature: 60℃, humidity: 90%RH (no condensation), no continuous work for 24 hours, room temperature for 2 hours | |
USB | Plug and remove test Windows 7 and Windows 10 are plugged and removed 1000 times each | |
System restart | Windows 7 and Windows 10 reboot 1,000 times each | |
The basic function | The basic function | |
All the above functional tests have passed | ||
we can supply the size 18.5/21.5/22/23.6/24/32/40/43/46/47/49/50/55/65/70/75/84/85/86/98/100inch
We are factory, Have our own software and hardware technology, reliable quality, reasonable price
Company Profile
Guangzhou Bems Electronics Co.,Ltd. was founded in 2012.10years factory history.
Supply: IR touch frame, digital signage frame, mother board. advertising player, digital signage,
Prolificacy:
1000pcs of self-developed designs and molds + OEM/ODM projects
With an annual production capacity of 10,000,00pcs, we can fill your bulk orders with ease.
10 QC members for incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC).
Teachnical team: own software development + drawing design team+Hardware after-sales team
Supply: IR touch frame, digital signage frame, mother board. advertising player, digital signage,
all in one pc,touch screen kiosk, bus monitor,TV,LCD/LED monitor and so on.
Prolificacy:
1000pcs of self-developed designs and molds + OEM/ODM projects
With an annual production capacity of 10,000,00pcs, we can fill your bulk orders with ease.
10 QC members for incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC).
Teachnical team: own software development + drawing design team+Hardware after-sales team
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012, ten years factory history.
2. how can we guarantee quality?
3years quality guarantee ,Lifelong maintenance
3.delivery time ?
conventional product in 3 days, Customized products in 15days
We are based in Guangdong, China, start from 2012, ten years factory history.
Guangzhou Bems Electronics Co., Ltd., located in Guangzhou, Panyu district.
2. how can we guarantee quality?
3years quality guarantee ,Lifelong maintenance
3.delivery time ?
conventional product in 3 days, Customized products in 15days
