Характеристики

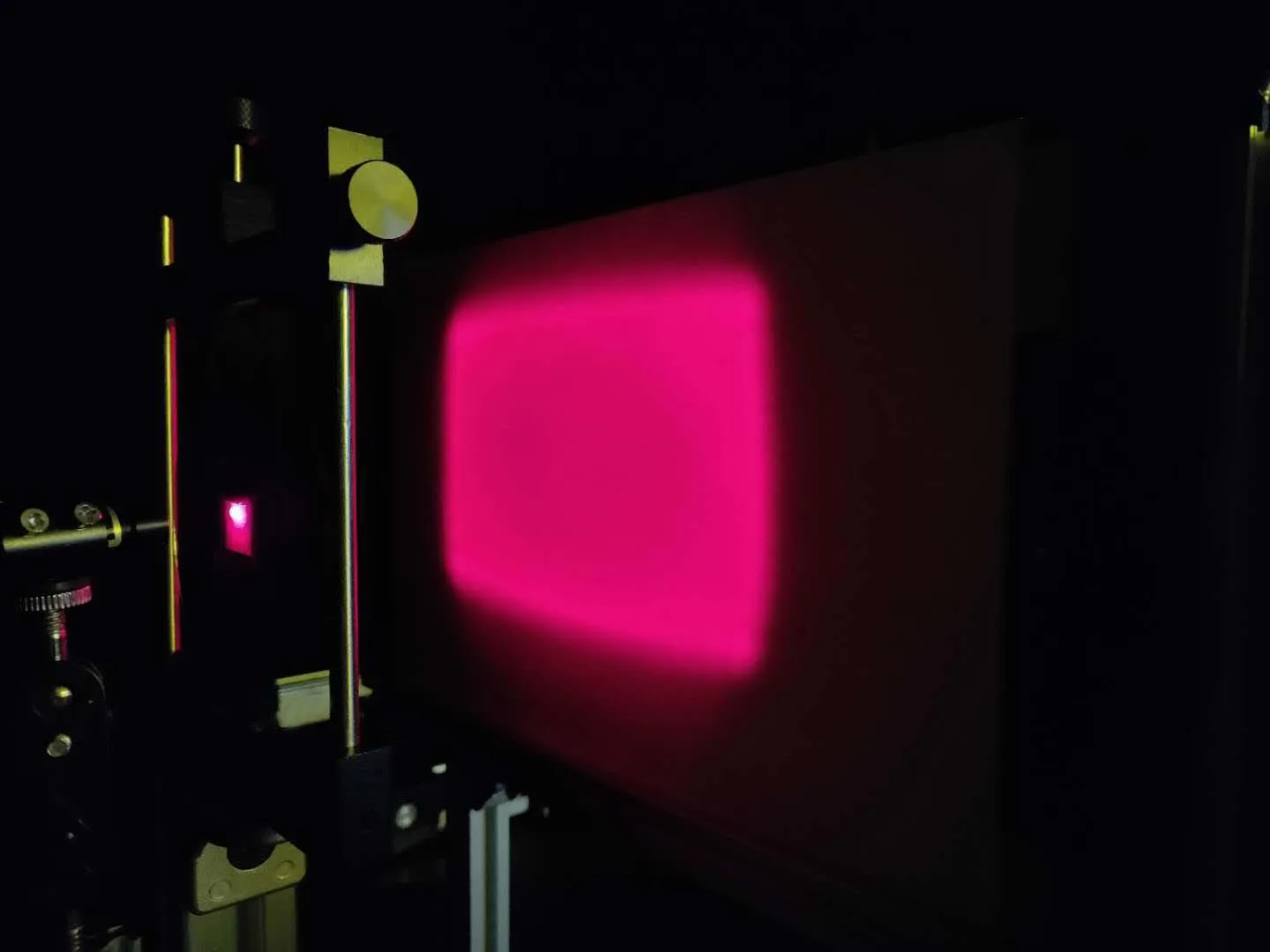

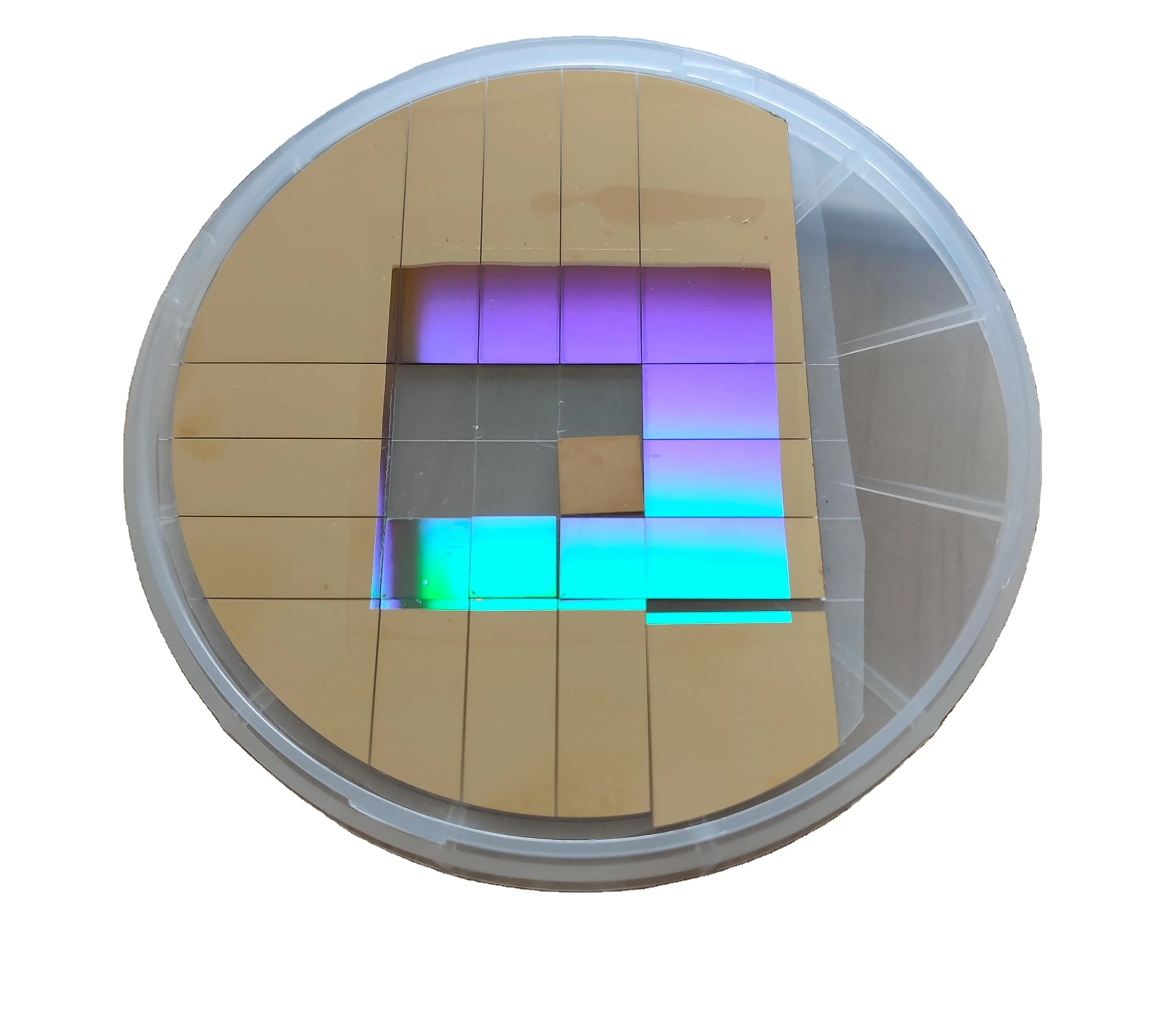

Diffraction gratings are periodic spatially modulated to the amplitude or phase (or both) of incident light through a periodic structure. Diffraction gratings can not only be used in spectroscopy, but also widely used in metrology, optical communication, information processing and other fields. There are many types of diffraction gratings, which can be divided into shining gratings, holographic gratings, rectangular gratings and so on.

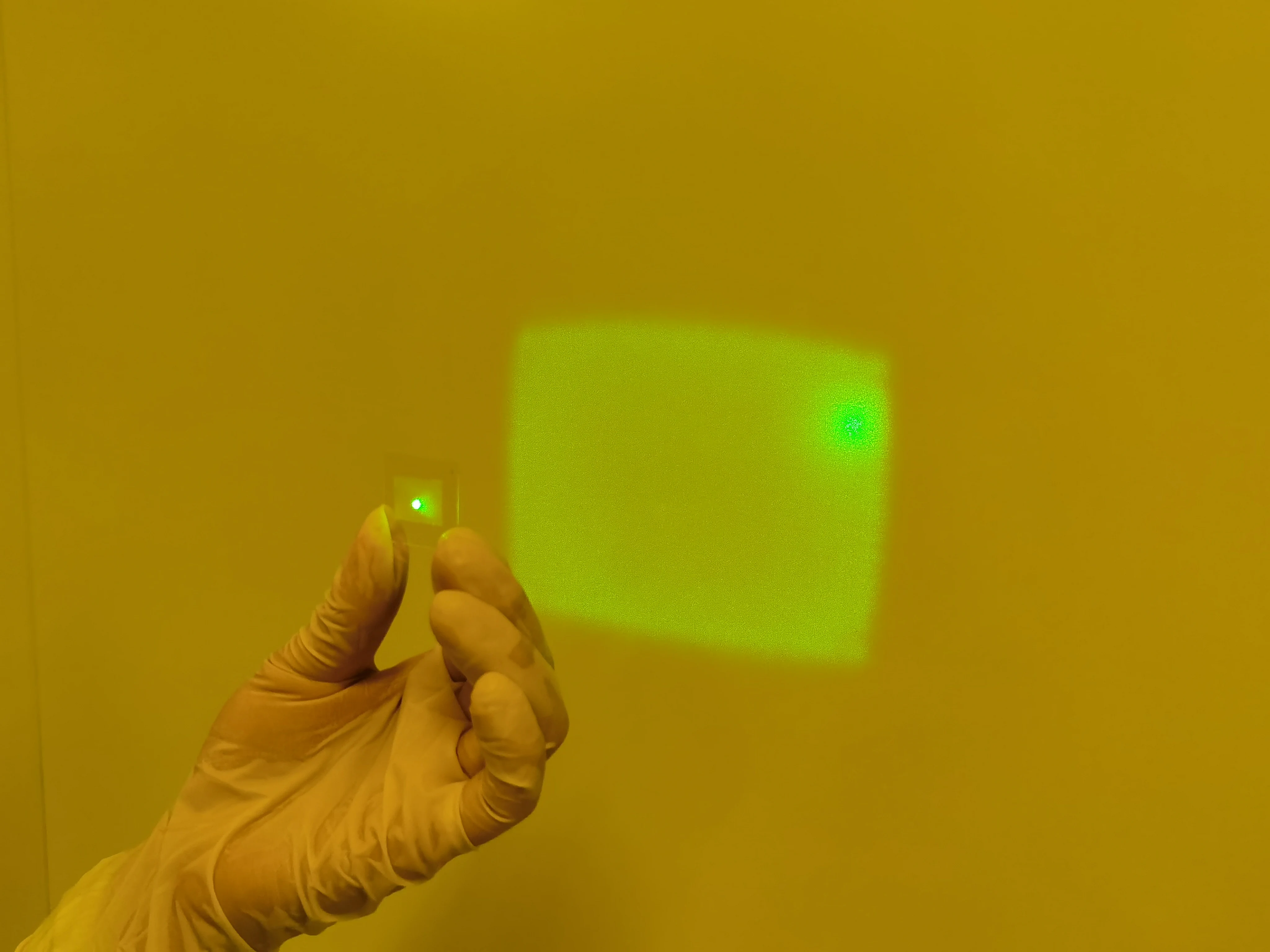

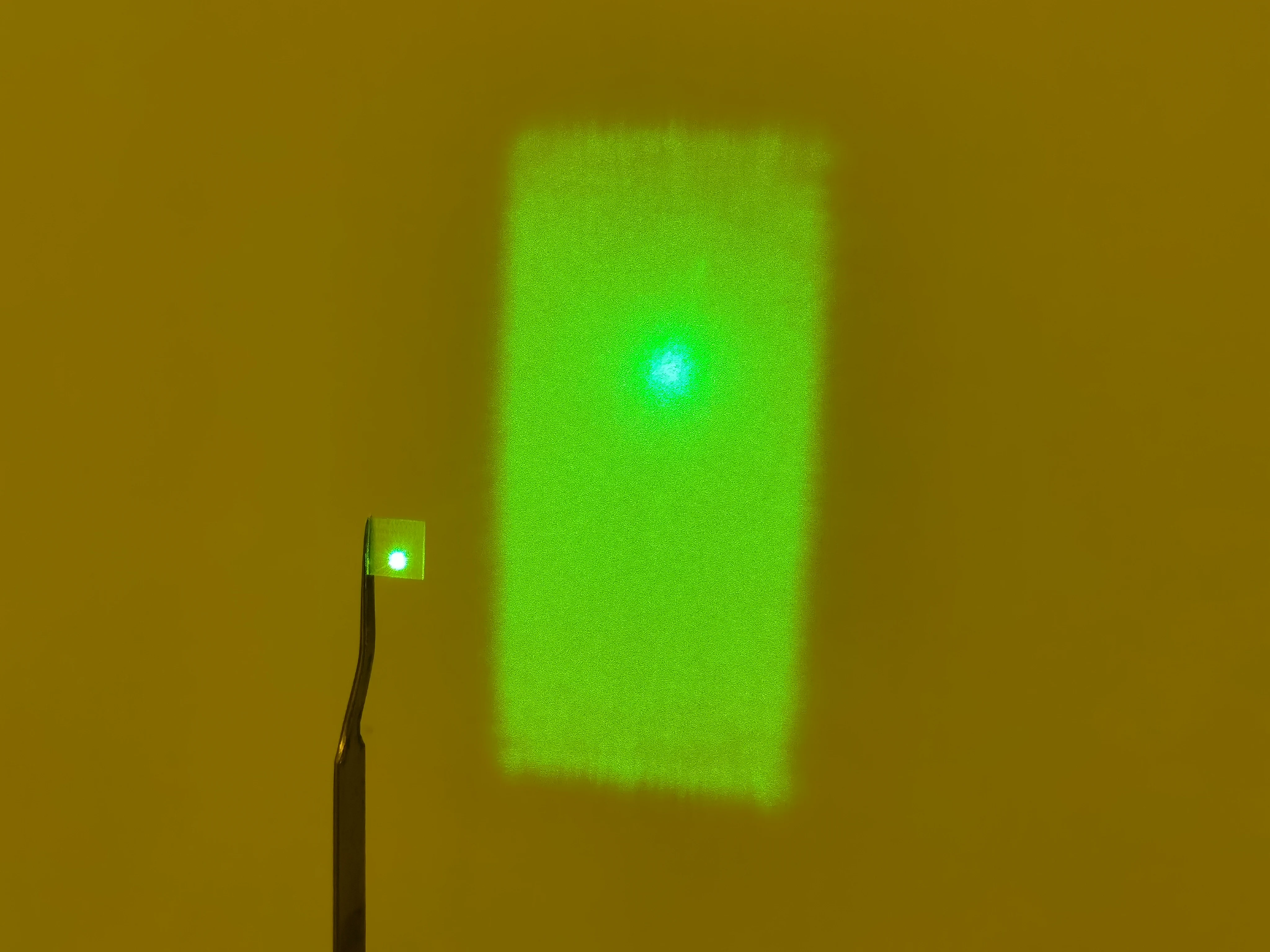

AR augmented reality glasses can use diffraction gratings (also known as embossed gratings) to implement light waveguides. Compared with geometric optical waveguides, the use of embossed light grids can make AR glasses thinner and lighter, more suitable for applications in the field of consumer electronics. In order to maximize the efficiency of light coupling diffracted in the direction of the eye, the incident grating of AR lenses is best used slanted grating or a triangular blazed grating, but both of these gratings are very difficult to process.

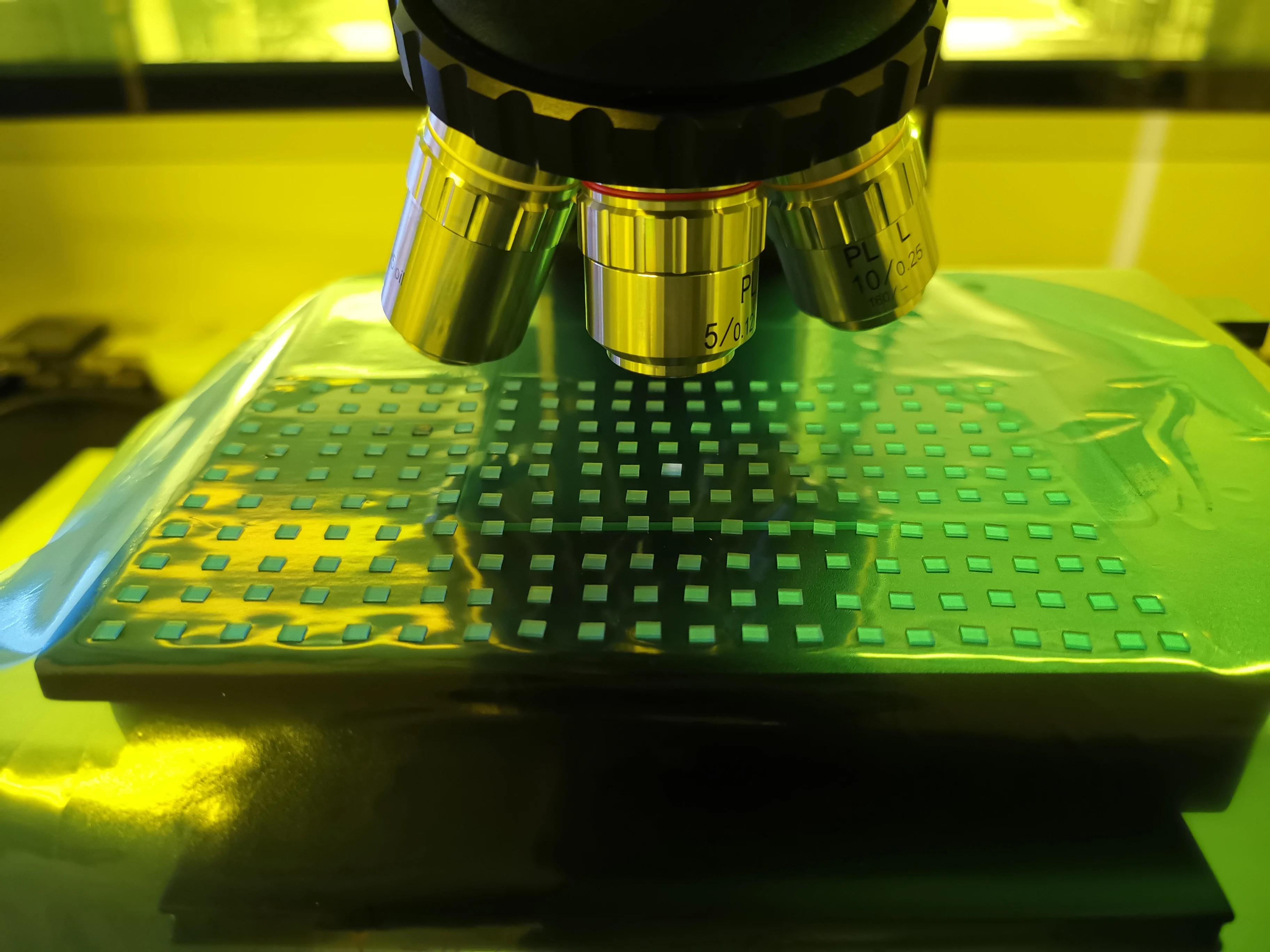

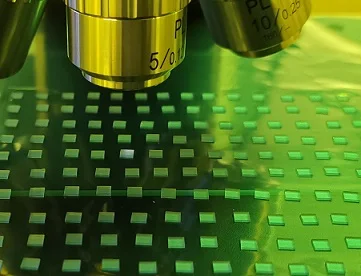

In addition to providing a variety of commonly used diffraction grating standard products, TORCH BEARER can also provide customized processing services, especially AR waveguide gratings, including nanoscale helical grating and shining grating processing. We provide a full range of services from mold making, process development, and mass production.
AR augmented reality glasses can use diffraction gratings (also known as embossed gratings) to implement light waveguides. Compared with geometric optical waveguides, the use of embossed light grids can make AR glasses thinner and lighter, more suitable for applications in the field of consumer electronics. In order to maximize the efficiency of light coupling diffracted in the direction of the eye, the incident grating of AR lenses is best used slanted grating or a triangular blazed grating, but both of these gratings are very difficult to process.
In addition to providing a variety of commonly used diffraction grating standard products, TORCH BEARER can also provide customized processing services, especially AR waveguide gratings, including nanoscale helical grating and shining grating processing. We provide a full range of services from mold making, process development, and mass production.
Measuring Parameters/Advantages | ||||||||
Characteristic | ||||||||
1.Material | Glass/polymer | |||||||
2. Structure | Regular or irregular microlens array | |||||||
3.Blaze Wavelengths | 400~500 nm | |||||||
4.Grooves | Soda lime glass substrate,300-1200 scores/mm | |||||||
5.Grating efficiency | up to 60%-80% at blazed wavelength | |||||||
6. Low ghosting | main reflection<0.5% | |||||||
7. Aluminum reflective film | ||||||||
8. Engraved base material production | ||||||||
Application | ||||||||
Mounts and Adapters | Rectangular Optics Mount (KM100C,KM100CL,POLARIS-K1,etc) | |||||||
Reflective diffraction grating, blaze wavelength 300nm
Item# | Dimensions (W x H x D) | Blaze Wavelength | Grooves/mm | Blaze Angle | Dispersion |
GR25-0303 | 25*25*6 mm | 300nm | 300 | 2° 34' | 3.33 nm/mrad |
GR50-0603 | 50*50*9.5 mm | 600 | 5° 9' | 1.67 nm/mrad | |
GR13-1203 | 12.7*12.7*6 mm | 1200 | 10° 22' | 0.82 nm/mrad |
Reflective diffraction grating, blaze wavelength 400nm
Item# | Dimension (W x H xD) | Blaze Wavelength | Grooves/mm | Blaze Angle | Dispersion |
GR25-1204 | 25*25*6mm | 400nm | 1200 | 13° 53' | 0.81nm/mrad |
GR50-1204 | 50*50*9.5mm |
Reflective diffraction grating, blaze wavelength 500nm
Item# | Dimensions (W x H x D) | Blaze Wavelength | Grooves/mm | Blaze Angle | Dispersion |
GR13-0305 | 12.7*12.7*6 | 500nm | 300 | 4° 18' | 3.32 nm/mrad |
GR25-0305 | 25*25*6 | ||||
GR50-0305 | 50*50*9.5 | ||||
GR13-0605 | 12.7*12.7*6 | 600 | 8° 37' | 1.65 nm/mrad | |
GR25-0605 | 25*25*6 | ||||
GR50-0605 | 50*50*9.5 | ||||
GR13-1205 | 12.7*12.7*6 | 1200 | 17° 27' | 0.80 nm/mrad | |
GR25-1205 | 25*25*6 |
Reflective diffraction grating, blaze wavelength 750nm
Item# | Dimensions (W x H x D) | Blaze Wavelength | Grooves/mm | Blaze Angle | Dispersion |
GR13-0608 | 12.7*12.7*6 mm | 750 nm | 600 | 13° 0' | 1.62 nm/mrad |
GR25-0608 | 25*25*6 mm | ||||
GR50-0608 | 50*50*9.5 mm | ||||
GR13-1208 | 12.7*12.7*6 mm | 1200 | 26° 44' | 0.74 nm/mrad | |
GR25-1208 | 25*25*6 mm |
