Самоходный грузовой подъемник 6 м 8 10


Поделиться:


Цена:4 999,00 $ - 5 899,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 6349.70 $* 6476.90 $*
Jul-16-2025 5149.28 $* 5252.5 $*
Jun-16-2025 6249.24 $* 6374.90 $*
May-16-2025 6199.99 $* 6323.63 $*
Apr-16-2025 4949.71 $* 5048.26 $*
Mar-16-2025 6099.90 $* 6221.85 $*
Feb-16-2025 6049.79 $* 6170.3 $*
Jan-16-2025 5999.90 $* 6119.14 $*

Характеристики

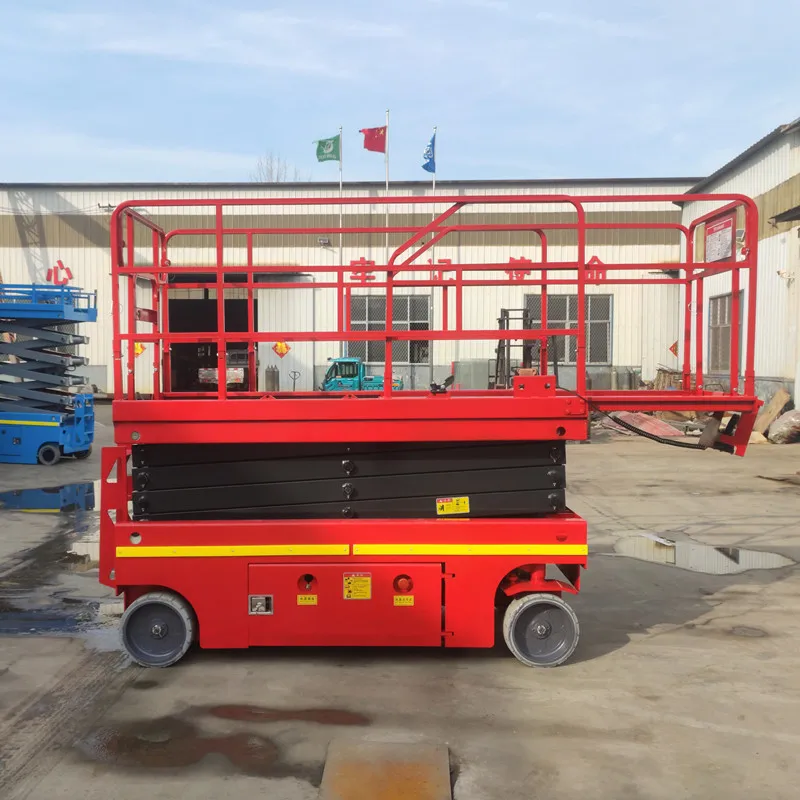

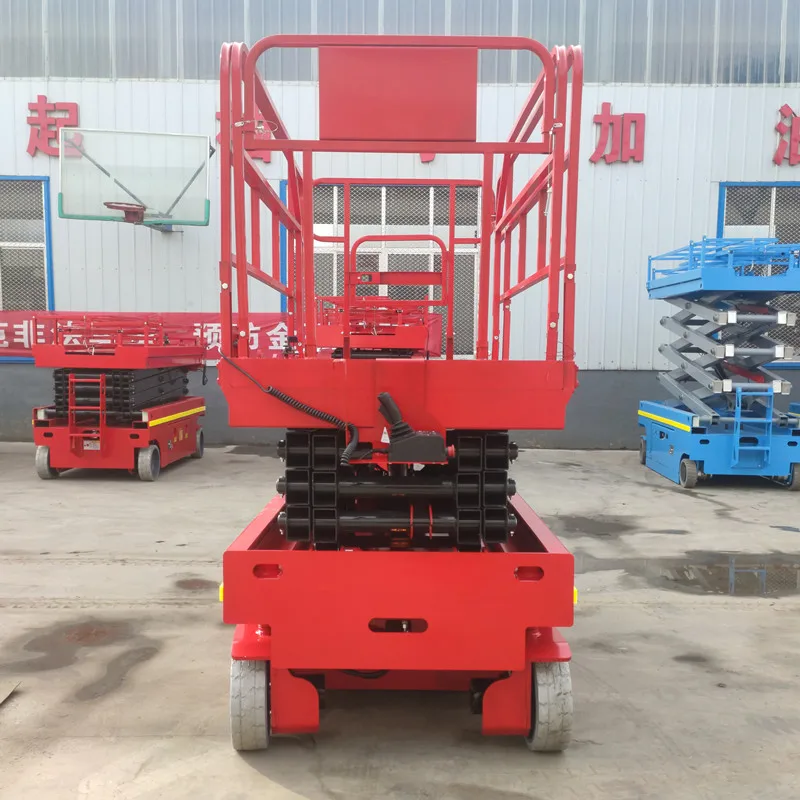

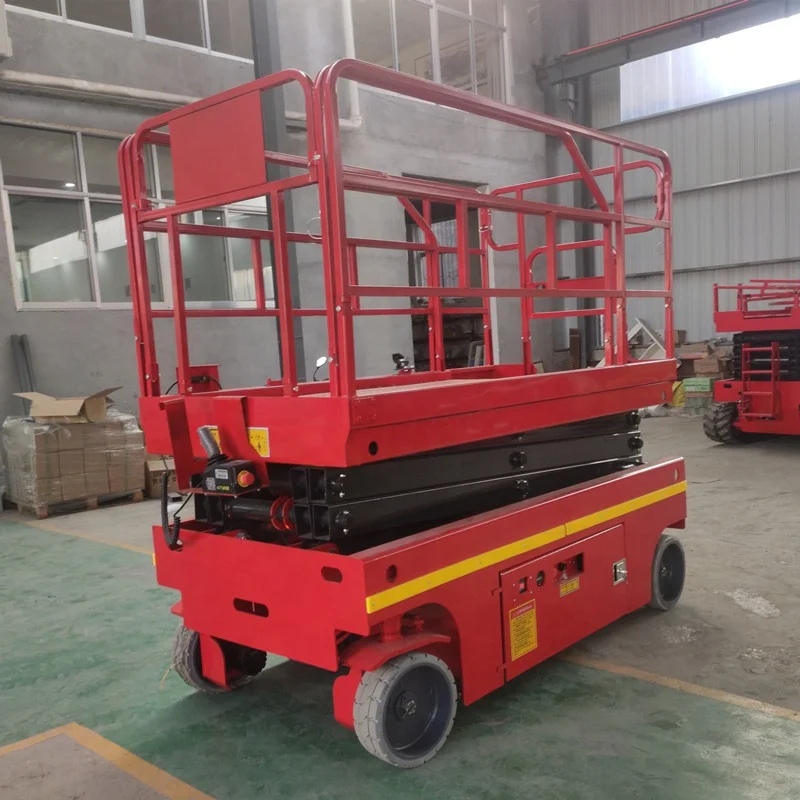

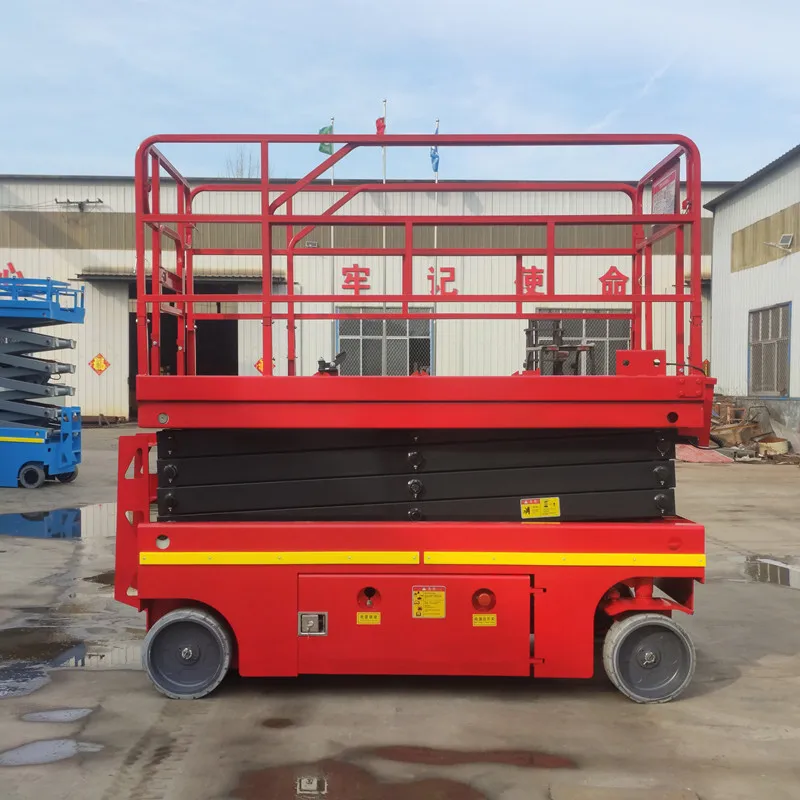

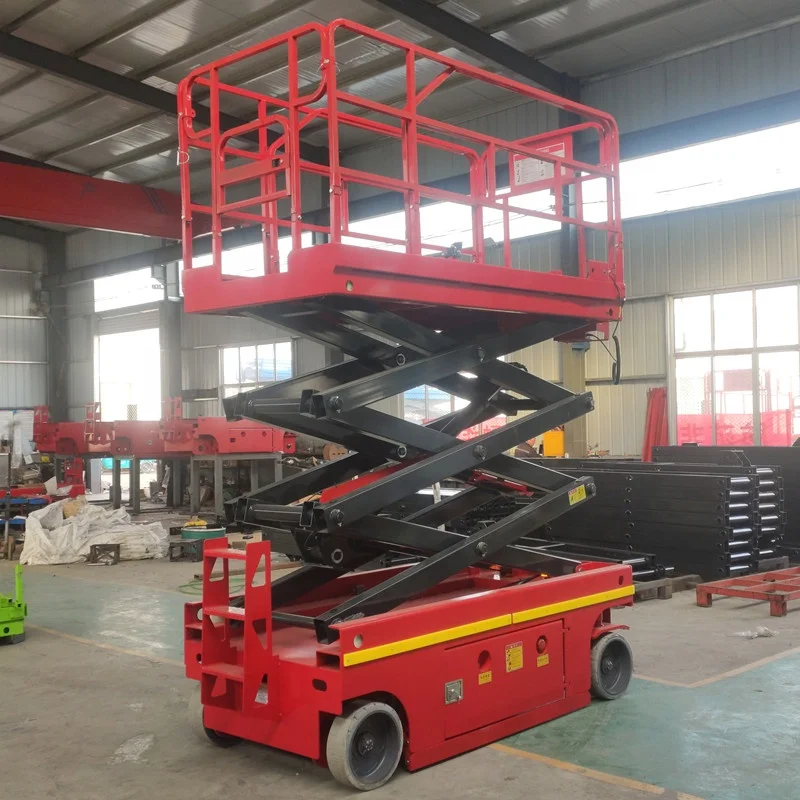

Self lifting platform
Self-propelled scissor lift has its own walking and lifting function, with the steering wheel to control the direction of running, speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel engine running and movements, can also use wireless electronic remote control movements, without the need for manual traction and does not need an external power supply, flexible and convenient in movement, high-altitude operations more efficient and convenient is modern enterprise, safety production ideal high-altitude operations equipment


Product Description




Specification


型号Model
SJYZO.3-6
安全工作栽荷Safe working load
320kg
延伸平台安全工作载荷 Safe working load of extension
113kg
最大工作人敷Maximum number of
2
最大工作高度Maximum working height
8m
最大平台高度Maximum platform height
6m
整机长度overall length
2600mm
整机宽度overall width
1170mm
整机高度(围栏未折质) Overall height (fence not folded)
2280mm
整机高度(围栏折亀) Overall height (fence folding)
1580mm
工作平台尺寸(长X宽) Working platform size (length x width)
2400mm,1170mm
平台延伸尺寸 Platform extension size
0.7m
,小离地间陳(收拢状态) Minimum ground clearance (retracted)
0.1m
最小离地间陳(起升状态) Minimum ground clearance (lifting
0.019m
轴距 Wheelbase
1.89m
最小转弯半径(内轮) Minimum turning radius (inner wheel)
0
■小转弯半径(外轮) Minimum turning radius (outer wheel)
2.20m
起升电机/驱动电机 Lifting motor/drive motor
24v/4.0kw
机器行驶速度(收拢状态) Machine ground speed (stowed)
3.5km/h
机器行驶速度(起升状态) Machine travel speed (lifting state)
0.8km/h
上升/T降速度Up / down speed
80/90 sec
蓄电池Battery
6V/230Ah
充电 SCharger
24v/25A
•大爬坡能力Max Climb Capability
25%
工作it大允许角度(室内/室外) Maximum allowable working angle (indoor / outdoor)
2。/3。
轮胎tyre
4> 381,127
整机 S ft Weight of whole machine
2200kg


Company Profile




China Machinery Co., Ltd(CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.

CNMC Group's manufacturing area is compromised of 50000 square meters where 2000 people are employed full-timely. In the past more than over 30 years, the company always up hold the scientific management of modern enterprises model, rapid rise to become a leader in machinery manufacturing area.

Its service scope covers critical economic fields such as construction engineering equipment, mining machinery, rock drilling equipment, steel etc.

CNMC Group got ISO9001 international quality system certification, European Union CE certification, SGS certification and Russian GOST certification.

Scientific innovation is CNMC motive power. we actively cooperate with the well-known domestic institutions to carry out science research and development. At 2000 year the company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Shanghai Institute of Chemical Research jointly established experimental research center for the Chemical Material.
From 2004, CNMC cooperated with Xuzhou Construction Machinery Group Co., Ltd. (XCMG) and other famous company in China. Through exchanges and cooperation and learn from each other, CNMC mechanical products in the stability of performance has been greatly improved.

More than 30 years of hard work and struggle, CNMC products have been exported to more than 127 countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ON QUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of China's machinery manufacturing industry and prosperity.
