5 лет гарантии контейнер для батарей BYD кВтч 10 15 20 25 сложен на автономной солнечной системе система
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Lithium,Valley,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2158.77 $* | 2201.47 $* |
| Jul-16-2025 | 1750.98 $* | 1785.7 $* |
| Jun-16-2025 | 2124.40 $* | 2166.19 $* |
| May-16-2025 | 2107.50 $* | 2149.28 $* |
| Apr-16-2025 | 1682.21 $* | 1716.80 $* |
| Mar-16-2025 | 2073.39 $* | 2114.45 $* |
| Feb-16-2025 | 2056.63 $* | 2097.73 $* |
| Jan-16-2025 | 2039.21 $* | 2080.70 $* |
Характеристики
Products Description

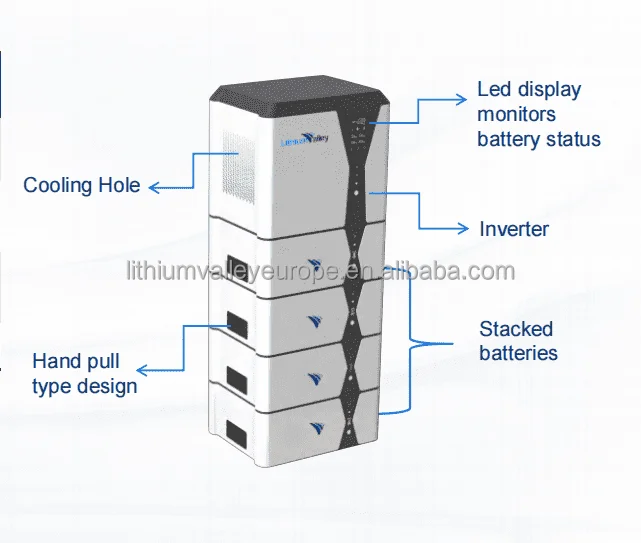

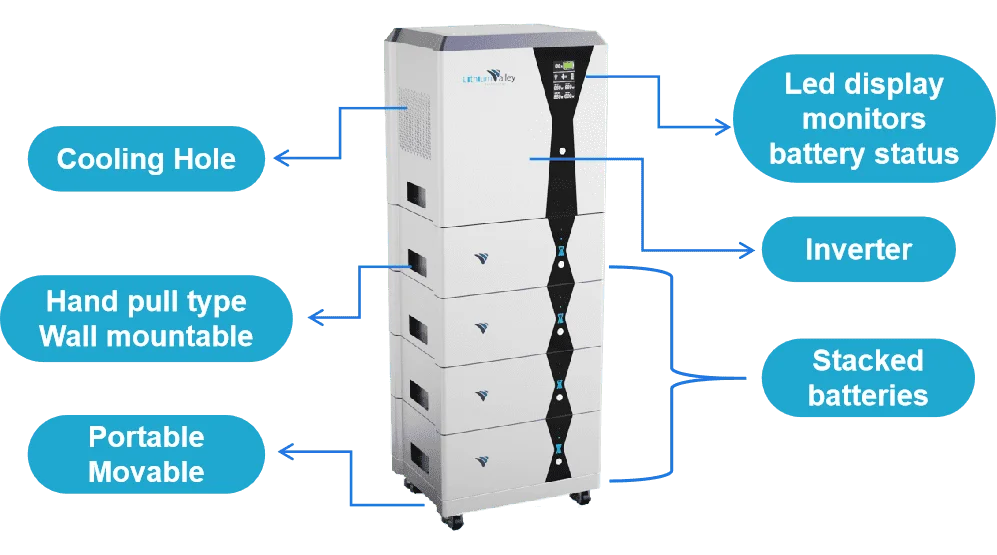

Smart String Energy Storage System
* Scalable from 5 kWh to 25 kWh
* Compatible with Market Leading 1 Phase Inverters
* Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety,
Life Cycle and Power
* Capable of High-Powered Emergency-Backup and Off-Grid Function
* Self-Consumption Optimization for Residential and
Commercial Applications
* Modular Design Simplifies Transport and Installation
* Extend Anytime, easily Adapts to New Requirements
* Compatible with Market Leading 1 Phase Inverters
* Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety,
Life Cycle and Power
* Capable of High-Powered Emergency-Backup and Off-Grid Function
* Self-Consumption Optimization for Residential and
Commercial Applications
* Modular Design Simplifies Transport and Installation
* Extend Anytime, easily Adapts to New Requirements
Model | 5KW | 10KW | 15KW | 20KW | 25KWh | |||||||||
Number of power modules | 1 | |||||||||||||
Battery module energy | 5KWh | |||||||||||||
Number of battery Modules | 1 | 2 | 3 | 4 | 5 | |||||||||
Battery usable energy [1] | 5KWh | 10KWh | 15KWh | 20KWh | 25KWh | |||||||||
Max Output Current [2] | 13A,5S | 25A,5S | 25A,5S | 25KWh | 50A,5S | 25KWh | 50A,5S | |||||||
Peak Output Current [2] | 25 A, 5 s | 50 A, 5 s | 50 A, 5 s | 50 A, 5 s | 50 A, 5 s | 50 A, 5 s | 100 A, 5 s | |||||||
Max. output power | 3KW | 5KW | 5KW | 5KW | 10KW | 5KW | 10KW | |||||||
Peak output power | 6kW, 5 s | 10kW, 5 s | 10kW, 5 s | 10kW, 5 s | 20kW, 5 s | 10kW, 5 s | 20kW, 5 s | |||||||
Nominal voltage (single phase system) | 220V | |||||||||||||
Operating voltage range(single phase system) | 200V~240V | |||||||||||||
Communication | ||||||||||||||
Display | SOC status indicator, the information of Battery, Inverter, load, PV charging, Grid | |||||||||||||
Communication | RS485 / RS232 | |||||||||||||
General Specification | ||||||||||||||
Dimension (W*D*H) | 520*420*850mm | 520*420*1050mm | 520*420*1250mm | 520*420*1450mm | 520*420*1650mm | |||||||||
Weight (Floor stand included) | 100KG | 155KG | 207KG | 260KG | 270KG | 313KG | 323KG | |||||||
Power module dimension (W*D*H) | 520*420*520mm | |||||||||||||
Power module weight | 5kW,33KG | 10kW,45KG | ||||||||||||
PV charge current | 110A | 220A | ||||||||||||
Battery module dimension | 520*420*200mm | |||||||||||||
Battery module weight | 53KG | |||||||||||||
Our service
1>Customized battery voltage and capacity2>Customized battery case,plastic case,PVC,metal case
3>Customized BMS
4>Delivery support
we can support RS485/RS232/CANBUS/Bluetooth solution, support active equalization scheme, and developed battery self-heating scheme and load-weight scheme.These products are widely used on Solar System,Caravan,Yacht,
Fishing Boat,Golf Trolley Cart, E-rickshaw, AGV, AMR, Forklift,UPS, 5G Communication Base Station, Auxiliary Power Supply System for car or bus etc.
Fishing Boat,Golf Trolley Cart, E-rickshaw, AGV, AMR, Forklift,UPS, 5G Communication Base Station, Auxiliary Power Supply System for car or bus etc.
Company Profile
FAQ
Q1. Can Shenzhen Lithium Valley Technology Co.,Ltd. ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.
Q2. How does Shenzhen Lithium Valley Technology Co.,Ltd. ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can
ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for Lithium
Valley sales person to check the best option for you.
Q3. What is your warranty?
R3: We offer 2 years warranty for all our battery pack. we ensure at least 2,000 cycle life for the LiFePO4 battery pack, which
means, after 2,000, 80% DOD, there will still around 60% capacity left. You can use it for at least 5 years for normal 1 time
charge and discharge everyday.
Q4：What functions does your battery support?
R4：Our battery can support customized Bluetooth monitoring function, RS485 or CAN-bus communication function
Q5：Can I buy a few batteries as samples? What is the quantity of minimum order?
R5：Of course, we are supporting customers to buy 1-2 samples as the beginning of our business cooperation.
Q6：How do we make the payment?
R6：T/T , Western Union , Ali Pay, Escrow, and Paypal are warmly welcomed.
Q7：What's the lead time for mass production
R7：It depends on the actual situation. 3-7 days with stock, if without stock, that will be depends on your order quantity,
normally needs 20-25 days.
Q8：Can we visit your factory?
R8：Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q9: Can I use my charger to charge your battery?
R9: The charger needs to be able to adapt to the charging mode of the lithium battery. The charging of the lithium battery is
CC-CV. The products we sell also have Lifepo4 chargers, which are compatible with our batteries.
Q10: Can we print our customized logo on the battery?
R10: We support customized labels to be printed with customer logos. If the order quantity exceeds 50, we can customize the label
for free.
Q11: Can I customized the battery appearance?
R11: We support customized, metal shell can be customized according to the requirements
Q12:Can I store the battery for a while and not use it right now?
R12:Yes,if the battery packs are not being used in 3 months, please place them after fully charged. Please keep the battery pack
under a cold and dry condition .
