Электрическое оборудование тестер сопротивления заземления кабеля проверка

Электрическое оборудование тестер сопротивления заземления кабеля проверка

Категория: Other Electrical Instruments >>>
Поставщик: Weshine,Electric,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.51 $*	0.28 $*
Aug-15-2025	0.25 $*	0.36 $*
Jul-15-2025	0.66 $*	0.55 $*
Jun-15-2025	0.22 $*	0.40 $*
May-15-2025	0.82 $*	0.2 $*
Apr-15-2025	0.29 $*	0.19 $*
Mar-15-2025	0.96 $*	0.82 $*
Feb-15-2025	0.94 $*	0.31 $*
Jan-15-2025	0.44 $*	0.5 $*

Характеристики

Product Description

1.Soil resistivity tester supports 2, 3 and 4wire grounding resistance measurement.
2. 4digit large LCD display with white screen backlight, suitable for use in dimly lit places.
3. IP65 protection grade, good waterproof, compact and portable, supports multiple functional tests.
4. Ground resistance measurement range is 0.0030.00kΩ, and soil resistivity is 0.00Ωm900kΩm.
5. Support ground voltage, AC voltage measurement, high accuracy, long-term use.

Specification:

Item Type: Soil Resistivity Tester
Material: ABS

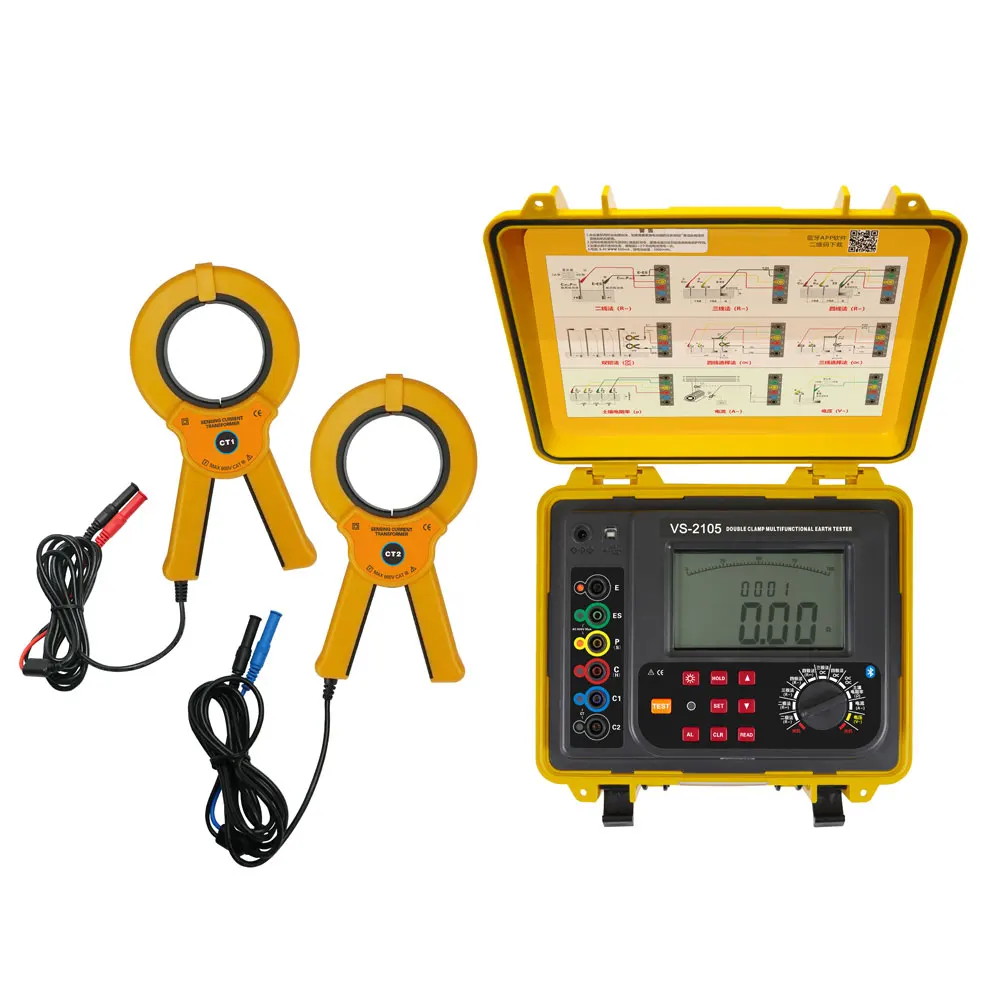

Model:VS-2105
Function: 2, 3 and 4 wires to measure grounding resistance, soil resistivity; grounding voltage, AC voltage measurement
Working Voltage: DC7.4V 2600mAh x1 Rechargeable lithium battery, the battery is fully charged about 8.4V (built-in battery)
Adapter: US Standard AC100-240V
Range:
1. Grounding Resistance: 0.00 - 30.00kΩ
2. Soil Resistivity: 0.00Ωm - 900kΩm
3. Grounding Voltage: 0V - 600V
Measurement Method: Precise 4-wire, 3-wire method measurement, simple 2-wire measurement of ground resistance
Measurement: Grounding Resistance: Rated current pole changing method, measuring current 20mA Maximum
Soil Resistivity: Quadrupole Method (Winner Method)
Voltage To Ground: Average Value Rectification (Between P(S)-ES Interface)
Test Frequency: 128Hz/111Hz/105Hz/9Hz (AFC)
Short Circuit Test Current: AC 20mA Maximum
Open Circuit Test Voltage: AC 40V Maximum
Test Voltage Waves: Sine Waves
Electrode Spacing Range: 1m-100m can be set

Specification

Brand Name	WESHINE
Product name	VS-2105
Grounding Resistance	0.00 - 30.00kΩ
Soil Resistivity	0.00Ωm - 900kΩm
Grounding Voltage	0V - 600V
Test Frequency	128Hz/111Hz/105Hz/9Hz (AFC)
Short Circuit Test Current	AC 20mA Maximum
Open Circuit Test Voltage	AC 40V Maximum
Test Voltage Waves	Sine Waves
Electrode Spacing Range	1m-100m can be set
Working Temperature and Humidity	-10℃-40℃; below 80%RH
