Мельница для древесных гранул дома
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan,Biomass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21420.67 $* | 22491.58 $* |
| Aug-16-2025 | 21240.79 $* | 22302.98 $* |
| Jul-16-2025 | 17820.53 $* | 18711.43 $* |
| Jun-16-2025 | 20880.65 $* | 21924.94 $* |
| May-16-2025 | 18180.11 $* | 19089.40 $* |
| Apr-16-2025 | 20520.46 $* | 21546.60 $* |
| Mar-16-2025 | 20340.49 $* | 21357.50 $* |
| Feb-16-2025 | 20160.87 $* | 21168.45 $* |
| Jan-16-2025 | 19980.90 $* | 20979.85 $* |
Характеристики

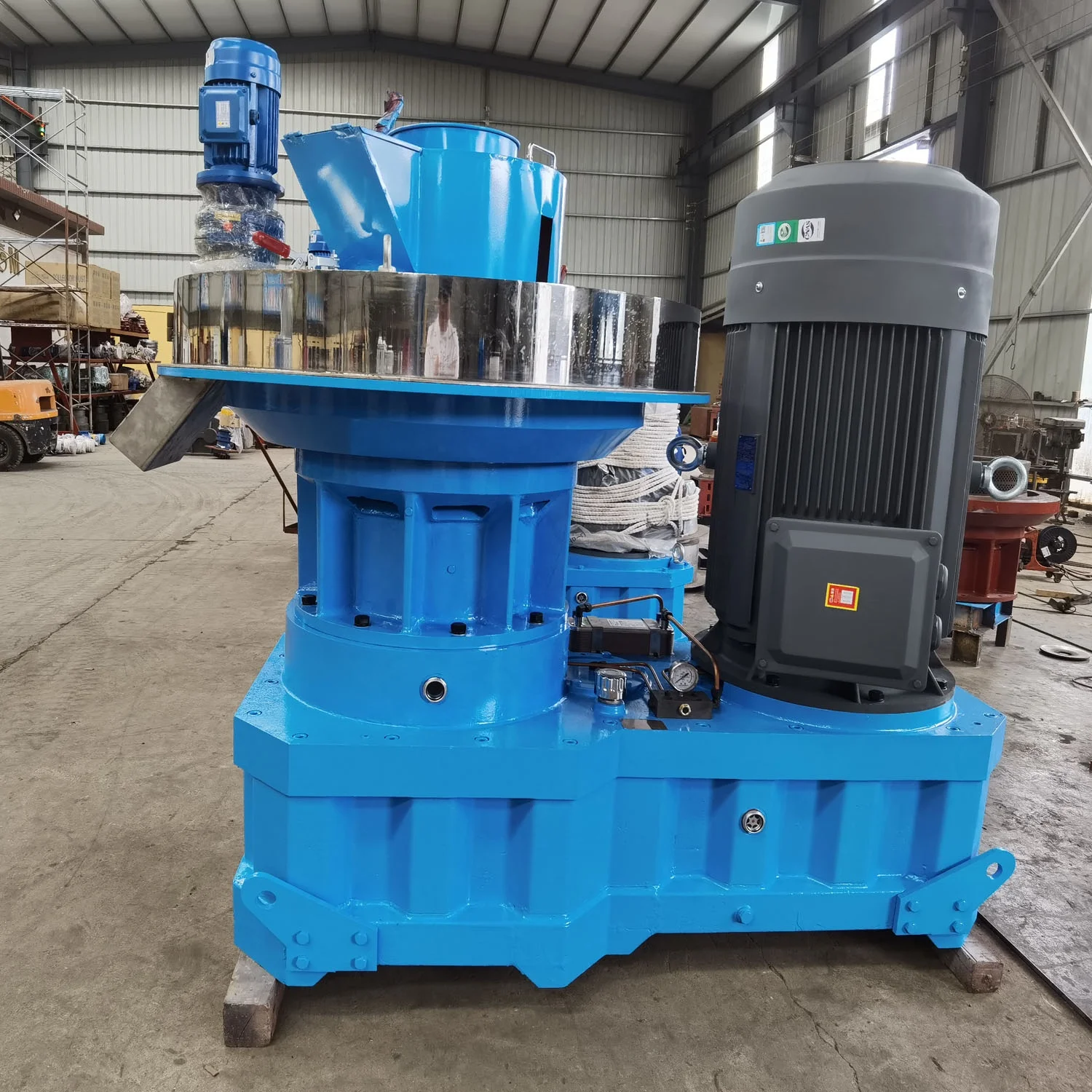

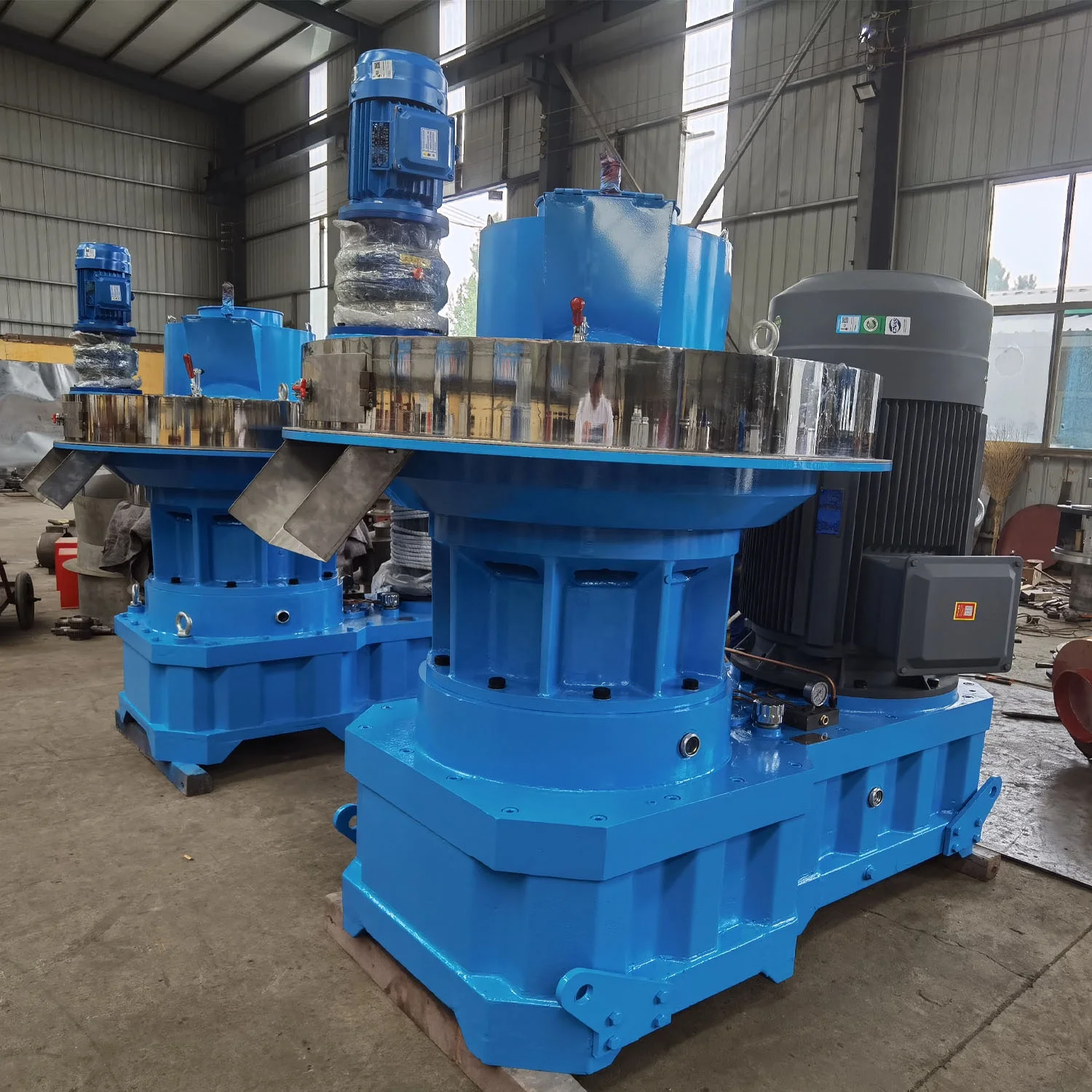

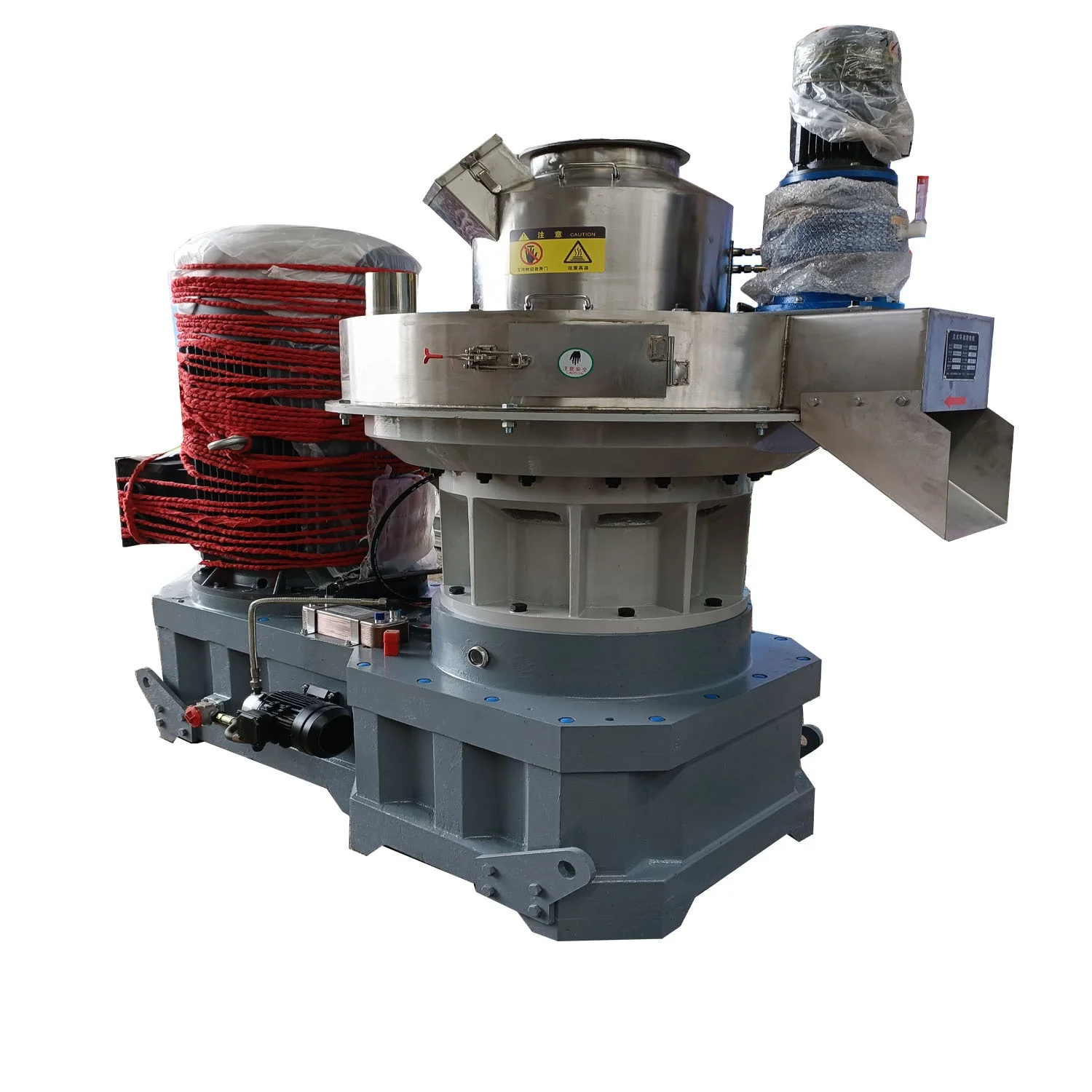

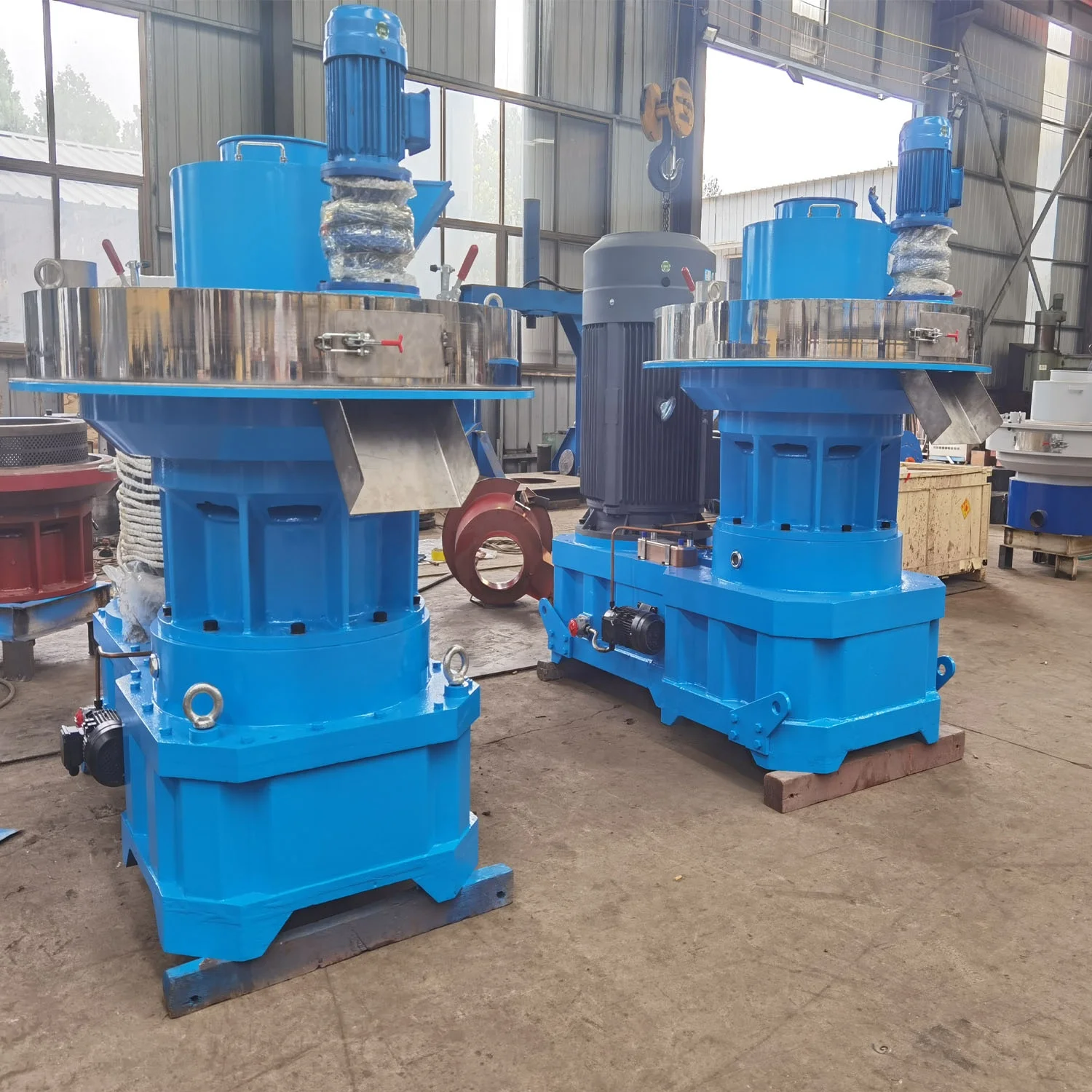

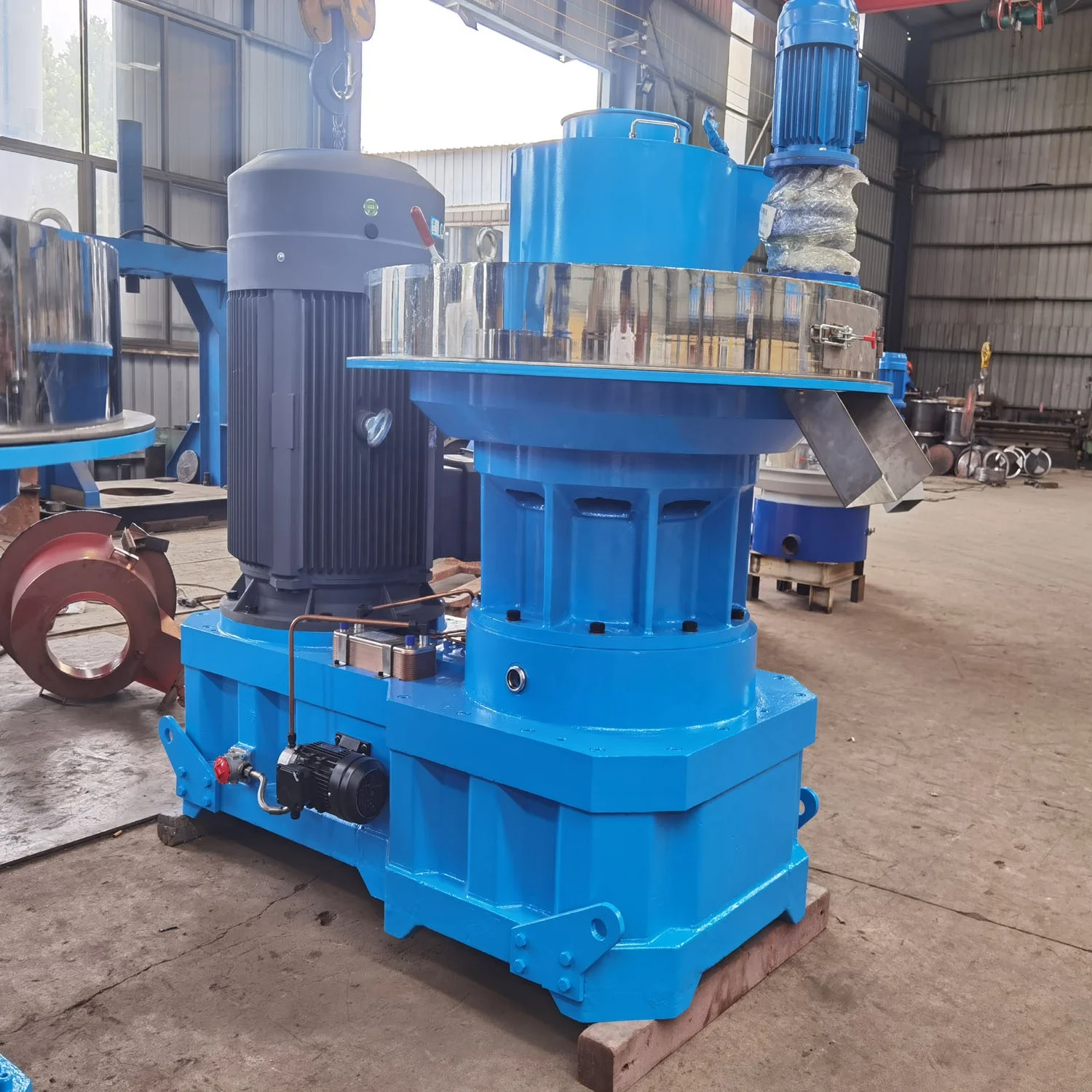

Wood pellet mill
Our wood pellet mill details: All pellet presses are developed to give low production costs and high-quality pellets to make owners competitive in both private and industrial markets.
A.Five characteristics
1. Vertical feeding, directly in place.
2. Die is static, rollers rotary; materials are evenly distributed around, because of centrifugal force.
3. Double-layer die. Two layers both can be used independently so the machine reduces the cost; What’s more,
two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly, high capacity and save energy.
4. Ring die and vertical structure are good for cooling the pelletizing room.
5. Independent and frequency conversion discharge device can ensure the rate of pellet formation.
A.Five characteristics
1. Vertical feeding, directly in place.
2. Die is static, rollers rotary; materials are evenly distributed around, because of centrifugal force.
3. Double-layer die. Two layers both can be used independently so the machine reduces the cost; What’s more,
two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly, high capacity and save energy.
4. Ring die and vertical structure are good for cooling the pelletizing room.
5. Independent and frequency conversion discharge device can ensure the rate of pellet formation.
What kinds of material need for Vertical ring die wood pellet mill
1.Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >20%,We should add a dryer to dry the wood chip until moisture <15% .
2.Wood chips: Wood chips with moisture >20%,We should add one dryer to dry wood chips until <20%. If Wood chips are dry ,moisture <15%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;
3.Sawdust: Moisture >20%,need dry until moisture<15%,if sawdust size <5 mm,then make pellet directly..
4.Palm fiber and EFB: Further crushed until size <1 mm,dried until moisture <15%.
5.Rice husk :Without hammer mill, when moisture <15% can make pellet directly.
6.Straw:Further crushed
All of those material shall get size <8 mm,moisture <15%,easy to make good pellet by wood pellet machine.
spare parts
6-8 mm pellet
Include wood pellet,palm fiber pellet,EFB pellet,rice husk pellet,straw pellet,etc.
1.Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >20%,We should add a dryer to dry the wood chip until moisture <15% .
2.Wood chips: Wood chips with moisture >20%,We should add one dryer to dry wood chips until <20%. If Wood chips are dry ,moisture <15%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;
3.Sawdust: Moisture >20%,need dry until moisture<15%,if sawdust size <5 mm,then make pellet directly..
4.Palm fiber and EFB: Further crushed until size <1 mm,dried until moisture <15%.
5.Rice husk :Without hammer mill, when moisture <15% can make pellet directly.
6.Straw:Further crushed
All of those material shall get size <8 mm,moisture <15%,easy to make good pellet by wood pellet machine.
spare parts
6-8 mm pellet
Include wood pellet,palm fiber pellet,EFB pellet,rice husk pellet,straw pellet,etc.
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Condition | New |
Raw Material Processed | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks |
Pellet Diameter (mm) | |
Output (kg/h) | 800kg/h - 1200kg/h |
Brand Name | BIOMASS MACHINE |
Voltage | 380V |
Dimension(L*W*H) | 2331*1587*1780 |
Motor Power (Kw) | 90KW |
Power (kW) | 90KW |
Warranty | 1 Year |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Food & Beverage Shops, Advertising Company |
Key Selling Points | Easy to Operate |
Weight (KG) | 5100KG |
Marketing Type | New Product 2022 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Gearbox |
Usage | Biomass Energy Industry |
Spare parts | Ring Die+ Rollers |
Ideal moisture | Biomass Pellet 15-20% |
Advantage | High Performance |
Packing & Delivery
Wood pellet machine is too heavy,directly put into container.
Bigger model need open top type container.
Company Profile
Jinan Biomass Machinery Co.,ltd is located in JiNan city,ShanDong province with more than 10 years,
Biomass machinery Co.,ltd is professional manufacturer of machine for agriculture,forest.pasturage,fishery,
Main products:wood chipper,hammer mill,mixer,dryer,cooler.packing machine, design and manufacturer pellet making complete line for biomass energy wood,feed,and fertilizer pellets.
We have good sales markets in Europe,North America, Africa, East and South Asia and other countries and regions. also have professional engineers and salesmen to serve all of our customs
We always here waiting for an opportunity to serve you,Focus on customer requirements,
aim to supply the highest quality machinery and take care of every process from our hands in China. the more you know us,the more you believe in us!
sincerely want to become your trustworthy business partner!
Biomass machinery Co.,ltd is professional manufacturer of machine for agriculture,forest.pasturage,fishery,
Main products:wood chipper,hammer mill,mixer,dryer,cooler.packing machine, design and manufacturer pellet making complete line for biomass energy wood,feed,and fertilizer pellets.
We have good sales markets in Europe,North America, Africa, East and South Asia and other countries and regions. also have professional engineers and salesmen to serve all of our customs
We always here waiting for an opportunity to serve you,Focus on customer requirements,
aim to supply the highest quality machinery and take care of every process from our hands in China. the more you know us,the more you believe in us!
sincerely want to become your trustworthy business partner!
