Высокое Напряжение Амперметр беспроводной передачи Автоматический диапазон мощности клещи переменного тока AC/DC тестер сопротивления
- Категория: Clamp Meters >>>
- Поставщик: Shenzhen,Yuntong,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 595.25 $* | 625.98 $* |
| Aug-17-2025 | 590.5 $* | 620.43 $* |
| Jul-17-2025 | 495.67 $* | 520.8 $* |
| Jun-17-2025 | 580.18 $* | 609.54 $* |
| May-17-2025 | 505.39 $* | 530.83 $* |
| Apr-17-2025 | 570.56 $* | 599.48 $* |
| Mar-17-2025 | 565.19 $* | 593.70 $* |
| Feb-17-2025 | 560.40 $* | 588.11 $* |
| Jan-17-2025 | 555.8 $* | 583.55 $* |
Характеристики
Product Description

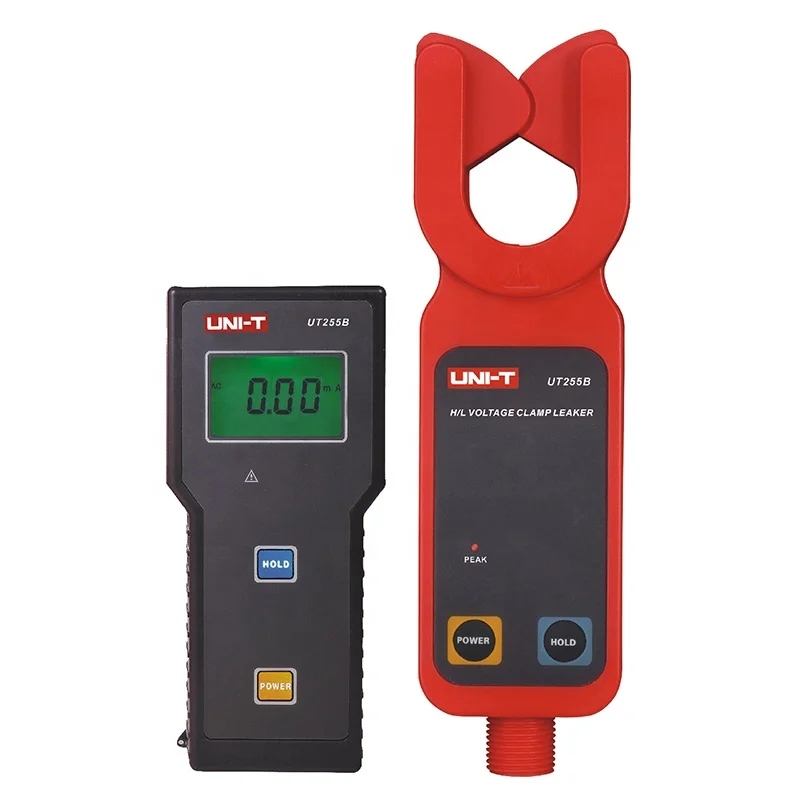

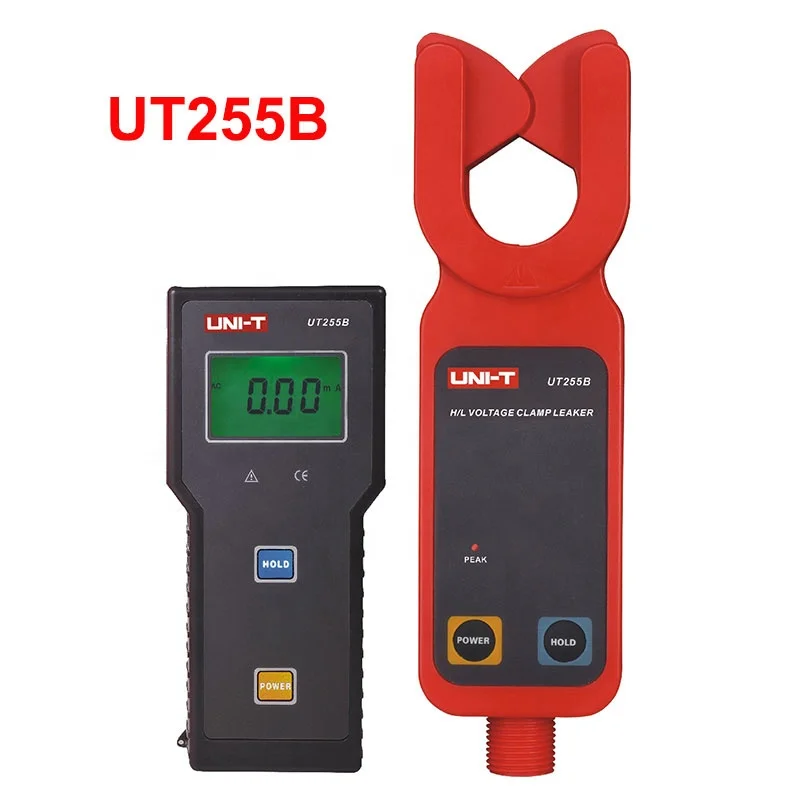

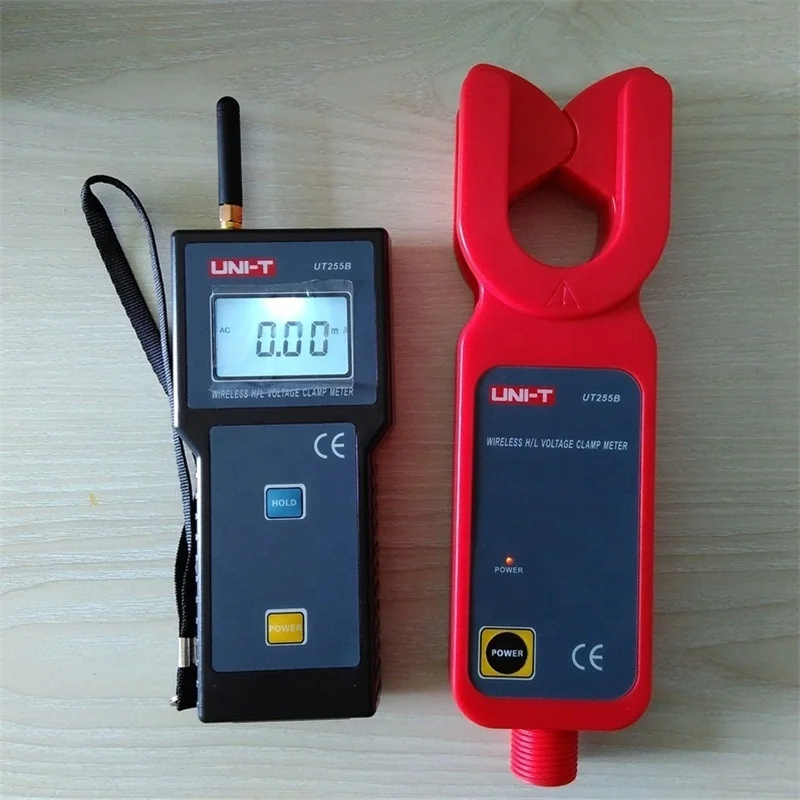

UT255B High Voltage Clamp Ammeter
UT255 series high voltage clamp ammeters can measure up to 69kV high voltage line current and leakage current. UT255 comes with an
insulation rod, allowing professional users to check status of lightning arresters. The wireless model (UT255B) is also able to
wirelessly transmit data in real-time up to 30m range. Its clamp can be easily removed from wire by pressing or pulling back the
insulation rod.
insulation rod, allowing professional users to check status of lightning arresters. The wireless model (UT255B) is also able to
wirelessly transmit data in real-time up to 30m range. Its clamp can be easily removed from wire by pressing or pulling back the
insulation rod.
Specifications | Range | UT255B | ||
Leakage current (A) | 0.01mA~100A | ±(1%+5) | ||
100A~600A | ±(2%+5) | |||
Voltage (Freq.) 0V~69kV (50Hz/60Hz) | √ | |||
Features | ||||
Display mode | 4 digits LCD | √ | ||
Jaw opening | 33mm | |||
Auto range | √ | |||
Wireless transmission | ≤30m | √ | ||
Data recall | √ | |||
Data storage | 99 | |||
Peak value | √ | |||
LCD backlight | √ | |||
Data hold | √ | |||
Auto power off | √ | |||
Low battery indication | √ | |||
Over-range display | OL | √ | ||
Test mode | Clamp CT, integration | √ | ||
Sampling rate | About 2 times/s | √ | ||
General Characterisitics | ||||

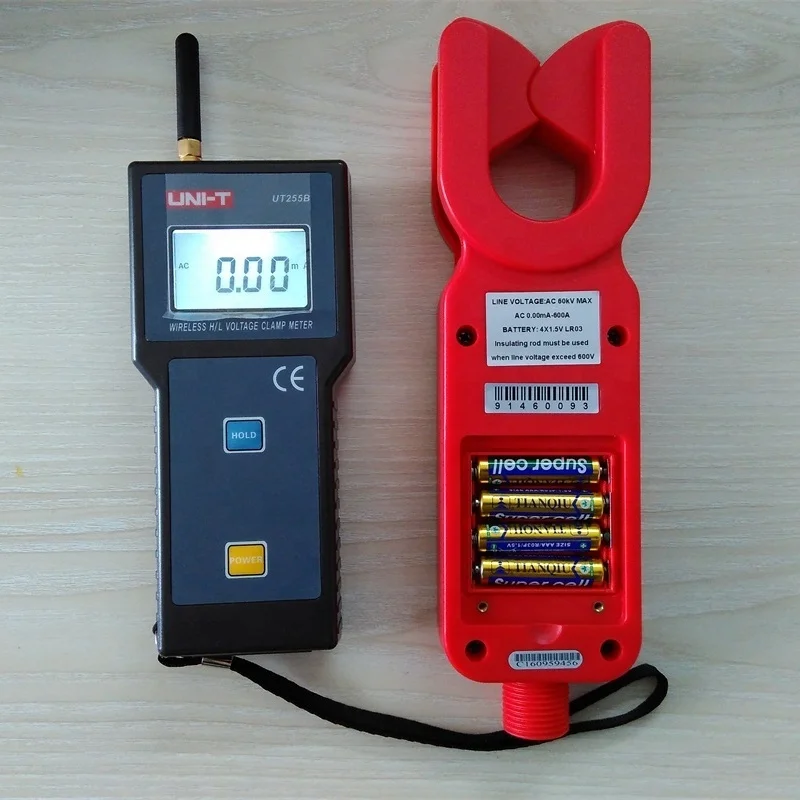

Power | 1.5V Battery (LR03) x 4 | |||
Display | 47mm x 28.5mm | |||
Product color | Red and grey | |||
Product net weight | 335g | |||
Product size | 68mm x 245mm x 40mm | |||

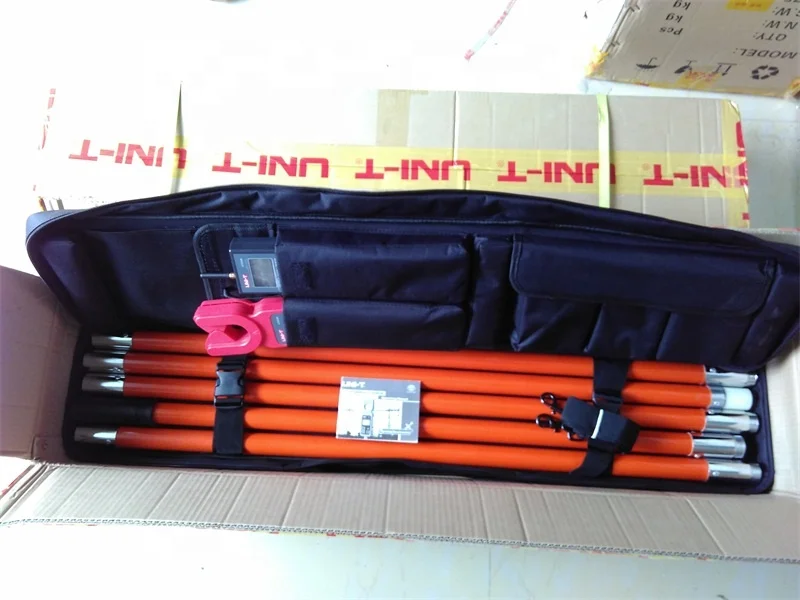

Standard accessories | Batteries, insulation rod, receiver | |||
Standard individual packing | Gift box, English manual, tool box | |||
Standard quantity per carton | 1pcs | |||
Standard carton measurement | 1040mm x 240mm x 140mm | |||
Standard carton gross weight | 6.8kg | |||
Company Profile
Certifications
FAQ
1.Q: Are you trading company or manufacturer?
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
