3 кВт 5 6 9 220 В/380 В индивидуальный логотип 1300*2500 мм ЧПУ роутер машина для резьбы по
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Xunke,Cnc,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2031.57 $* | 2072.26 $* |
| Jul-16-2025 | 1647.6 $* | 1680.80 $* |
| Jun-16-2025 | 1999.44 $* | 2039.74 $* |
| May-16-2025 | 1983.25 $* | 2023.60 $* |
| Apr-16-2025 | 1583.21 $* | 1615.1 $* |
| Mar-16-2025 | 1951.44 $* | 1990.27 $* |
| Feb-16-2025 | 1935.74 $* | 1974.46 $* |
| Jan-16-2025 | 1919.51 $* | 1957.16 $* |
Характеристики
Products Show
1325 cnc router is popular in advertising industry, it mainly used to cut acrylic, PVC, MDF, plywood and other materials. Besides, it can realize the engraving on stone like marble and granite, woodworking, etc.
Product's features

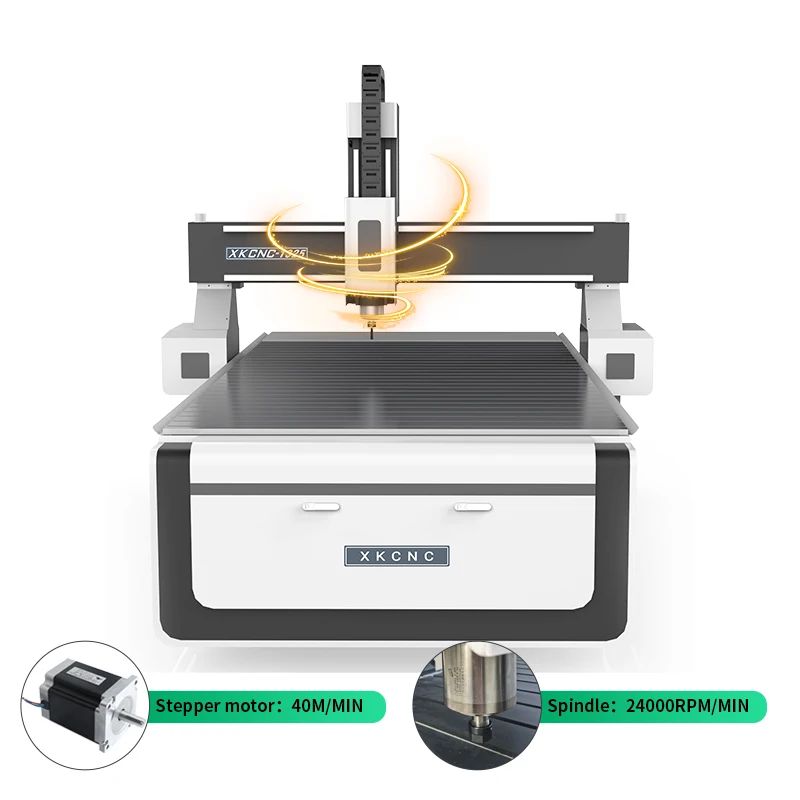

1325 cnc router is equipped with:
^High quality square rail and rack
^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor
Product Paramenters
Model | XK-1325 |

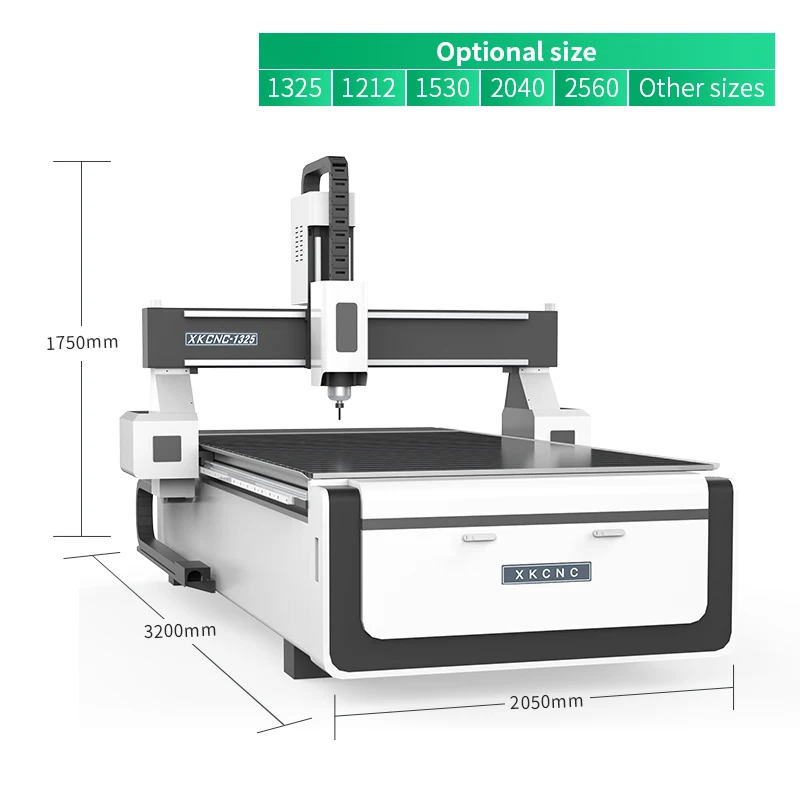

Working area | 1300×2500×200mm |
Spindle | 6kw air cooling spindle spindle |
Motor | Stepper motor |
Control system | NC Studio |
Driven system | X, Y axis helical rack drive, Z axis Taiwan TBI ball screw |
Working table | Intelligent protection of the work surface |
Machine bed | Channel steel structure |
Max speed | ≥15m/min |
Spindle speed | 6000-24000rpm/min |
Voltage | 380V/50HZ |
Software | Wentai, Jingdiao |
Packing size | 3200*2250*1830mm |
Lubrication system | Automatic oil lubrication system |
N.W./G.W. | 900kg/1050kg |
Quality control
Our company has six steps to guarantee the machine quality, from the start to the end. Machine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use precise instrument to measure the precision of every part and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.
Application

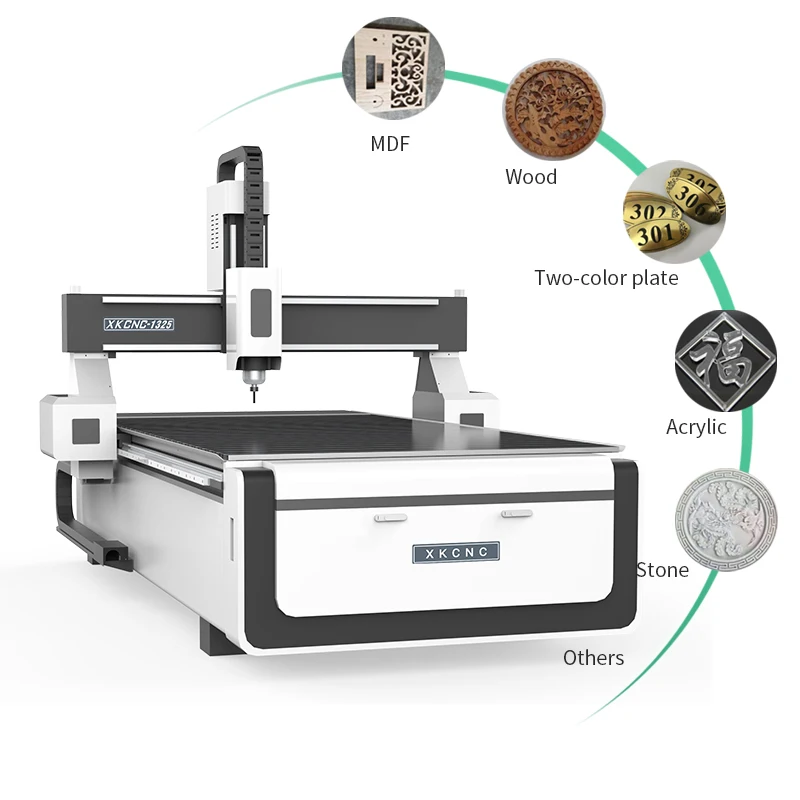

1325 CNC Routers are computer-controlled engraving/milling/cutting machines. They can be used in the production of various different items, such as furniture, cabinet, signboards, wood panels, wooden frames, door carvings, prototyping & modeling, musical instruments, art crafts, and so on. It can also cut materials which are used widely in advertising industry like acrylic, PVC, MDF, double colors board, plywood, etc.
Exhibition
After-sales service
Company Profile
We are professional manufacturers of cnc router in Jinan, having big market shares in the market.
If you want to collaborate with our company, there are two ways: one is that we can do OEM for you. Another is that you can become the distributors or resellers of our company, if you are interested in working with Xunke cnc, please click the below"contact us" to discuss the details.
