Термоусадочная муфта для изоляции проводов и


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.26 $* 0.84 $*
Aug-16-2025 0.49 $* 0.61 $*
Jul-16-2025 0.28 $* 0.23 $*
Jun-16-2025 0.96 $* 0.8 $*
May-16-2025 0.97 $* 0.66 $*
Apr-16-2025 0.51 $* 0.14 $*
Mar-16-2025 0.40 $* 0.13 $*
Feb-16-2025 0.31 $* 0.1 $*
Jan-16-2025 0.87 $* 0.92 $*

Характеристики



Product Description

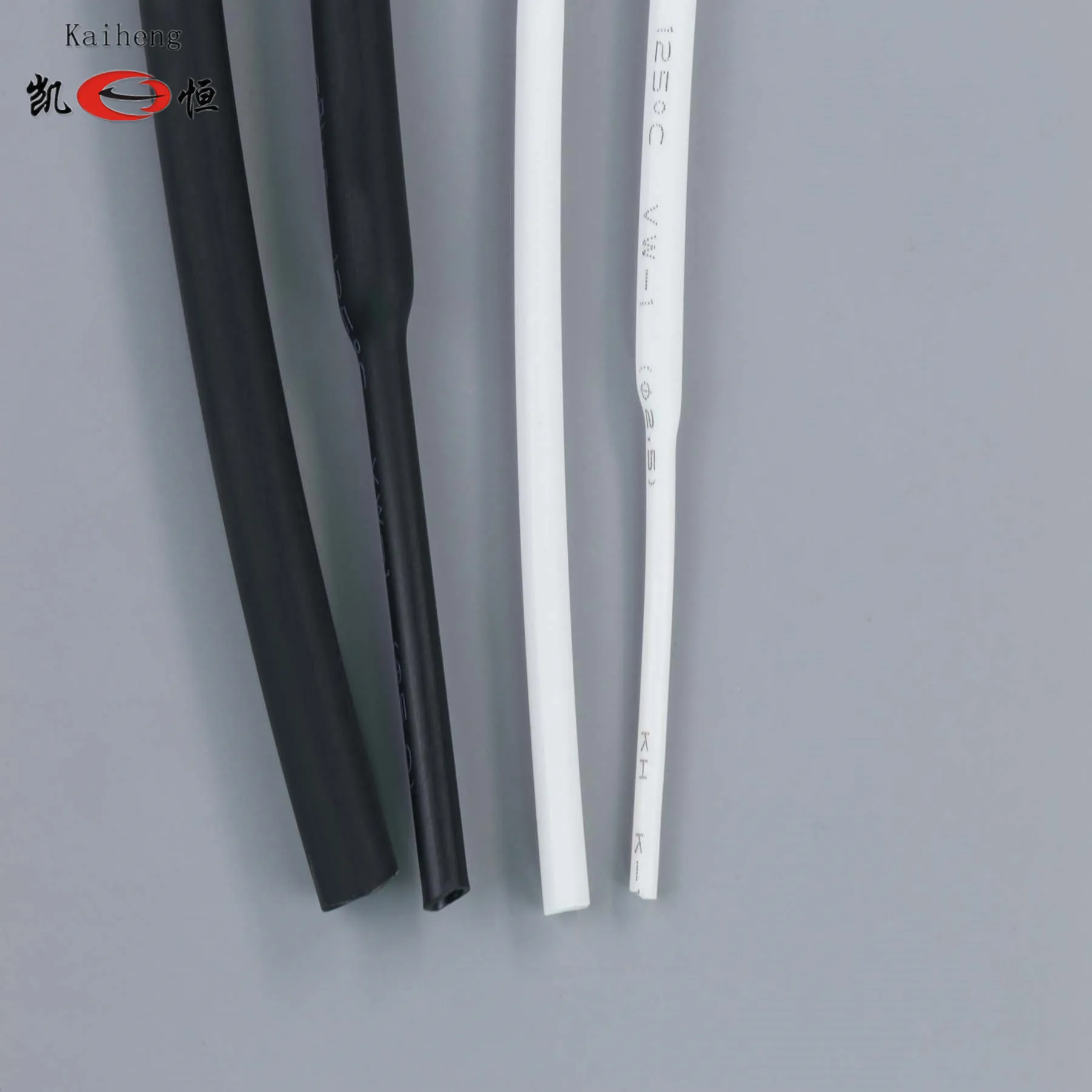

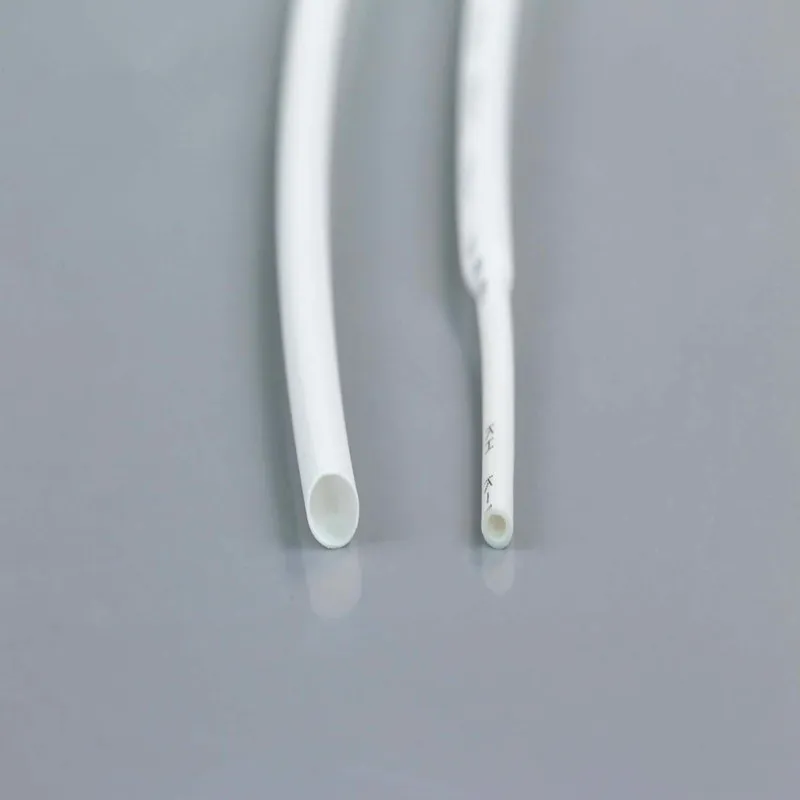

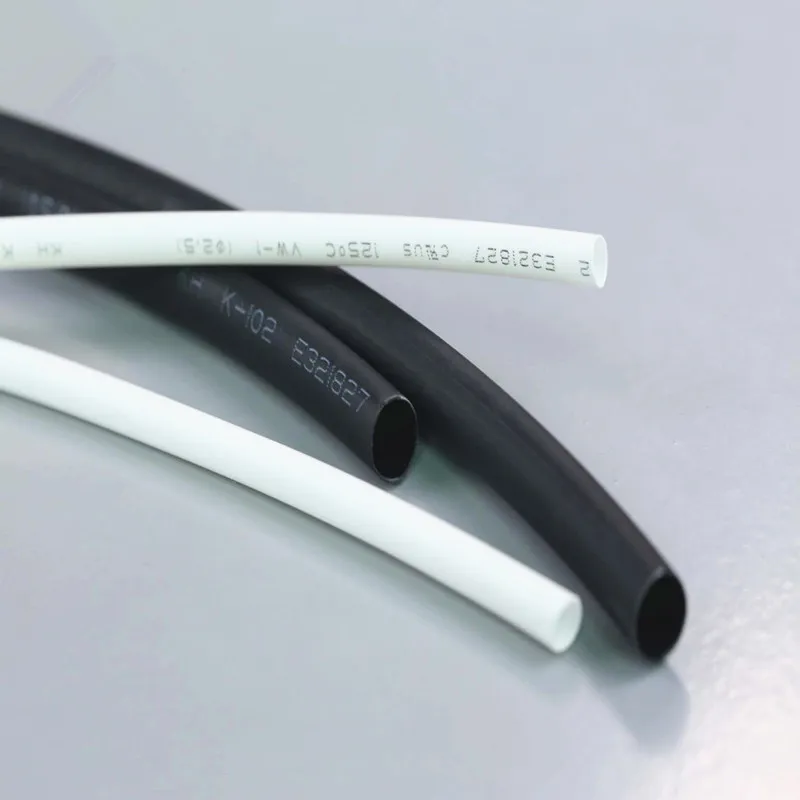

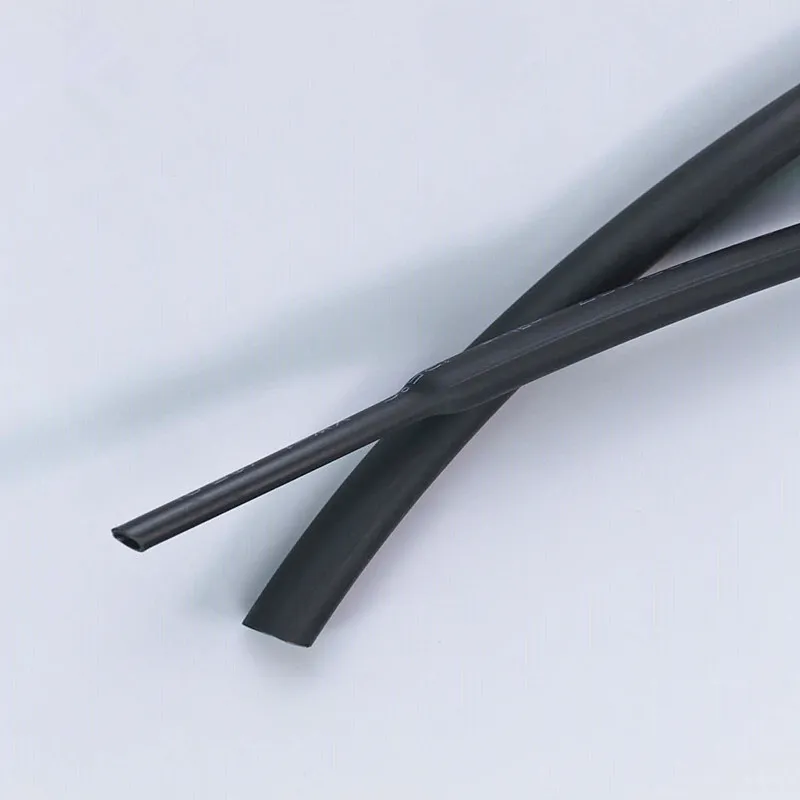

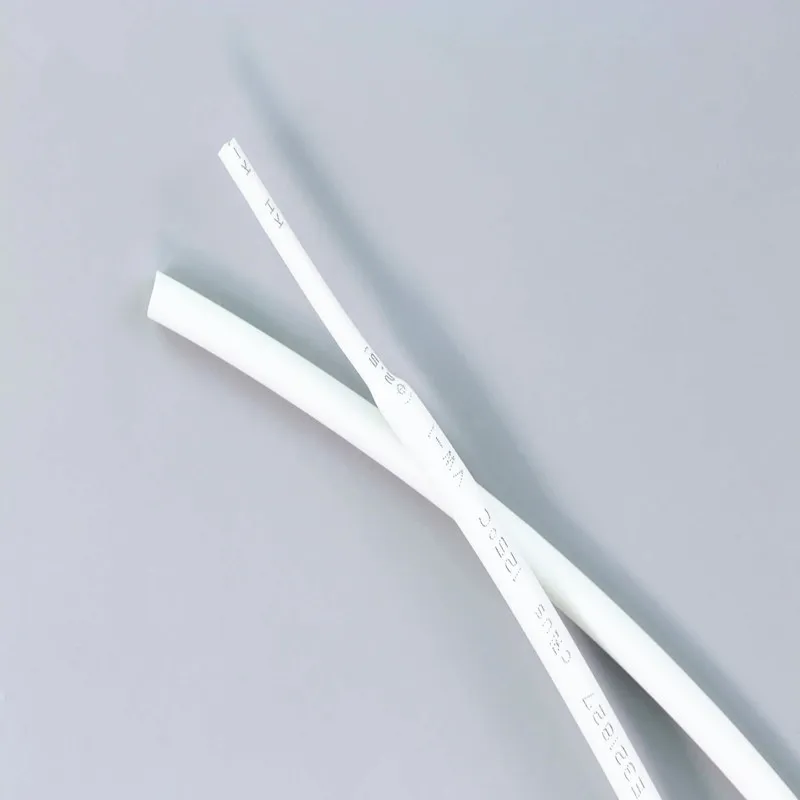

KAIHENG NEW MATERIAL K-102 Polyolefin Heat Shrinkable Tubing

KHXC K-102



KAIHENG NEW MATERIAL K-102 is irradiated crosslinking polyolefin heat-shrinkable tubing suitable for environmentally friendly application. It contains no added halogens, and exhibits good mechanical and fluid resistance properties with low evolution of acid gases.



Operating Temperature Range

Operating temperature range: -55℃~125℃
Minimum shrink temperature: 80℃
Minimum full recovery temperature: 120℃

Ordering Information

Color

Standard: Black (-BK)
Nonstandard: Available upon request.
Ordering description
Specify product type, size (mm) and color

■ Features/Benefits

Shrink ratio: 2:1.

·Flexible.
·Low evolution of acid gases.
·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to RoHS and Sony-ss00259 environmental directive.



Property
Requirement
Test method
Typical data






Physical:
Concentricity
70% min.
ASTM D 2671
≥70%
Tensile strength
10.4MPa min.
ASTM D 638
≥12MPa
Elongation
200% min.
ASTM D 638
≥300%
Heat shock
No cracking, dripping or flowing
ASTM D 2671
Pass
Low temperature flexibility
No cracking
ASTM D 2671
Pass
Aging 158℃,168hrs
Tensile strength after aging
70% of original min.
ASTM D 638
≥80%
Elongation after aging
100% min.
ASTM D 638
≥200%

Electrical:
Dielectric voltage withstand
2500V, 60sec
UL224
Pass
Dielectric strength
no breakdown
ASTM D 2671
25KV/mm
Volume resistivity
19.7KV/mm min.            1014Ω·cm min.
ASTM D 876
≥1014Ω·cm
Chemical:
Corrosion
No corrosion
ASTM D 2671
Pass










■\tProduct sizes

•Metric size







Specification


item
value
Place of Origin
China
Guangdong
Brand Name
XC
Model Number
K-102
Type
Heat Shrinkable
Material
polyolefin
Product Name
Heat shrinkable polyolefin tubing
Application
Protect Cables
Certification
UL
Shrinksge ratio
2:1
Size
0.8mm to 180mm
Color
Black White Red Green Yellow Blue
Flammability
UL VW-1
Operating temperature
125℃
Sample
Avaliable


Packing & Delivery




Spool packing, and carton out packing


Company Profile




Guangzhou Kaiheng Enterprise Group Co., Ltd. is a diversified group primarily involved in the research and development, sales and production of new polymer materials, heat shrinkable tubing, cross-linked special wires and cables, PVC tubing and other electronic products. Our company enjoys convenient transportation and beautiful surroundings.

Covering an area of more than 100,000 square meters, our factory is composed of modern standard plants, office buildings and R&D centers. Since our establishment, our group and our underling companies have kept up a strong development momentum by adhering to the corporate tenet to have good faith and be united, to stick to our words, to succeed with science and technology, and to keep abreast of the time.

We have a strong technical team consisting of professors, experts and engineers of profound background, and have set up a research and development center on polymer materials on a cooperative basis with the local government. Through both internal development of new solution for tomorrow's challenges and the acquisition of advanced equipment and technologies, we will deliver even more value to our customers. Our expertise in material science, product design and process engineering allows us to develop, manufacture and sell high-performance, superb quality products.

We sincerely welcome customers from around the world to cooperate with us for mutual benefit.




FAQ


1. Who are we?
We are based in Guangdong, China, start from 2001,sell to Domestic Market(50.00%),North America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Eastern Asia(2.00%),South America(00.00%),Africa(00.00%),Oceania(00.00%). There are total about 301-500 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Heat Shrink Tube,PVC Tubing,Molded Parts

4. Why should you buy from us not from other suppliers?
Guangzhou Kaiheng K&S Co.,Ltd. is a major supplier of Heat Shrinkable Tubing,Our products meet international standards such as UL,CSA and Milspec as well as international environmental demands.The company is certified to ISO 9001:2000 quality system.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese
