Характеристики
Production description
Application

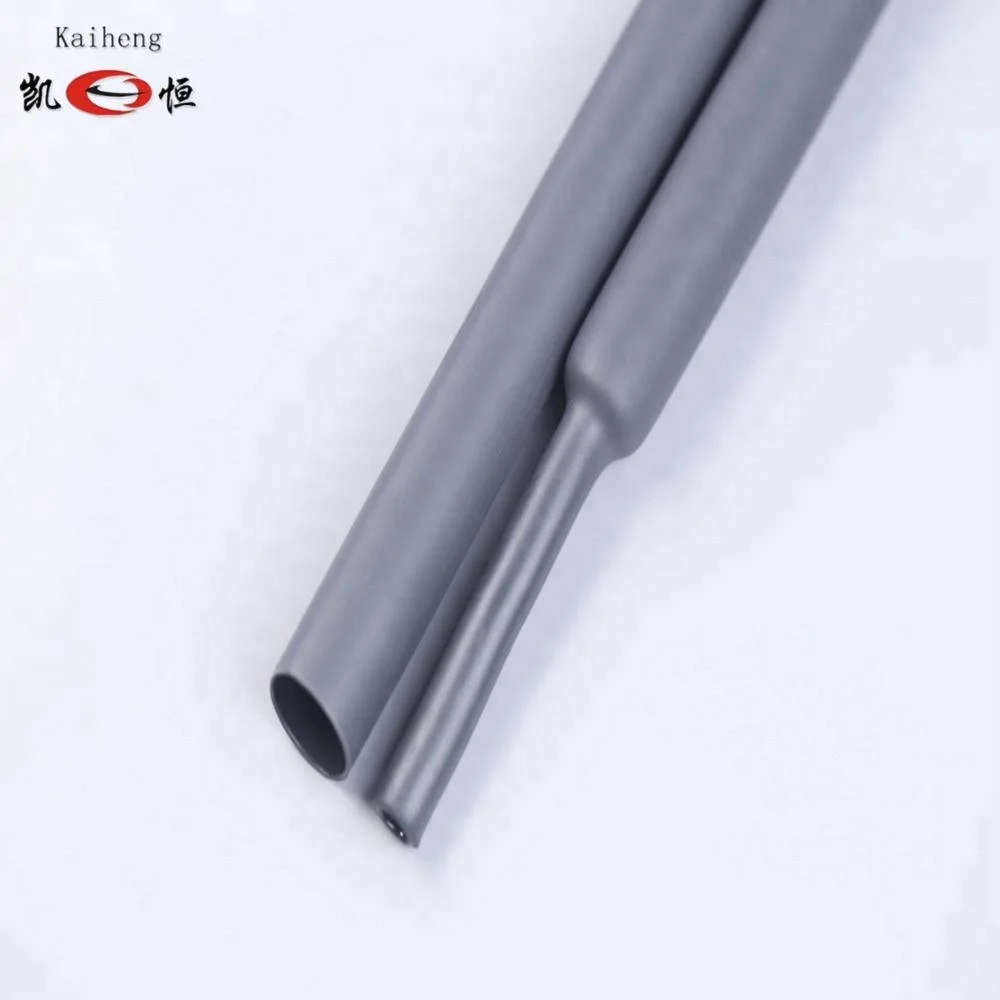

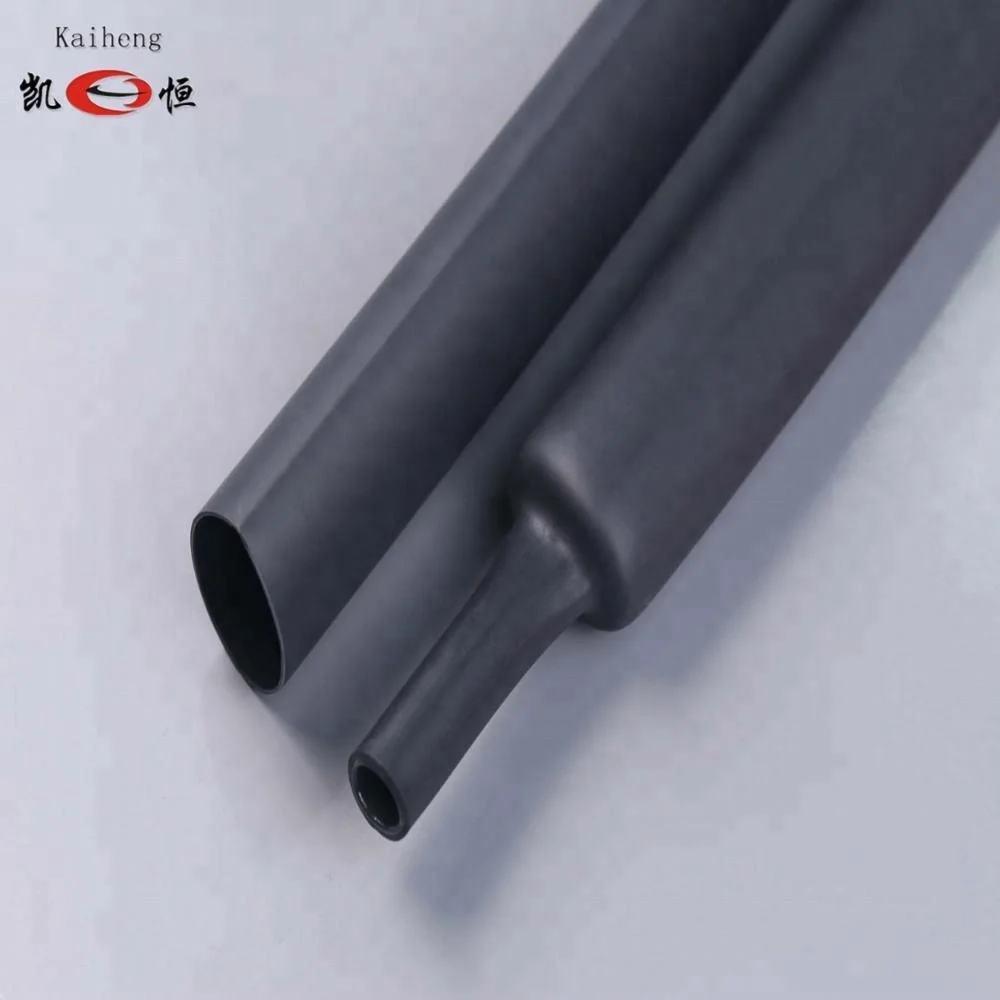

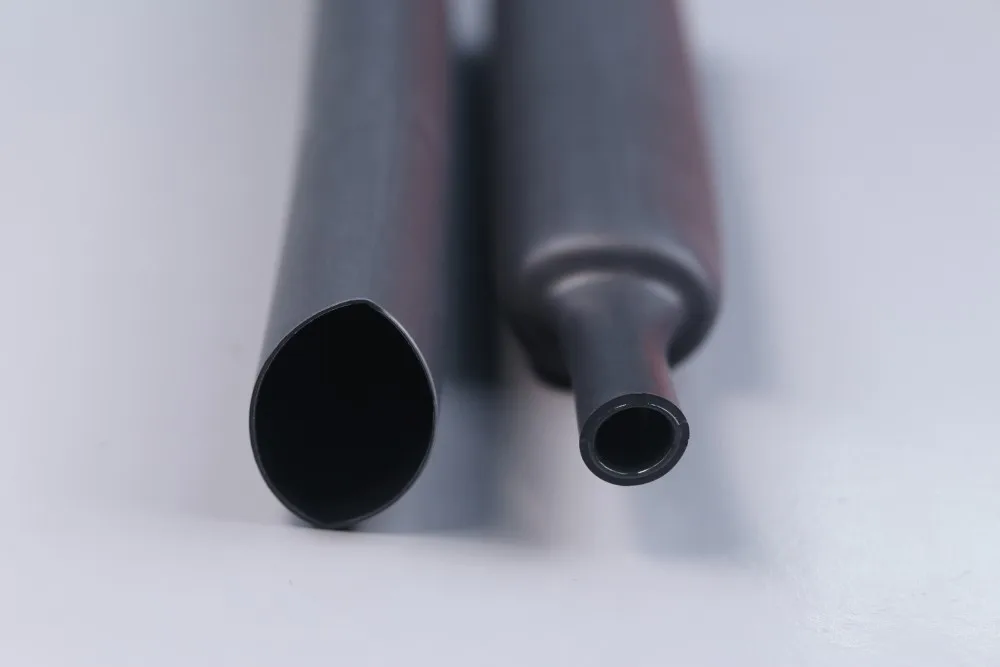

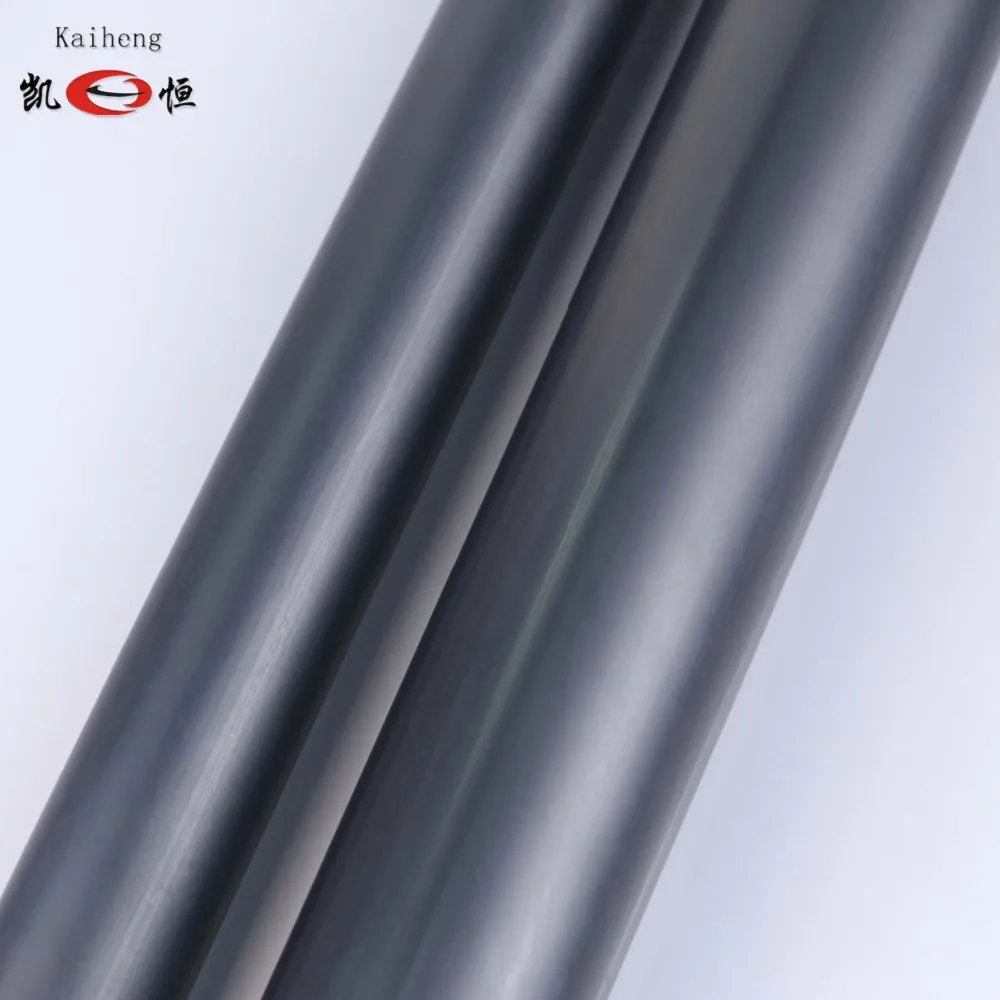

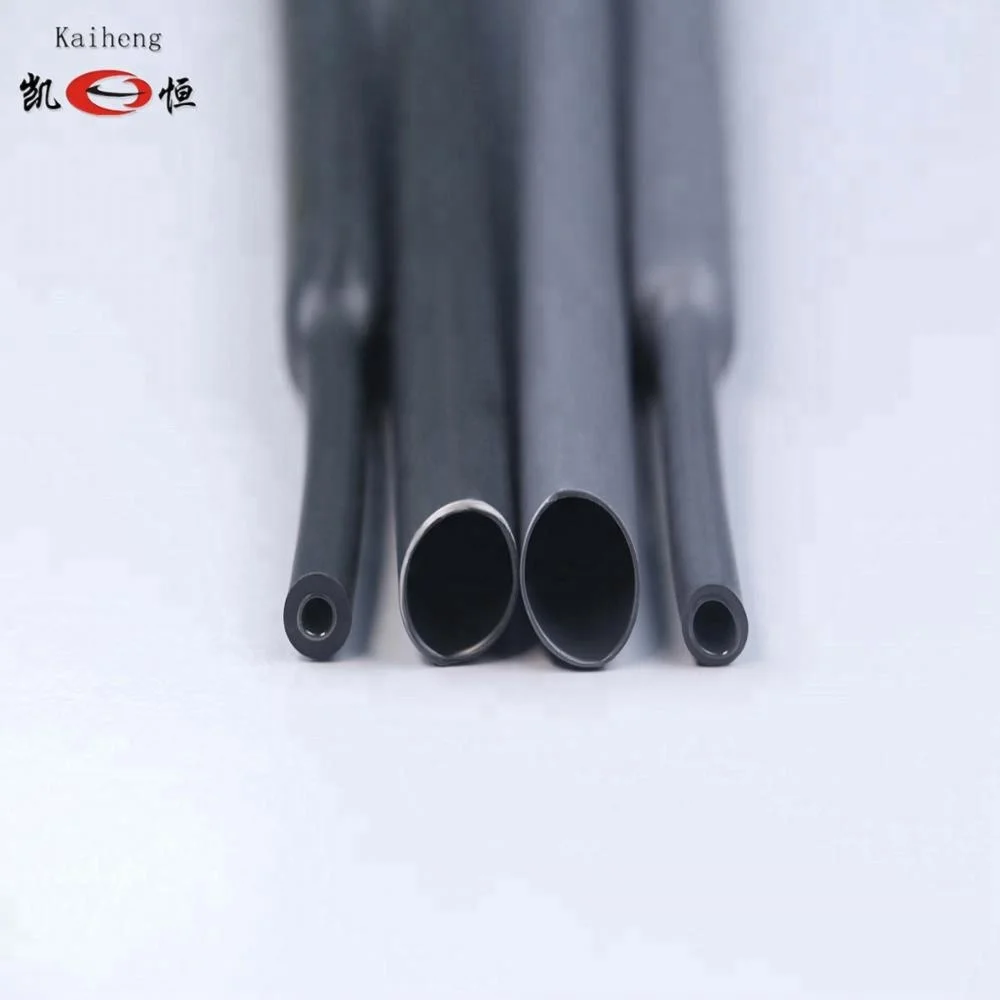

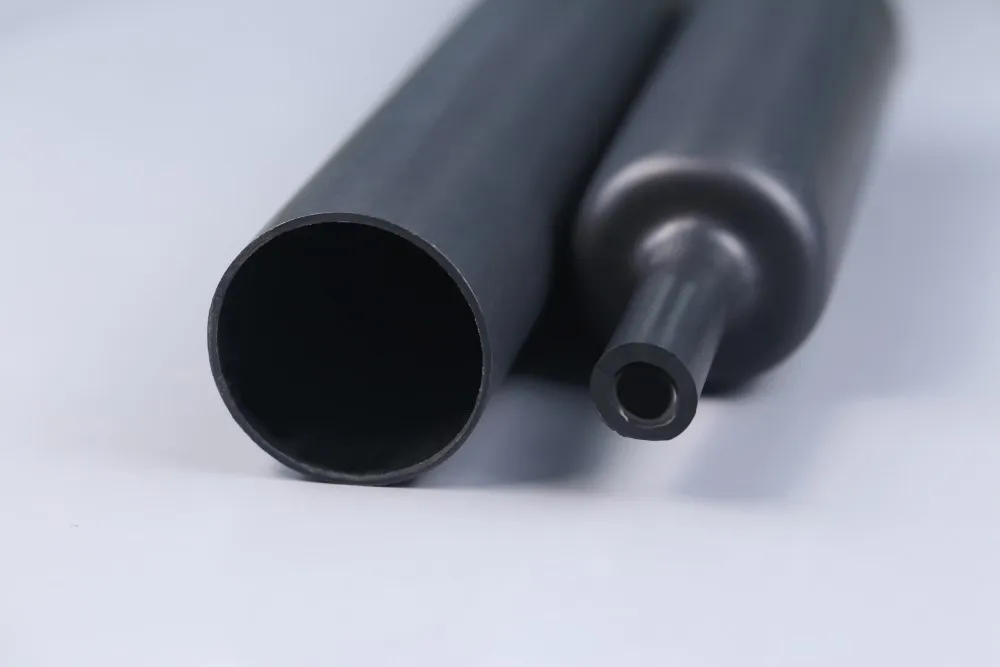

KOSOO DW (3:1, 4:1) is a flexible, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of
polyolefin and hot-melt adhesive. Inner is hot-melt adhesive with good stickness and outer is flexible, irradiated cross-linked
polyolefin. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture
and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets
without removing connectors.
polyolefin and hot-melt adhesive. Inner is hot-melt adhesive with good stickness and outer is flexible, irradiated cross-linked
polyolefin. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture
and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets
without removing connectors.
Features/Benefits
* Shrink ratio: 3:1, 4:1.
* Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
* Good mechanical, electrical and chemical properties.
* Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.
* Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
* Good mechanical, electrical and chemical properties.
* Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.
Specification Values
Requirement | ||
Physical： | Longitudinal shrinkage | -10 % ～ 10 % |
Tensile strength | 9.0MPa min. | |
Elongation | 200% min. | |
Heat shock | No cracking, dripping or flowing | |
Aging158℃,168hrs | ||
Tensile strength after aging | 70% of original min. | |
Elongation after aging | 100% min. | |
Electrical： | Dielectric voltage | 2500V, 60sec |
Volume resistivity | 1012Ω·cm min. |
Product sizes
Size (inch/mm) | As suppied（mm） | After recovery （mm） | Standard length （m/length, m/spool） | |||||
Inside diameter (min.) | Inside diameter (max.) | Wall thickness* | ||||||
3：1 | ||||||||
1/8(3/1) | 3.0 | 1.0 | 1.00±0.28 | 1.22/200 | ||||
3/16(4.8/1.6) | 4.8 | 1.6 | 1.00±0.28 | 1.22/100 | ||||
1/4(6/2) | 6.0 | 2.0 | 1.00±0.28 | 1.22/100 | ||||
3/8(9/3) | 9.0 | 3.0 | 1.40±0.28 | 1.22/50 | ||||
1/2(12/4) | 12.0 | 4.0 | 1.78±0.38 | 1.22/50or25 | ||||
3/4(18/6) | 19.0 | 6.0 | 2.25±0.55 | 1.22/25 | ||||
1(24/8) | 24.0 | 8.0 | 2.54±0.55 | 1.22/25 | ||||
1 1/2(39/13) | 39.0 | 13.0 | 2.54±0.55 | 1.22/20 | ||||
2（51/17） | 51 | 17 | 2.54±0.55 | 1.22/20 | ||||
4：1 | ||||||||
4/1 | 4.0 | 1.0 | 1.00±0.28 | 1.22/100 | ||||
8/2 | 8.0 | 2.0 | 1.00±0.28 | 1.22/50 | ||||
12/3 | 12.0 | 3.0 | 1.40±0.28 | 1.22/50 | ||||
16/4 | 16.0 | 4.0 | 1.78±0.38 | 1.22/25 | ||||
24/6 | 24.0 | 6.0 | 2.25±0.55 | 1.22/25 | ||||
32/8 | 32.0 | 8.0 | 2.54±0.55 | 1.22/20 | ||||
52/13 | 52.0 | 13.0 | 2.54±0.55 | 1.22/20 | ||||
Wall thickness includes adhesive wall thickness.
Ordering information
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | kosoo |
Model Number | KS-DW |
Type | Heat Shrinkable |
Material | PE |
Tensile Strength | ≥10.4Mpa |
Work temperature | -55 to 105℃ |
Material | PE, Polyolefin |
Type | Insulation Sleeving |
Packing & Delivery
Standard packing for heavy wall heat shrinkable tube:cut 1.22m / Pcs, carton out packing
