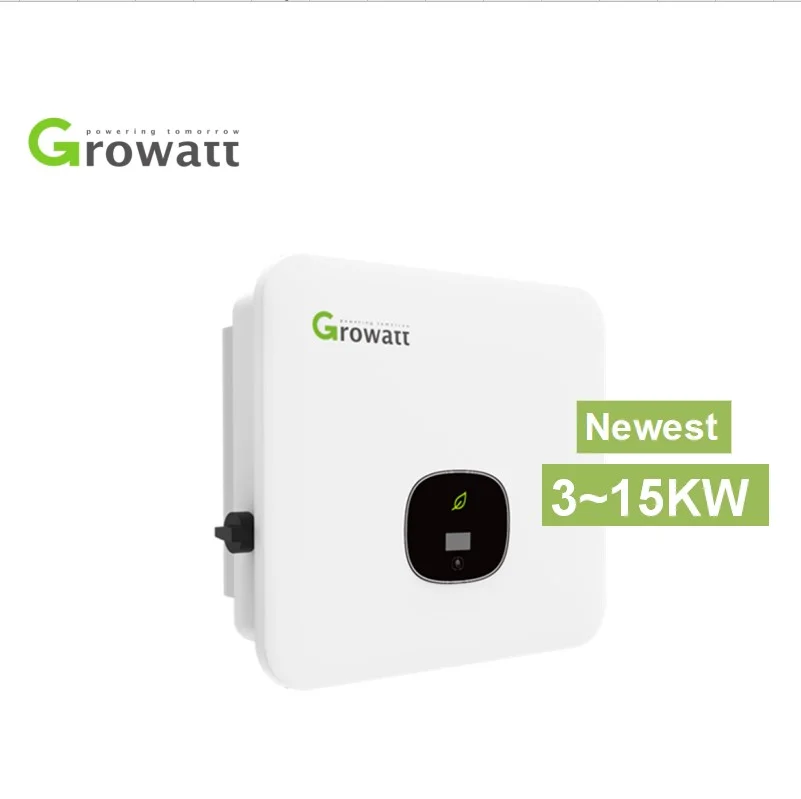

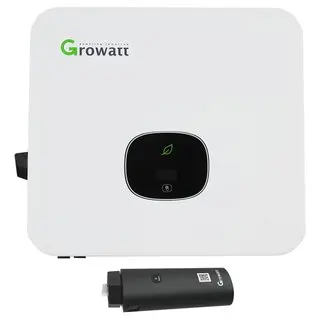

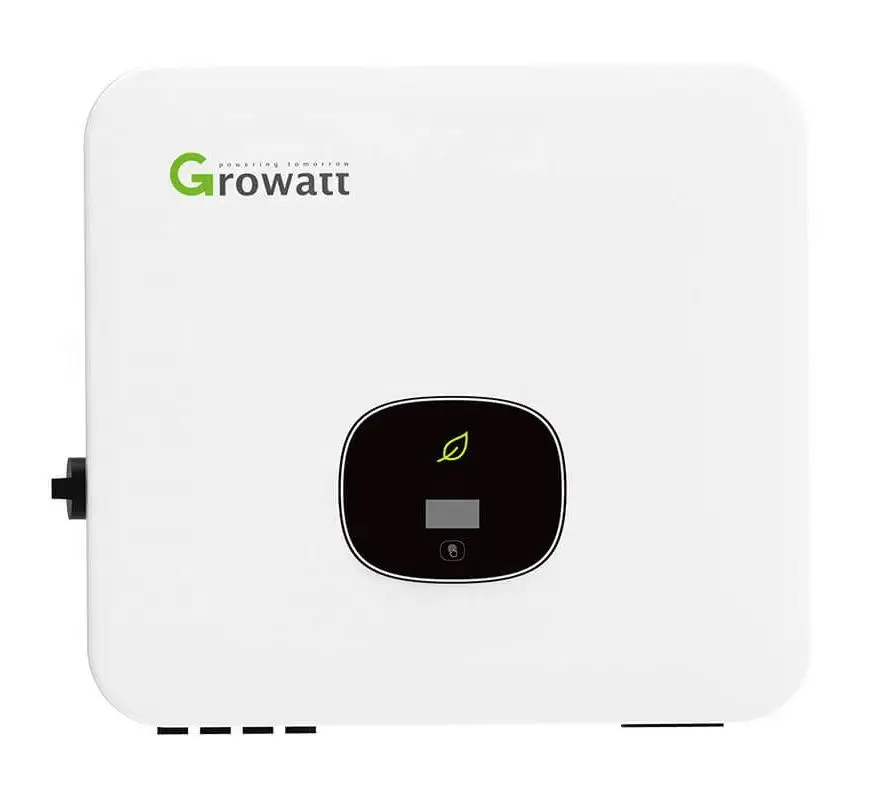

Инвертор Growatt MOD 3-15 кВт 3-фазный инвертор на

Цена:720,00 $ - 877,00 $*

Количество:

Product Description

Product Parameters

Datasheet	MOD 3000TL3-X	MOD 5000TL3-X	MOD 8000TL3-X	MOD 9000TL3-X
Input data (DC)
Max. recommended PV power (for module STC)	4500W	7500W	12000W	13500W
Max. DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of PV strings per MPP tracker	1
Max. short-circuit current per MPP tracker	16A
Output data (AC)
AC nominal power	3000W	5000W	8000W	9000W
Max. AC apparent power	3300VA	5500VA	8800VA	9900VA
Nominal AC voltage（range*）	220V/380V, 230V/400V (340-440V)
AC grid frequency（range*）	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	5.0A	8.3A	13.3A	15.0A
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.3%	98.3%	98.6%	98.6%
European efficiency	97.5%	97.5%	98.1%	98.1%
MPPT efficiency	99.9%
General data
Dimensions (W / H / D)	425/387/147mm			425/387/178mm
Weight	12.5kg			14kg
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Warranty: 5 / 10 years	Yes/Optional
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2

Products Details

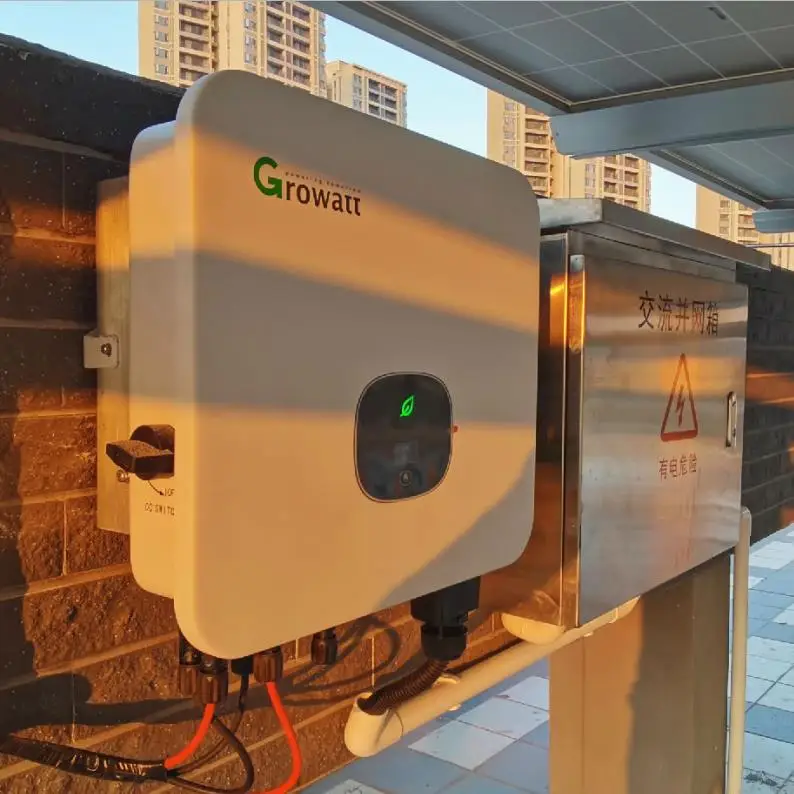

Application

Recommend Products

Packing & Delivery

Delivery & Payment Terms

Payment Terms	T/T	EXW	30% in advance for deposit payment, the balance payments will be paid before shipment.
						FOB
				CFR/C&F	30% in advance for deposit payment, the balance will be paid against copy of B/L
				CIF
		L/C	Optional for the amount of above 50,000 usd, L/C at sight is acceptable.
		West Union	Optional for amount of order less than 5000 usd
		Paypal	Optional for amount of order less than 5000 usd
Delivery Time	7~30 days after receiving the payment or the deposit payment
