Анализатор гематологии Bioevopeak VET 3 части diff/5 частей diff vet cbc machine анализатор ветеринарное

Principles

Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical staining method for WBC differention
Impedance method for RBC and PLT test
Cyanide free colorimetry for HGB test

Parameters

23 reportable parameters:
WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%,Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH,MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT
4 research parameters: ALY#, ALY%, LIC#, LIC%
3 histograms for WBC, RBC and PLT
Four 2D scattergrams for WBC differention

Sample Volume

20μL

Linearity Range

WBC: 0.00-30Ox10^9/L, RBC: 0.00- 8.5x 10^12/L, HGB: 0- 250g/L, PLT: 0- 3000x 10^9/L, HCT: 0~67%

Repeatability

WBC≤2.5%(4.0-15.0×10^9/L), RBC≤1.5%(3.5-6.0×10^12/L), HGB≤1.5%(110-180g/L), MCV≤1%(70-120fL) PLT≤6.0%(100-149×10^9/L)
PLT≤4.0%(150-500×10^9/L)

Sample mode

Whole blood, capillary whole blood
and pre-diluted modes

Throughput

Up to 60 tests per hour

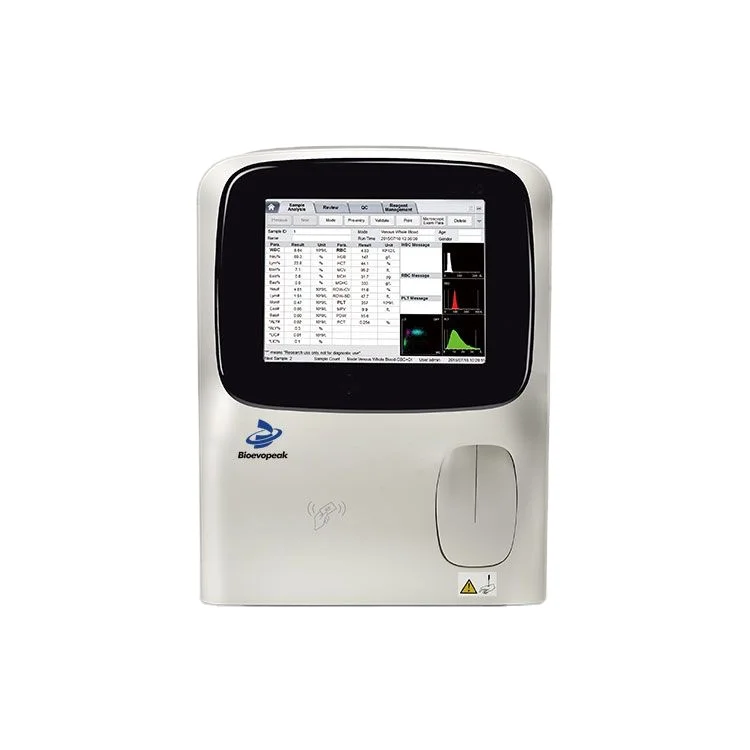

Display

10.4 inches high resolution TFT touch screen

Printout

External printer,compatible with multiply laser /inkjet printers, compatible with various formats and user-defined formats

Storage

Up to 50,000 records

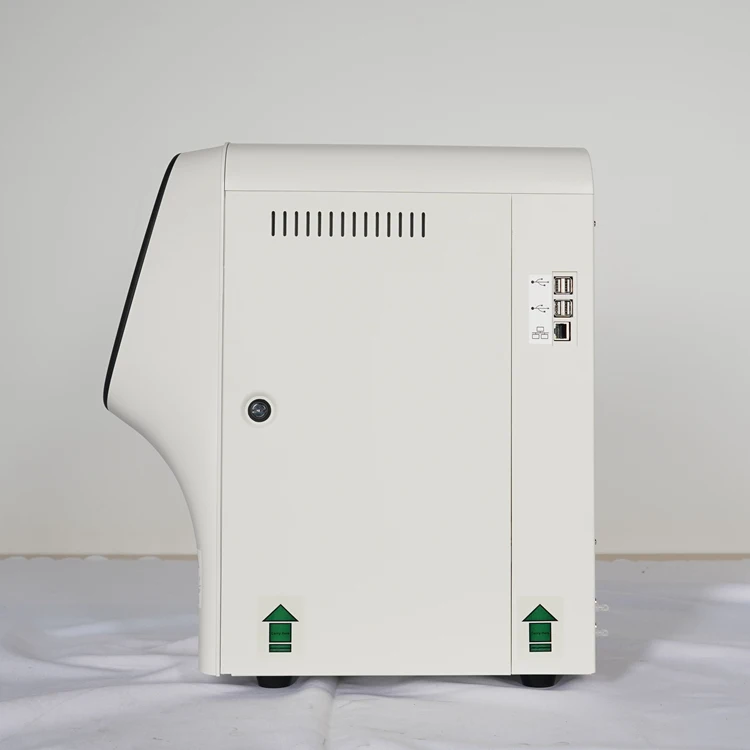

Interface

4 USB ports, 1 LAN port

Power requirement

100V-240V~, 50/60Hz, ≤200VA

Dimension

364mm(W)*498mm(H)*431mm(D)

Net weight

28kg
