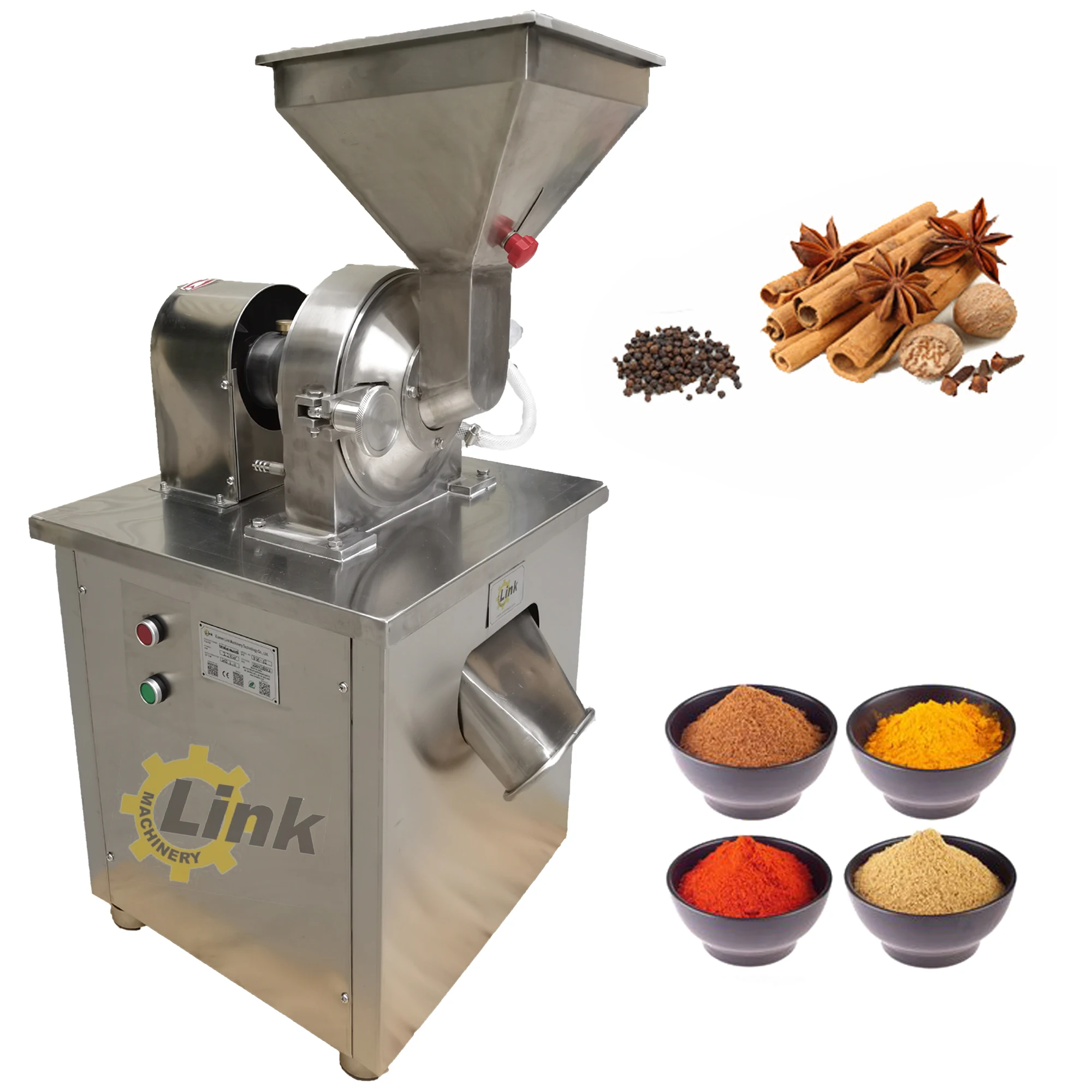

Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы
Полностью автоматическая многофункциональная машина для измельчения перца и куркумы

Полностью автоматическая многофункциональная машина для измельчения перца и куркумы


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.81 $* 0.35 $*
Aug-16-2025 0.4 $* 0.16 $*
Jul-16-2025 0.21 $* 0.51 $*
Jun-16-2025 0.77 $* 0.37 $*
May-16-2025 0.90 $* 0.68 $*
Apr-16-2025 0.4 $* 0.30 $*
Mar-16-2025 0.91 $* 0.92 $*
Feb-16-2025 0.96 $* 0.27 $*
Jan-16-2025 0.91 $* 0.31 $*

Характеристики

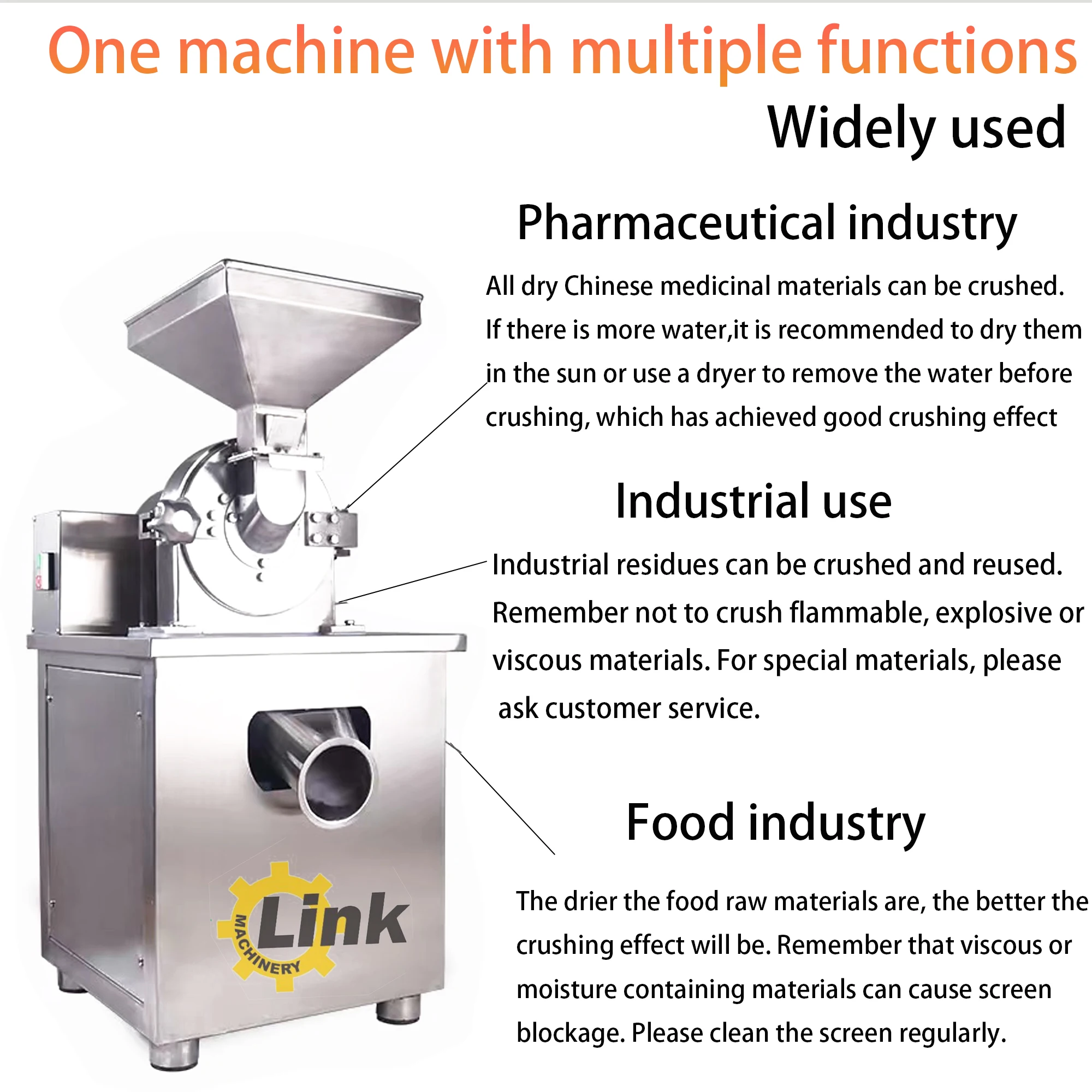

Grinders can be widely used
1.All kinds of food contain sesame seeds, walnuts, rice, black rice, soybean, mung bean, peanut, lotus seed, corn,
sorghum,barley, buckwheat, oats, etc.
2.All kinds of dried herbs containing almonds, poria cocos, red jujube, Gordon euryale seed, medlar, yi, hawthorn, HuaiShan(Dioscorea opposita Thunb), radix polygoni multiflori, red bean, frankincense, dodder, angelica, Codonopsis, astragalus,nutmeg, ganoderma lucidum, ginseng, desertliving cistanche, aloe, fructus momordicae, radish seed, reed root, cinnamon,tripterygium wilfordii, fructus arctii, forsythia, blue flower ginseng, two needles, etc.
3.All kinds of chemical raw materials including coal, gypsum, salt, acid. 4.A variety of spices, pepper, pepper, Chinese prickly ash, star anise, cinnamon, huai xiang, etc






Technical parameters
Model
60-150
100-300
160-800
200-1000
300-1500
Capacity kg/h
60-150
100-300
160-800
200-1000
300-1500
Shaft speed rpm
4500
3800
3400
3200
2800
Fineness mesh
2-120
Grinding kW
4
5.5
7.5
11
15
Dust collector kW
1.5
2
2.2
Weight kg
180
260
360
450
550
Dimension mm

w/o collector
550*600*1250
600*700*1450
750*800*1550
800*850*1600
1000*900*1680
Dimension mm
w/i collector
1100*600*1650
1200*700*1650
1350*800*1700
1450*850*1750
1550*1000*1750




Technical features of link machine grinder
1. Link machine series universal crusher is applicable to industrial, chemical, food, sugar, salt, rice and other grain industries
2. Link machine series universal grinder crusher uses the relative movement between moving and fixed tooth discs to grind materials through the comprehensive effects of tooth impact, friction and impact between materials
3. Simple and firm structure, stable operation and high grinding efficiency.
4. Crushed materials can be discharged through the grinding chamber. In addition, particles or powders of different sizes can be obtained by changing the screens of different screens.
5. The inner wall is finely processed, smooth and flat, which overcomes the shortcomings of the old model, such as roughness and powder accumulation.
6. The production of drugs, food and chemicals meets the national standards and GMP requirements

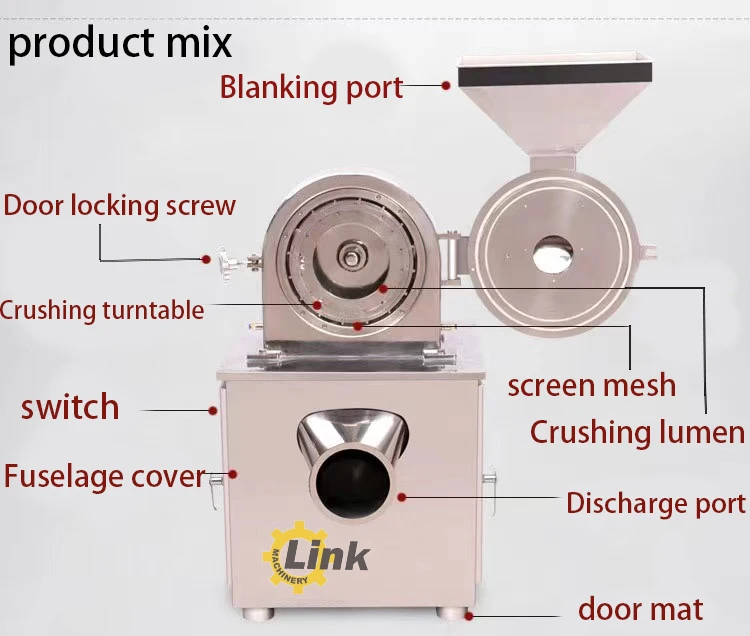

Working principle of grinder
Working principle
This machine utilizes the relatively high-speed operation between the movable chain disc and the fixed one, so that the materials
are crushed by the impact of the gear plate, the friction and collision of the materials with each other.

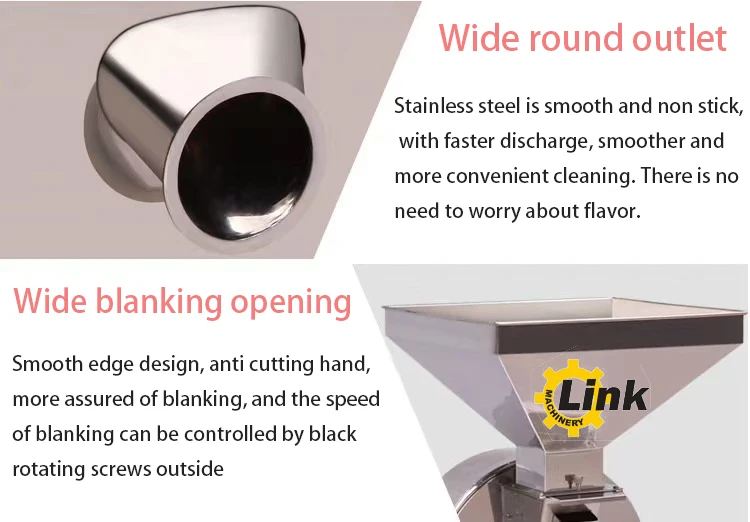

Crushed material can be discharged directly from the grinding chamber through the discharge port, normally collected by a long
cotton bag.
The crushed size is up to change of different mesh sieves.
Features & advantages

1. The structure of the machine is simple and sturdy, operation is stable, grinding the material quickly and evenly, the effect is
good.
2. The machine is made of food grade stainless steel, 304SUS.
3. All the slots in the housing (crushing trough) are machined by precision machining so as to achieve smooth surface and easy
cleaning.
4. It changes the rough, easy-to-accumulate and difficult-to-clean phenomenon of ordinary crusher's inner wall.








FAQ
Q: are you a factory or a businessman?

A:We are a manufacturer with a history of 25 years, with our own production team and after-sales team.

Q: how to place an order?

A: Before you buy the machine, please confirm all the details with us and we will sign the contract for you. We support letter of credit, telegraphic transfer, PayPal, Western Union and other printing machines.

Q: how will this machine be transported to my country? Can it be delivered to your door?

A:Yes, we can ship, air and express. Transportation costs vary according to different modes of transportation.

Q: How to make the machine work normally after receiving?

A: we will provide the installation video, operation manual and online support of the machine. You can follow our steps to install the machine. We have overseas engineers in some countries

Q: What if the machine doesn't work or breaks down during use?

A: Each machine must pass the packaging test before leaving the factory. If there is any problem with the machine, please contactus in time. We have a professional after-sales technical team to help you solve the problems of the machine.

Q: what is machine quality assurance?

A: One year limited warranty and lifelong technical support

Q: is the machine well packed and easily damaged?

A: we will use foam + carton + export wooden box to pack large machinery to avoid damage during transportation.

Q: do you accept customization?

A: Yes, we can customize the machine according to your requirements.
