High power 48v 1000w1200w 1500w brushless dc motor controller bldc motor driver with hall or sensorless
 |  |  |
 |  |  |
48v 1000w1200w 1500w high power brushless dc motor controller
48v bldc motor driver PID speed close loop with hall or sensorless

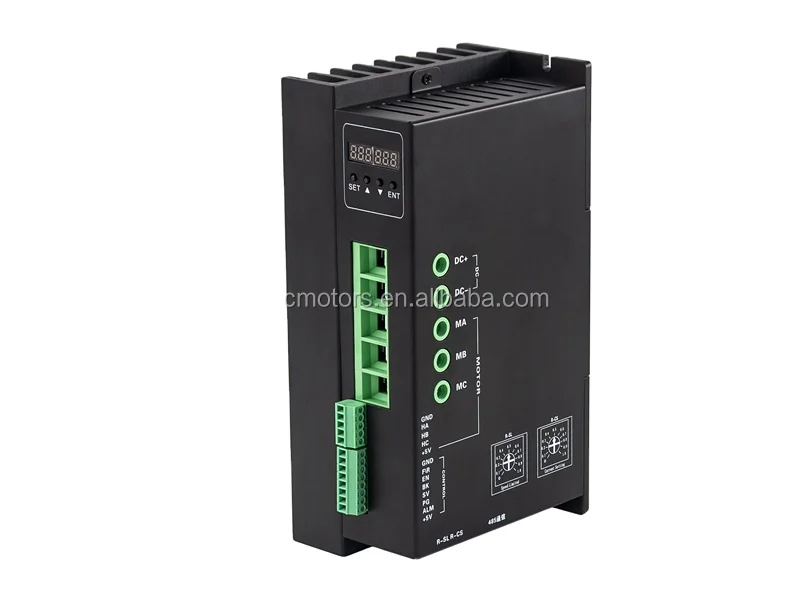

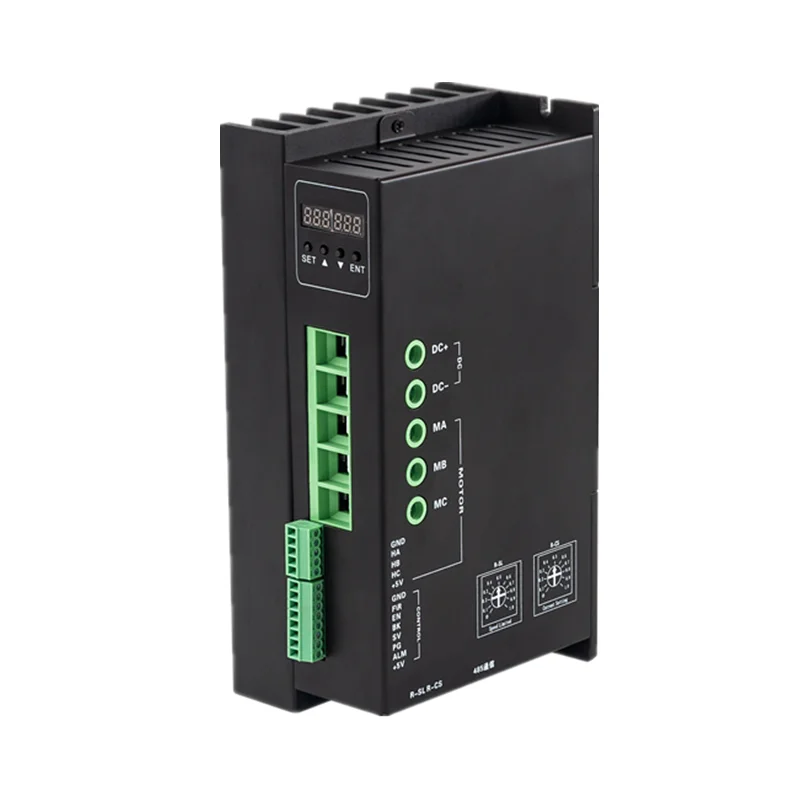

LKLS-02-H BLDC motor driver is a closed-loop speed controller, which uses IGBT and MOS power, uses the Hall signal of the DC brushless motor to perform double-loop speed control, and has a PID speed regulator in the control link. The system control is stable and reliable.
It can always reach the maximum torque at low speed, and the speed control range is 150~10000rpm.
Advantages
PID speed, current double loop regulator
With best price performance ratio
20KHZ chopper frequency
Electrical stop to ensure the quickly action
Over load radio larger than 2, the torque can always reach the maximum at low speed.
Fault alarm function with Over voltage, Under voltage, Over current, Over temperature, and Hall signal illegal.
Parameter table
1. Product Characteristic
Input voltage | 24VDC | 36VDC | 48VDC |
Continuous output current | 50A | 33A | 25A |
Maximum output current | 1500W | 1500W | 1500W |
Peak output current | 75A | 75A | 75A |
Accelerate time constant(default) : 2 seconds
Motor stall protection time: 3 seconds, other can be customized
1. Terminal and Control Signal
Control Terminal
No. | Terminal Name | Description |
1 | COM | COM terminal |
2 | F/R | CW/CCW terminal |
3 | EN | Stop/Start terminal |
4 | BR | Brake terminal |
5 | SV | Analogy signal input terminal |
6 | PG | Speed output terminal |
7 | ALARM | Alarm output terminal |
8 | +5V | +5V power output terminal |
Hall Signal Terminal Motor Connection Terminal
No. | Name | Description |
1 | GND | Hall sensor Negative |
2 | HA | Hall sensor A phase |
3 | HB | Hall sensor B phase |
4 | HC | Hall sensor C phase |
5 | +5V | Hall sensor Positive |
No. | Name | Description |
1 | DC+ | DC+ |
2 | DC- | DC- |
3 | FG | Ground wire |
3 | MA(U) | Winding U phase(A) |
4 | MB(V) | Winding V phase(B) |
5 | MC(W) | Winding W phase(C) |
3. Control Signal
No. | Terminal Name | Description |
1 | GND | Signal ground |
2 | F/R | CW/CCW terminal |
3 | EN | Stop/Start terminal |
4 | BK | Brake terminal |
5 | SV | Analogy signal input terminal |
6 | PG | Speed output terminal |
7 | ALM | Alarm output terminal |
8 | +5V | +5V power output terminal |
GND: Signal ground
F/R: Forward and reverse control, reverse when connected to GND, forward if not connected, turn off EN when switching between forward and reverse.
EN: Enable control: EN connect to the ground, motor turn (online state), EN not connected, motor does not turn (offline state).
BK: Brake control: When it is not grounded and works normally, when it is grounded, the motor is electrically braked. When the load inertia is large, it should be used pulse width signal mode, control the brake by adjusting the pulse width amplitude.
SV: ADJ: External speed attenuation: can be attenuated from 0~100%, when the external speed command is connected to 6.25V, the potentiometer can be used to speed and test the motor.
PG: Motor speed pulse output: When the pole pair is P, 6P pulses per revolution (Open Collector input).
ALM: Alarm output: When the circuit is in the alarm state, the output is low (Open Collector output).
+5V: Speed regulation voltage output, the potentiometer can be continuously adjusted at SV and GND.
Dial code switch: Adjust the motor speed gain and the speed range from 0 to 100%.

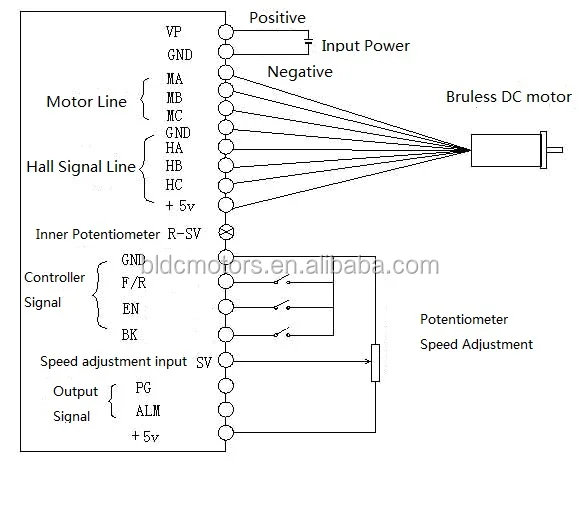

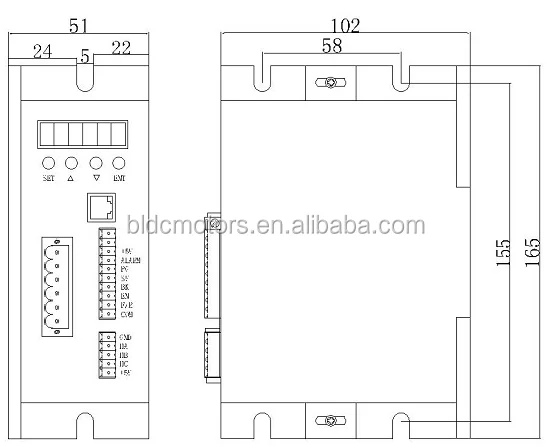

Wiring
Detailed Images
