GTB-800 сетке инвертор 800W 110V 220V Инвертор постоянного тока в переменный смарт Micro со слежением за максимальной точкой мощности солнечный конвертер 22-с алюминиевой крышкой 50В Беспроводная
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Eshinede,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 119.63 $* | 125.63 $* |
| Aug-16-2025 | 118.20 $* | 124.13 $* |
| Jul-16-2025 | 99.70 $* | 104.61 $* |
| Jun-16-2025 | 116.40 $* | 122.38 $* |
| May-16-2025 | 101.83 $* | 106.10 $* |
| Apr-16-2025 | 114.79 $* | 120.43 $* |
| Mar-16-2025 | 113.66 $* | 119.4 $* |
| Feb-16-2025 | 112.16 $* | 118.29 $* |
| Jan-16-2025 | 111.97 $* | 117.46 $* |
Характеристики
GTB-800 Grid Inverter 800W 110V 220V DC to AC Smart Micro MPPT Solar Converter 22-50V Wireless Communication with WIFI Monitoring
Product Description
Description:
GTB-800 Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built in high performance
Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight.
Collector with a PC or other devices to communicate Using RS232 serial port/ WIFI wireless communication.
Intelligent monitoring systems, The inverter can collect real time data, Inverter can be controlled startup / shutdown / power regulation.
GTB-800 Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built in high performance
Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight.
Collector with a PC or other devices to communicate Using RS232 serial port/ WIFI wireless communication.
Intelligent monitoring systems, The inverter can collect real time data, Inverter can be controlled startup / shutdown / power regulation.
Features:
1) Wireless communication 433/462MHz
2) 6-grade power search---
3) Wide voltage input(22-50VDC)---
1. DC voltage input:22~50VDC;
2. Second level power variable voltage conversion.
4) High-frequency two-way and one-way grid function---
1. High frequency direct modulation, AC half wave synthesis;
2. Two-way grid means: Load consume directly. And can reverse AC current transmission.
5) Kinds of frequency output function---
1. It can apply to 50Hz and 60Hz frequency of AC;
2. Frequency range: 48-51/58-61Hz;
6)Directly connected to the solar panels (do not need to connect the battery)
7) AC 0 angle with high precision auto-detection--AC switching: 50Hz / 60Hz.
8) Synchronous High-frequency Modulation
9) Pure Sine Wave Output---
10)Power Automatically Locked (APL)---
11) Constant Current, Constant Power---constant current and output power, without any overload, over-current phenomenon.
12) Exactly and timely automatic Island Effect Protection
13) High-Frequency High Conversion Rate---
14) Maximum Power Point Tracking (MPPT)---high-precision (MPPT) operation power.
15) Stack using---Such as: 2 micro inverter of 400W stacking can achieve 800W.
the number of the stacking is unlimited.
16) DC input---Input voltage range: 22V to 50V,PV Panel.
17) AC output---220VAC: 180V - 262V, 50HZ; 110V AC: 80V - 160V, 60HZ.
1) Wireless communication 433/462MHz
2) 6-grade power search---
3) Wide voltage input(22-50VDC)---
1. DC voltage input:22~50VDC;
2. Second level power variable voltage conversion.
4) High-frequency two-way and one-way grid function---
1. High frequency direct modulation, AC half wave synthesis;
2. Two-way grid means: Load consume directly. And can reverse AC current transmission.
5) Kinds of frequency output function---
1. It can apply to 50Hz and 60Hz frequency of AC;
2. Frequency range: 48-51/58-61Hz;
6)Directly connected to the solar panels (do not need to connect the battery)
7) AC 0 angle with high precision auto-detection--AC switching: 50Hz / 60Hz.
8) Synchronous High-frequency Modulation
9) Pure Sine Wave Output---
10)Power Automatically Locked (APL)---
11) Constant Current, Constant Power---constant current and output power, without any overload, over-current phenomenon.
12) Exactly and timely automatic Island Effect Protection
13) High-Frequency High Conversion Rate---
14) Maximum Power Point Tracking (MPPT)---high-precision (MPPT) operation power.
15) Stack using---Such as: 2 micro inverter of 400W stacking can achieve 800W.
the number of the stacking is unlimited.
16) DC input---Input voltage range: 22V to 50V,PV Panel.
17) AC output---220VAC: 180V - 262V, 50HZ; 110V AC: 80V - 160V, 60HZ.
Parameter table:
| Model | GTB-800 | |
| Maximum input power | 800Watts | |
| Peak power tracking voltage | 22-50V | |
| Min/Max Starting Voltage | 22-50V | |
| Maximum DC input current | 12A*2 | |
| Output Data | 120V | 230V |
| Peak Power output | 800Watt | 800Watt |
| Rated Output power | 750Watt | 750Watt |
| Rated Output current | 6.6A | 3.47A |
| Rated Voltage Range | 90-160VAC | 190-260VAC |
| Rated Frequency range | 48-51/58-61Hz | 48-51/58-61Hz |
| Power factor | >99% | >99% |
| Max unit per branch circuit | 5pcs(single phase) | 10pcs(single phase) |
| Output Efficiency | 120V | 230V |
| Static MPPT efficiency | 99.50% | 99.50% |
| Maximum output efficiency | 94% | 94% |
| Night time power consumption | <1W | <1W |
| THD | <5% | <5% |
| Exterior&Feature | ||
| Ambient temperature range | -40℃ to +60℃ | |
| Dimensions(L*W*H) | 340mmx240mmx100mm | |
| Weight | 1.7kg | |
| Waterproof rating | IP65 | |
| Cooling | Self-cooing | |
| Communication Mode | WIFI mode | |
| Power Transmission mode | Reverse transfer,load priority | |
| Monitoring system | Mobile APP,PC browser | |
| Electromagnetic Compatibility | EN50081.part1 EN50082 Part1 | |
| Grid disturbance | EN61000-3-2 Safety EN62109 | |
| Grid Detection | DIN VDE 0126 | |
| Certificate | CE | |

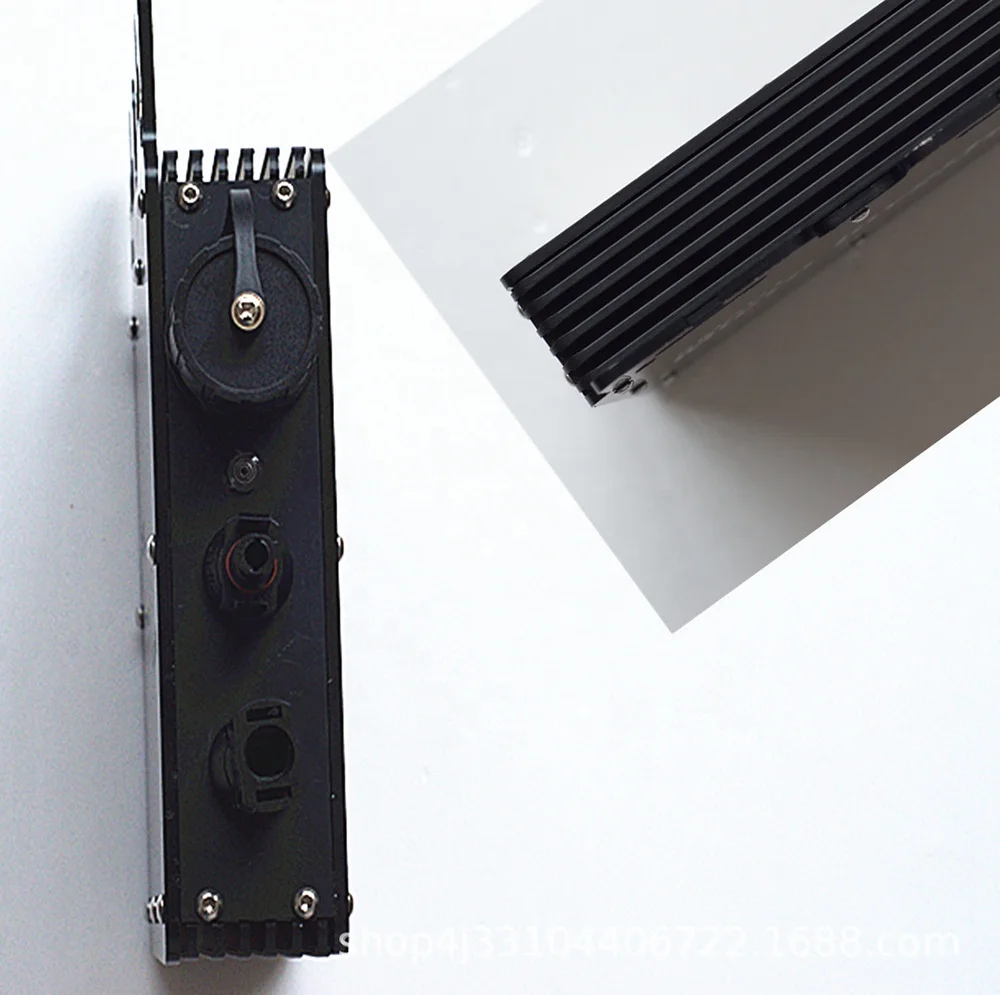

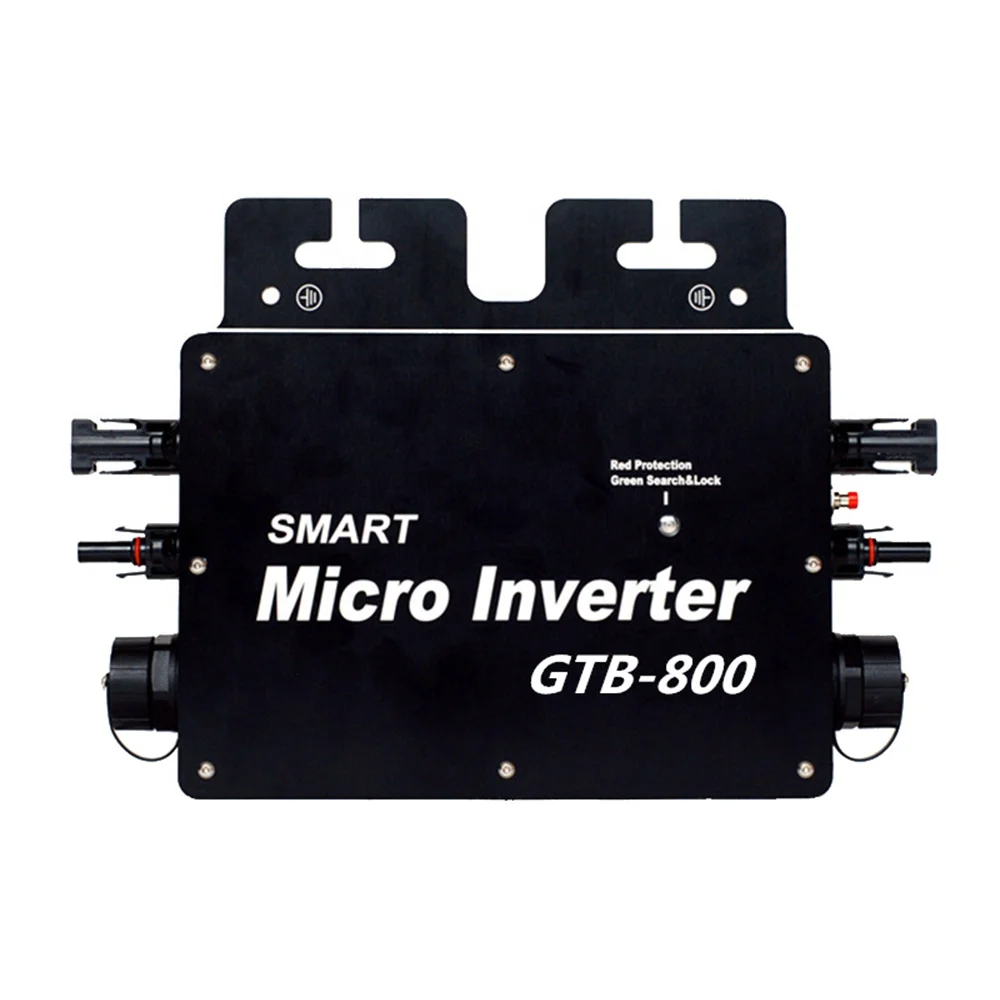

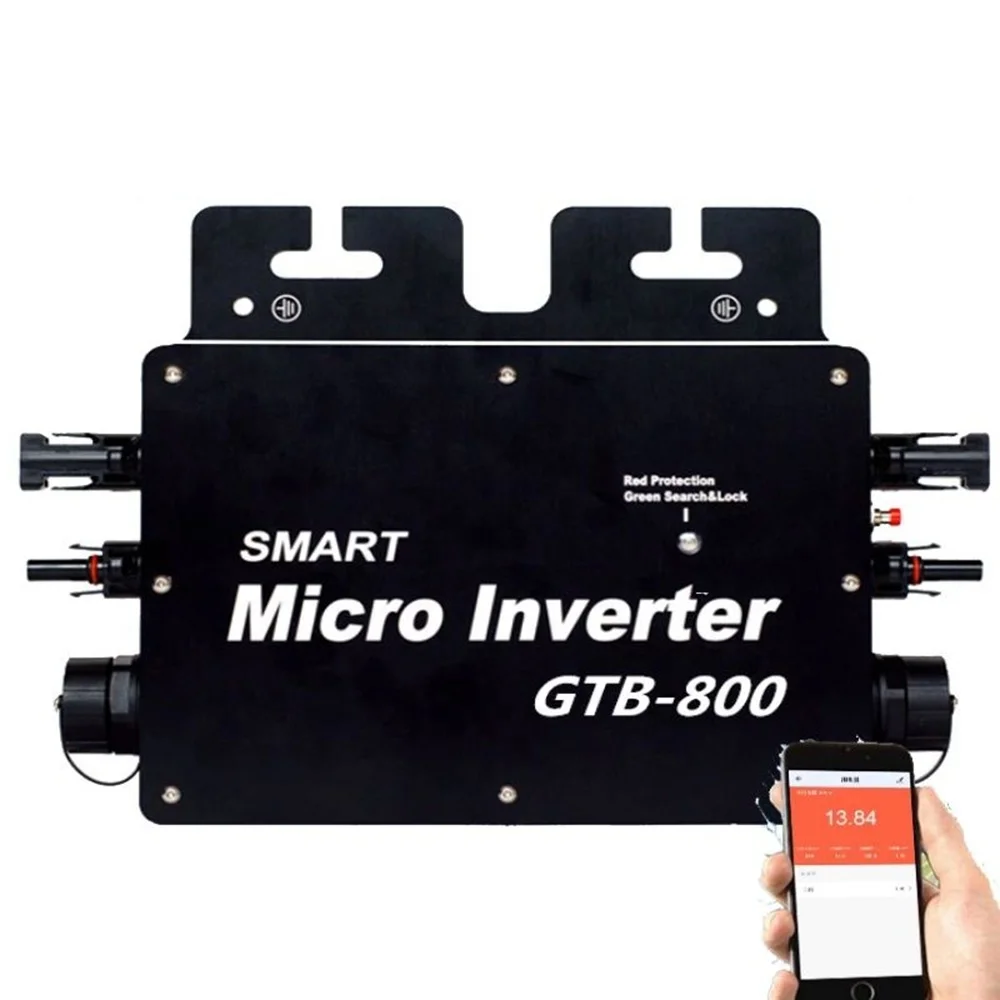

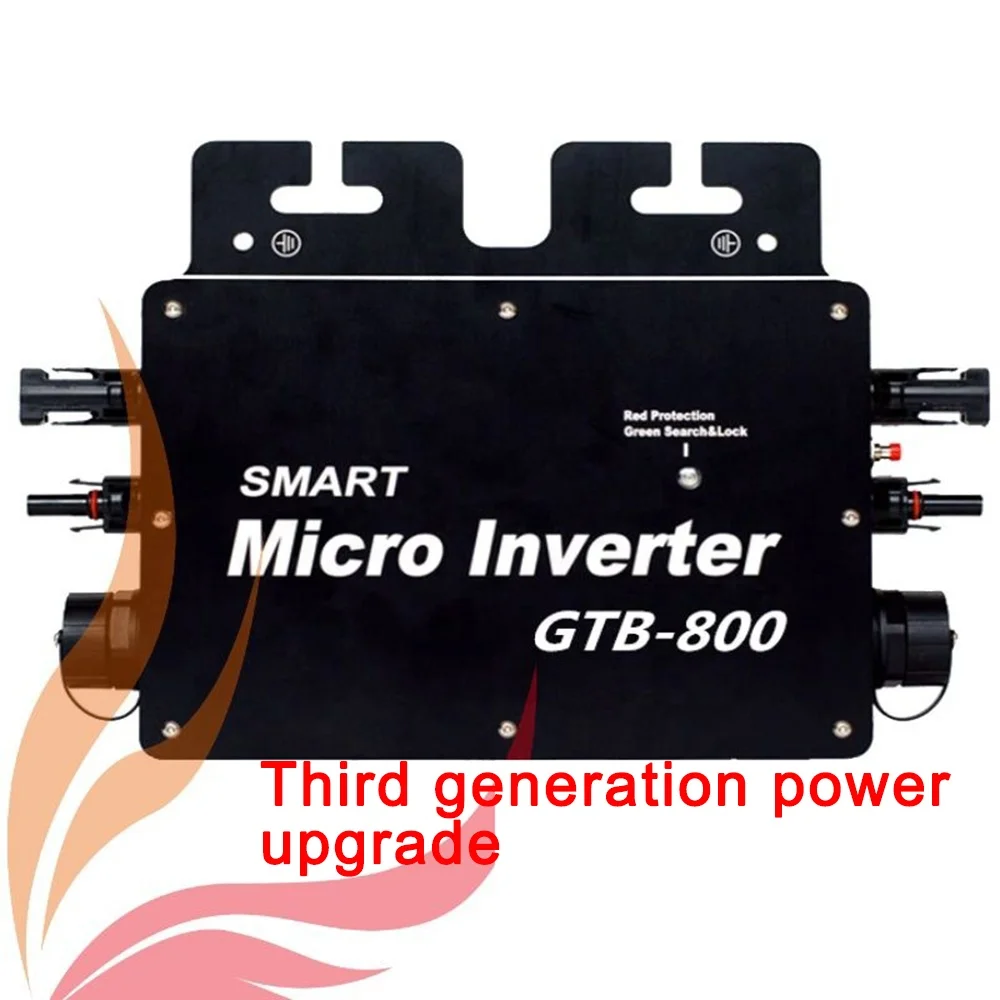

Product Pictures
