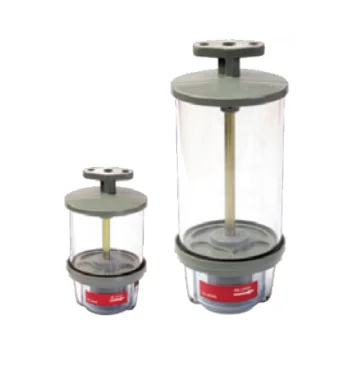

Трансформаторные детали силикагель влагопоглотитель DIN 42567 масляный трансформатор
- Категория: Transformers >>>
- Поставщик: Hangzhou,Giantway,Import,&export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.83 $* | 0.68 $* |
| Aug-18-2025 | 0.59 $* | 0.54 $* |
| Jul-18-2025 | 0.65 $* | 0.66 $* |
| Jun-18-2025 | 0.63 $* | 0.5 $* |
| May-18-2025 | 0.25 $* | 0.31 $* |
| Apr-18-2025 | 0.38 $* | 0.57 $* |
| Mar-18-2025 | 0.28 $* | 0.35 $* |
| Feb-18-2025 | 0.30 $* | 0.3 $* |
| Jan-18-2025 | 0.8 $* | 0.88 $* |
Характеристики
Product Description
APPLICATION
Moisture holders are used to take out the moisture of the air that enters the expansion vessel when the transformer is operating. In this way it hinders water condensation in the expansion vessel and operation safety of the transformer is increased.

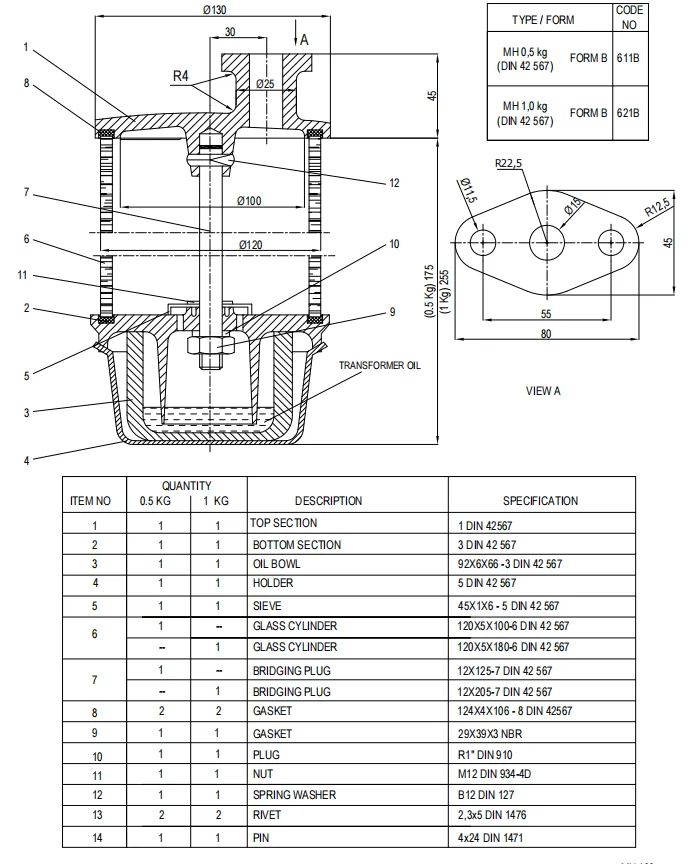

CONSTRUCTION
Moisture holders of 0,5-1 kg (Form A,B,C) The top and the bottom sections are casted aluminum and electrostatic powder painted. The shafts are made of nickel plated steel and the sieves are made of zinc sheet. Container cylinder is glass or polycarbonate depending on the customers' request. Oil bowl is of polycarbonate and the bowl holder is made of CrNi material.
OPERATION PRINCIPLE
When the transformer gets air in, an air flow from and to the
oil bowl occurs. The oil layer in the bowl prevents the dryer material from continuous contact with the damp external
air and cleans the air flowing in. If the operation temperature of the transformer decreases, the volume of the isolation oil gets smaller. During this lessening, an amount of air equal to the lessening amount is absorbed in to the oil bowl through air holes. This air then transfers to the expansion vessel and contacts with the oil layer. During this transfer, air contacts with the dryer material and leaves its moisture there. With the heating of the oil in the transformer tank, the air inside flows out from the opposite direction of the moisture holder.
oil bowl occurs. The oil layer in the bowl prevents the dryer material from continuous contact with the damp external
air and cleans the air flowing in. If the operation temperature of the transformer decreases, the volume of the isolation oil gets smaller. During this lessening, an amount of air equal to the lessening amount is absorbed in to the oil bowl through air holes. This air then transfers to the expansion vessel and contacts with the oil layer. During this transfer, air contacts with the dryer material and leaves its moisture there. With the heating of the oil in the transformer tank, the air inside flows out from the opposite direction of the moisture holder.
Technical Specification
TYPE / FORM | H (mm) | CODE NO | SILICAGEL CAPACITY (Kg) | TRANSFORMER OIL CAPACITY (Max.) (Kg) | |
MH 0,5 kg (DIN 42 567) | FORM A | 611A | 0.5 | 1800 | |
XS2-0.5 | FORM B | 611B | 1.0 | ||
XS2-1.0 | FORM C | 611C | 0.15 | ||
MH 1,0 kg (DIN 42 567) | FORM A | 621A | 1.0 | 3600 | |
XS2-2 | FORM B | 621B | 2.4 | ||
XS2-3 | FORM C | 621C | 165 | ||
MH 0.15 Kg | 520 | 601B | 0.15 | 600 | |
MH 1.2 Kg (DIN 42562) | 510 | 641 | 1.2 | 4500 | |
MH 2.4 Kg (DIN 42562) | 610 | 651 | 2.4 | 9000 | |
MH 3.6 Kg (DIN 42562) | 710 | 361 | 3.6 | 13500 | |
MH 4.8 Kg (DIN 42562) | 790 | 671 | 4.8 | 18000 | |
Products Show
Our Company
Our Service
Packing & Delivery
Cooperation
FAQ
1.Q:What's your main products?
A: We provide professional Transformer Accessories and Insulation Materials with 15 years experience
2.Q: Can I get some samples？
A：Yes, sample order is available for quality and market test.
3. Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition, physical and electrical
properties.After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
4. Q: Does your company accept customization?
A. Yes, we can accept OEM/ODM. We have professional engineer to inspect, who has more than 15 years experience in transformer industry.
6. Q: What's your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash.
7. Q: What do you have for certificate?
A: :Quality Service Credit Certificate, Enterprise Credit Grade Certificate, Credit Operation Demonstration Unit Certificate,
Quality Management System Certificate, etc.
8.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
A: We provide professional Transformer Accessories and Insulation Materials with 15 years experience
2.Q: Can I get some samples？
A：Yes, sample order is available for quality and market test.
3. Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition, physical and electrical
properties.After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
4. Q: Does your company accept customization?
A. Yes, we can accept OEM/ODM. We have professional engineer to inspect, who has more than 15 years experience in transformer industry.
6. Q: What's your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash.
7. Q: What do you have for certificate?
A: :Quality Service Credit Certificate, Enterprise Credit Grade Certificate, Credit Operation Demonstration Unit Certificate,
Quality Management System Certificate, etc.
8.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
