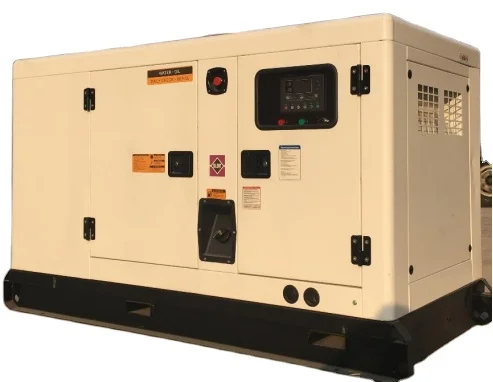

YSGEN-25KVA Лидер продаж настройки 15/25/35/50 кВт дизель-генератор для больницы

PART 1： GENESET
Stanby Power\t60KW
Rated Voltage\t380/220V
Rated Current\t108Amp
Rated Frequency\t50Hz
Rated Speed\t1500RPM
Power factor\tCOS∮0.8 Lagging
Cooling system\tClosed cycles water cooled with fan, water tank
Overall dimension\t2350*1120*1330mm
Gross weight\t1180KGS

PART 2: ENGINE
ENGINE BRAND\t
Engine Model\tR4105ZLD
Rated Power\t66KW
Engine structure\t4 cylinder,Vertical,Inline, 4 stroke
Bore*Stroke\t105*120mm
Compression Ratio\t17.5:1
Displacement\t2.9L
Lube Capacity\t9L
Fuel System\tPT type fuel injection pump
Fuel Consumption\t196g/KW·H
Rotating Speed\t1500RPM
Speed Governing\tMechanical speed governor
Starting Method\tBy 24V battery

PART 3: ALTERNATOR
Alternator Brand\t
Alternator Model\t
Rated output\t60KW
Features\tBrush-less, self-excitation, AVR regulation,
IP23 protection grade
Insulation Class\tClass H
Steady Voltage Regulation\t≤ +/- 0.5%

Instant Voltage Regulation\t-15%~+20%
Voltage Fluctuation Rate\t≤ +/- 0.5%
Steady Frequency Regulation\t≤ +/- 0.5%
Instant Frequency Regulation\t-7%~+10%
Voltage\t380/220V
Phase/Connection Type\t3\tphase 4 wire/Y type

PART 4: CONTROL SYSTEM
1\tEnglish menu, large LCD display.
2\tAutomatic Mains Failure Function.
3\tThe module has been primarily designed to monitor the incoming mains supply.
4\tThe module indicates the operational status of the generator and monitors the
engine parameters.
5\tLCD display and a flashing LED on the front panel will indicate if a fault condition
occur.
6\tWhen a fault condition occur,the module will shut down the engine.
7\tSelected operational timers and alarms can be adjusted by customer.
8\tConfiguration of the module can be carried out manually utilizing the front panel
editor,or alternatively by PC.
9\tEmergency stop button and with auto starting system.
