Цементирования применение корпус

Категория: Oil Field Equipment >>>
Поставщик: Shandong,Yacheng,Petroleum,Technology,Co.,Ltd.

Цена:3,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	4.48 $*	4.84 $*
Jul-16-2025	3.18 $*	3.14 $*
Jun-16-2025	4.0 $*	4.90 $*
May-16-2025	4.10 $*	4.45 $*
Apr-16-2025	3.92 $*	3.33 $*
Mar-16-2025	4.15 $*	4.69 $*
Feb-16-2025	4.10 $*	4.56 $*
Jan-16-2025	4.52 $*	4.80 $*

Характеристики

Product Overview

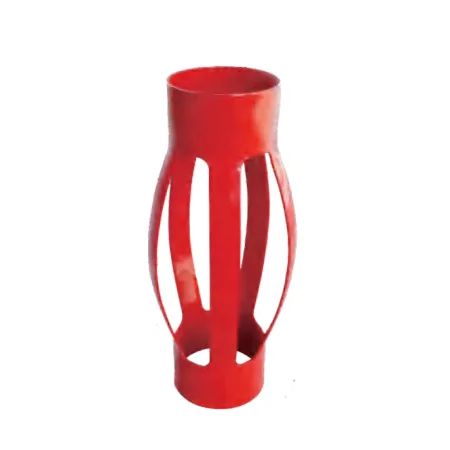

API 10D Cemeting use Casing Single Piece Centralizer in Oilfield

API single piece centralizer performs satisfactorily in open hole as well as cased hole.These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.Single piece centralizer combines the highest restoring force with zero start force and zero running force.The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.

FEATURES AT A GLANCE

* Designed for high restoring force combined with zero starting force for centralizing the casing pipe in vertical, deviated and horizontal wells.
* High performance characteristics are combined with easy installation by slipping over the pipe on the rack.
* These are high quality product, developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions like ERD, Highly deviated and Horizontal wells.
*Single piece centralizers are formed from single sheet of special steel resulting in no weld between bows and end collars, increasing the robustness and ability to withstand higher lateral and side loads during casing running.

* Suitable for RIH, Reciprocation and Rotational applications.

* Optimum performance during casing running.

PRODUCT SPECIFICATIONS

No.	Spec(in)	Hole Size(in)	Height(mm)	Total height(mm)	Hole Diameter(mm)
1	5''*12-1/4''	128-131	105	690	330
2	5''*20''	128-131	105	720	535
3	5-1/2''*7''	142-148	55	650	215
4	5-1/2''*8-1/2''	142-148	55	650	225
5	6''*8-1/2''	156-158	55	650	235
6	7''*8-1/2''	181-186	55	650	235
7	7''*9-5/8''	181-186	55	650	255
8	7-5/8''*9-5/8''	197-201	55	650	275
9	9-5/8''*12-1/4''	250-255	55	650	330
10	13-3/8''171/2''	342-347	55	650	450
11	5-1/2''*8-1/2''	142-148	110	650	225
12	7''*8-1/2''	181-186	110	650	235
13	7''*9-5/8''	181-186	110	650	255
14	5''*6-1/2''	128-131	110	650	175
15	7-5/8''*9-1/2''	196-200	110	650	250
16	10-3/4''*12-1/4''	274-276	110	650	330
17	5''*6-1/4''	130-132	110	650	170
18	9-5/8''*12-1/4''	250-255	110	650	330
19	13-3/8''*17-1/2''	342-347	110	650	450
20	5-1/2''*8-1/2''	142-148	55	650	225

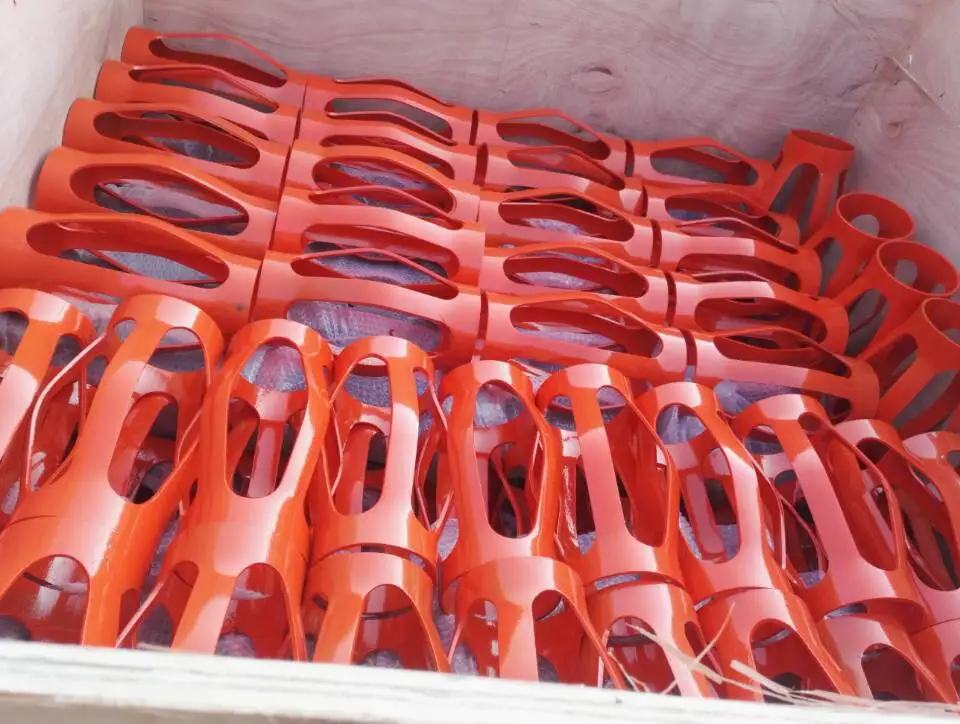

PACKING

SALES AND SERVICE NETWORK

FAQ

1. Who are we?
We are based in Shandong, China. We have worked in this area for 19 years.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Packer,wellhead,completion tool,coiled tubing tool,Drilling tool.

4. Why should you buy from us not from other suppliers?
We are professional supplier of oil production tools, oilwell drilling tools and completion tools. Also, we are extributor of
brand products of ACT, Baker, Quantanm, Bruce, etc. Excellent quality products and professional services are our job!

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Russian
