Двойной сенсорный одноканальный регулятор скорости ESC с ЖК-экраном контроллер для ХОВЕРБОРДА обуви электронного скейтборда 6374
- Категория: Motor Controllers >>>
- Поставщик: Shenzhen,Two,Ant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 70.44 $* | 71.10 $* |
| Jul-19-2025 | 57.78 $* | 58.12 $* |
| Jun-19-2025 | 69.36 $* | 70.35 $* |
| May-19-2025 | 68.77 $* | 69.68 $* |
| Apr-19-2025 | 54.29 $* | 55.35 $* |
| Mar-19-2025 | 67.65 $* | 68.14 $* |
| Feb-19-2025 | 67.28 $* | 68.47 $* |
| Jan-19-2025 | 66.40 $* | 67.82 $* |
Характеристики
Products Description
Model: | ESC01-1 |
Voltage: | 24V, 29.4V, 36V (optional) |
Current: | 10A (wheel hub) 16A (belt) |
Speed: | 3000 rpm(wheel hub) 7000 rpm (belt) |
Maximum power: | 290W ((wheel hub)) /450W (belt) |
Drive mode: | Single system drive |
Protection: | over voltage, under voltage, over temperature, locked rotor, CW\\CCW, speed control function |
Sensing method: | Hall |
Application areas: | scooters, unicycles, twist cars, balance cars |
Packing list: | remote control*1 control panel*1 electric display*1 charging cable*1 |
Electric four-wheel skateboard control system:
Adopting the sine wave scheme, the performance is more stable than the ESC, and it is not easy to burn out
Features: low-speed, large-torque, two-way communication, can check the power of the skateboard through the remote control, voltage alarm function, under-voltage power-off protection function: different voltages, alarm voltages, and protection voltages are different
Note: the voltage is different, the alarm voltage and the protection voltage are different
Application areas: scooters, unicycles, twist cars, balance cars
Suitable for hub motor model airplane motor 5055 5065 6354 6364 6374 6384
Features: low-speed, large-torque, two-way communication, can check the power of the skateboard through the remote control, voltage alarm function, under-voltage power-off protection function: different voltages, alarm voltages, and protection voltages are different
Note: the voltage is different, the alarm voltage and the protection voltage are different
Application areas: scooters, unicycles, twist cars, balance cars
Suitable for hub motor model airplane motor 5055 5065 6354 6364 6374 6384
ESC01 is used in electric wireless remote control four-wheeled scooter.
1. Four gear positions: 1. low speed; 2. medium speed; 3. high speed; 4. player mode.
2. EBS electronic brakes (the battery will be charged when the brakes slide downhill).
3. One button forward/reverse direction.
4. Wireless 2.4G remote control transmission control. 20 frequency points. Automatic frequency hopping anti-
collision.
5. Rated voltage: 24v/36v and 6S.7S.10Sbattery pack can be selected.
6. Rated current: small fish plate single drive 10A, belt single side motor 16A
7. Peak current up to 40A
8. Controller characteristics: low speed and high torque
9. Maximum speed: 3000 rpm of the hub motor (sinusoidal), belt motor 7500 rpm (square wave).
10. One-button switch machine. Press and hold for 10 seconds to enter the state of the paired remote control
The LED work indicator is connected to the remote control status indicator (the
connection is successfully flashing, the connection is not successful).
11. Hub motor / RC motor / no sense or with sense to choose (control board common) /
12. Control method: sine wave / square
13. With motor: hub motor 70.83.90. Motor 80KV . RC motor 270KV below the effect is better.
14. Three-mode control, four-wheel brushless controller integrated.
The first mode: Hall sine wave (automatic learning motor)
The second mode: no Hall square wave (compatible with 99% motor on the market including non-inductive
mode motor)
The third mode: Hall sine wave fault repair mode (when the motor 3 Halls are broken, the program will check
and repair the fault Hall after the program is checked. If the motor 2 Hall is broken, the program will
automatically switch to No Hall square wave mode)
15. The program has a Hall repair. Hall broke a normal operation / ZE string wave, does not affect normal use.
16. Motor line short circuit protection. Motor line off protection / stall protection / maximum peak current
protection / battery under voltage protection / over current / over voltage / overload limit current protection.

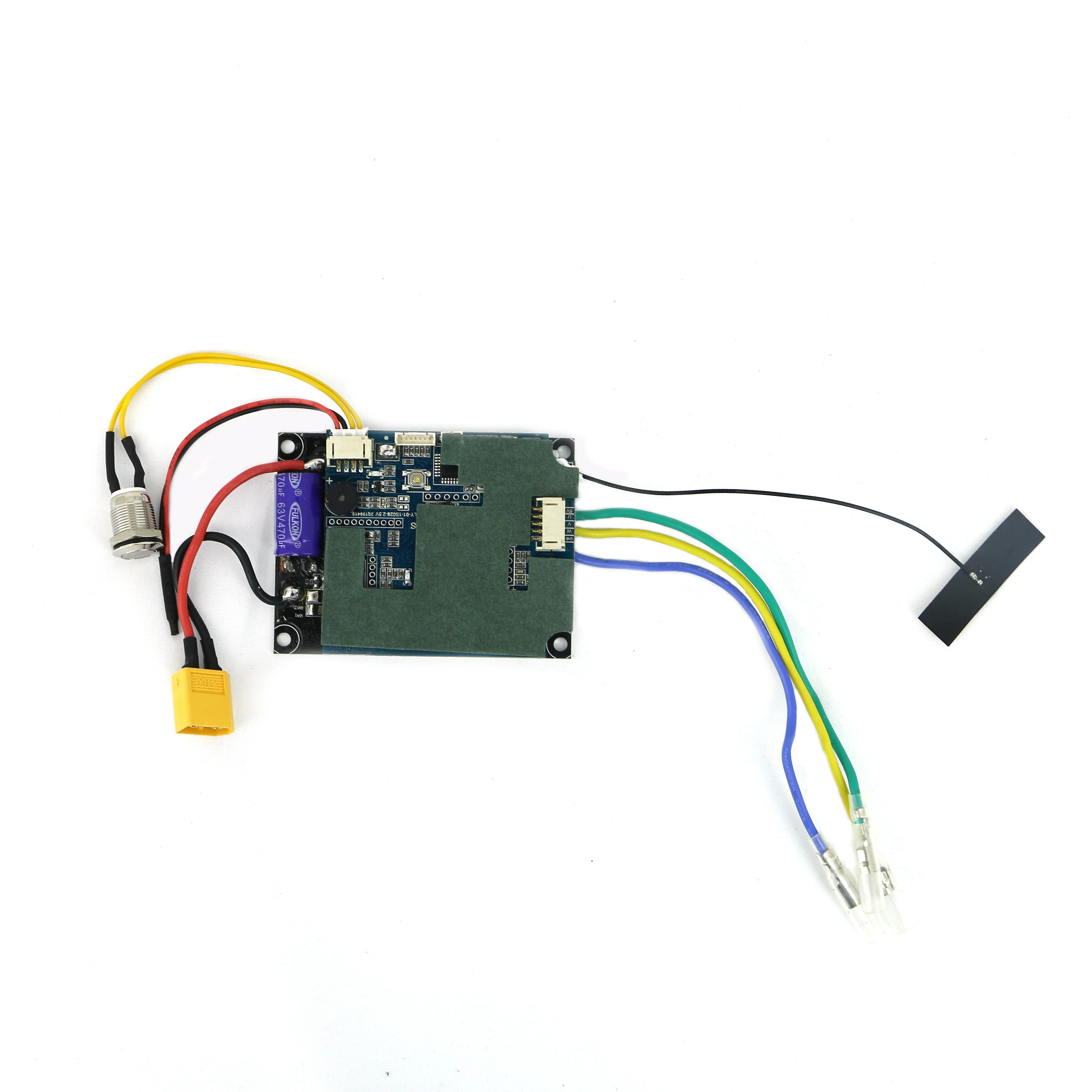

17. Product Size:
single drive 82*61mm
heights 15mm
18. Under-piezoelectric buzzer alarm: a total of four alarm sounds, (drop a 40% power) (drip two 30% power)
(drip three sound 20%) (drip four sounds 10% Power) After four drops, it will enter undervoltage protection,
effectively protecting the battery from over-discharge and damaging the battery. The same is true for the
remote control low voltage alarm.

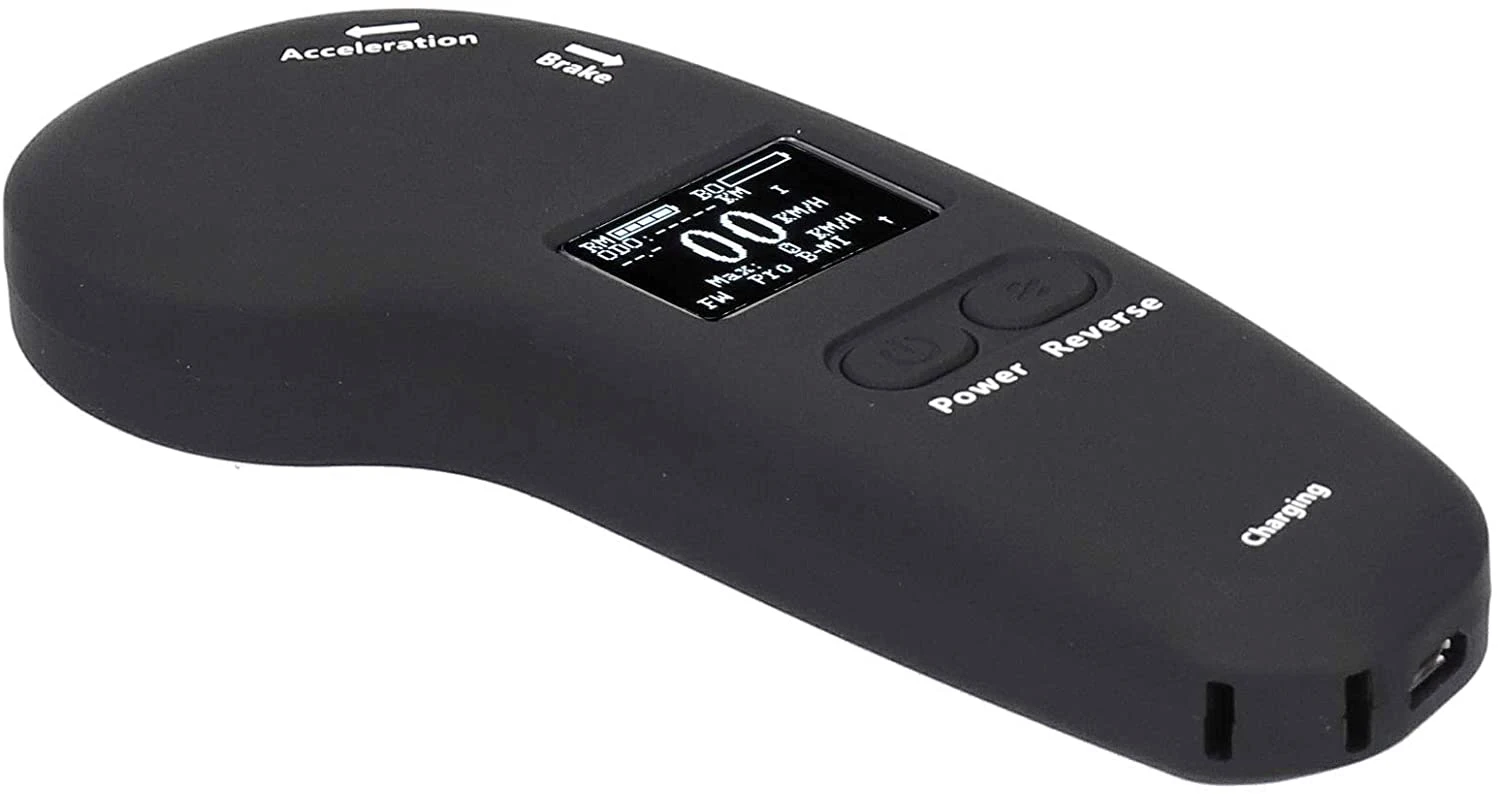

19. Remote control matching instructions: When the host is powered on, press the matching remote control
button on the main board (the button is next to the buzzer) or press and hold the power button for 10
seconds. When the long red LED flashes, the host is waiting for the remote pairing. When you press the
remote control hidden button (next to the remote control switch), the LED light of the main board and the
LED of the remote control will flash at the same time, and the remote control matches successfully.
20. Zero power standby: 10 minutes into standby. Standby power consumption is zero
21. No button slide automatic switch machine:
1. After playing skateboarding, we don't have to squat down and press the scooter shutdown button. The
scooter will shut itself down in 10 minutes, the power consumption of the shutdown is 0, and the standby
power consumption is 0 when not powered on.
2. every time we skate again, we don't have to squat down and press the scooter power button. We use our
feet to gently slap a scooter. The scooter will automatically turn on. Wait for our remote control command
after booting. Command, the main board is not to drive or interfere with the motor sliding, so that the
motor is in the unpowered skateboard mode.
3. If we have no power on the skateboard, we will still turn on the scooter, unless the battery protection board
is protected and there is no electricity output. After the scooter is turned on, there will be no impact on the
user to use the power scooter as an unpowered taxi. The motherboard will have a low battery alarm
sound, and the motherboard will not drive or interfere with the motor taxi when it is not connected to the remote control. (Benefits: The scooter is long, and there will be a lot of mud or dirty at the bottom of the scooter. This is the advantage of automatically starting the boot. If you want to play, you can save the boot time.)
1. Four gear positions: 1. low speed; 2. medium speed; 3. high speed; 4. player mode.
2. EBS electronic brakes (the battery will be charged when the brakes slide downhill).
3. One button forward/reverse direction.
4. Wireless 2.4G remote control transmission control. 20 frequency points. Automatic frequency hopping anti-
collision.
5. Rated voltage: 24v/36v and 6S.7S.10Sbattery pack can be selected.
6. Rated current: small fish plate single drive 10A, belt single side motor 16A
7. Peak current up to 40A
8. Controller characteristics: low speed and high torque
9. Maximum speed: 3000 rpm of the hub motor (sinusoidal), belt motor 7500 rpm (square wave).
10. One-button switch machine. Press and hold for 10 seconds to enter the state of the paired remote control
The LED work indicator is connected to the remote control status indicator (the
connection is successfully flashing, the connection is not successful).
11. Hub motor / RC motor / no sense or with sense to choose (control board common) /
12. Control method: sine wave / square
13. With motor: hub motor 70.83.90. Motor 80KV . RC motor 270KV below the effect is better.
14. Three-mode control, four-wheel brushless controller integrated.
The first mode: Hall sine wave (automatic learning motor)
The second mode: no Hall square wave (compatible with 99% motor on the market including non-inductive
mode motor)
The third mode: Hall sine wave fault repair mode (when the motor 3 Halls are broken, the program will check
and repair the fault Hall after the program is checked. If the motor 2 Hall is broken, the program will
automatically switch to No Hall square wave mode)
15. The program has a Hall repair. Hall broke a normal operation / ZE string wave, does not affect normal use.
16. Motor line short circuit protection. Motor line off protection / stall protection / maximum peak current
protection / battery under voltage protection / over current / over voltage / overload limit current protection.
17. Product Size:
single drive 82*61mm
heights 15mm
18. Under-piezoelectric buzzer alarm: a total of four alarm sounds, (drop a 40% power) (drip two 30% power)
(drip three sound 20%) (drip four sounds 10% Power) After four drops, it will enter undervoltage protection,
effectively protecting the battery from over-discharge and damaging the battery. The same is true for the
remote control low voltage alarm.
19. Remote control matching instructions: When the host is powered on, press the matching remote control
button on the main board (the button is next to the buzzer) or press and hold the power button for 10
seconds. When the long red LED flashes, the host is waiting for the remote pairing. When you press the
remote control hidden button (next to the remote control switch), the LED light of the main board and the
LED of the remote control will flash at the same time, and the remote control matches successfully.
20. Zero power standby: 10 minutes into standby. Standby power consumption is zero
21. No button slide automatic switch machine:
1. After playing skateboarding, we don't have to squat down and press the scooter shutdown button. The
scooter will shut itself down in 10 minutes, the power consumption of the shutdown is 0, and the standby
power consumption is 0 when not powered on.
2. every time we skate again, we don't have to squat down and press the scooter power button. We use our
feet to gently slap a scooter. The scooter will automatically turn on. Wait for our remote control command
after booting. Command, the main board is not to drive or interfere with the motor sliding, so that the
motor is in the unpowered skateboard mode.
3. If we have no power on the skateboard, we will still turn on the scooter, unless the battery protection board
is protected and there is no electricity output. After the scooter is turned on, there will be no impact on the
user to use the power scooter as an unpowered taxi. The motherboard will have a low battery alarm
sound, and the motherboard will not drive or interfere with the motor taxi when it is not connected to the remote control. (Benefits: The scooter is long, and there will be a lot of mud or dirty at the bottom of the scooter. This is the advantage of automatically starting the boot. If you want to play, you can save the boot time.)
