Китайский бренд прямые продажи с завода производители стандарт API F1300 бурение скважин триплексный грязевой насос для нефтяных

Китайский бренд прямые продажи с завода производители стандарт API F1300 бурение скважин триплексный грязевой насос для нефтяных

Категория: Oil Field Equipment >>>
Поставщик: Shandong,Sunrise,Petroleum,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.91 $*	0.83 $*
Aug-19-2025	0.22 $*	0.79 $*
Jul-19-2025	0.88 $*	0.90 $*
Jun-19-2025	0.13 $*	0.78 $*
May-19-2025	0.11 $*	0.35 $*
Apr-19-2025	0.10 $*	0.0 $*
Mar-19-2025	0.60 $*	0.60 $*
Feb-19-2025	0.61 $*	0.36 $*
Jan-19-2025	0.51 $*	0.38 $*

Характеристики

Product Description

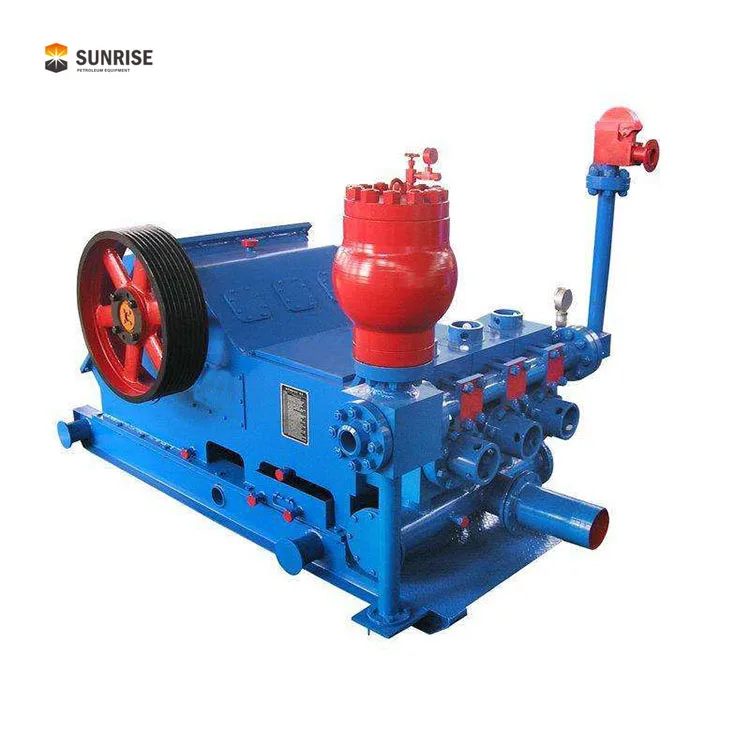

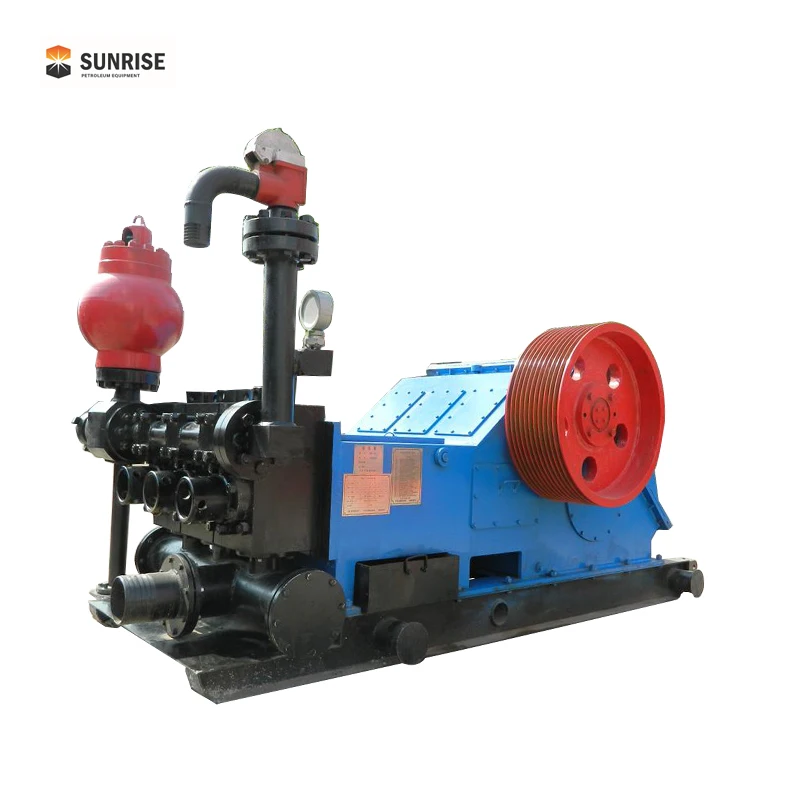

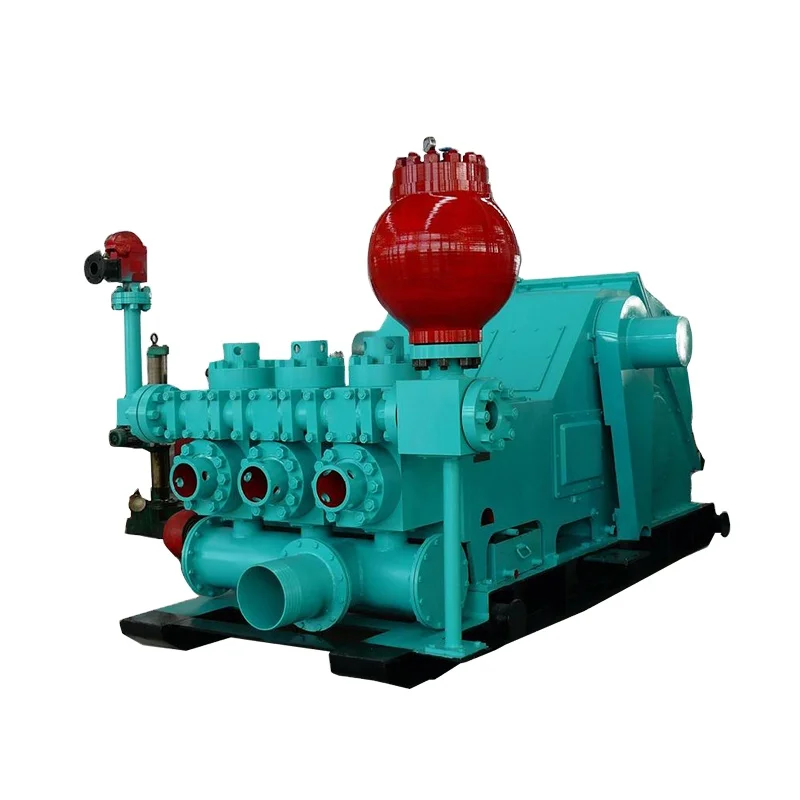

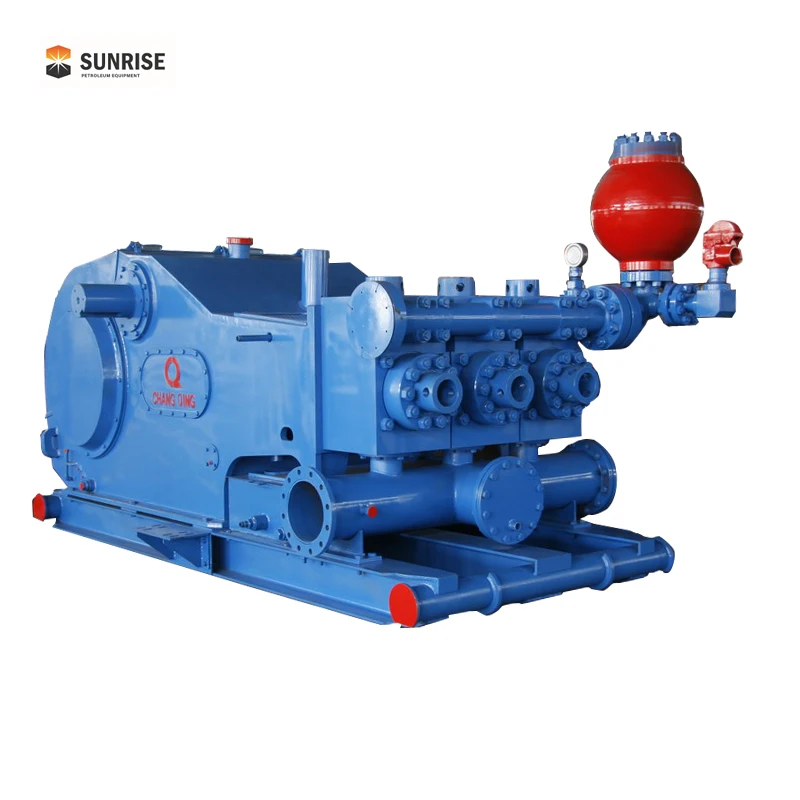

API 7K drill rig F-1300 triplex Mud pump

The drilling mud pump is in the process of drilling with high pressure to the bottom of the transport of high viscosity, high
proportion of drilling fluid and low sand content, to cool the drill bit, bottom hole, broke rock, carrying out cuttings returning
from the bottom, it is one of the most important equipment of oil drilling process. The design and manufacture of the drilling mud pump meets the requirements of API Spec 7K specification.
The drilling mud pump is mostly horizontal type three cylinder single acting reciprocating piston pump. It consists of power end assembly, fluid end assembly and lubrication system and cooling system. The crankshaft of the pump is driven by a power machine to rotate, and the power is transferred from the crankshaft to the crosshead to move the piston in reciprocating motion in the pump cylinder. Under the alternating action of suction and discharge valve, the purpose of pressing and circulating mud fluid is realized.

Specification

Item	Value
Model	F-1300
Input power	1300HP/970KW
Rated stroke	120
Stroke length	12"/305mm
Outlet Diameter	5-1/8"
Max Liner	7"/180mm
Overall dimension	460032002600mm
Weight	25000kg
