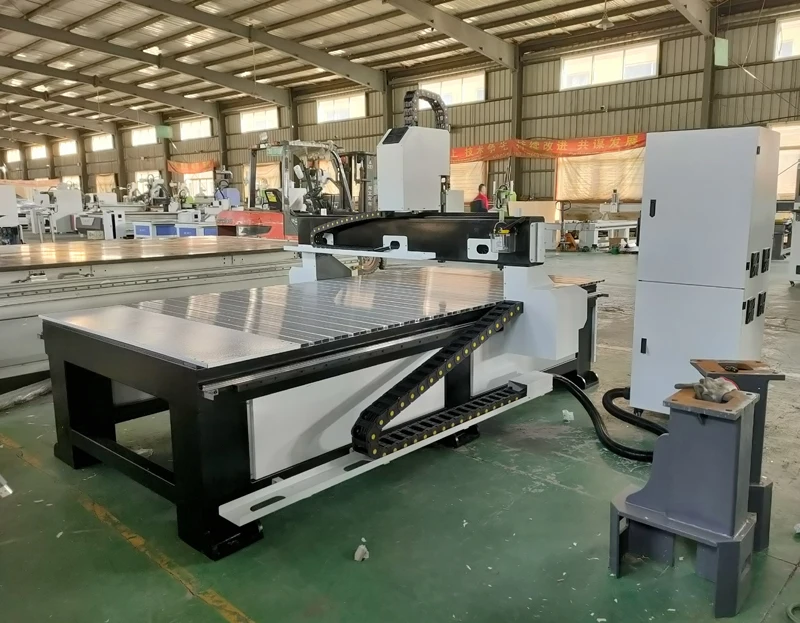

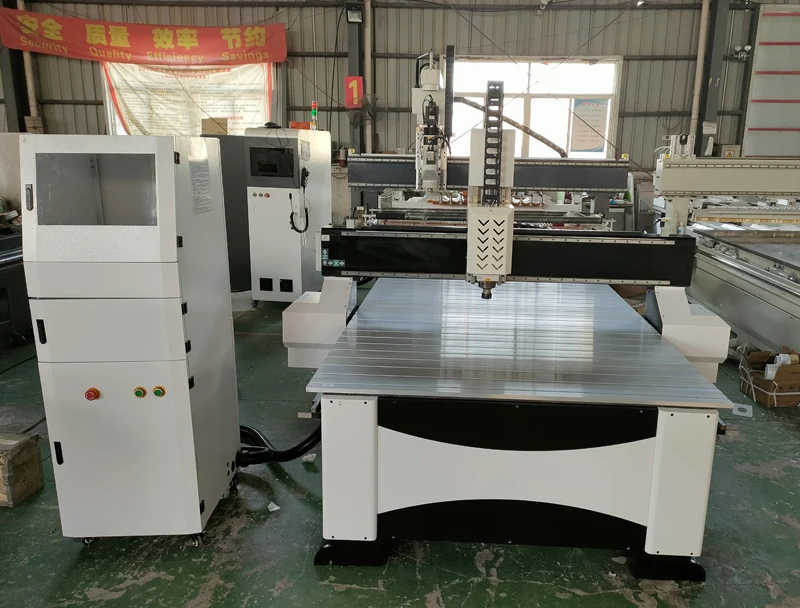

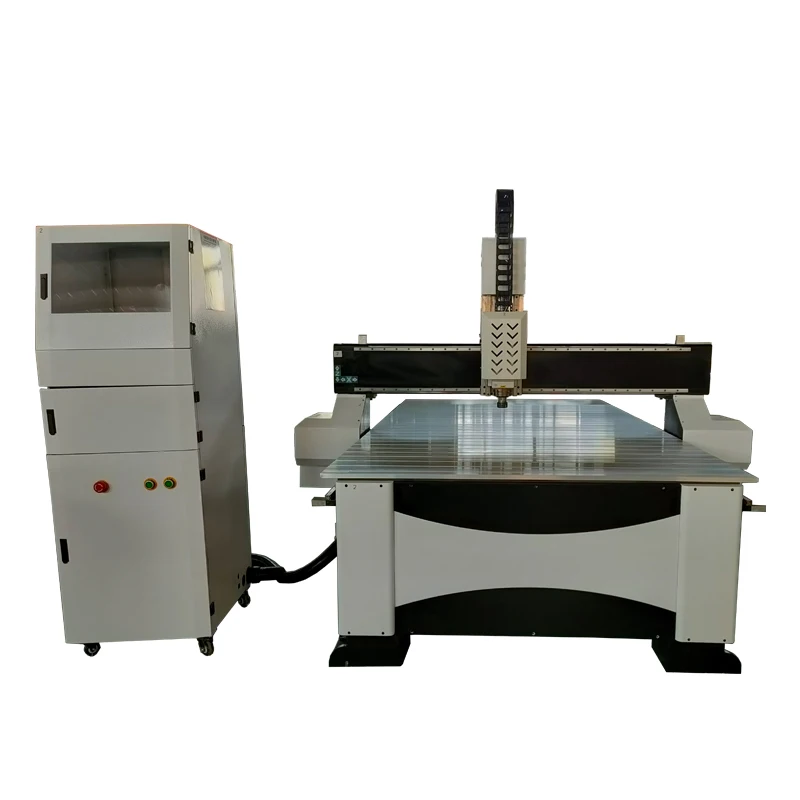

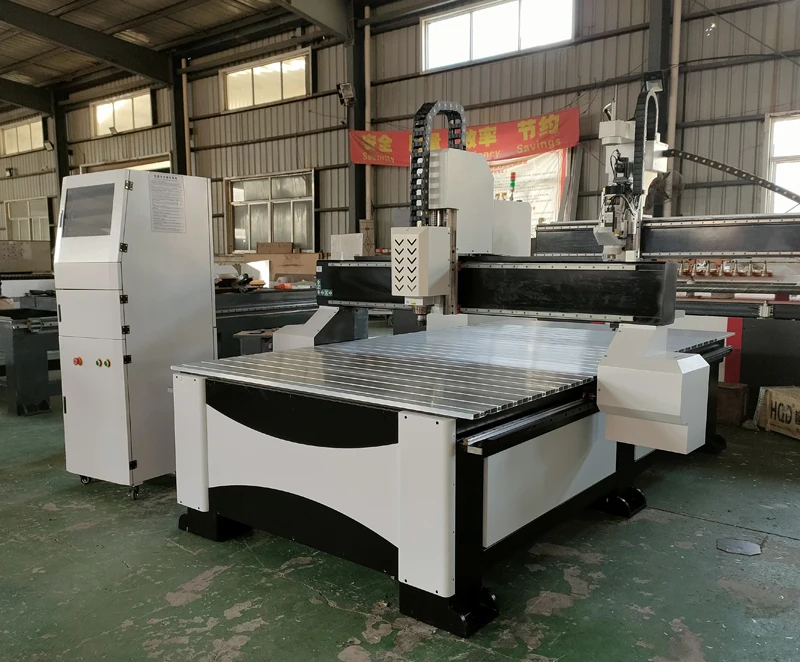

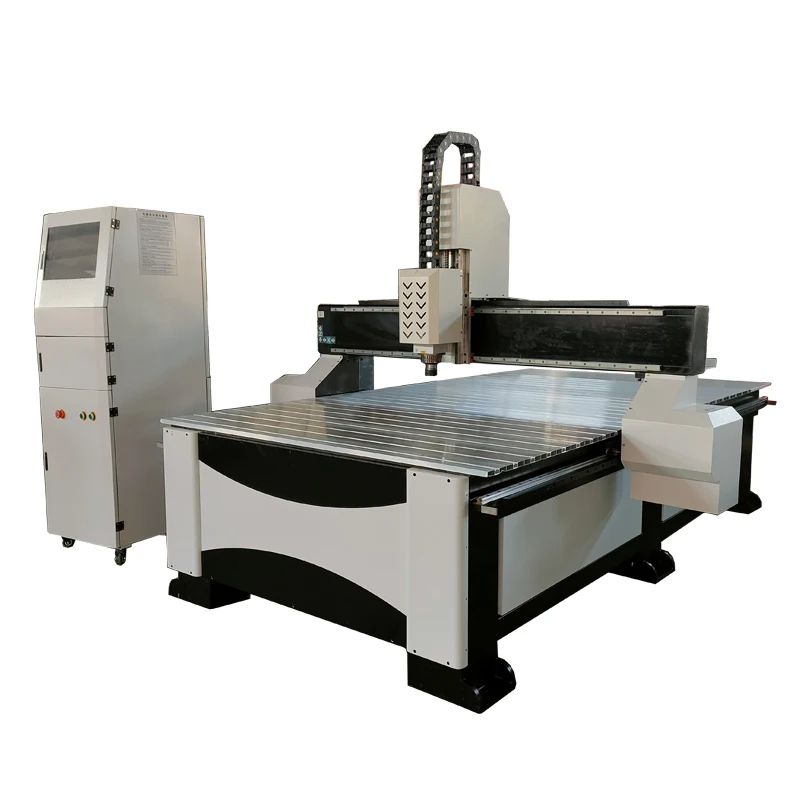

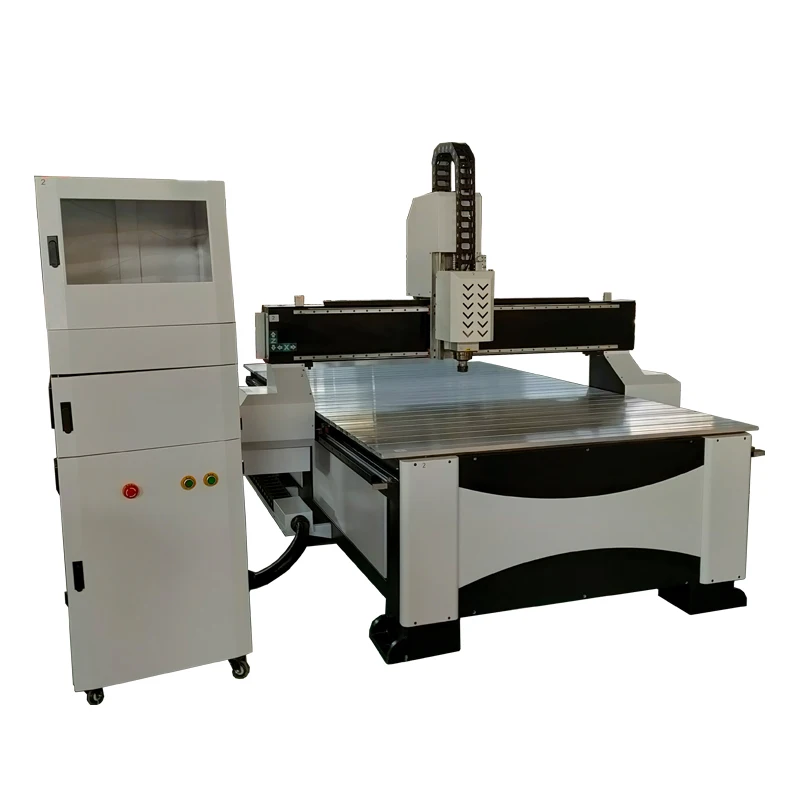

1325 фрезерный станок с ЧПУ для дерева гравировки деревообработки
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Guandiao,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2261.51 $* | 2374.43 $* |
| Aug-19-2025 | 2242.82 $* | 2354.91 $* |
| Jul-19-2025 | 1881.99 $* | 1975.58 $* |
| Jun-19-2025 | 2204.13 $* | 2314.82 $* |
| May-19-2025 | 1919.90 $* | 2015.49 $* |
| Apr-19-2025 | 2166.18 $* | 2274.15 $* |
| Mar-19-2025 | 2147.12 $* | 2254.92 $* |
| Feb-19-2025 | 2128.78 $* | 2234.30 $* |
| Jan-19-2025 | 2109.39 $* | 2214.42 $* |
Характеристики
Product Description
Specification
Dimension | 3100*1850*1650 |
Platform size | 1500*3000 |
Work area | 1300*2500*200 |
Travelling speed | 20m/min(MAX) |
Working speed | 12m/min(MAX) |
Working voltage | AC220V(Optional 380V) |
Spindle power | Water cooled 3.2KW-24000RPM |
Device architecture | One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation |
Driving system | XYZ: 86 high torque stepper drive motor and drive |
Rack and pinion | The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack |
Guide Rails | Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw |
Operating system | Weihong |
Platform structure | Aluminum profile + fixture |
Electrical accessories | Omron, Chint |
Inverter | Best |
Power cable | Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage |
Lubrication system | Oil pump centralized lubrication control |
Security system | Overtravel protection, electrical protection etc. |
Dust collector | 2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood |
Fastenings | The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws |
Accuracy | Each axis is fixed rigidly, and the locating pin is added to the precision part |
Quality Control | Incoming material, process, delivery full control, 24 hours machine test |
Show details
Spindle
HQD/WHD 3.5kw air cooled spindle, low noise, high cutting force and high efficiency.
Working table
Aluminum T-slot table with PVC sheet
Body structure
Heavy duty body structure with thick steel welded, will not be deformed when hold heavy materials.
Control cabinet
Independent control cabinet with Leadshine 758s Servo drivers
Application
Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure
statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company’s main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Our Service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
