Products Description

Factory Price Horizontal Triplex Reciprocating Single Acting High Pressure Drilling Rig Mud Pump BW 250

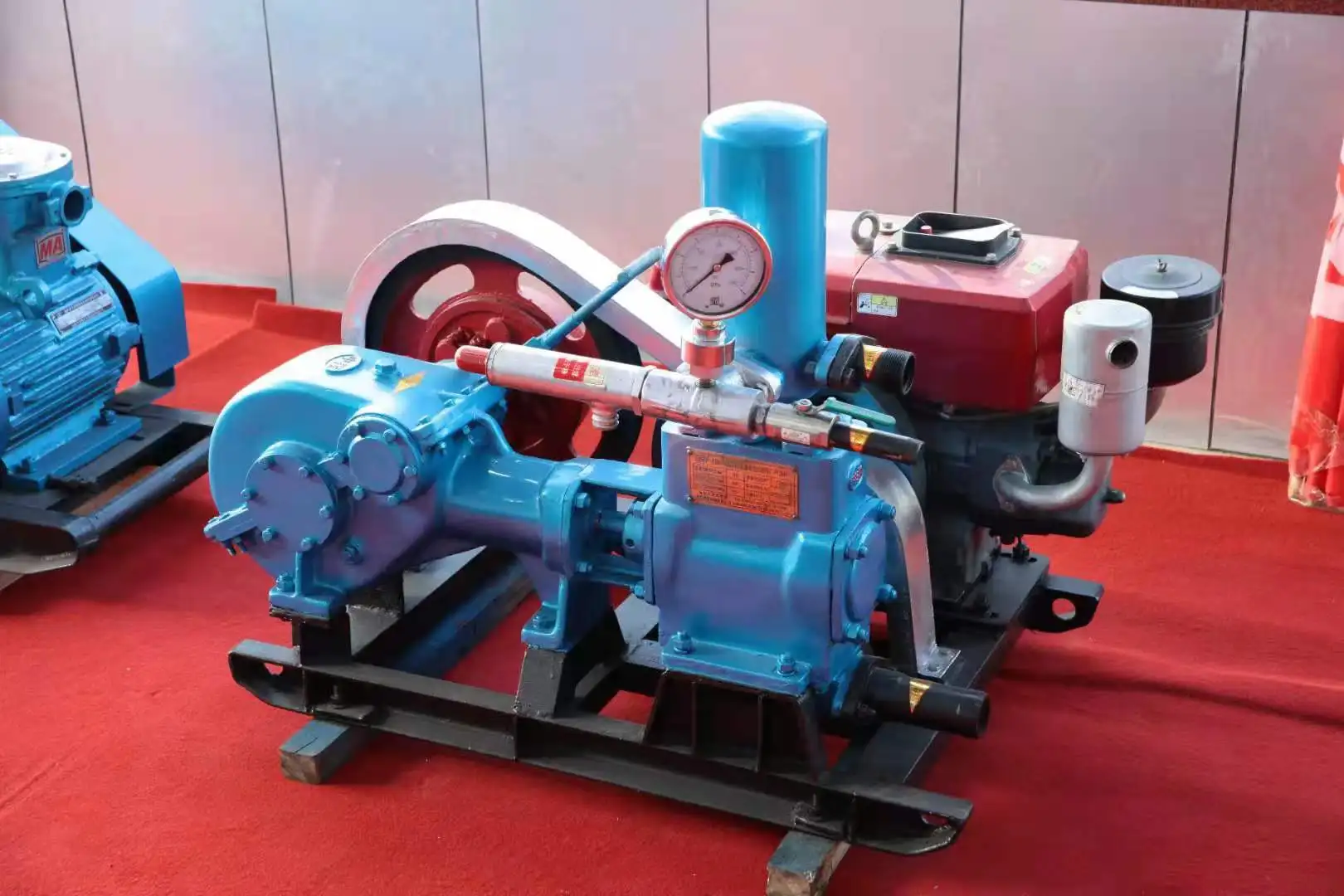

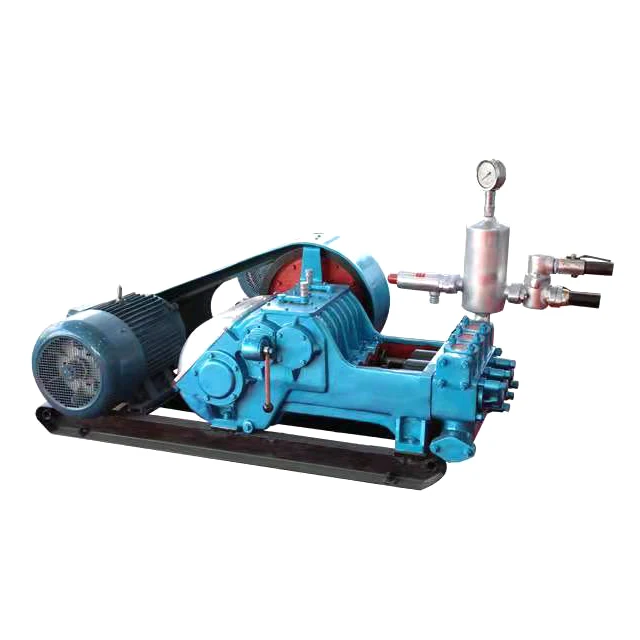

BW250 Mud pump is a horizontal, triplex, single acting reciprocating piston pump. It has the advantages of multi-speed shift gears for variable displacement, construction, light weight, readily movable and easy to operated etc. BW250 Mud Pump is provided with two kinds of liner, 80mm is for core drilling of ordinary bore, 65 mm is for core drilling of small bore with diamond bit. The pump can be driven by electric motor, diesel engine, hydraulic motor according to the requirement of the customer in order. If needed, we can also equip wheels for you.

Main Features For Factory Price Horizontal Triplex Reciprocating Single Acting High Pressure Drilling Rig Mud Pump BW 250

*BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
*Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
*High quality pump parts, less wearing parts, long service life, low construction cost.
*It has fast suction-discharge speed, high pump efficiency.
*Mud pump has less noise and dust, environmental operation.

Model No.	BW250 Horizontal Triplex Reciprocating Single Acting Mud Pump
Cylinder Diameter	100
Stroke (mm)	80							65
Pump Speed (time/min)	200	116	72	42	200	116	72	42
Flow (L/min)	250	145	90	52	166	96	60	35
Pressure （MPa)	2.5	4.5	6	6	4	6	7	7
Outlet Pipe Dia. (mm)	51
Inlet Pipe Dia. (mm)	76
Power (Kw)	15
Shape Size (mm)	1560995650
Weight (kg)	560

Application
