3V-36V двойной 15A H-Bridge DC мотор драйвер 30A для Arduino Robot Car
- Категория: Motor Controllers >>>
- Поставщик: Shenzhen,Si,Hai,Xin,Zhou,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.62 $* | 13.55 $* |
| Aug-16-2025 | 12.48 $* | 13.96 $* |
| Jul-16-2025 | 10.33 $* | 11.91 $* |
| Jun-16-2025 | 12.83 $* | 13.4 $* |
| May-16-2025 | 10.29 $* | 11.98 $* |
| Apr-16-2025 | 11.33 $* | 12.84 $* |
| Mar-16-2025 | 11.21 $* | 12.76 $* |
| Feb-16-2025 | 11.96 $* | 12.98 $* |
| Jan-16-2025 | 11.58 $* | 12.53 $* |
Характеристики
You may like
Products Description
SKU: 011949
Description:
The drive performance of these non-L298 motor driver chip can be compared, the driver focus on current and efficiency, effectively motor power and battery life.
Can withstand high current overload, the maximum current up to 30A.
This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature

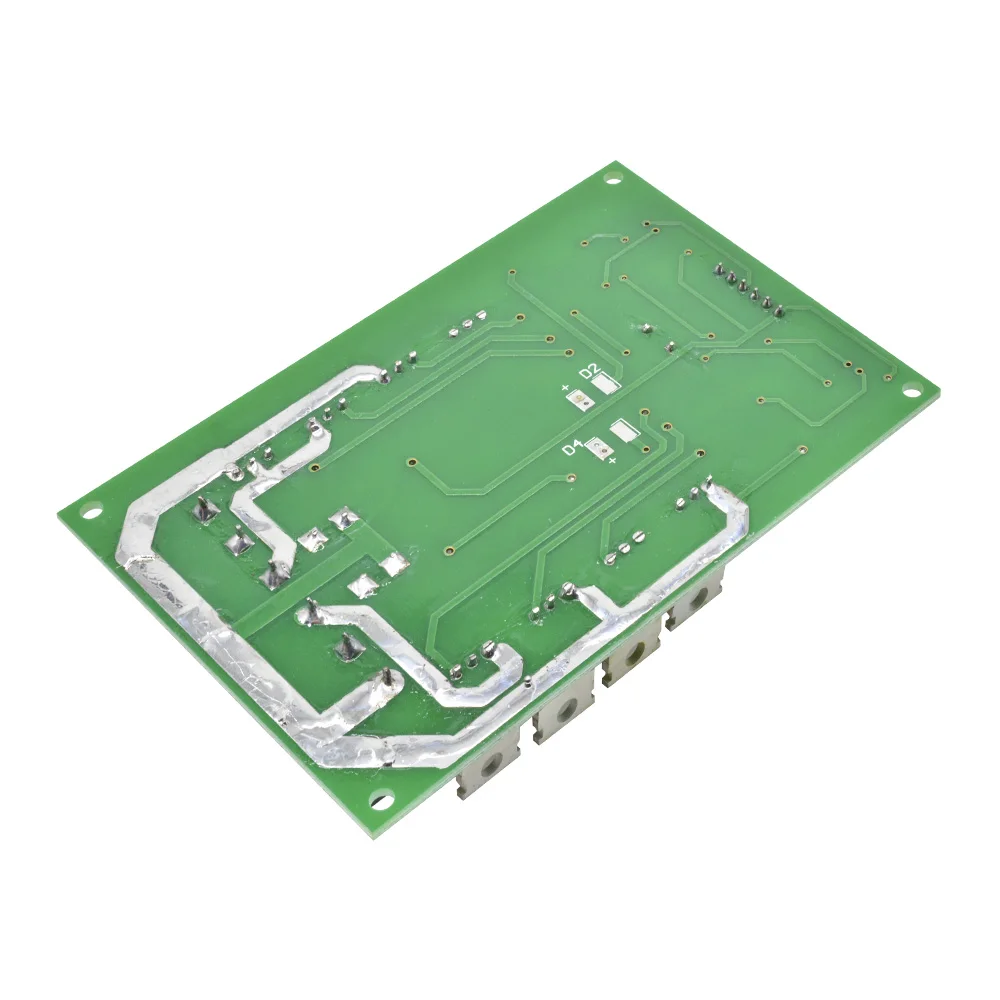

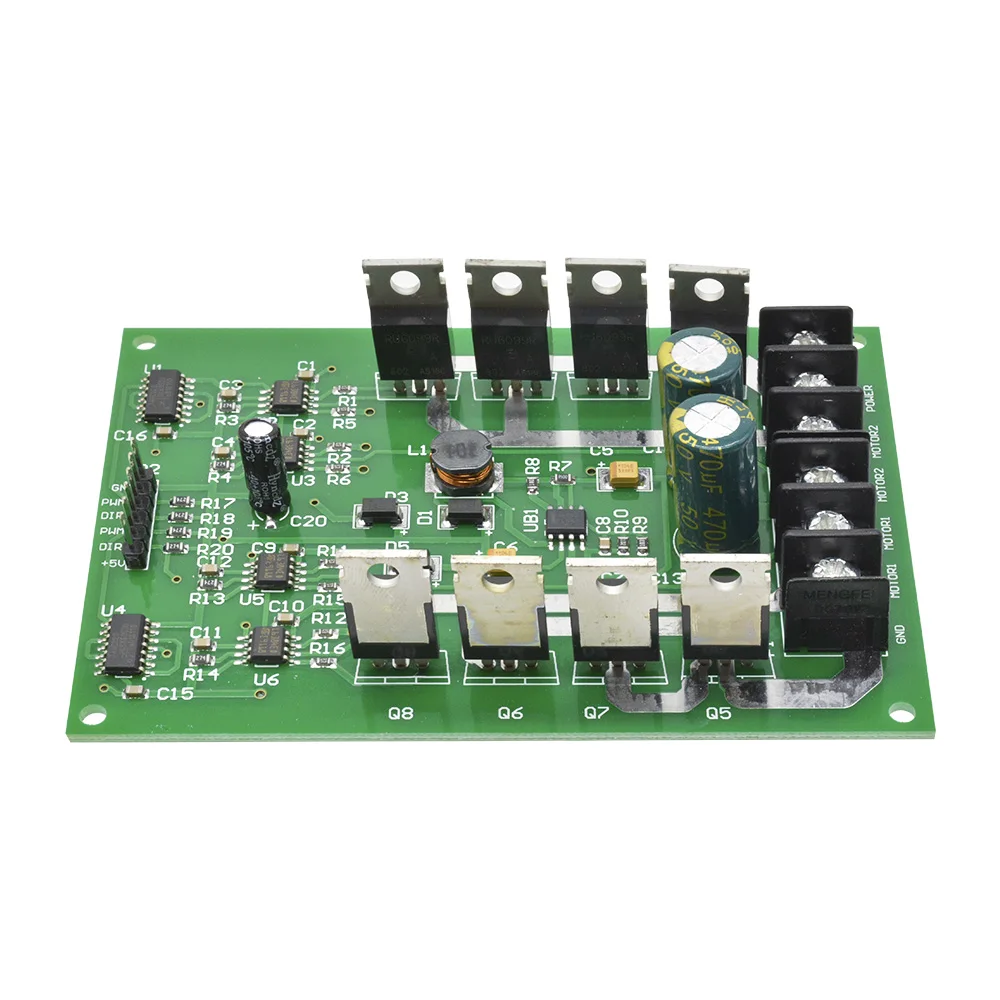

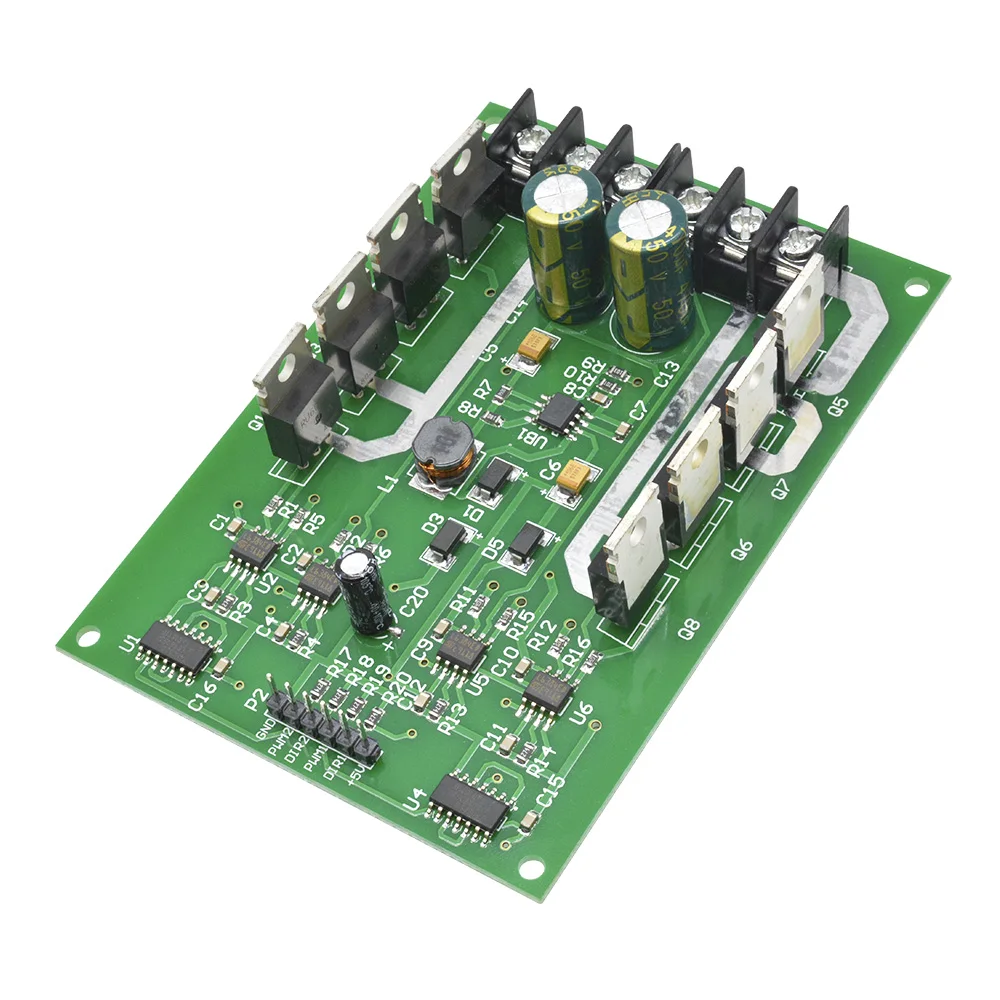

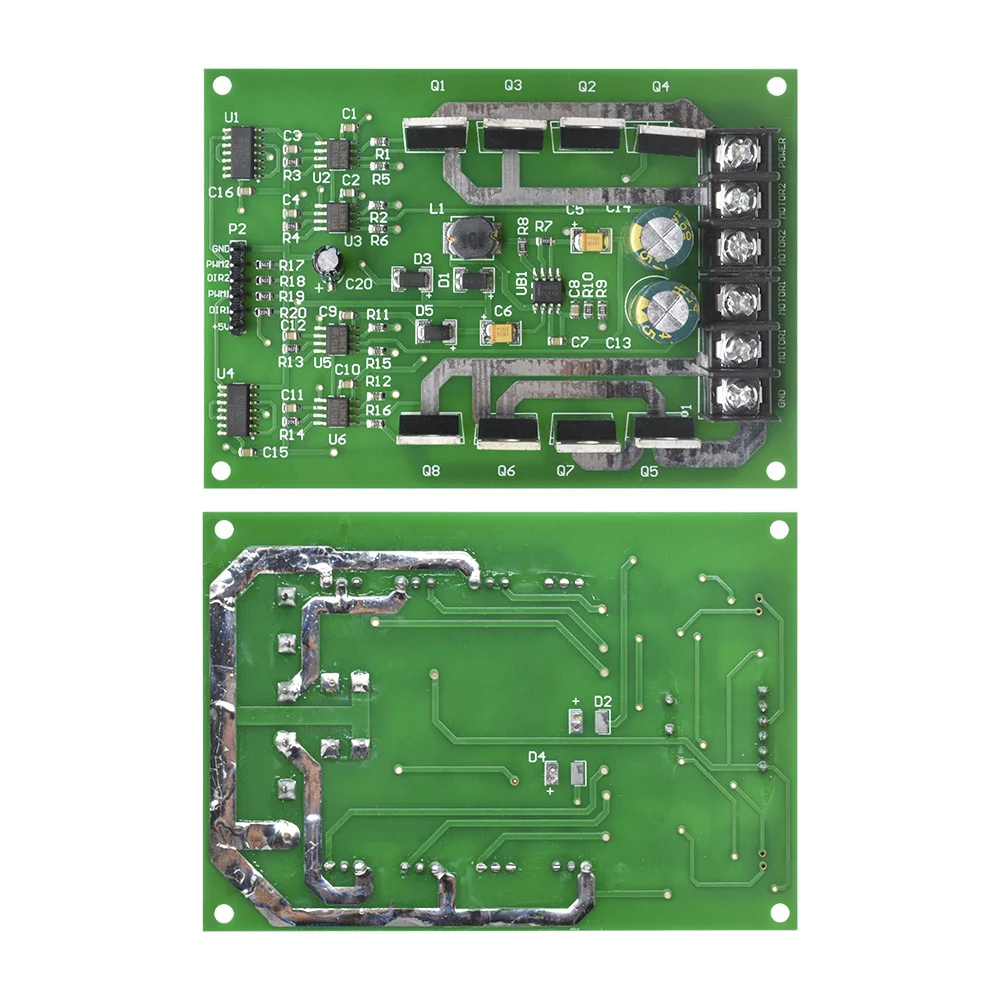

The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.
Complete two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization.
MOSFET driver chip comes with hardware brake function and power feedback.
This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problems
N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the bootstrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0% -99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
Feature：
Motor forward: DIR = 1 PWM = PWM
Motor reversal: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)

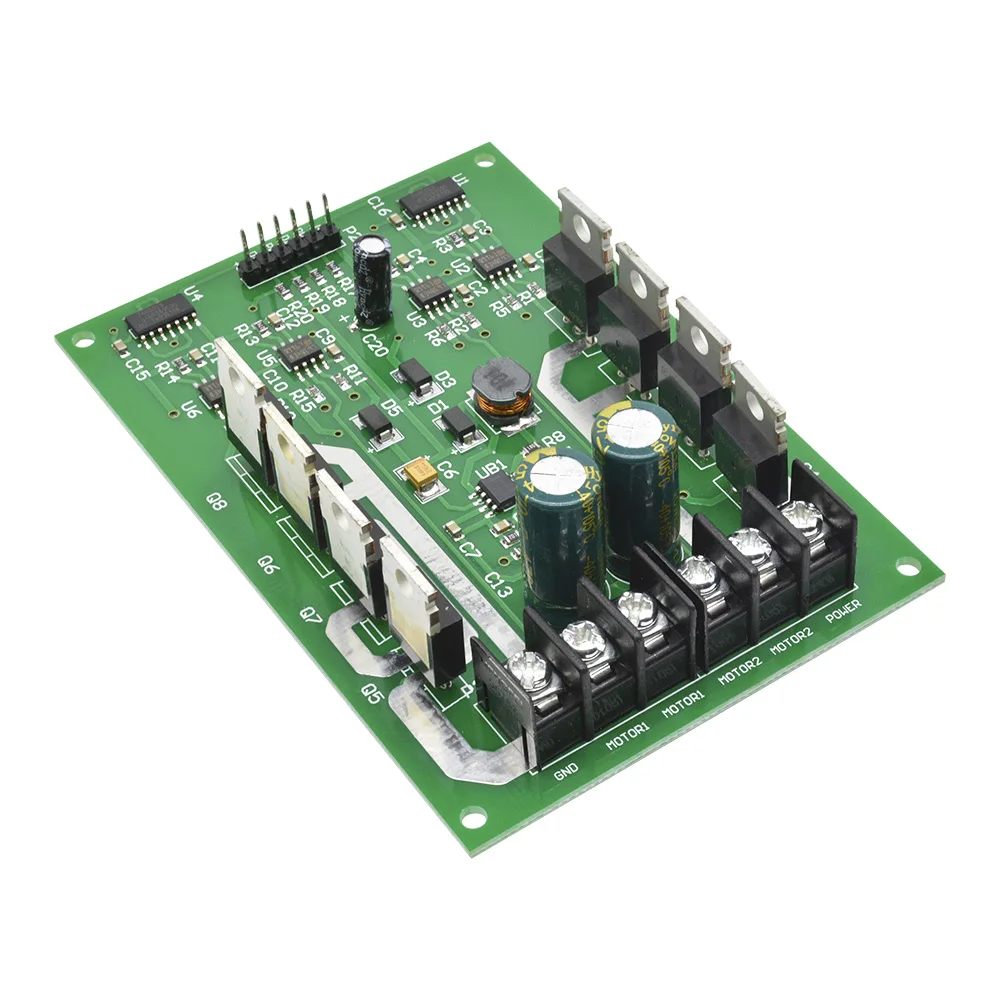

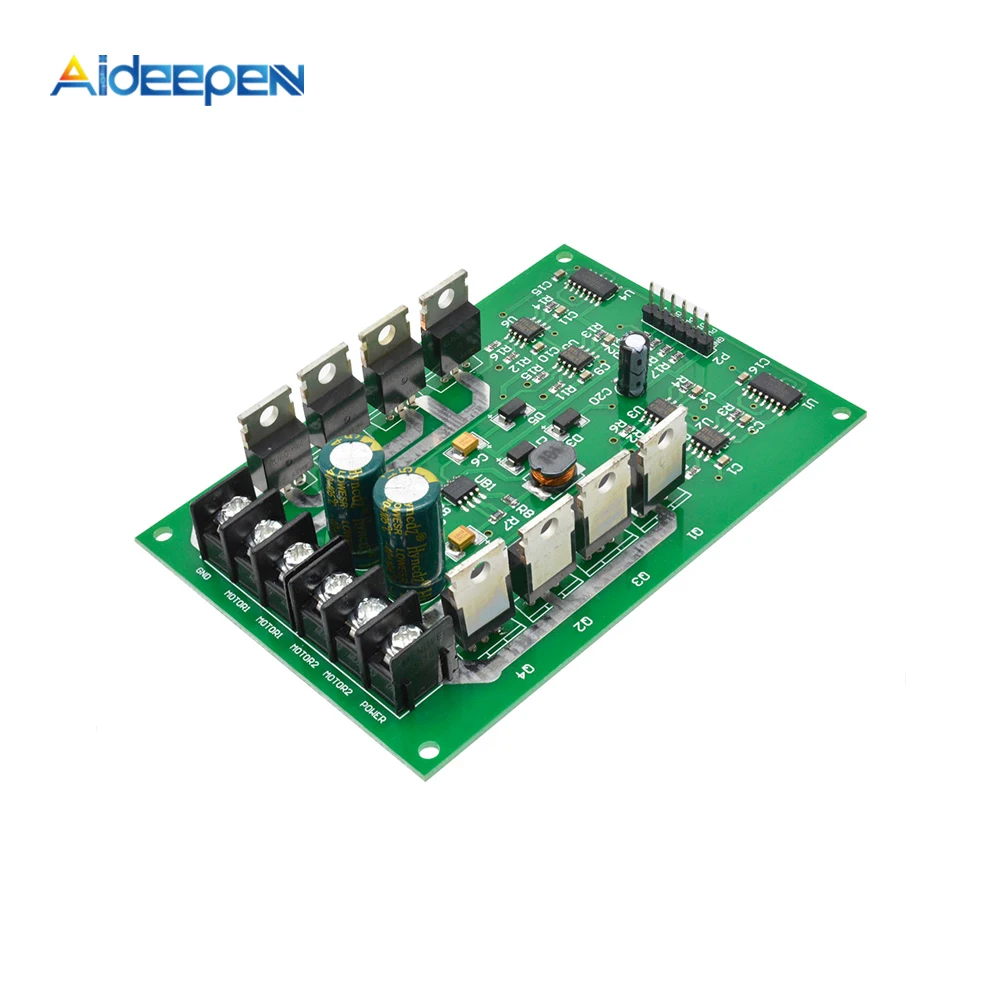

Motor and power connections
POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2
Parameter：
Rated voltage: 3v-36v (can be customized according to the user)
Rated Current: 15A
Peak current: 30A
Use: Freescale smart car contest Undergraduate Electronic Design Contest variety of DC motor control circuit
Dimensions: length 108mm, width 58mm
Notice :
Industry level of motherboard, does not provide circuit diagram, please forgive me.
Package Included:
1 x 3-36V Dual 15A H-Bridge DC Motor Driver 30A for Arduino Robot Car Compatible
The drive performance of these non-L298 motor driver chip can be compared, the driver focus on current and efficiency, effectively motor power and battery life.
Can withstand high current overload, the maximum current up to 30A.
This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature
The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.
Complete two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization.
MOSFET driver chip comes with hardware brake function and power feedback.
This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problems
N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the bootstrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0% -99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
Feature：
Motor forward: DIR = 1 PWM = PWM
Motor reversal: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)
Motor and power connections
POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2
Parameter：
Rated voltage: 3v-36v (can be customized according to the user)
Rated Current: 15A
Peak current: 30A
Use: Freescale smart car contest Undergraduate Electronic Design Contest variety of DC motor control circuit
Dimensions: length 108mm, width 58mm
Notice :
Industry level of motherboard, does not provide circuit diagram, please forgive me.
Package Included:
1 x 3-36V Dual 15A H-Bridge DC Motor Driver 30A for Arduino Robot Car Compatible
