Новый стиль кольцевой спиннинг производственная линия


Поделиться:


Цена:2 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 2380.15 $* 2499.54 $*
Aug-17-2025 2360.79 $* 2478.15 $*
Jul-17-2025 1980.38 $* 2079.59 $*
Jun-17-2025 2320.99 $* 2436.92 $*
May-17-2025 2020.12 $* 2121.42 $*
Apr-17-2025 2280.93 $* 2394.5 $*
Mar-17-2025 2260.75 $* 2373.38 $*
Feb-17-2025 2240.58 $* 2352.17 $*
Jan-17-2025 2220.81 $* 2331.12 $*

Характеристики



Product Description


CS628 high speed industrial two-for-one twisting machine is a Hi-Tech creature in our company. It features high spindle speed,
wide twisting range and low energy consumption, etc. meets developing requirements of textile industry.

1. Technical features of fiber two-for-one twisting machine:
* Controlled by microcomputer, parametric design, friendly man-machine interface, easy to operate.
* Each spindle independent control, independent winding and traversing device, each spindle has one motor, each winder has one
motor for winding one motor for traverse, wide application scope.
* Optimization design of spindle, the yield is higher, twisting quality is higher.
* Large capacity feeding, large capacity winding.
* Equipped with electronic yarn breakage detection device.
* Single spindle control, single spindle length counter, output statistics system.
* Suitable for yarns: Polypropylene, PA, Terylene, Arylon, BCF.
* Quantity of yarn for twisting: 1,2,3,4;
* Length of yarn per spindle for adjusting: each spindle can be different;
* Twist of yarn per: same twist for spindles in the same side;
* Suitable twist range: less than 150 twist/min.

2. Application of fiber two-for-one twisting machine:
l Filament yarn.
l Stretch yarn.
l Short fiber.
l Viscose.
l Aramid.
l BCF.
3. Technical specification of fiber two-for-one twisting machine:


No.
Item
Specification
1
Spindle gauge
700mm
2
Quantity of spindles
96-152 spindles
3
Spindle speed
10000r/min
4
Twist range
20-150t/meter
5
Speed of yarn
Max. 300m/min
6
Traverse
254mm
7
Usage scope
500D-4200D (Can be Customization: 11000D)
Note: It works when the twist range is higher than 150t/m, but low efficiency.


4. Layout drawing of two-for-one twisting machine:

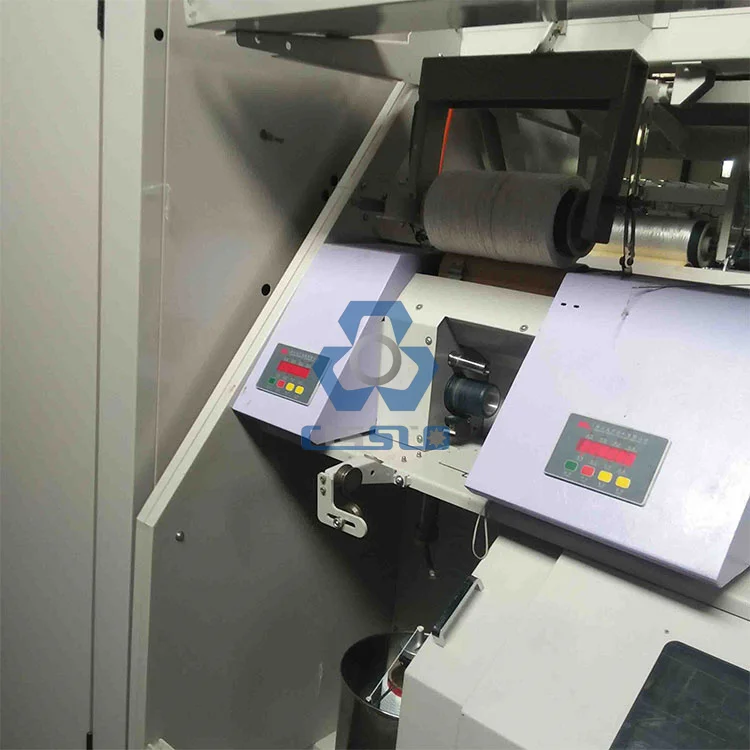

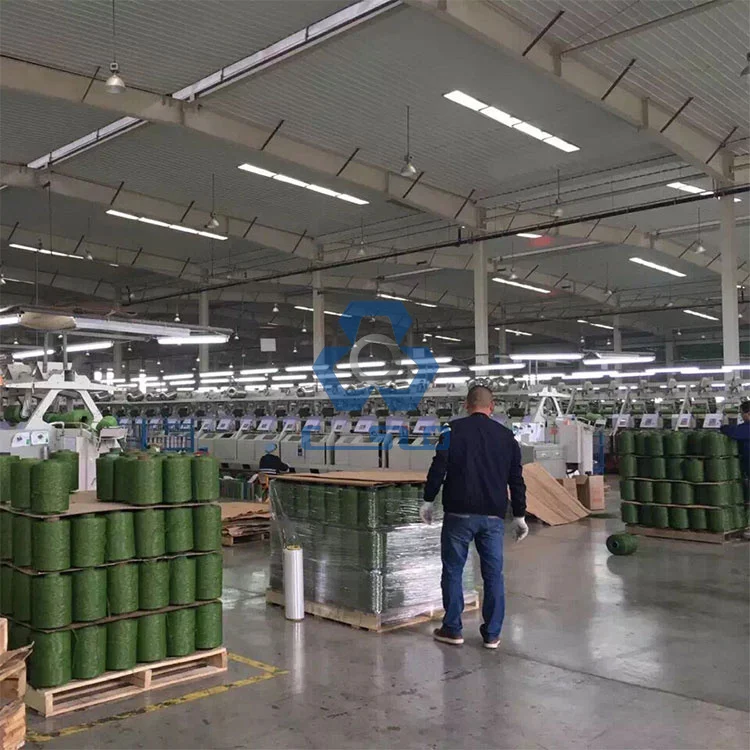

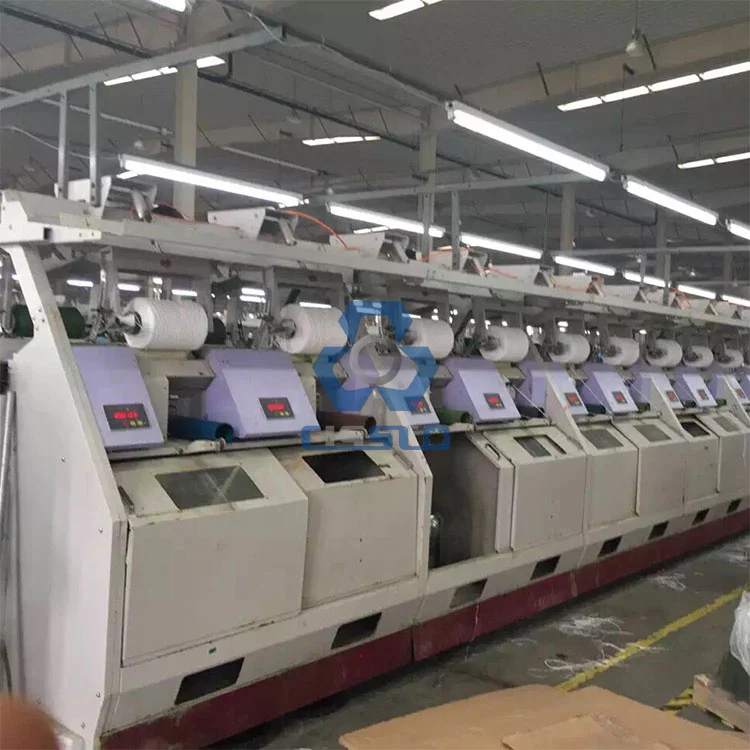

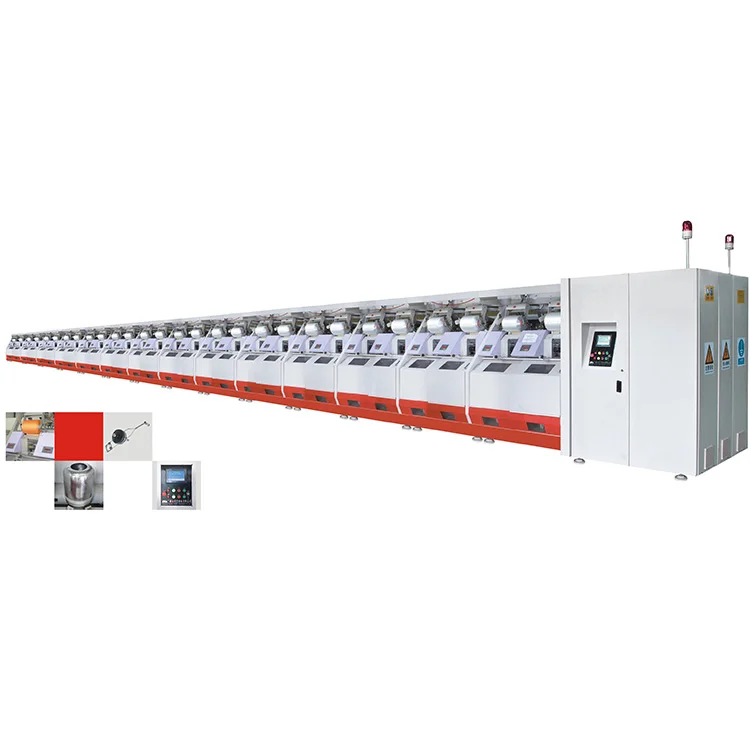

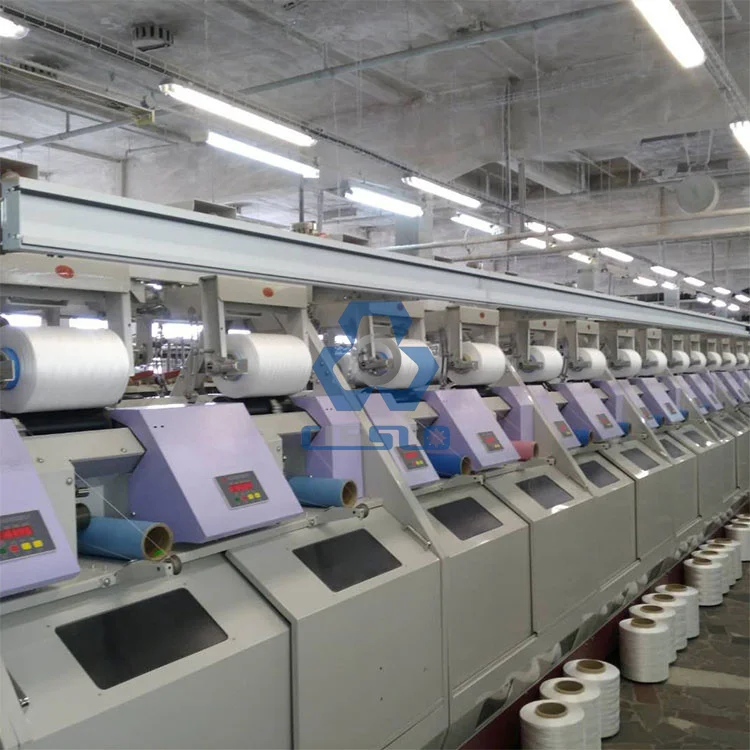

5. Pictures of two-for-one twisting machine:




Specification


item
value
Applicable Industries
Manufacturing Plant
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2019
Warranty of core components
1 Year
Core Components
PLC, Motor
Condition
New
Application
Twisting Yarn
Type
Twisting Machine
Production Capacity
99.9%
Place of Origin
China
Shanghai
Brand Name
Tyre cord twisting machine
Spinning Method
Ring Spinning
Automatic
Yes
Dimension(L*W*H)
1.45*nx1.58x2.0m
Weight
1000KG
Power
100 KW
Warranty
1 Year
Tyre cord twisting machine
Tyre cord twisting machine
After Warranty Service
Online support
After-sales Service Provided
Online support
Certification
CE ISO


Packing & Delivery




Company Profile




CissCo Machinery Co., Ltd. is a fast forward professional supplier of complete plastic TURN-KEY equipment and systems for the production of pipes, profiles, sheets and films. The main products including YARN CABLE MACHINE ,YARN TWO FOR ONE TWISTING MACHINE,PP PET STRAPPING BAND MAKING MACHNE, TAPE COATING MACHINE, PET PP FIBER MAKING MACHINE, DRIP IRRIGATION PIPE MAKING MACHINE, and series of plastic pipes, sheets, profiles and films production lines, strapping machines, extruder screw and barrel and etc.

We have our combined factory located in Jiangsu and Shandong. At CissCo Machinery Co., Ltd., we design, engineer and manufacture customized extrusion lines. There is a proven CissCo Technology for virtually every extrusion line application. Our extensive knowledge of the industry - raw materials, processes and finished products, provides reliability, cost optimization and on-time delivery which are the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.

To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals.

CissCo always puts the customer's benefit in the first priority, because we believe that customer's success is our success. Commitment to excellence and create for quality machinery is our company's pursuit. Our machinery have been well accepted by the customers all over the world and we have exported our machinery to USA, Australia, Mexico, Russia, Urkaine, South Africa, Egypt, Turkey, New Zealand, India, Kuwait, Maylasia and other countries.


FAQ


1. What kind of raw material? PP, PA, PET yarn ?
2. Size of yarn? Danier range ?
3. Twisting range? Twist/meter ?
4. Application of yarn? Sewing thread, carpet, tire cord, rope, etc.
5. Capacity requirement?


Contact Me


l Contactor: Mr. Rock Li
l Cellphone/Whatsapp: +86 189 1818 9632
l Email: market@cisscomachine.com
l WeChat: +86 131 1055 7725
l Web: www.cisscomachinery.com
l Add: No. 58, New Jinqiao Road, Pudong, Shanghai, China
