Автоматическая стиральная машина открытой ширины для простыней
- Категория: Textile Finishing Machines >>>
- Поставщик: Ldc.International,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 190400.14 $* | 199920.85 $* |
| Aug-17-2025 | 188800.58 $* | 198240.72 $* |
| Jul-17-2025 | 158400.71 $* | 166320.24 $* |
| Jun-17-2025 | 185600.57 $* | 194880.58 $* |
| May-17-2025 | 161600.42 $* | 169680.77 $* |
| Apr-17-2025 | 182400.42 $* | 191520.77 $* |
| Mar-17-2025 | 180800.55 $* | 189840.68 $* |
| Feb-17-2025 | 179200.76 $* | 188160.40 $* |
| Jan-17-2025 | 177600.13 $* | 186480.86 $* |
Характеристики
Products Description
Main technical specifications
Main technical specifications
1. nominal width: 1800-3200mm.
2. Vehicle type: facing the feeding drive is on the left/right side.
3. mechanical speed: 15-80m/min.
4. process speed: 15-70m/min.
5. electrical transmission: AC motor frequency control, Mitsubishi inverter.
6. plum drum diameter: φ 336mm; Length of cloth: 3m.
7. washing temperature: 70-800C, according to the process requirements adjustment.
8. motor power: 5.5KW AC motor.
9. rotating speed: 302 RPM /min.
10. the washing machine is equipped with a direct heating structure, so that the fabric in the tank can be washed at the appropriate temperature.
The machine features
The guide roller is made of seamless steel tube covered with stainless steel plate, with good tensile strength and no wrinkles.
The diameter of the guide roller in the steam washing box is φ150mm, and the diameter of the transition guide roller is φ125mm.
The back-flow pipe of the steam washing box is stainless steel open square pipe, and the insert plate should be added to meet the technological requirements and facilitate maintenance and cleaning.
Stainless steel diamond mesh inserts are installed at the inlet of the drainage outlet of the steam washing box to prevent bamboo clips from blocking the drainage pipe.
Pneumatic elastic frame to adjust the tension, ensure that the fabric running without wrinkles, smooth operation.
Set no pump back pressure trap single column drying cylinder to drain water, and the condensation water discharged by drying recycled.
1. nominal width: 1800-3200mm.
2. Vehicle type: facing the feeding drive is on the left/right side.
3. mechanical speed: 15-80m/min.
4. process speed: 15-70m/min.
5. electrical transmission: AC motor frequency control, Mitsubishi inverter.
6. plum drum diameter: φ 336mm; Length of cloth: 3m.
7. washing temperature: 70-800C, according to the process requirements adjustment.
8. motor power: 5.5KW AC motor.
9. rotating speed: 302 RPM /min.
10. the washing machine is equipped with a direct heating structure, so that the fabric in the tank can be washed at the appropriate temperature.
The machine features
The guide roller is made of seamless steel tube covered with stainless steel plate, with good tensile strength and no wrinkles.
The diameter of the guide roller in the steam washing box is φ150mm, and the diameter of the transition guide roller is φ125mm.
The back-flow pipe of the steam washing box is stainless steel open square pipe, and the insert plate should be added to meet the technological requirements and facilitate maintenance and cleaning.
Stainless steel diamond mesh inserts are installed at the inlet of the drainage outlet of the steam washing box to prevent bamboo clips from blocking the drainage pipe.
Pneumatic elastic frame to adjust the tension, ensure that the fabric running without wrinkles, smooth operation.
Set no pump back pressure trap single column drying cylinder to drain water, and the condensation water discharged by drying recycled.
Product parameters
nominal width | 1800-3200mm | ||||||
Vehicle type | facing the feeding drive is on the left/right side | ||||||
mechanical speed | 15-80m/min | ||||||
process speed | 15-70m/min | ||||||
electrical transmission | AC motor frequency control, Mitsubishi inverter. | ||||||

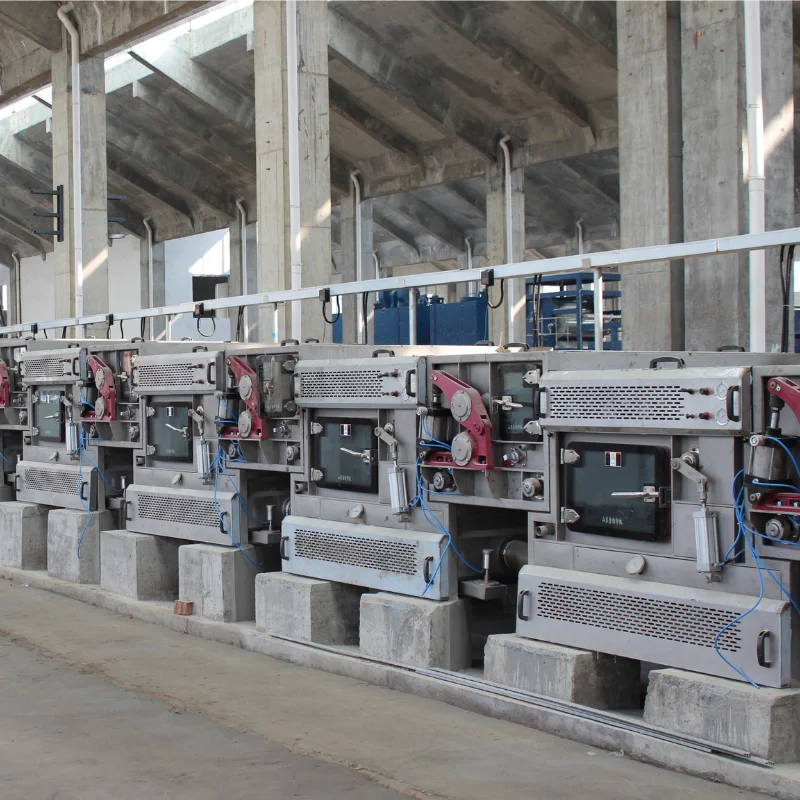

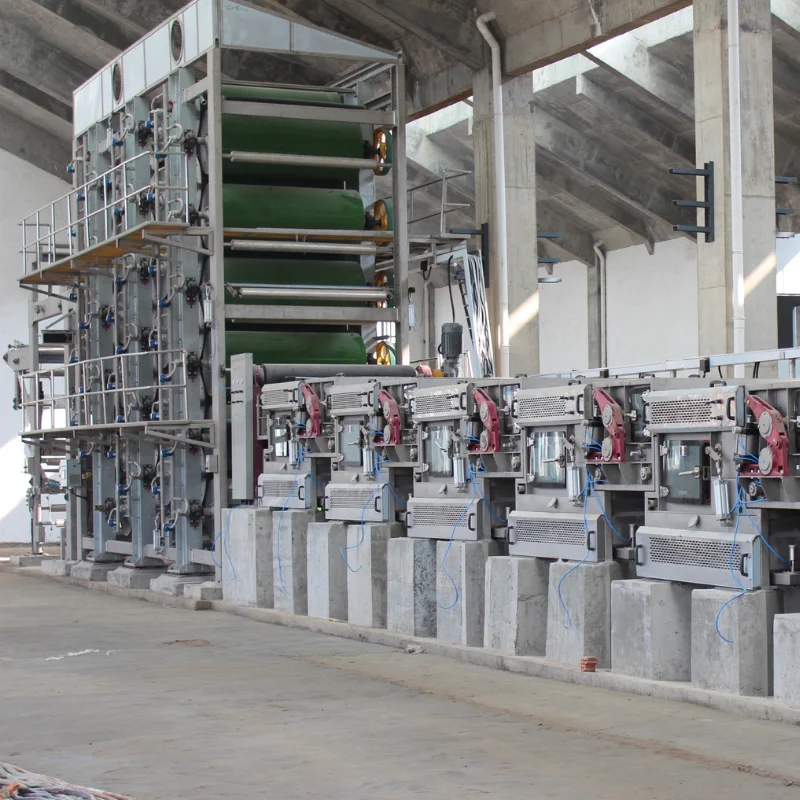

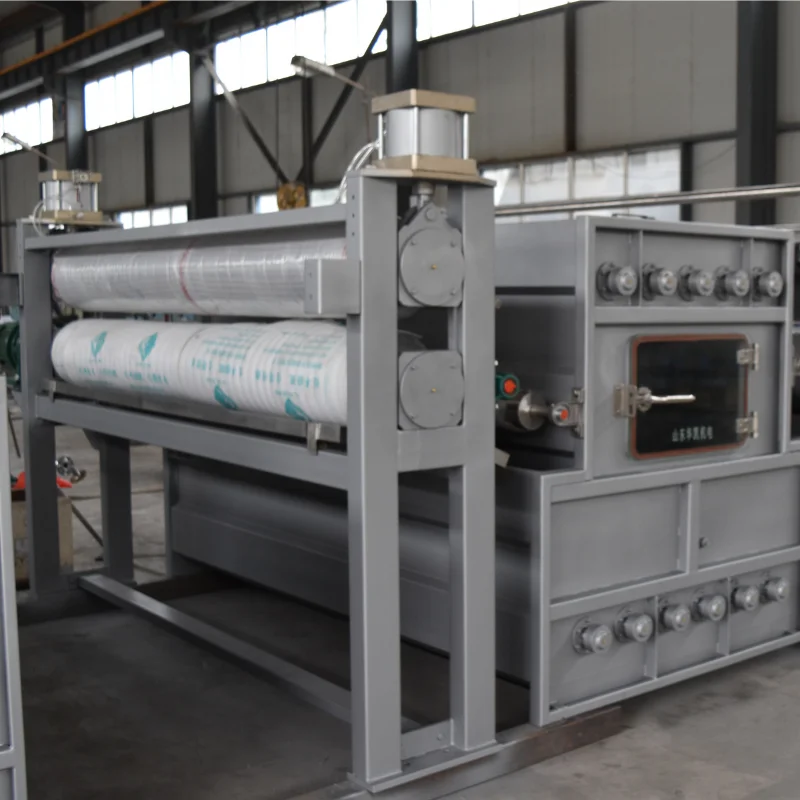

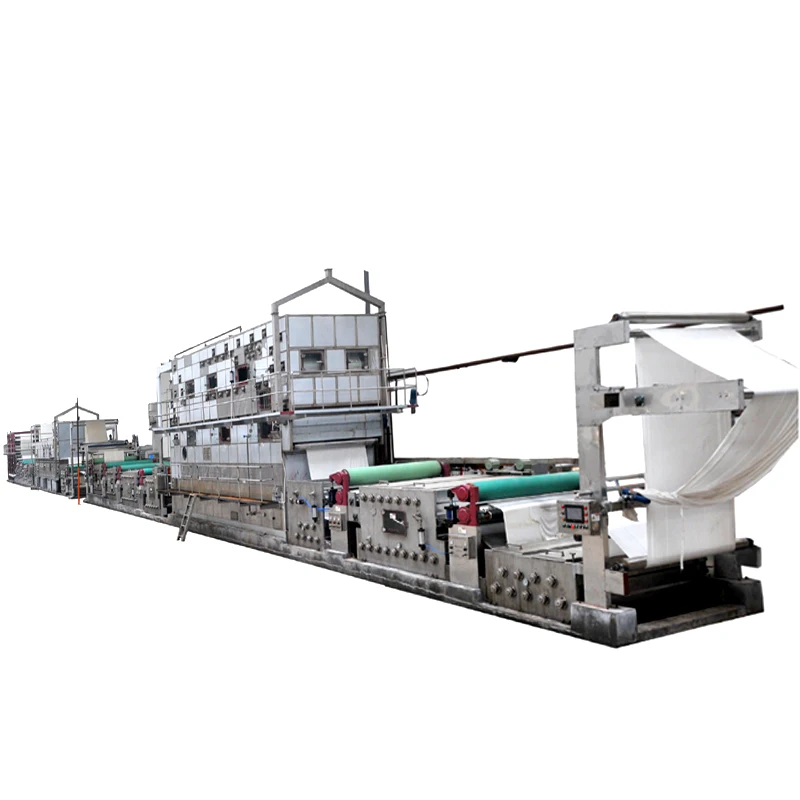

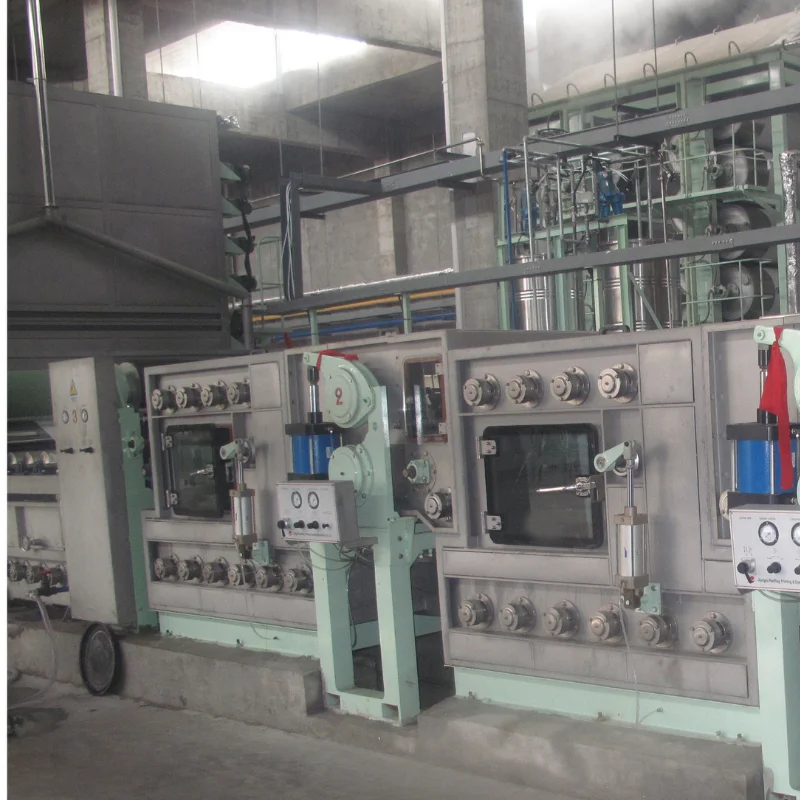

Product Images
