ПЭ ПП гранулирующая машина пластиковая для изготовления пластиковых гранул
- Категория: Plastic Granulators >>>
- Поставщик: Zhangjiagang,Horserider,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 46410.23 $* | 48731.20 $* |
| Aug-20-2025 | 46020.64 $* | 48321.87 $* |
| Jul-20-2025 | 38610.33 $* | 40541.4 $* |
| Jun-20-2025 | 45240.2 $* | 47502.58 $* |
| May-20-2025 | 39390.40 $* | 41360.53 $* |
| Apr-20-2025 | 44460.65 $* | 46683.46 $* |
| Mar-20-2025 | 44070.80 $* | 46274.83 $* |
| Feb-20-2025 | 43680.82 $* | 45864.10 $* |
| Jan-20-2025 | 43290.35 $* | 45455.58 $* |
Характеристики
Product Description

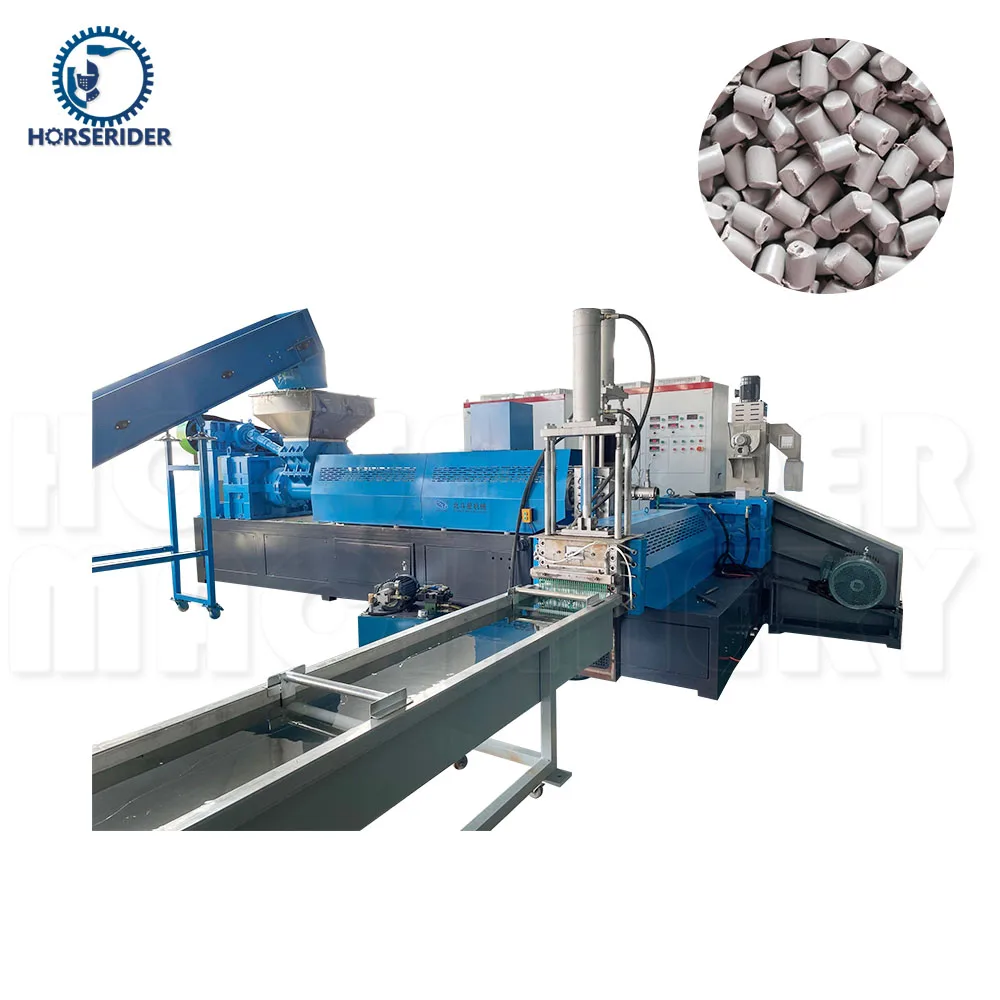

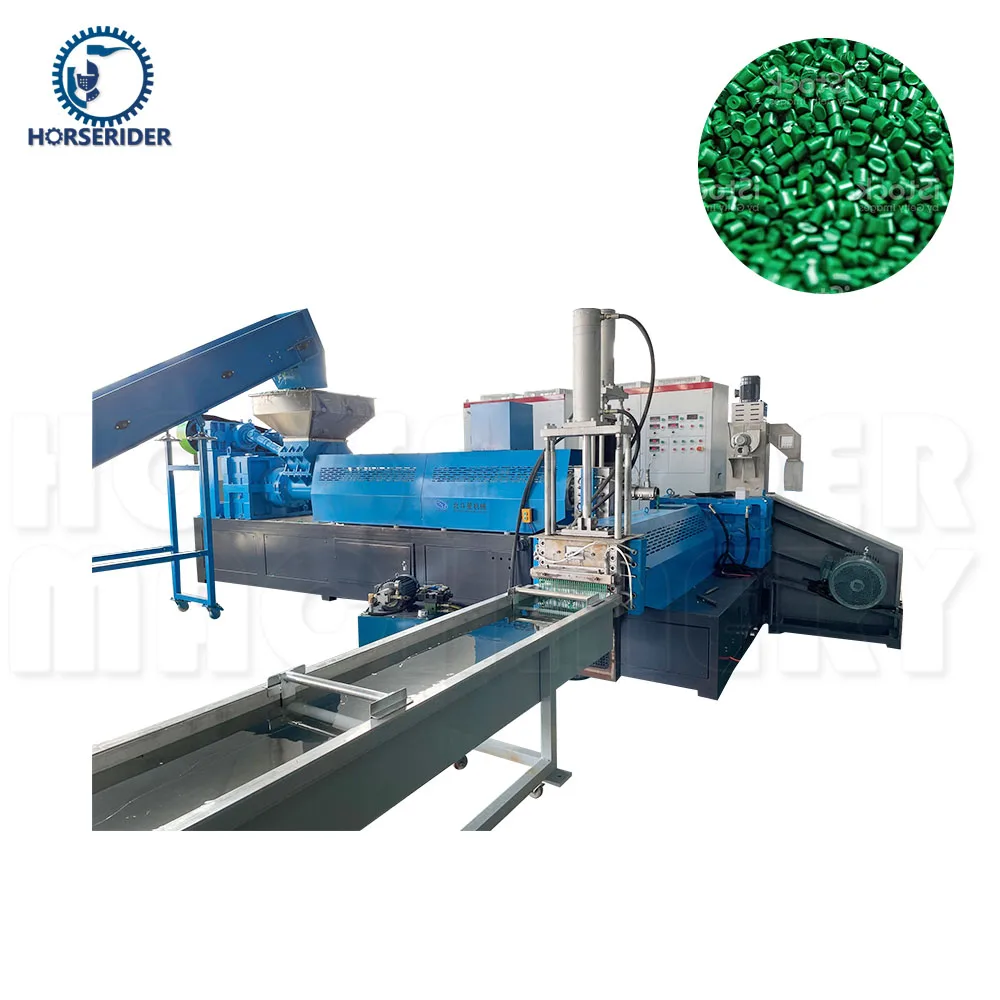

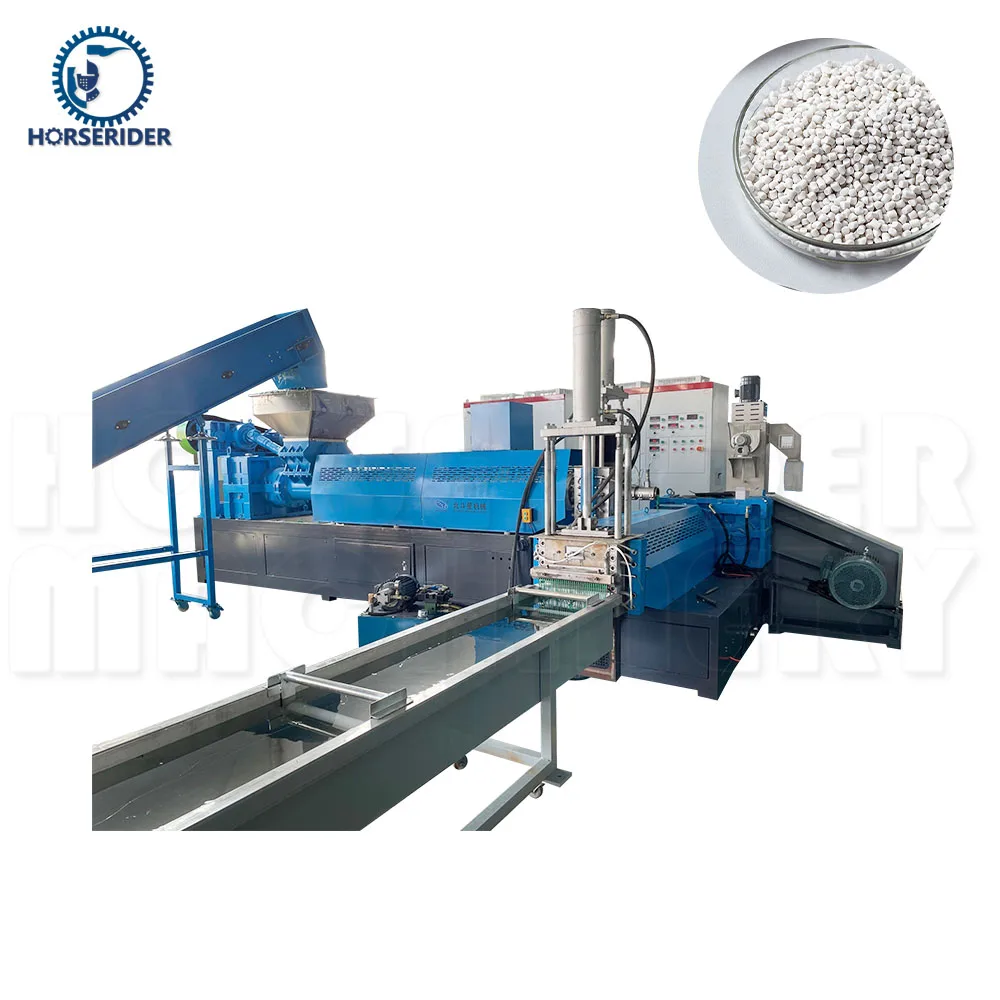

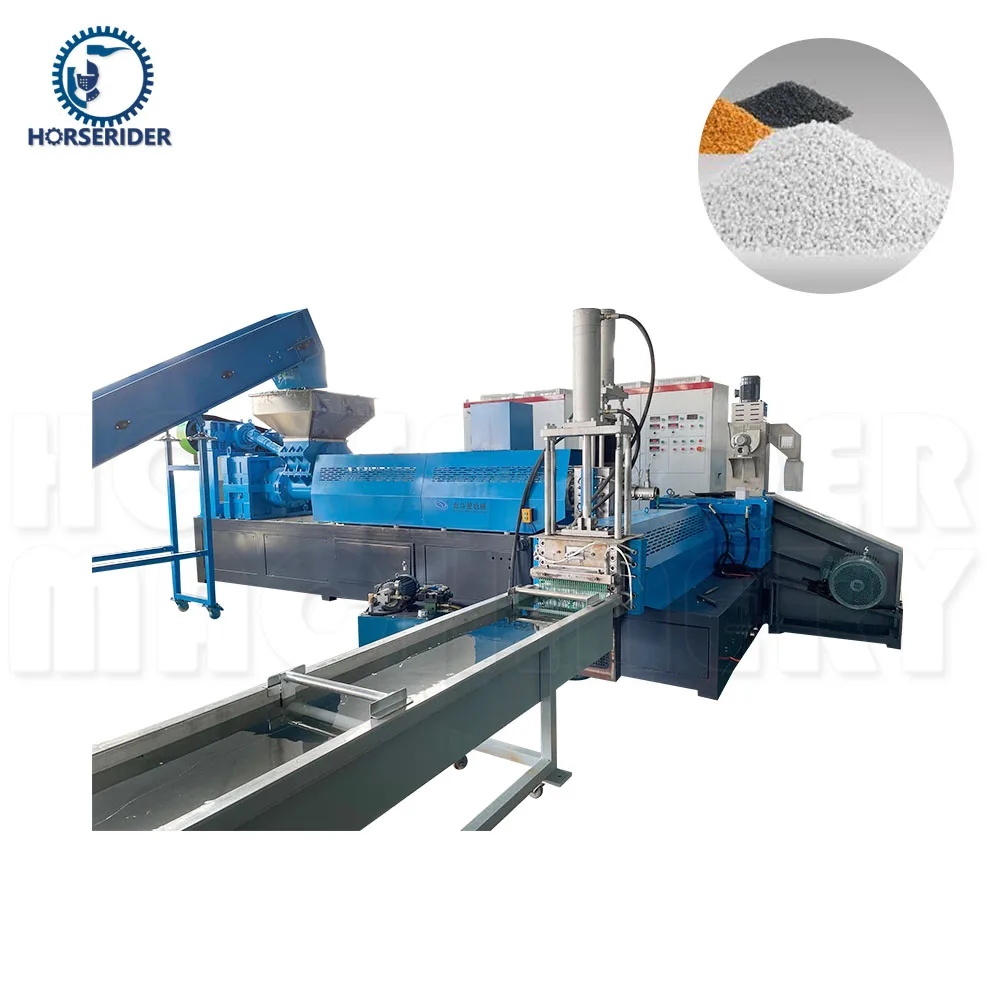

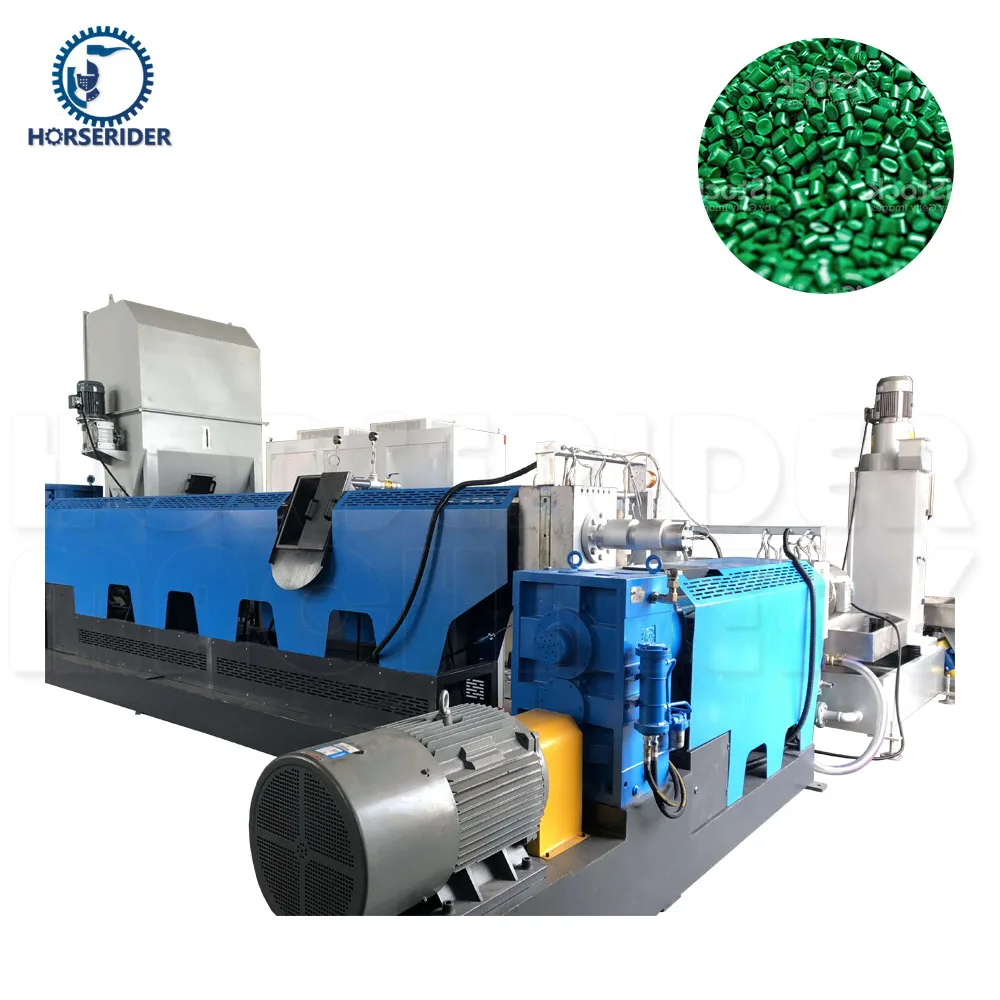

wet film or woven bags pelletizing line:
1. Material: different type of PE film ,which can process PE film /PP woven bag withmoisture below 25%
2. Capacity: 500kg/hour
3. Total install power: around 330kw, when machine run stable, the extruder and mold just need keeping temperature, no need heating again, so the actual power consumption 70-80% less.
4. Voltage:380V/3phase/50HZ
5. Workshop Dimension: 15m (length)×5m(width)×3m(height)
6. Water consumption: around 5m3/hour (it can be recycled by water chiller)
7. Air consumption: no need
8. Temperature environment: ≤40℃ 9. Manpower: 1-2 people
The flow chart as following:
Belt Conveyor→ Force feeder→ SJ200 Single screw extruding machine→ High speed Net exchanging system with its die-heads→ SJ180 Single screw extruding machine→ High speed Net exchanging system with its die-heads→water cooling bath→ Air dryer→ cutting machine→ vibrator sieve →Air Blower → Silo
Specification
Model | Screw diameter (mm) | First stage extruder (kw) | second stage extruder (kw) | capacity (kg/h) |
SJ200 | 200 | 75 | 37 | 400 |
SJ220 | 220 | 90 | 37 | 450-500 |
SJ250 | 250 | 110 | 45 | 500-550 |
SJ260 | 260 | 132 | 45 | 550-600 |
Detailed Images
